Mitsubishi Galant (2004+). Manual - part 1476

RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-147

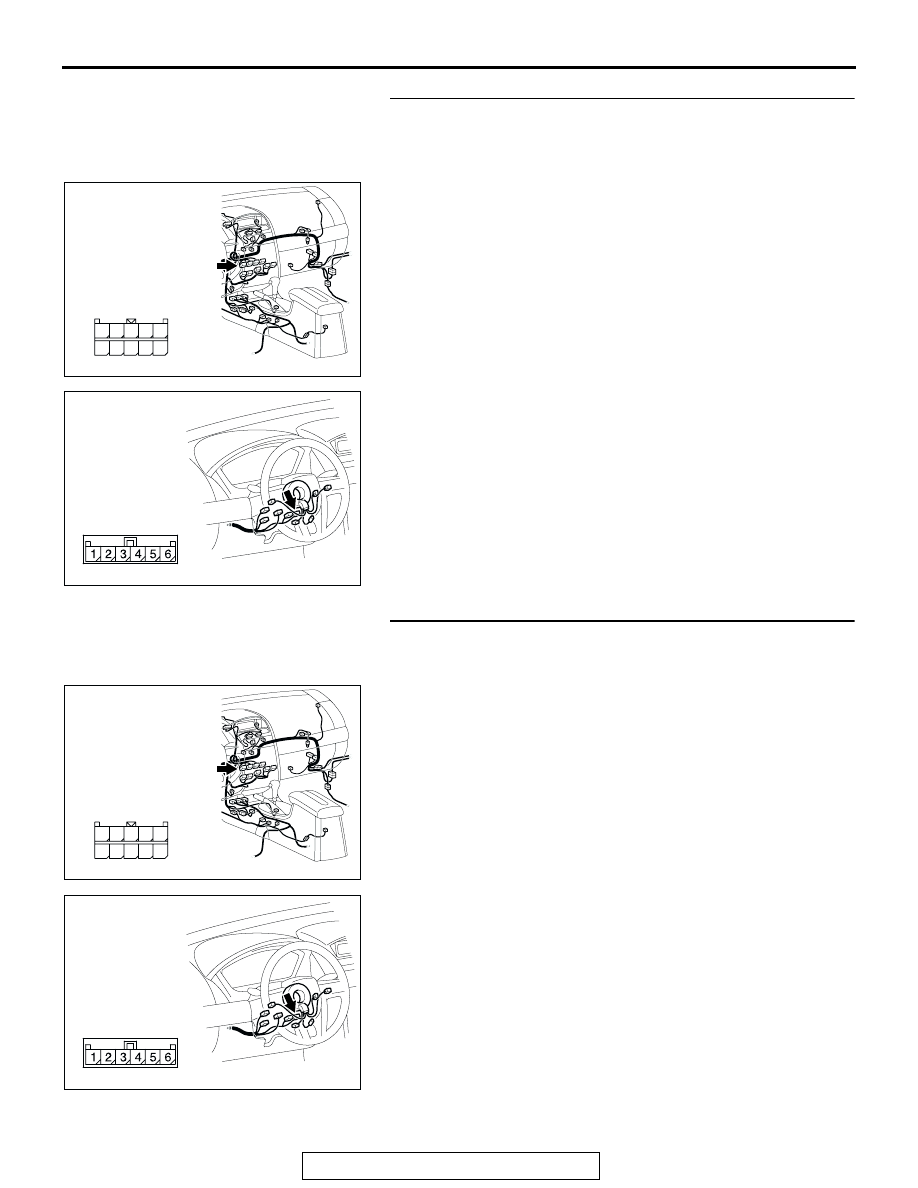

STEP 2. Check radio, CD player and CD changer connector
C-117 and clock spring connector C-306 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are radio, CD player and CD changer connector C-117

and clock spring connector C-306 in good condition?
YES : Go to Step 3.
NO :  Repair or replace the damaged component(s). Refer

to GROUP 00E, Harness Connector Inspection

P.00E-2

. The remote controlled radio switch should

work normally.

STEP 3. Check the wiring harness between radio, CD
player and CD changer connector C-117 (terminal 50) and
clock spring connector C-306 (terminal 2).
Q: Is the wiring harness between radio, CD player and CD

changer connector C-117 (terminal 50) and clock spring
connector C-306 (terminal 2) in good condition?
YES : Go to Step 4.
NO :  Repair the wiring harness. The remote controlled

radio switch should work normally.

AC305233

HARNESS SIDE

CA

CONNECTOR: C-117

41

42

43

44

45

46

47

48

49

50

AC305235AH

CONNECTOR: C-306

AC305233

HARNESS SIDE

CA

CONNECTOR: C-117

41

42

43

44

45

46

47

48

49

50

AC305235AH

CONNECTOR: C-306

RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-148

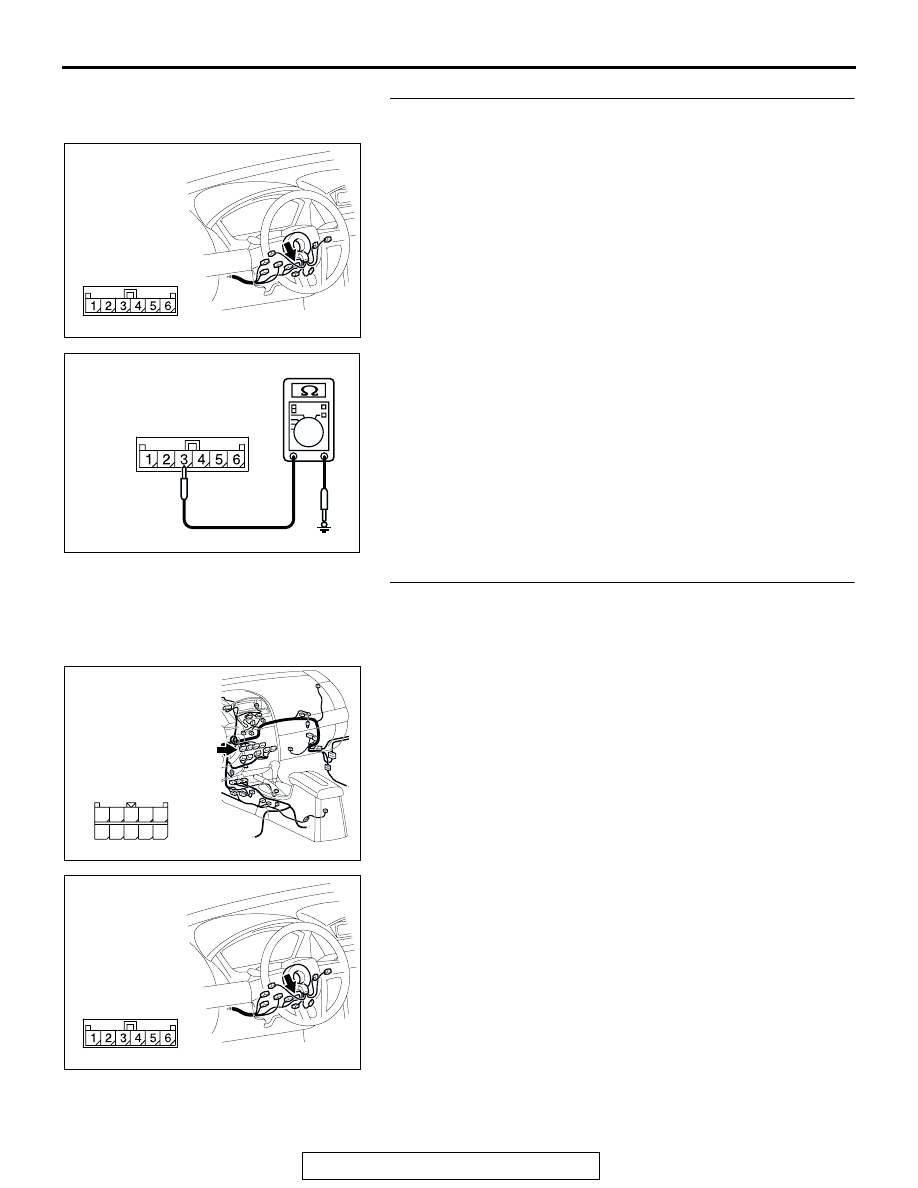

STEP 4. Measure the resistance at remote controlled radio
switch ground circuit to the clock spring connector C-306.
(1) Disconnect the clock spring connector C-306.

(2) Measure resistance between terminal 3 and ground.

• The measured value should be 2 ohm or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 7.
NO :  Go to Step 5.

STEP 5. Check radio, CD player and CD changer connector
C-117 and clock spring connector C-306 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.
Q: Are radio, CD player and CD changer connector C-117

and clock spring connector C-306 in good condition?
YES : Go to Step 6.
NO :  Repair or replace the component(s). Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. The

remote controlled radio switch should work normally.

AC305235AH

CONNECTOR: C-306

AC209364

CONNECTOR C-306

JT

AC305233

HARNESS SIDE

CA

CONNECTOR: C-117

41

42

43

44

45

46

47

48

49

50

AC305235AH

CONNECTOR: C-306

RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-149

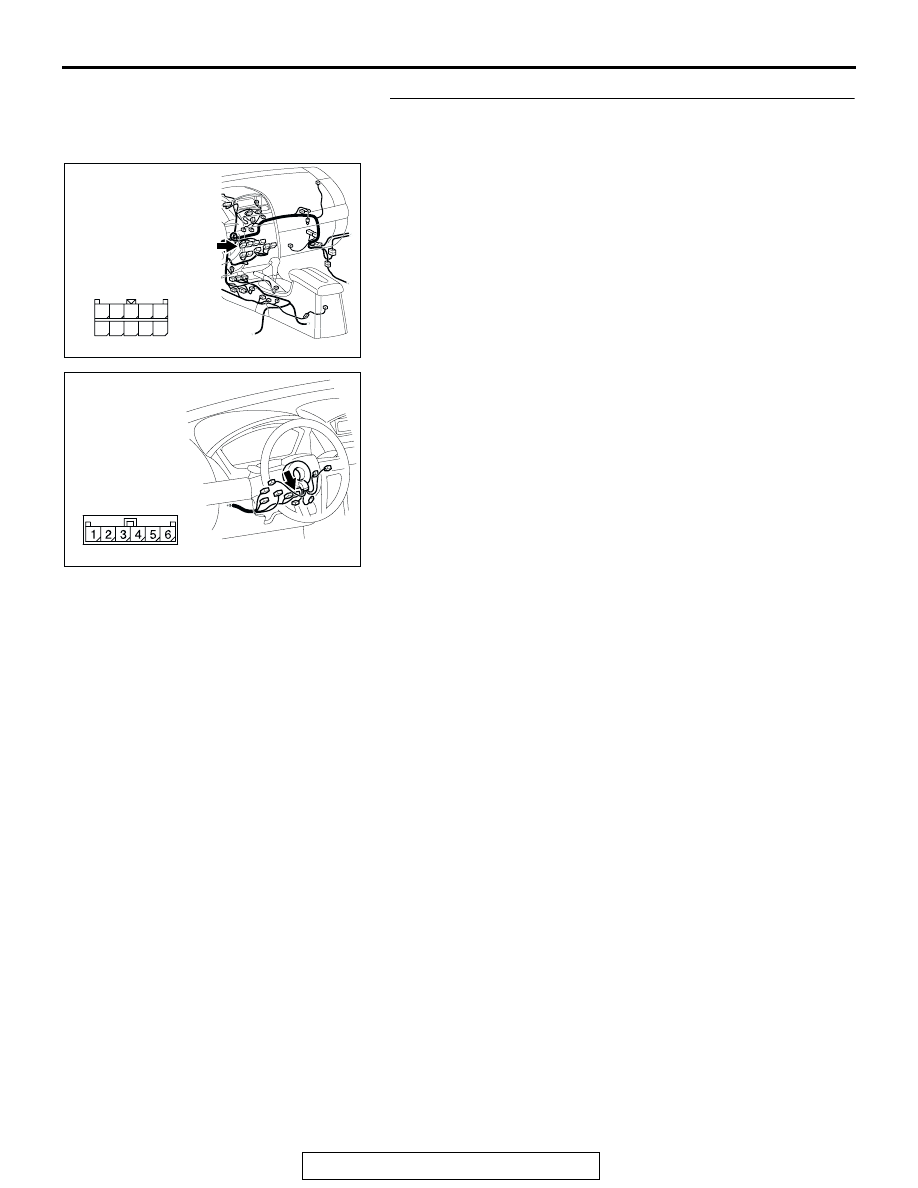

STEP 6. Check the wiring harness between radio, CD
player and CD changer connector C-117 (terminal 45) and
clock spring connector C-306 (terminal 3).
Q: Is the wiring harness between radio, CD player and CD

changer connector C-117 (terminal 45) and clock spring
connector C-306 (terminal 3) in good condition?
YES : Go to Step 7.
NO :  Repair the wiring harness. The remote controlled

radio switch should work normally.

AC305233

HARNESS SIDE

CA

CONNECTOR: C-117

41

42

43

44

45

46

47

48

49

50

AC305235AH

CONNECTOR: C-306

RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-150

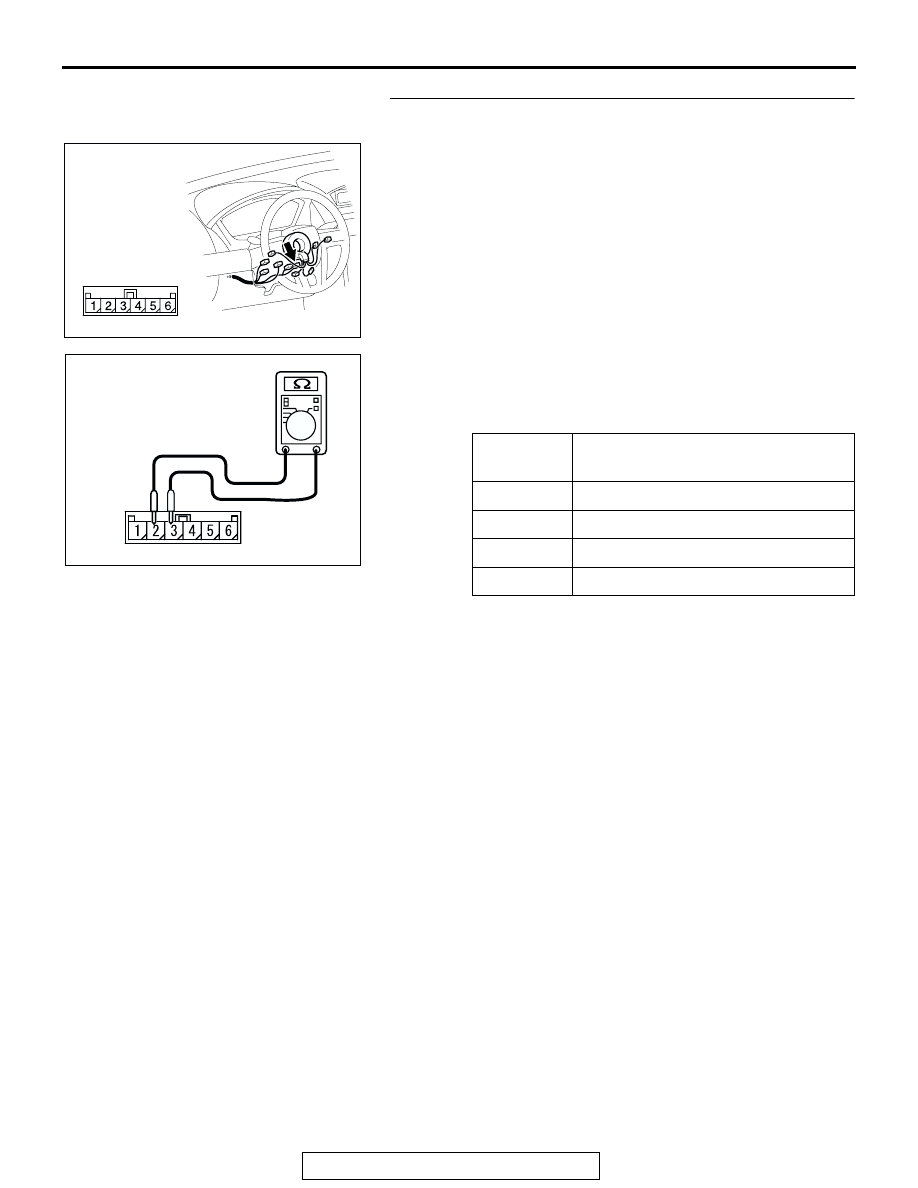

STEP 7. Measure the resistance between the clock spring
connector C-306 terminals.
(1) Disconnect the clock spring connector C-306.

(2) Measure the resistance between clock spring connector

C-306 (clock spring side) terminals 2 and 3. Operate the
right and left remote controlled radio switches, and check
that the table below is satisfied.

NOTE: When checking the right remote controlled radio
switch, do not operate the left remote controlled radio
switch.

Q: Is the resistance between terminals 2 and 3 normal?

YES : This malfunction is intermittent. Refer to GROUP 00,

How to Use Troubleshooting/Inspection Service
Points-How to Cope with Intermittent Malfunction

P.00-6

.

NO :  Go to Step 8.

SWITCH
POSITION

MEASUREMENT VALUE (RH SIDE
SWITCH)

No push

Approximately 24.0 k

Ω

Upper

Approximately 5.3 k

Ω

Center

Less than 2 ohms

Lower

Approximately 9.2 k

Ω

AC305235AH

CONNECTOR: C-306

AC210080

CONNECTOR C-306

AC
