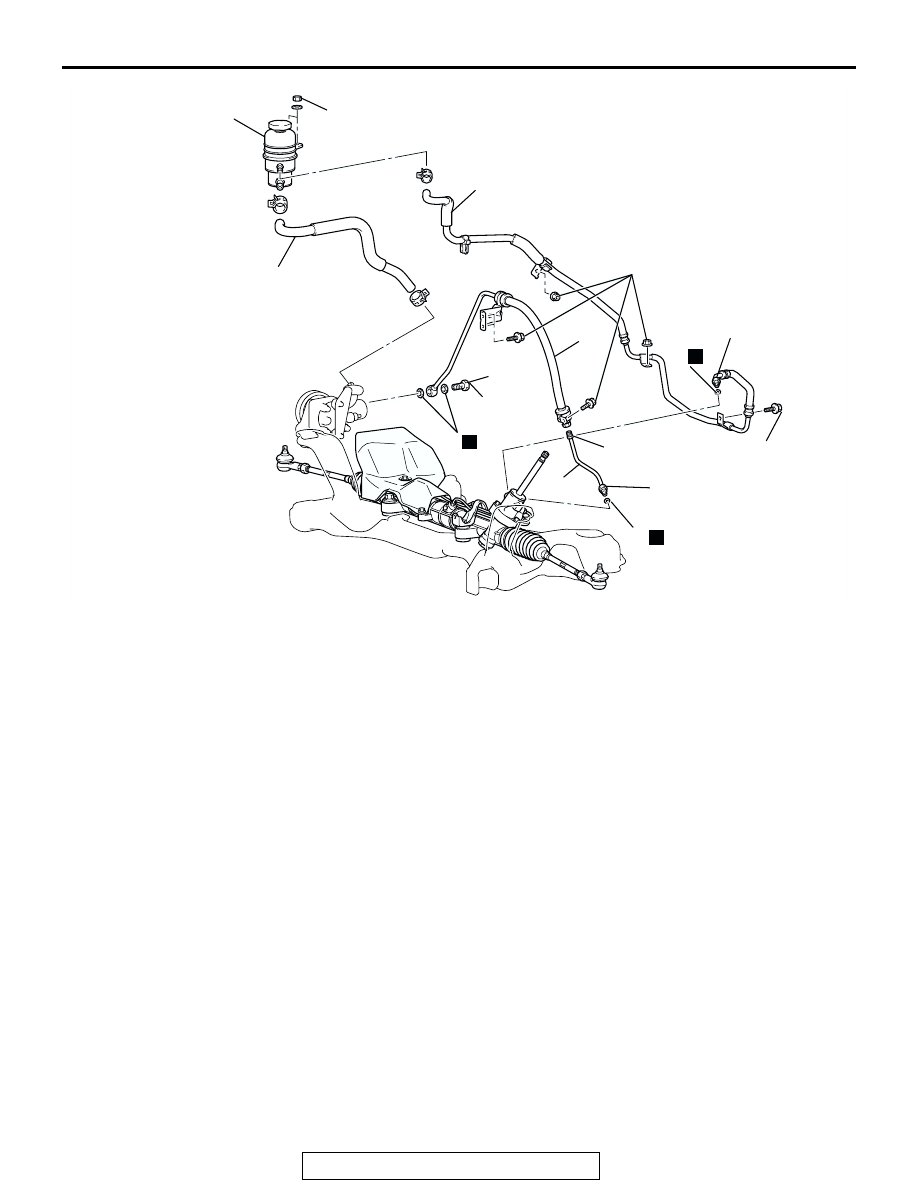

POWER STEERING HOSES

TSB Revision

POWER STEERING

37A-57

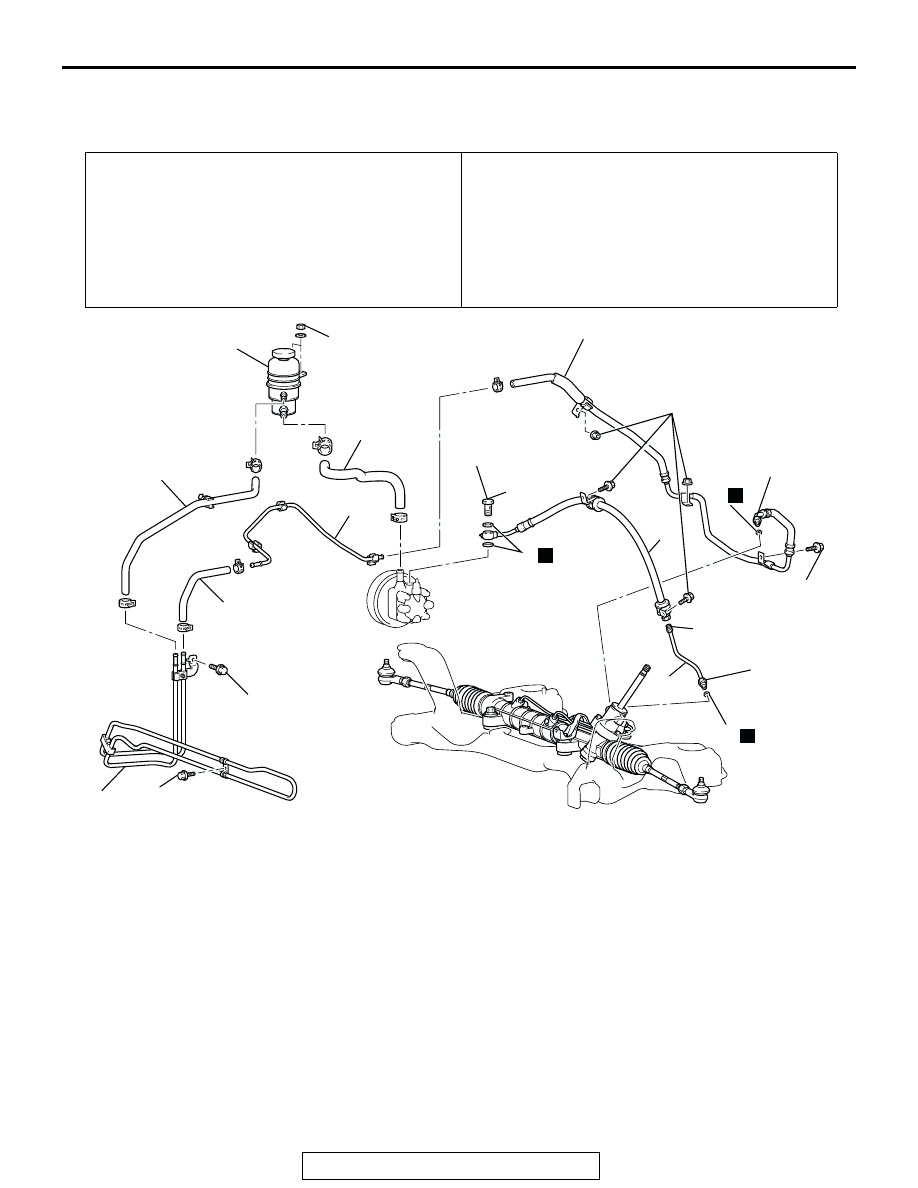

POWER STEERING HOSES

REMOVAL AND INSTALLATION

M1372005700431

Pre-removal Operation
• Side Under Cover (RH) Removal (Refer to GROUP 51,

Under Cover

P.51-11

).

• Power Steering Fluid Draining (Refer to

P.37A-21

).

• Front Bumper Removal (Refer to

P.51-2

). <2.4L

ENGINE>

• Radiator Grille Removal (Refer to

P.51-5

). <2.4L

ENGINE>

Post-installation Operation
• Radiator Grille Installation (Refer to

P.51-5

). <2.4L

ENGINE>

• Front Bumper Installation (Refer to

P.51-2

). <2.4L

ENGINE>

• Power Steering Fluid Supplying and Bleeding (Refer to

P.37A-22

).

• Side Under Cover (RH) Installation (Refer to GROUP 51,

Under Cover

P.51-11

).

AC307221

12 ± 2 N·m
102 ± 22 in-lb

1

3

2

5

12 ± 2 N·m
102 ± 22 in-lb

7

4

12 ± 2 N·m
102 ± 22 in-lb

13

15 ± 3 N·m
11 ± 2 ft-lb

10

11

12

N

12 ± 2 N·m
102 ± 22 in-lb

15 ± 3 N·m
11 ± 2 ft-lb

N

6

34 ± 5 N·m
25 ± 4 ft-lb

12 ± 2 N·m
102 ± 22 in-lb

57 ± 7 N·m
42 ± 5 ft-lb

8

9

N

AB

<2.4 L ENGINE>

POWER STEERING HOSES

TSB Revision

POWER STEERING

37A-58

AC307222

12 ± 2 N·m
102 ± 22 in-lb

1

2

57 ± 7 N·m
42 ± 5 ft-lb

8

9

N

5

15 ± 3 N·m
11 ± 2 ft-lb

10

11

12

N

12 ± 2 N·m
102 ± 22 in-lb

15 ± 3 N·m
11 ± 2 ft-lb

N

6

34 ± 5 N·m
25 ± 4 ft-lb

12 ± 2 N·m
102 ± 22 in-lb

AC

<3.8 L ENGINE>

REMOVAL STEPS

1.

OIL RESERVOIR

>>F<<

2.

SUCTION HOSE

>>E<<

3.

RETURN HOSE (M)

>>D<<

4.

RETURN HOSE (R)

>>C<<

5.

RETURN TUBE ASSEMBLY

6.

O-RING

>>B<<

7.

RETURN TUBE (R)

8.

EYE BOLT

9.

GASKET

>>A<<

10.

PRESSURE HOSE

>>A<<

11.

PRESSURE TUBE ASSEMBLY

12.

O-RING

13.

COOLER TUBE ASSEMBLY

REMOVAL STEPS (Continued)

POWER STEERING HOSES

TSB Revision

POWER STEERING

37A-59

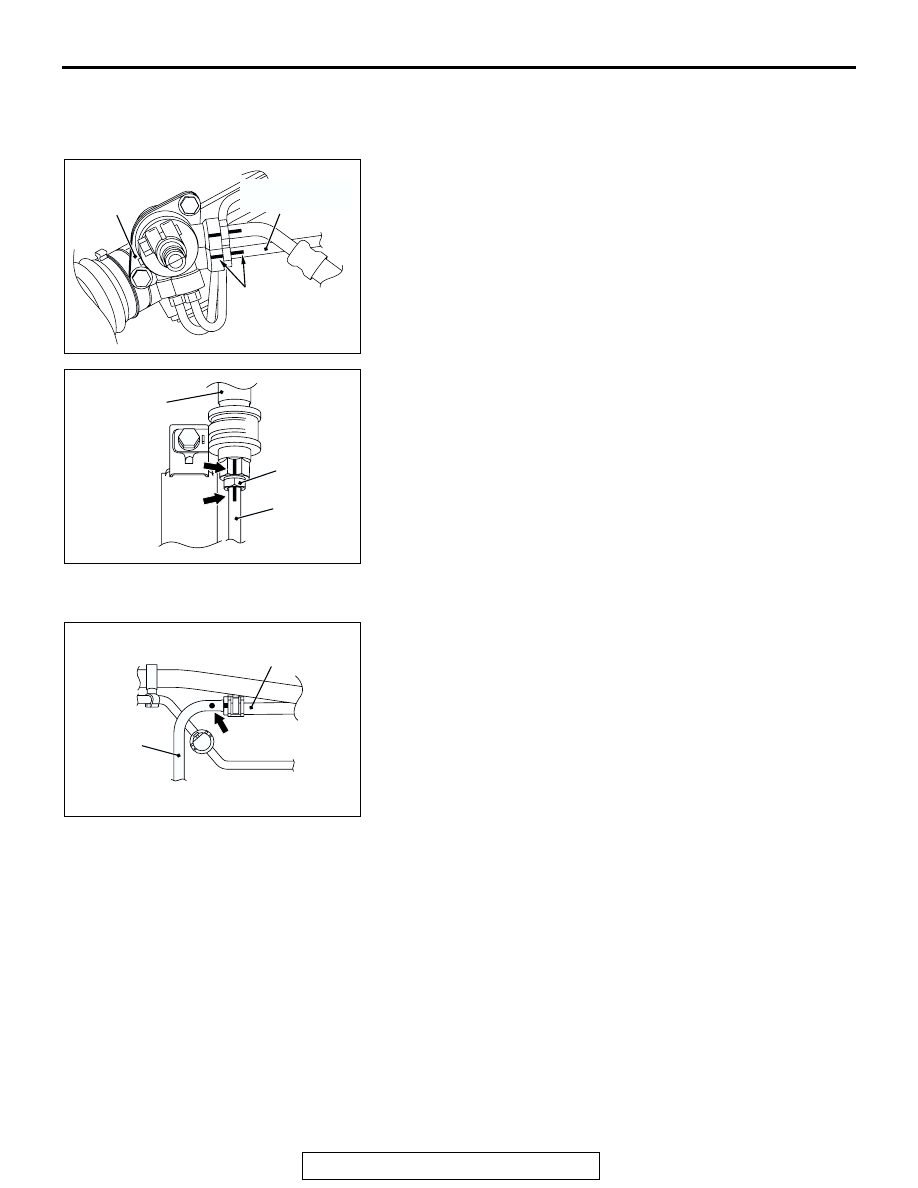

INSTALLATION SERVICE POINTS

.

>>A<< PRESSURE TUBE ASSEMBLY/PRESSURE HOSE
INSTALLATION
Align the markings as shown in the illustration and tighten the
nut.

.

>>B<< RETURN TUBE (R) INSTALLATION
Install the return tube (R) so that the marking is positioned as
shown in the illustration.

.

AC307218

MARKING

AB

STEERING
GEAR
ASSEMBLY

PRESSURE TUBE
ASSEMBLY

AC205024

AB

PRESSURE
HOSE

PRESSURE
TUBE
ASSEMBLY

NUT

AC205020

AB

RETURN
TUBE (R)

RETURN
HOSE (R)

POWER STEERING HOSES

TSB Revision

POWER STEERING

37A-60

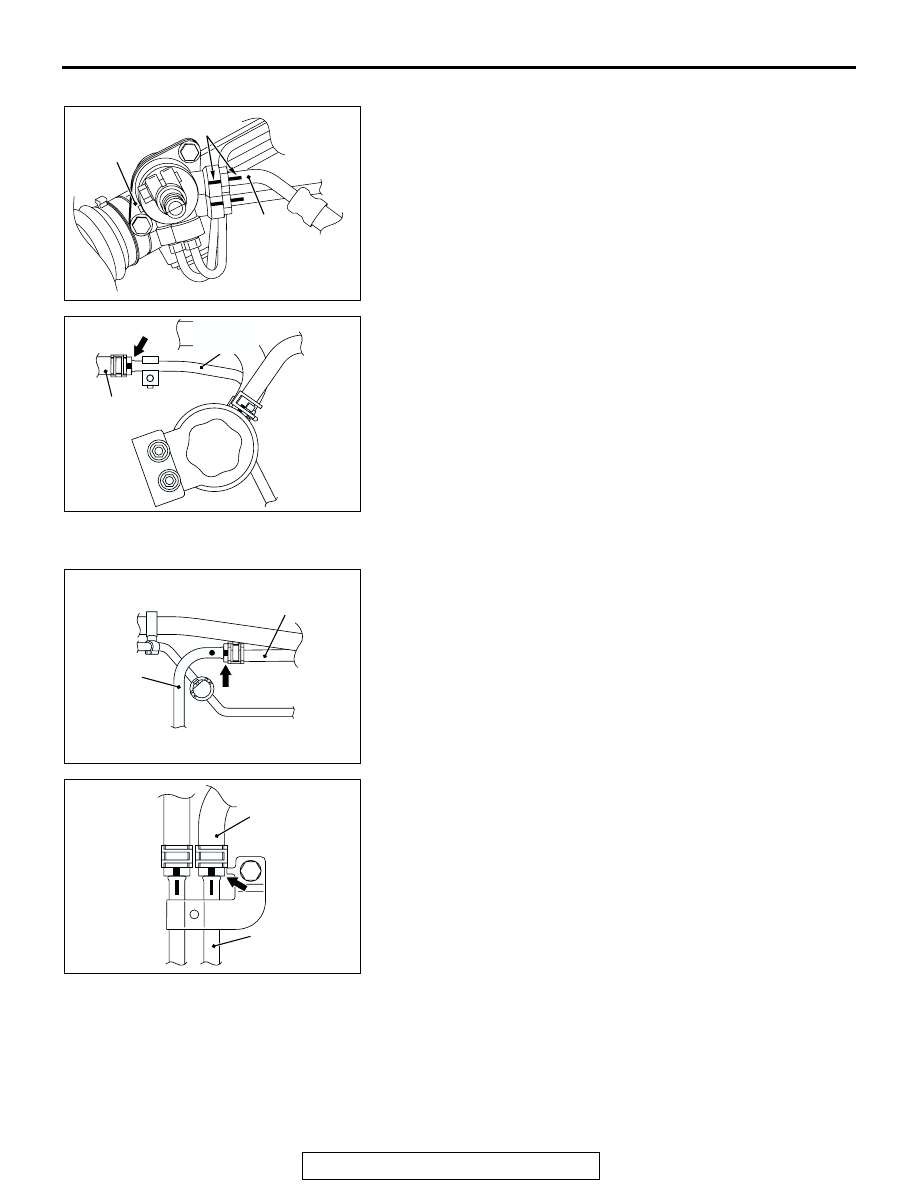

>>C<< RETURN TUBE ASSEMBLY INSTALLATION
1. Install the return tube assembly so that the marking is

positioned as shown in the illustration.

2. Align the markings as shown in the illustration and tighten

the nut.

.

>>D<< RETURN HOSE (R) INSTALLATION
Install the return hose (R) so that the markings are positioned
as shown in the illustration.

.

AC307218

MARKING

RETURN
TUBE
ASSEMBLY

AC

STEERING
GEAR
ASSEMBLY

AC205021

RETURN TUBE
ASSEMBLY

RETURN
TUBE (R)

AB

AC205020

RETURN
HOSE (R)

RETURN
TUBE (R)

AC

AC205025

RETURN
HOSE (R)

COOLER TUBE
ASSEMBLY

AB
