FRONT SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-27

DISASSEMBLY STEPS

1.

HINGE COVER

2.

INNER SEAT BELT

3.

SNAP RING <VEHICELS
WITHOUT POWER SEAT>

4.

HIGHT ADJUSTER KNOB
<VEHICELS WITHOUT POWER
SEAT>

5.

RECLINING ADJUSTER LEVER
<VEHICELS WITHOUT POWER
SEAT>

6.

RECLINING KNOB <VEHICELS
WITH POWER SEAT>

7.

SLIDE ADJUSTER KNOB
<VEHICELS WITH POWER SEAT>

8.

POWER SEAT SWITCH GARNISH
<VEHICELS WITH POWER SEAT>

9.

POWER SEAT SWICH
<VEHICELS WITH POWER SEAT>

10. SEAT CUHION ASSEMBLY
11. SIDE SHIELD COVER
12. SEAT CUSHION COVER
13. SEAT CUSHION HEATER

<VEHICLES WITH HEATED
SEAT>

14. SEAT CUSHION PAD

15. SEAT CUSHION FRAME
16. SEATBACK ASSEMBLY
17. LUMBAR SUPPORT LEVER CAP

<VEHICLES WITH POWER SEAT>

18. LUMBAR SUPPORT LEVER

<VEHICLES WITH POWER SEAT>

19. SEATBACK PANEL

<<A>>

20. HEADREST GUIDE
21. SEATBACK COVER
22. SEATBACK HEATER

<VEHICELES WITH HEATED
SEAT>

23. SEATBACK PAD
24. SEATBACK FRAME
25. SIDE SHIELD COVER INNER (RH)
26. SIDE SHIELD COVER INNER (LH)
27. SLIDE SENSOR HARNESS
28. SLIDE SENSOR
29. POWER SEAT HARNESS

<VEHICLES WITH POWER SEAT>

30. SLIDE ADJUSTER CAP A
31. SLIDE ADJUSTER CAP B
32. SLIDE ADJUSTER

DISASSEMBLY STEPS

FRONT SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-28

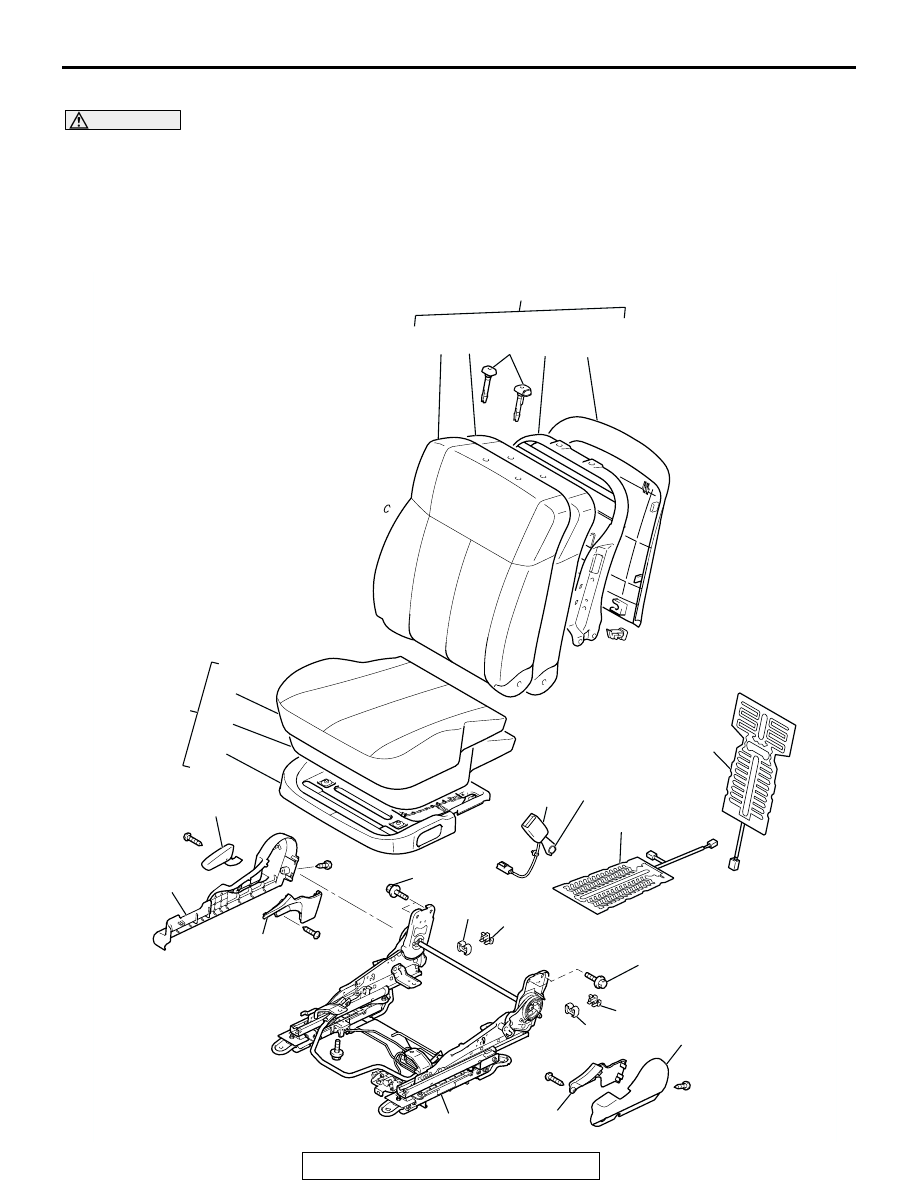

<RH SIDE>

WARNING

•

Never attempt to disassemble or repair the occupant classification-ECU or the occupant
classification sensor. If faulty, replace it.

•

Do not drop or subject the occupant classification-ECU and occupant classification sen-
sor to impact or vibration. If denting, cracking, deformation, or rust are discovered in the
occupant classification-ECU or the occupant classification sensor, replace it with a new
occupant classification-ECU or the occupant classification sensor.

AC308771

AB

1

2

5

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

19

20

20

21

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

44 ± 10 N·m
33 ± 7 ft-lb

FRONT SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-29

REMOVAL SERVICE POINT

.

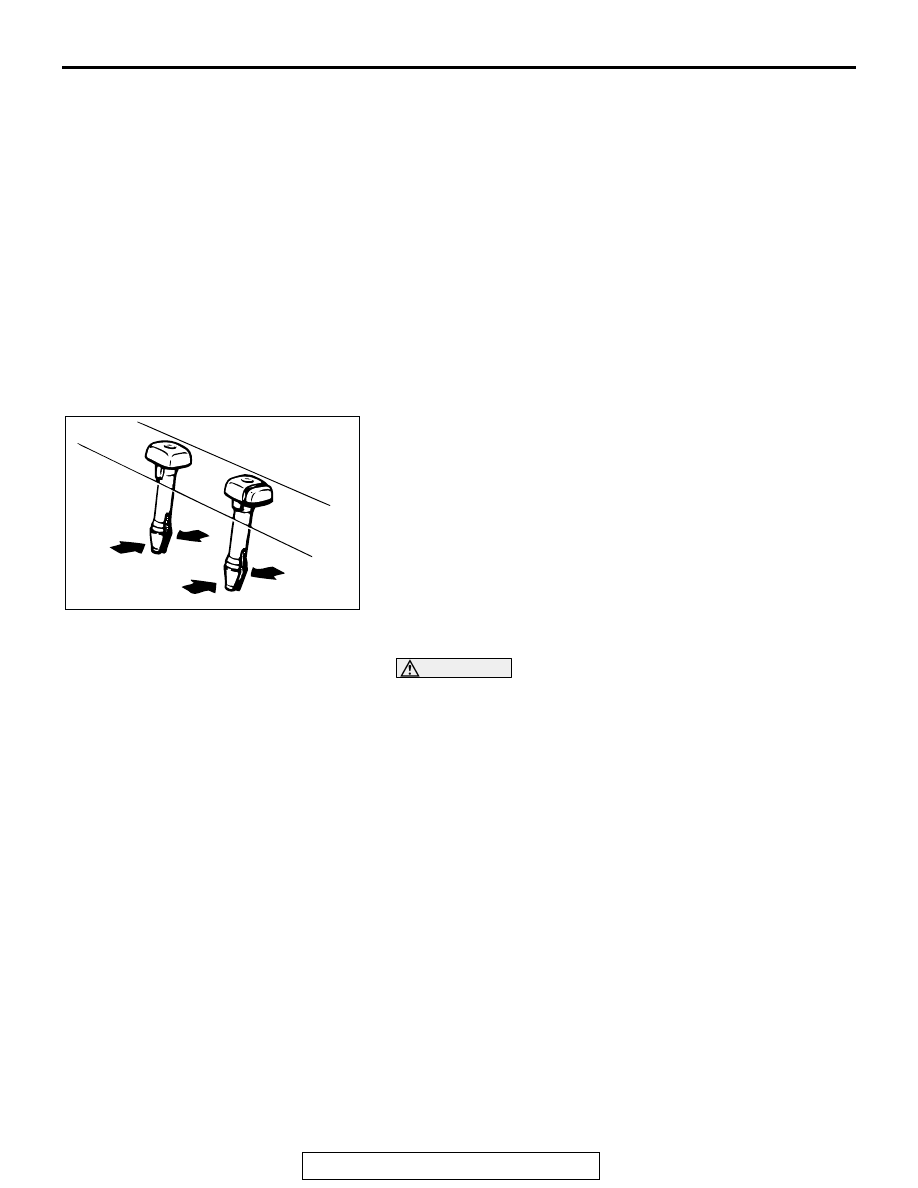

<<A>> HEADREST GUIDE REMOVAL

.

<<B>> SLIDE ADJUSTER REMOVAL

WARNING

Do not remove the occupant classification-ECU and
the occupant classification sensor from the slide
adjuster.

REMOVAL STEPS

1.

HINGE COVER

2.

RECLINING ADNUSTER LEVER

3.

SIDE SHIELD COVER

4.

INNER SEAT BELT

5.

SEAT CUSHION ASSEMBLY

6.

SEAT CUSHION COVER

7.

SEAT CUSHION HEATER
<VEHICLES WITH HEATED
SEAT>

8.

SEAT CUSHION PAD

9.

SEAT CUSHION FRAME

10. SEATBACK ASSEMBLY

11. SEATBACK PANEL

<<A>>

12. HEADREST GUIDE
13. SEATBACK COVER
14. SEATBACK HEATER <VEHICLES

WITH HEATED SEAT>

15. SEATBACK PAD
16. SEATBACK FRAME
17. SIDE SHIELD COVER INNER (RH)
18. SIDE EHIELD COVER INNER (LH)
19. SLIDE ADJUSTER CAP A
20. SLIDE ADJUSTER CAP B

<<B>>

21. SLIDE ADJUSTER

REMOVAL STEPS (Continued)

ACX01300

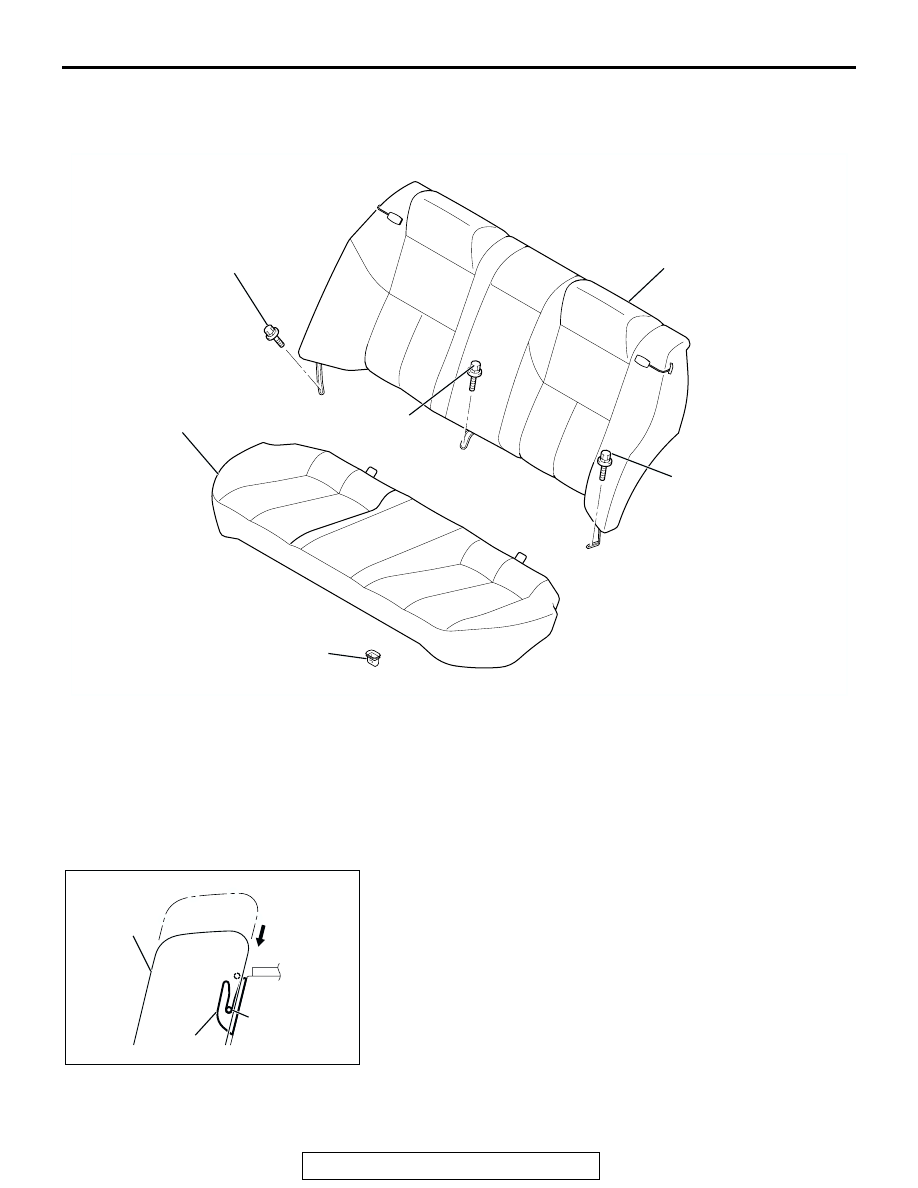

REAR SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-30

REAR SEAT ASSEMBLY

REMOVAL AND INSTALLATION

M1522001800297

INSTALLATION SERVICE POINTS

.

>>A<< INSTALLATION OF REAR SEATBACK ASSEMBLY
Press the rear seatback assembly in the direction shown in the
illustration and fit the attachment wire into the hook securely to
install the rear seatback assembly.

.

AC306948

1

3

2

22 ± 4 N·m
16 ± 3 ft-lb

22 ± 4 N·m
16 ± 3 ft-lb

22 ± 4 N·m
16 ± 3 ft-lb

AB

REMOVAL STEPS

>>B<<

1.

REAR SEAT CUSHION
ASSEMBLY

>>A<<

2.

REAR SEATBACK ASSEMBLY

3.

REAR SEAT HOOK

REMOVAL STEPS (Continued)

AC005519AG

HOOK

REAR
SEATBACK
ASSEMBLY

ATTACHMENT
WIRE
