DOOR TRIM

TSB Revision

INTERIOR

52A-15

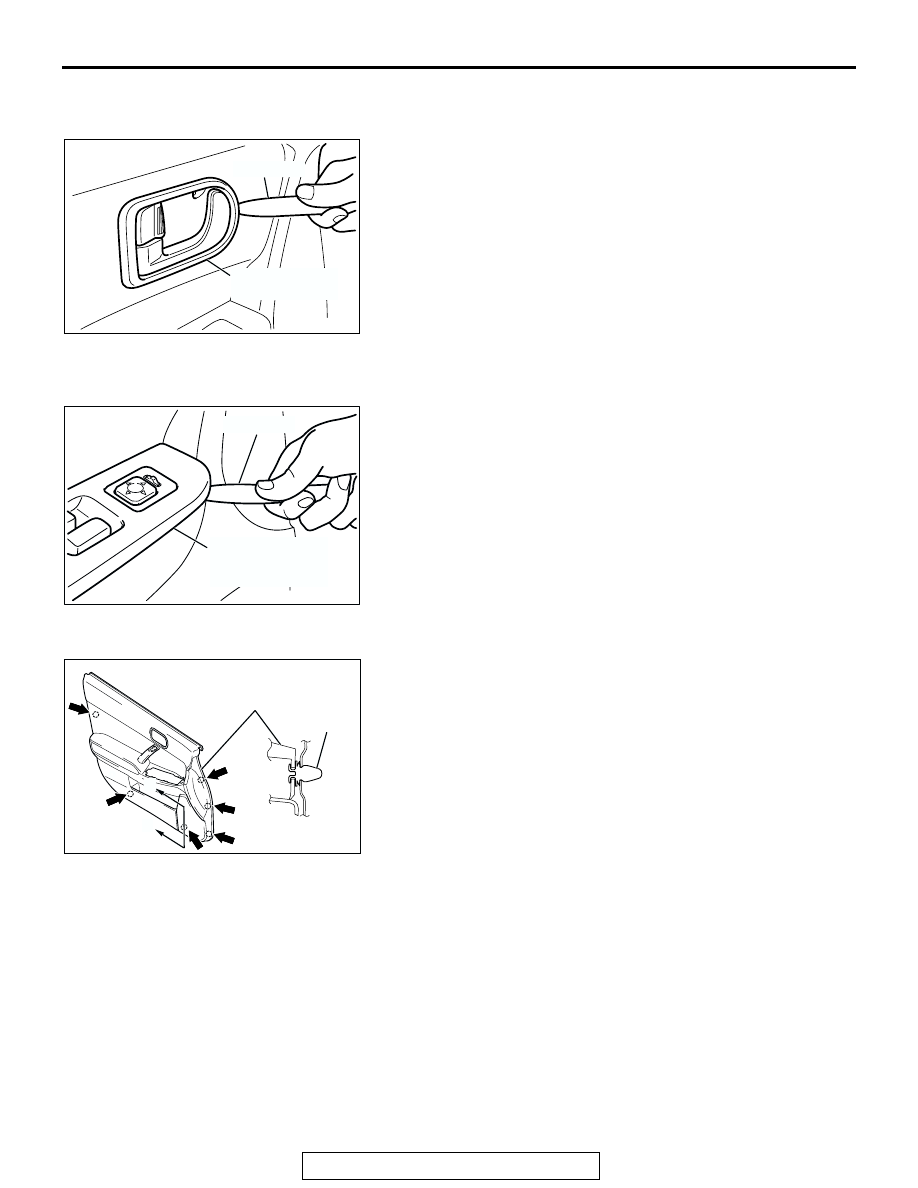

REMOVAL SERVICE POINTS

.

<<A>> INSIDE HANDLE COVER REMOVAL
Insert special tool MB990784 as shown to remove the inside
handle cover.

.

<<B>> POWER WINDOW SWITCH PANEL ASSEMBLY
REMOVAL
Insert special tool MB990784 as shown to remove the power
window switch panel assembly

.

<<C>> FRONT DOOR TRIM ASSEMBLY REMOVAL
1. Release the clip shown in the illustration.

AC206689

MB990784

INSIDE HANDLE
COVER

AB

AC206691

MB990784

POWER WINDOW
SWITCH PANEL
ASSEMBLY

AC

AC307936 AB

A

A

SECTION A – A

CLIP

FRONT DOOR TRIM ASSEMBLY

DOOR TRIM

TSB Revision

INTERIOR

52A-16

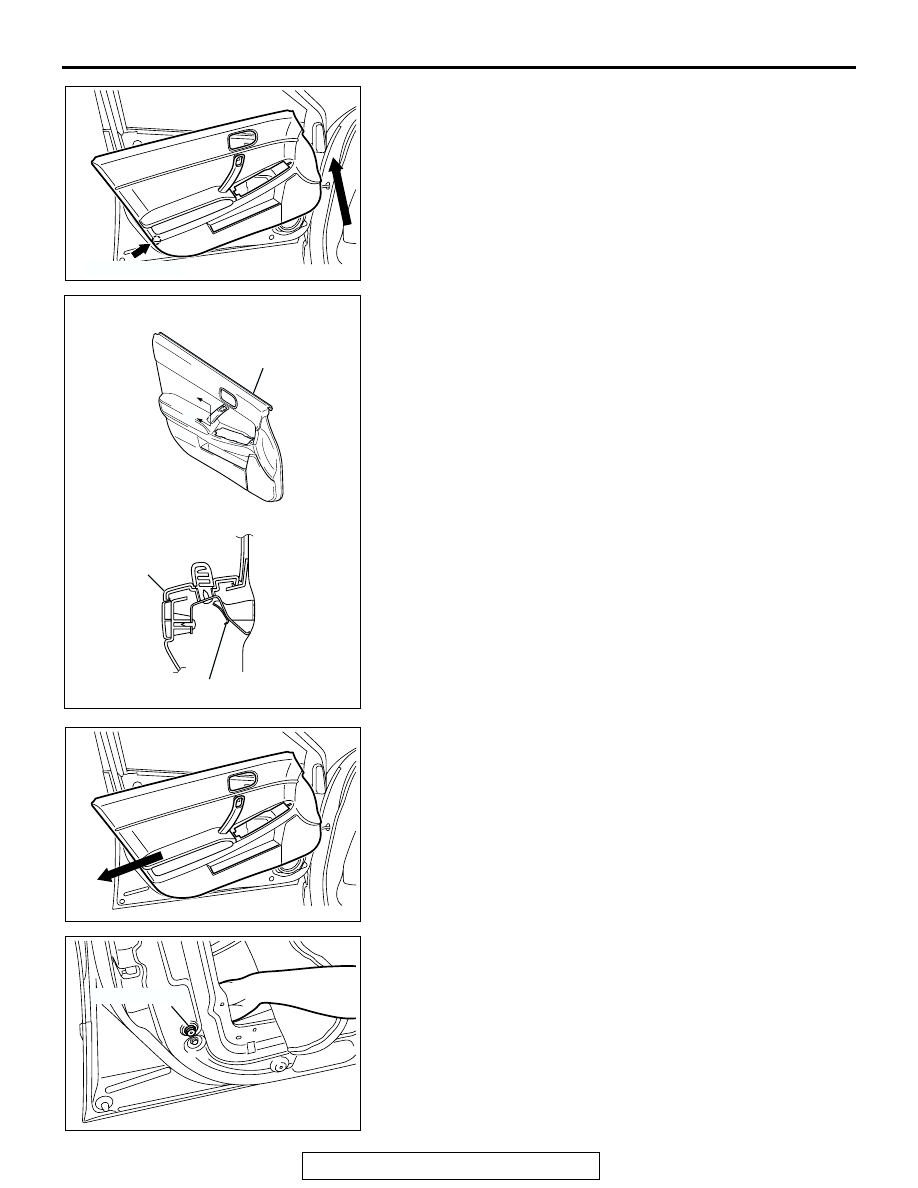

2. Tilt front door trim assembly front portion up to remove

armrest bracket. (Axis point is special clip.)

3. Slide front door trim assembly rearward. (Special clip to

remain on the body side.)

4. Peel waterproof film bottom rear portion. Put hand into the

body side hole and pinch special clip top claw portion. Then
remove special clip. Seal waterproof corner portion again.

AC307287

AB

SPECIAL CLIP

AC307972 AB

B

B

FRONT DOOR TRIM
ASSEMBLY

SECTION B – B

ARMREST BRACKET

FRONT DOOR TRIM
ASSEMBLY

AC307287

AC

AC307288

AB

SPECIAL CLIP

DOOR TRIM

TSB Revision

INTERIOR

52A-17

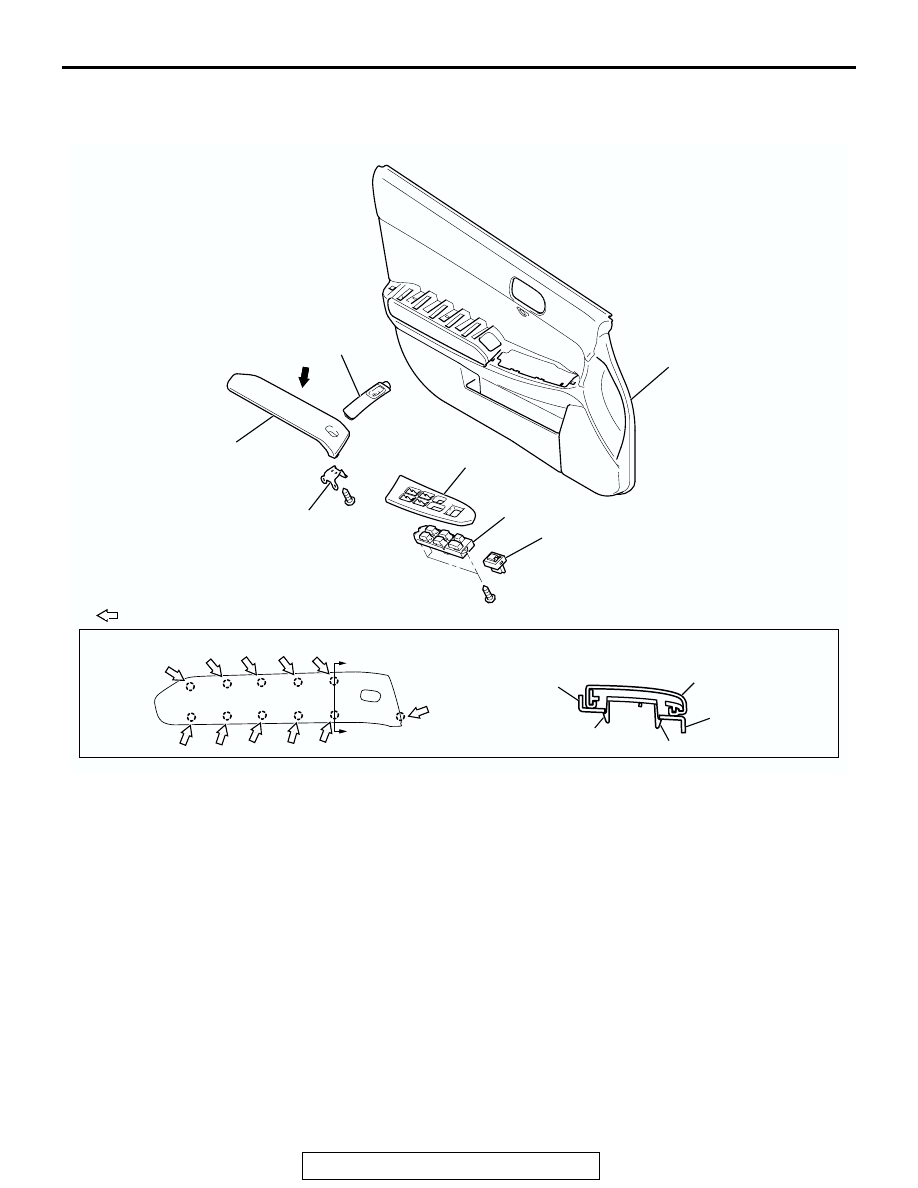

DISASSEMBLY AND ASSEMBLY

M1521006900100

<FRONT DOOR TIRM>

AC307436 AB

1

2

3

4

5

6

7

A

VIEW A

B

B

NOTE
          : CLAW POSITION

SECTION B – B

6

7

7

CLAW

CLAW

DISASSEMBLY STEPS

1.

ASSIST GRIP

2.

POWER WINDOW MAIN SWITCH

3.

REMOTE CONTROLLED MIRROR
SWITCH

4.

POWER WINDOW MEIN SWITCH
PANEL

5.

ARMREST BRACKET

6.

ARMREST

7.

FRONT DOOR TRIM

DISASSEMBLY STEPS

DOOR TRIM

TSB Revision

INTERIOR

52A-18

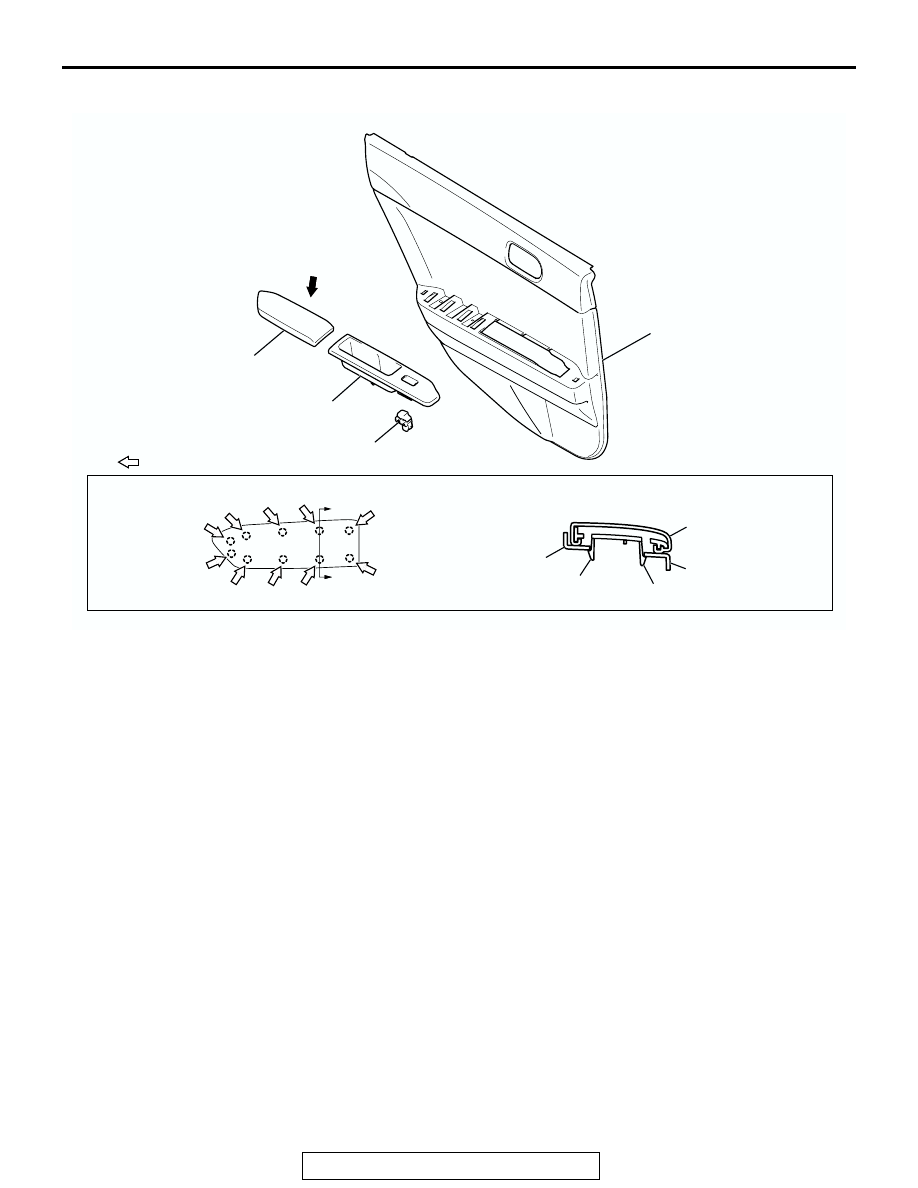

<REAR DOOR TRIM>

AC307442 AB

1

2

3

4

NOTE
          : CLAW POSITION

SECTION B – B

VIEW A

A

3

4

4

CLAW

CLAW

DISASSEMBLY STEPS

1.

POWER WINDOW SUB SWITCH

2.

POWER WINDOW SUB SWITCH
PANEL

3.

ARMREST

4.

REAR DOOR TRIM

DISASSEMBLY STEPS
