HOW TO USE TROUBLESHOOTING/ INSPECTION SERVICE POINTS

TSB Revision

GENERAL

00-15

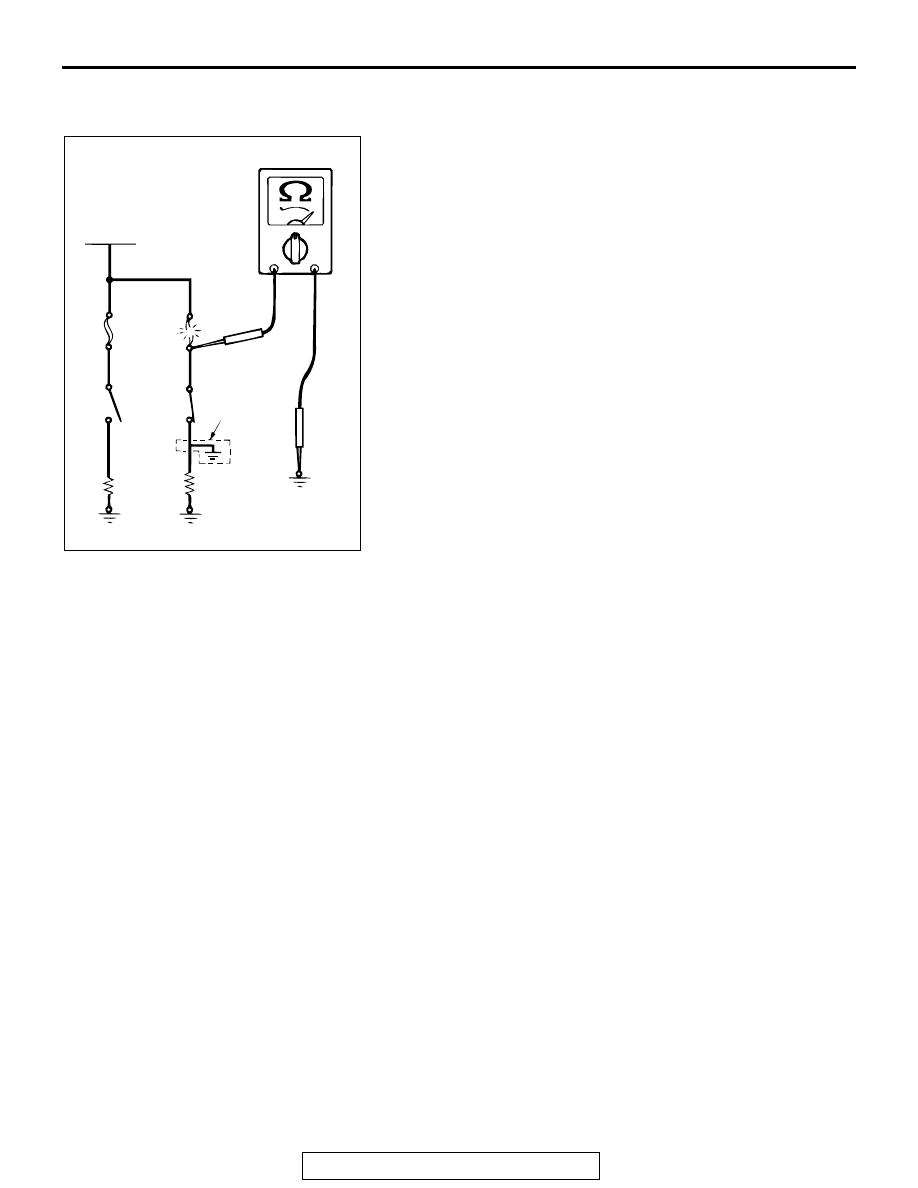

INSPECTION SERVICE POINTS FOR A BLOWN
FUSE

Remove the blown fuse and measure the resistance between
the load side of the blown fuse and the ground. Close the
switches of all circuits which are connected to this fuse. If the
resistance is almost 0

Ω at this time, there is a short some-

where between these switches and the load. If the resistance is
not 0

Ω, there is no short at the present time, but a momentary

short has probably caused the fuse to blow.
The main causes of a short circuit are the following.

• Harness being clamped by the vehicle body

• Damage to the outer casing of the harness due to wear or

heat

• Water getting into the connector or circuitry

• Human error (mistakenly shorting a circuit, etc).

How to treat current trouble

1. Make a note of the diagnostic trouble code, and erase it.
2. Check the trouble symptom again.
3. Check for diagnostic trouble codes again.
4. If a diagnostic trouble code is set, follow the applicable

Diagnostic Trouble Code Chart.

5. If no diagnostic trouble code is set, refer to "How to Cope

with Intermittent Malfunction       ."

How to treat past trouble

1. Establish from the customer whether a fuse or connector

has been replaced or disconnected.

2. If yes, erase the diagnostic trouble code, and then check

that no diagnostic code is reset. If no diagnostic trouble
code is reset, the diagnosis is complete.

3. If no, follow the applicable Diagnostic Trouble Code Chart.

Then check the wiring harness and connector, and refer to
"How to Cope with Intermittent Malfunction ."

ACX00872 AB

BATTERY

FUSE

LOAD
SWITCH

LOAD

SHORT-
CIRCUIT
OCCURRENCE
SECTION

INTERSYSTEM AFFILIATED DTC REFERENCE TABLE

TSB Revision

GENERAL

00-16

INTERSYSTEM AFFILIATED DTC REFERENCE TABLE

M1001013000027

For vehicles with CAN, when DTC which influences
the transmission data is set to the ECU which sends
the data, DTC also could be set to the ECU which
receives and controls the transmission data. The
table below shows the relativity of DTC between
ECUs. In addition, the alphabet shows the following
DTC.

• A: TCL - DTC No. U1400 (Refer to GROUP 13D -

Traction control system diagnosis

P.13D-26

.)

• B: TCL - DTC No. U1120 (Refer to GROUP 13D -

Traction control system diagnosis

P.13D-22

.)

• C: TCL - DTC No. C1397 (Refer to GROUP 13D -

Traction control system diagnosis

P.13D-12

.)

• D: Air conditioner - DTC No. U1120 (Refer to

GROUP 55A - Manual A/C diagnosis

P.55A-55

.)

• E: Multi-center display - DTC No. 022 (Refer to

GROUP 54A - Multi-center display

P.54A-262

.)

• F: SWS - DTC No. 021 (Refer to GROUP 54B -

SWS diagnosis

P.54B-56

.)

CAUSAL DTC NO.

DTC SET NO.

SYSTEM  NAME

DTC  NO.

A

B

C

D

E

F

Engine (<2.4 L engine>
Refer to GROUP 13A -
Multiport fuel injection
diagnosis

P.13A-34

.

<3.0 L engine> Refer to
GROUP 13B - Multiport
fuel injection diagnosis

P.13B-33

.)

P0101, P0102, P0103, P0111, P0112,
P0113, P0116, P0122, P0123, P0125,
P0134, P0154, P0171, P0172, P0174,
P0175

×

P0117, P0118

×

×

P0201, P0202, P0203, P0204, P0205,
P0206, P0222, P0223

×

P0300, P0301, P0302, P0303, P0304,
P0305, P0306, P0325, P0335, P0340

×

P0506, P0507

×

P0638, P0657

×

P1601, P2108, P2127, P2128, P2135,
P2227, P2228

×

P2138

×

×

P2122, P2123

×

×

A/T (Refer to GROUP 23
- Automatic transaxle
diagnosis

P.23A-43

.)

P0705

×

Air conditioner (Refer to
GROUP 55A - Manual
A/C diagnosis

P.55A-10



<low type> or

P.55A-59



<middle type>.)

B1011, B1012

×

Combination meter
(Refer to GROUP 54A -
Combination meter
diagnosis

P.54A-13

.)

U1120

×

VEHICLE IDENTIFICATION

TSB Revision

GENERAL

00-17

VEHICLE IDENTIFICATION

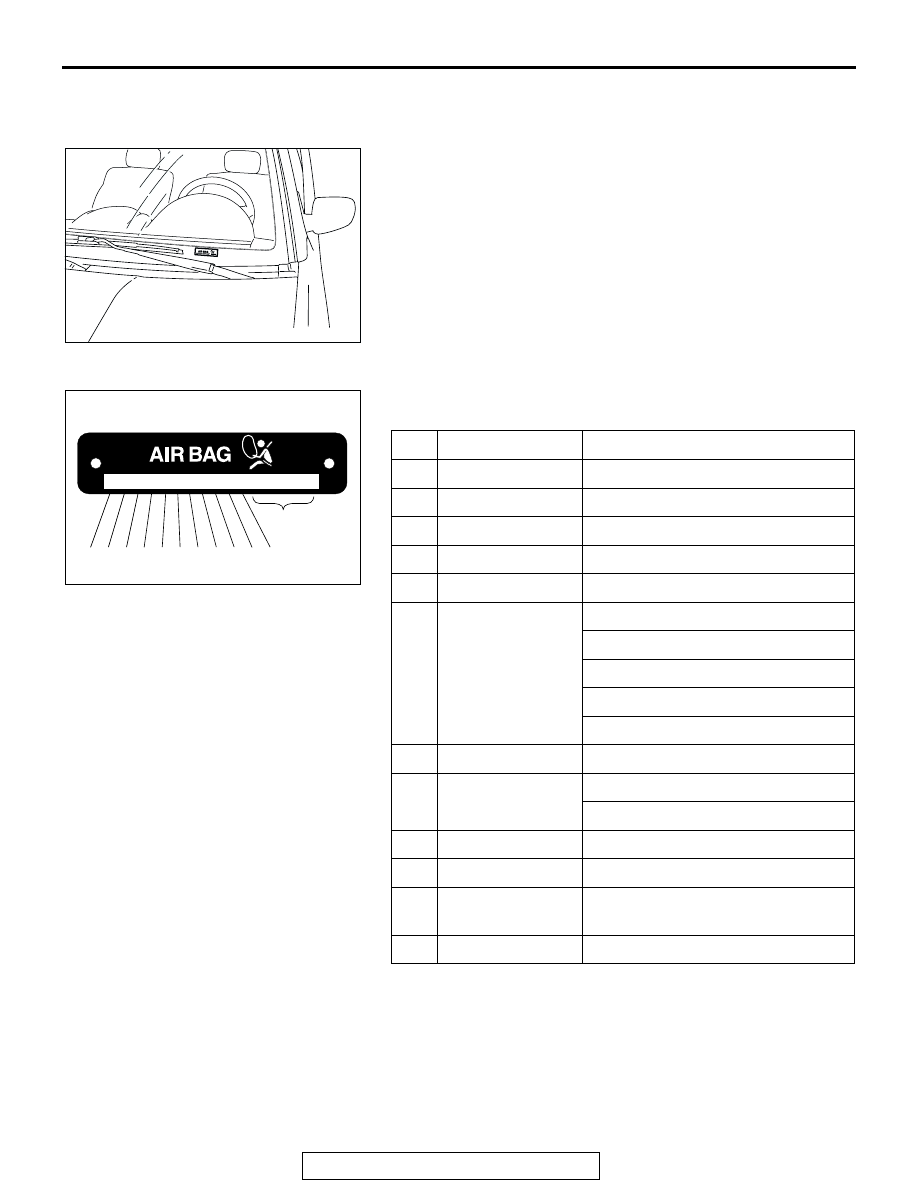

VEHICLE IDENTIFICATION NUMBER LOCATION

M1001000400627

The vehicle identification number (VIN) is located on a plate
attached to the left top side of the instrument panel.

VEHICLE IDENTIFICATION CODE CHART PLATE

Vehicle identification numbers contain 17 digits. The vehicle
number is a code which tells country, make, vehicle type, etc.

NOTE: *: Check digit means a single number, or letter X, used
to verify the accuracy of transcription of vehicle identification
number.

AC304745

NO. ITEM

CONTENT

1

Country

4: USA

2

Make

A: Mitsubishi

3

Vehicle type

3: Passenger car

4

Others

A: Driver and passenger air bags

5

Line

B:  GALANT

6

Price class

2: Low

3: Medium

4: High

5: Premium

7: Ultimate

7

Body

6: 4-door sedan

8

Engine

F: 2.4L

S: 3.8L

9

Check digits*

0, 1, 2, 3, -----------9, X

10

Model year

4: 2004 year

11

Plant

E: Mitsubishi Motors North America,
Inc.

12

Serial number

000001 to 999999

AC306970

1 2 3 4 5 6 7 8 9 10 11

12

4 A 3 A B 3 6 S 3 4 E 0 0 0 0 0 1

VEHICLE IDENTIFICATION

TSB Revision

GENERAL

00-18

VEHICLE IDENTIFICATION NUMBER LIST

.

EXCEPT FOR CANADA
VEHICLES FOR FEDERAL EMISSION
 REGULATION

VEHICLES FOR CALIFORNIA EMISSION REGU-
LATION

.

VEHICLES FOR CANADA

VIN (EXCEPT SEQUENCE
NUMBER)

BRAND

ENGINE
DISPLACEMENT

MODEL CODE

4A3AB26F_4E

MITSUBISHI GALANT 2.4L

DJ1ASRJYL4M

4A3AB36F_4E

DJ1ASRHYL4M

4A3AB46F_4E

DJ1ASRPYL4M

4A3AB56F_4E

DJ1ASRXYL4M

4A3AB36F_4E

3.8L

DJ3ASRHEL4M

4A3AB46F_4E

DJ3ASRPEL4M

4A3AB56F_4E

DJ3ASRGEL4M

4A3AB76F_4E

DJ3ASRXEL4M

VIN (EXCEPT SEQUENCE
NUMBER)

BRAND

ENGINE
DISPLACEMENT

MODEL CODE

4A3AB26F_4E

MITSUBISHI GALANT 2.4L

DJ1ASRJYSL9M

4A3AB36F_4E

DJ1ASRHYSL9M

4A3AB46F_4E

DJ1ASRPYSL9M

4A3AB56F_4E

DJ1ASRXYSL9M

VIN (EXCEPT SEQUENCE
NUMBER)

BRAND

ENGINE
DISPLACEMENT

MODEL CODE

4A3AB26F_4E

MITSUBISHI GALANT 2.4L

DJ1ASRJYL5M

4A3AB36F_4E

DJ1ASRHYL5M

4A3AB46F_4E

DJ1ASRPYL5M

4A3AB56F_4E

DJ1ASRXYL5M

4A3AB36F_4E

3.8L

DJ3ASRHEL5M

4A3AB56F_4E

DJ3ASRGEL5M

4A3AB76F_4E

DJ3ASRXEL5M
