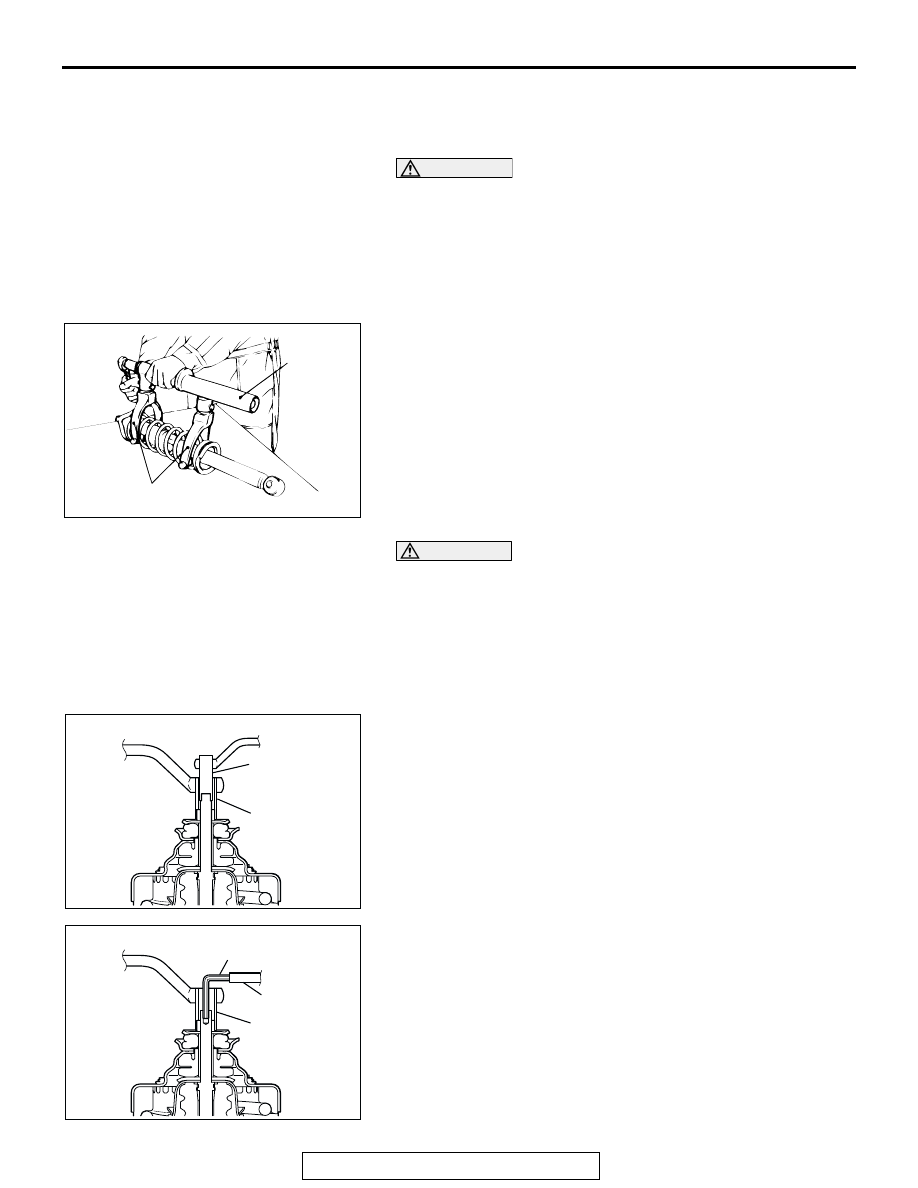

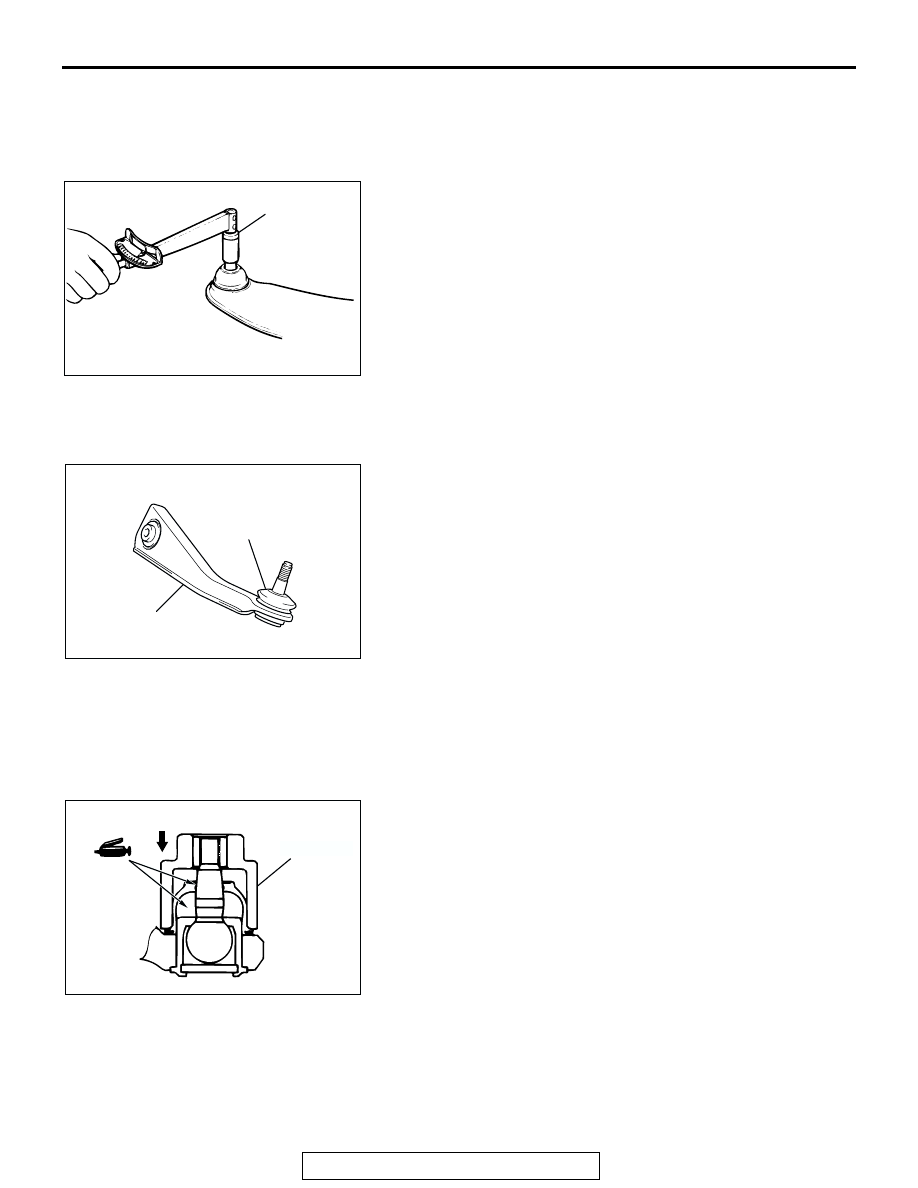

TOE CONTROL ARM TSB Revision REAR SUSPENSION 34-15 TOE CONTROL ARM BALL JOINT TURNING Required Special Tool: • MB990326: Preload Socket 1. After shaking the ball joint stud several times, in order to make the ball joint turn smoothly, install the nut to the stud Standard value: 1.0 − 2.6 N⋅m (8.9 − 23 in-lb) 2. If the measured value exceeds the standard value, replace the toe control arm assembly. 3. If the measured value is lower than the standard value, check that the ball joint turns smoothly without excessive TOE CONTROL ARM BALL JOINT DUST COVER 1. Check the toe control arm ball joint dust cover for cracks or damage by pushing it with your finger. 2. If the dust cover is cracked or damaged, replace the toe control arm assembly. TOE CONTROL ARM BALL JOINT DUST COVER M1341010900264 Required Special Tool: • MB990800: Ball Joint Remover and Installer Only when the dust cover is damaged accidentally during ser- lubricate the lip [Amount of grease in the dust cover: 3. Using special tool MB990800, punch the dust cover until it contacts the snap ring. 4. Press the dust cover with your finger to check that there are no cracks or damage in the dust cover. AC101919AB MB990326 AC209167AB BALL JOINT TOE CONTROL ARM AC212031AB MB990800 |
