LOWER ARM

TSB Revision

REAR SUSPENSION

34-11

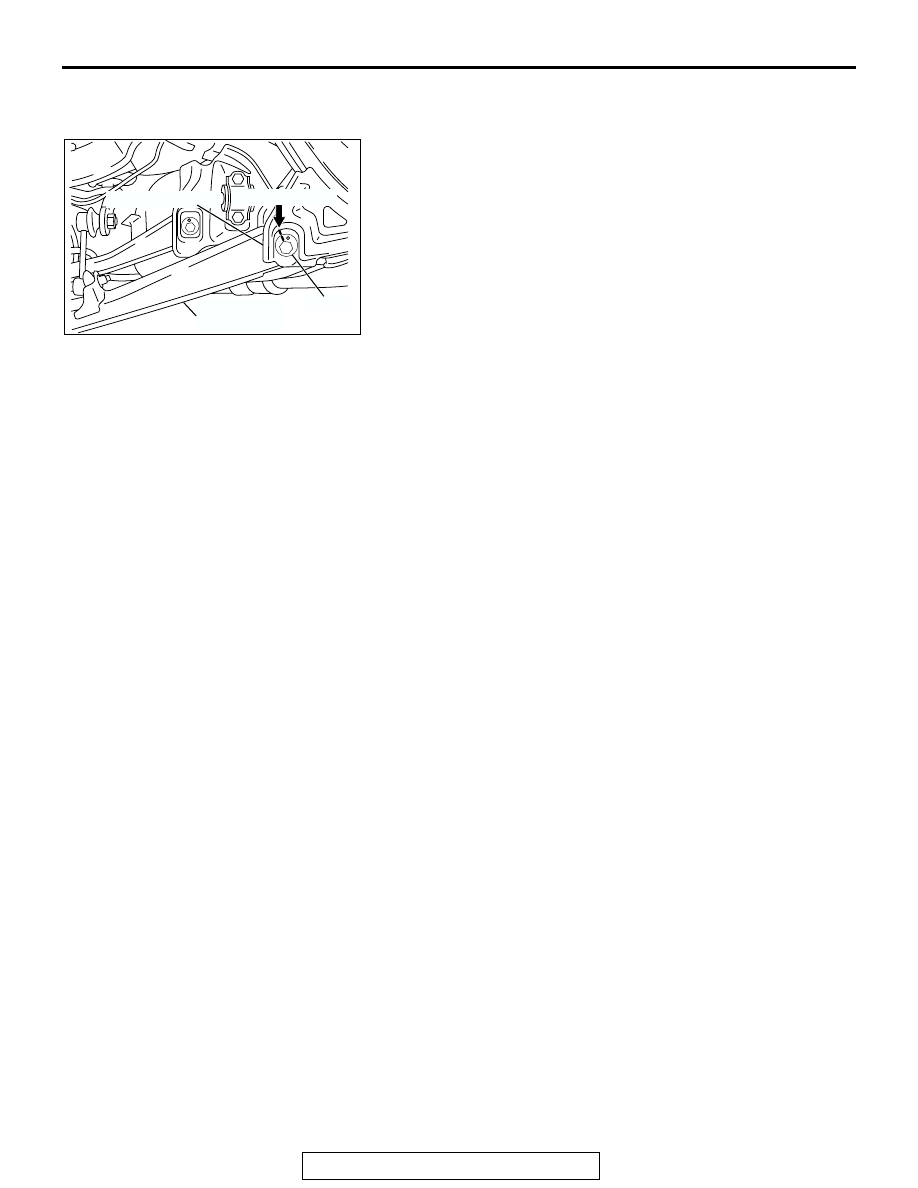

REMOVAL SERVICE POINT

.

<<A>> LOWER ARM BOLT REMOVAL
Place mating marks on the crossmember and the plate before
removing the lower arm bolt.

INSPECTION

M1341006600055

• Check the bushings for wear and deterioration.

• Check the lower arm for bending or breakage.

• Check all bolts for condition and straightness.

AC306251

AB

LOWER ARM
ASSEMBLY

CROSSMEMBER

PLATE

MATING MARKS

TRAILING ARM

TSB Revision

REAR SUSPENSION

34-12

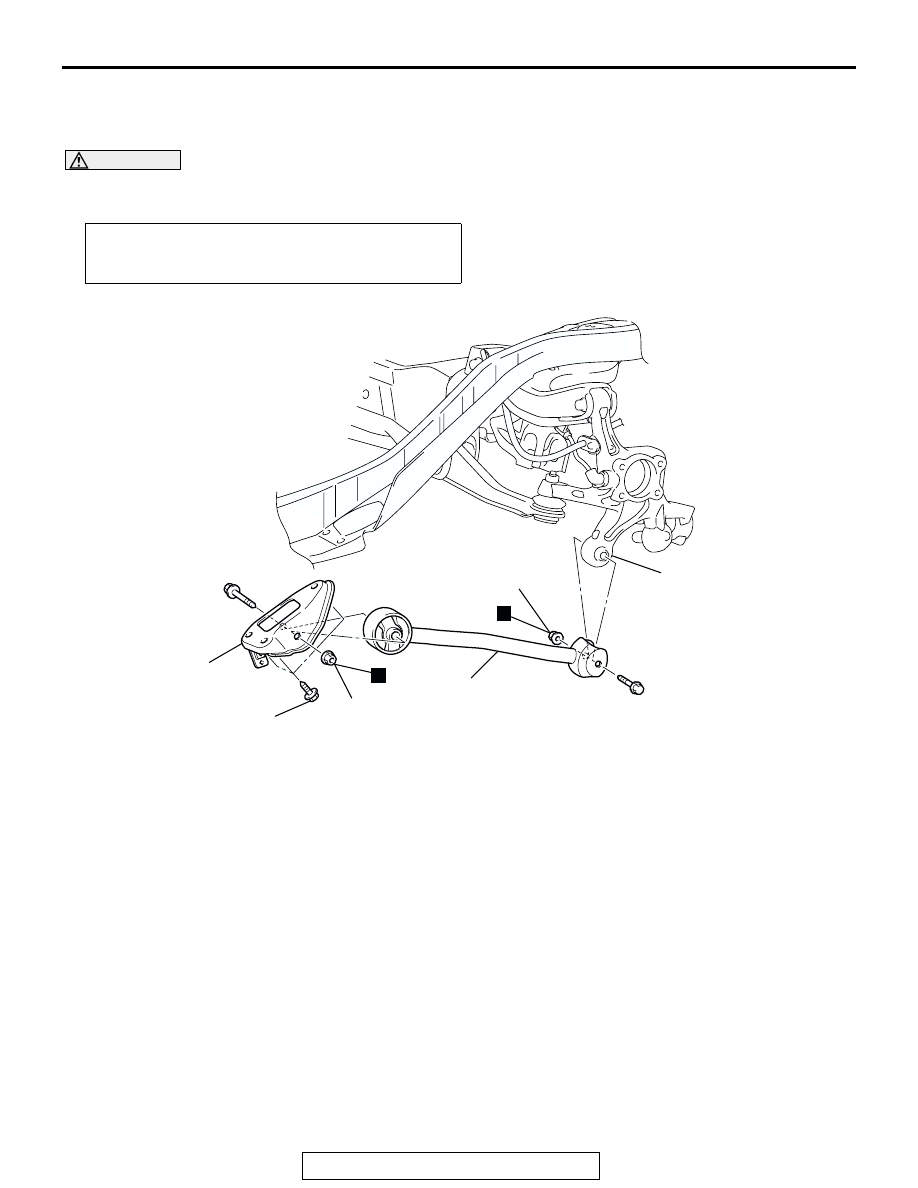

TRAILING ARM

REMOVAL AND INSTALLATION

M1341002200390

CAUTION

*

: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on

the ground in an unladen condition.

NOTE: Bolt A and nut B are interchangeable.

INSPECTION

M1341002300201

• Check the bushings for wear and deterioration.

• Check the trailing arm for bending or breakage.

• Check all bolts for condition and straightness.

Post-installation Operation
• Rear Wheel Alignment Check and Adjustment (Refer to

P.34-6

).

AC305778

1

2

3

AB

113 ± 12 N·m*
83 ± 9 ft-lb*

N

N

113 ± 12 N·m*
83 ± 9 ft-lb*

100 ± 10 N·m
74 ± 7 ft-lb

A

B

A

B

REMOVAL STEPS

1.

TRAILING ARM ASSEMBLY AND
KNUCKLE CONNECTION

2.

TRAILING ARM ASSEMBLY

3.

TRAILING ARM BRACKET

REMOVAL STEPS (Continued)

TOE CONTROL ARM

TSB Revision

REAR SUSPENSION

34-13

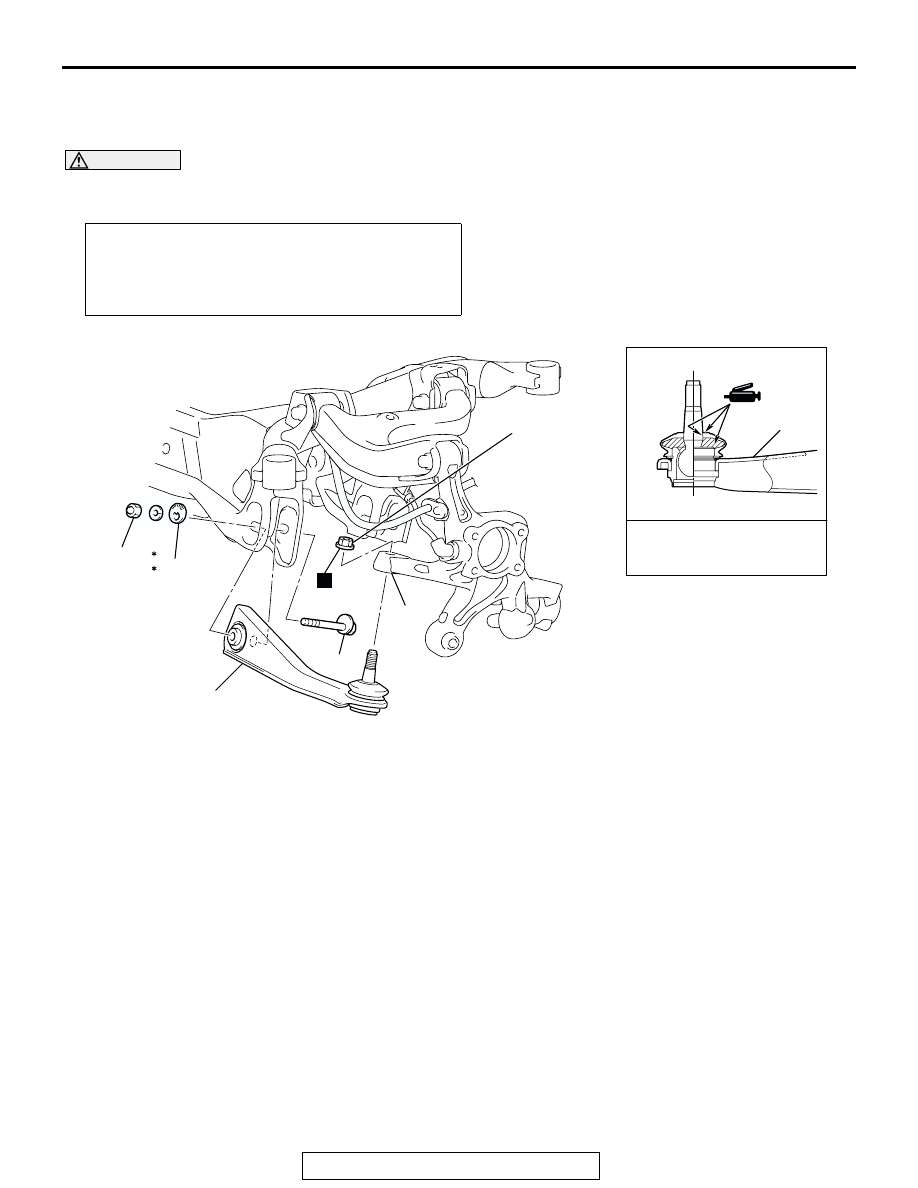

TOE CONTROL ARM

REMOVAL AND INSTALLATION

M1341016600045

CAUTION

*

: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on

the ground in an unladen condition.

Required Special Tool:

• MB991897: Ball Joint Remover

Post-installation Operation
• Press the dust cover with your finger to check that there

are no cracks or damage in the dust cover.

• Rear Wheel Alignment Check and Adjustment (Refer to

P.34-6

).

AC305779

AC205712

2

AB

78 ± 7 N·m*
57 ± 5 ft-lb*

66 ± 6 N·m
49 ± 4 ft-lb

3

4

4

MULTIPURPOSE GREASE
SAE J310, NLGI No.2
OR EQUIVALENT

7 ± 0.5 g
(0.247 ± 0.018 oz)

1

2

78 ± 7 N·m
57 ± 5 ft-lb

N

REMOVAL STEPS

•

TRAILING ARM ASSEMBLY AND
KNUCKLE CONNECTION (REFER
TO

P.34-12

).

<<A>>

1.

TOE CONTROL ARM ASSEMBLY
AND KNUCKLE CONNECTION

<<B>>

2.

ASSIST LINK BOLT

3.

ASSIST LINK PLATE

4.

TOE CONTROL ARM ASSEMBLY

REMOVAL STEPS (Continued)

TOE CONTROL ARM

TSB Revision

REAR SUSPENSION

34-14

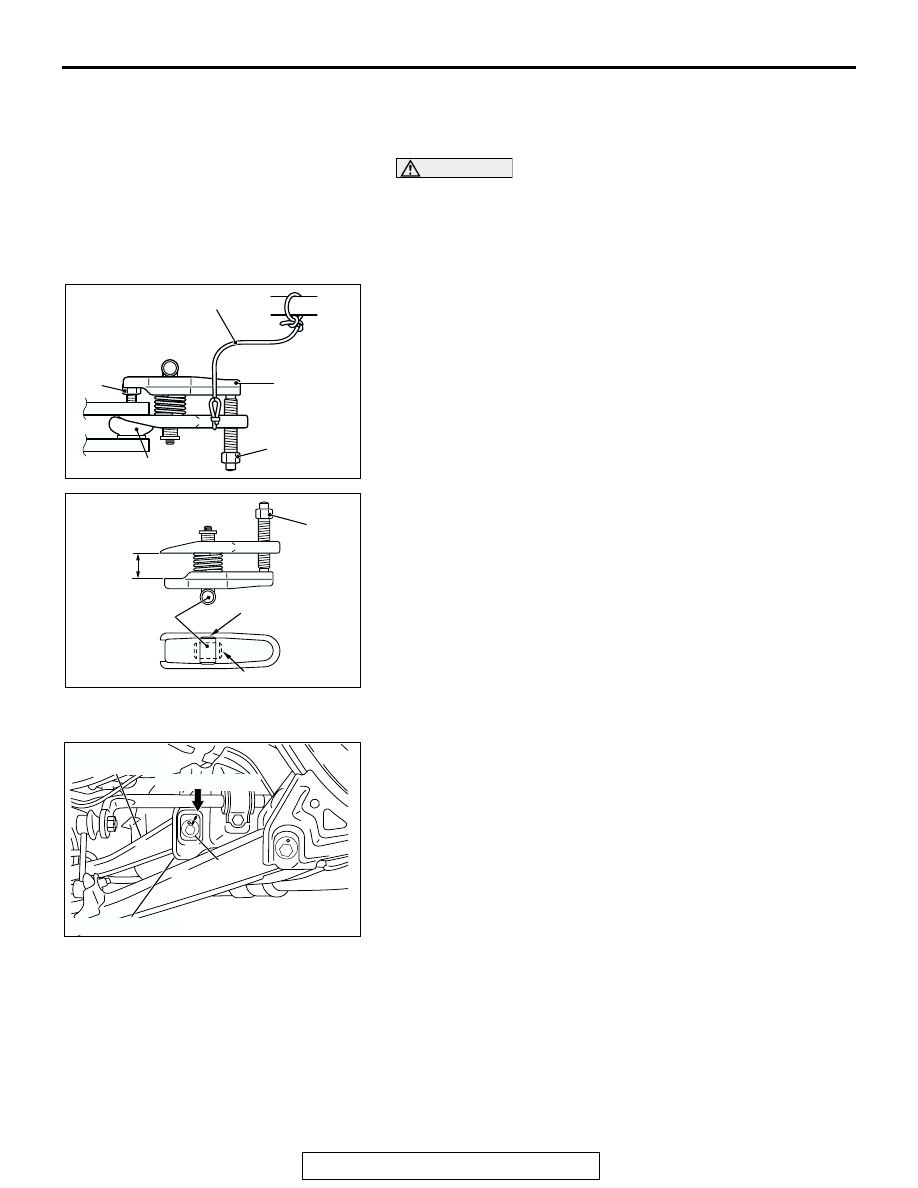

REMOVAL SERVICE POINTS

.

<<A>> TOE CONTROL ARM ASSEMBLY AND KNUCKLE
DISCONNECTION

CAUTION

• Do not remove the nut from ball joint. Loosen it and use

special tool MB991897 to avoid possible damage to ball
joint threads.

• Hang special tool MB991897 with a cord to prevent it

from falling.

1. Install special tool MB991897 as shown in the figure.

2. Turn the bolt and knob as necessary to make the jaws of the

special tool MB991897 parallel, tighten the bolt by hand and
confirm that the jaws are still parallel.
NOTE: When adjusting the jaws in parallel, make sure the
knob is in the position shown in the figure.

3. Tighten the bolt with a wrench to disconnect the toe control

arm assembly and the knuckle.

.

<<B>> ASSIST LINK BOLT REMOVAL
Place mating marks on the crossmember and the plate before
removing the assist link bolt.

INSPECTION

M1341016800049

• Check the bushings for wear and deterioration.

• Check the toe control arm for bending or breakage.

• Check all bolts for condition and straightness.

AC208247AC

CORD

BOLT

MB991897

NUT

BALL JOINT

AC106821

KNOB

PARALLEL

BOLT

CORRECT

WRONG

AC

AC306251

AC

TOE CONTROL
ARM ASSEMBLY

CROSSMEMBER

PLATE

MATING MARKS
