STABILIZER BAR

TSB Revision

FRONT SUSPENSION

33-23

<<B>> STEERING GEAR AND STEERING COLUMN

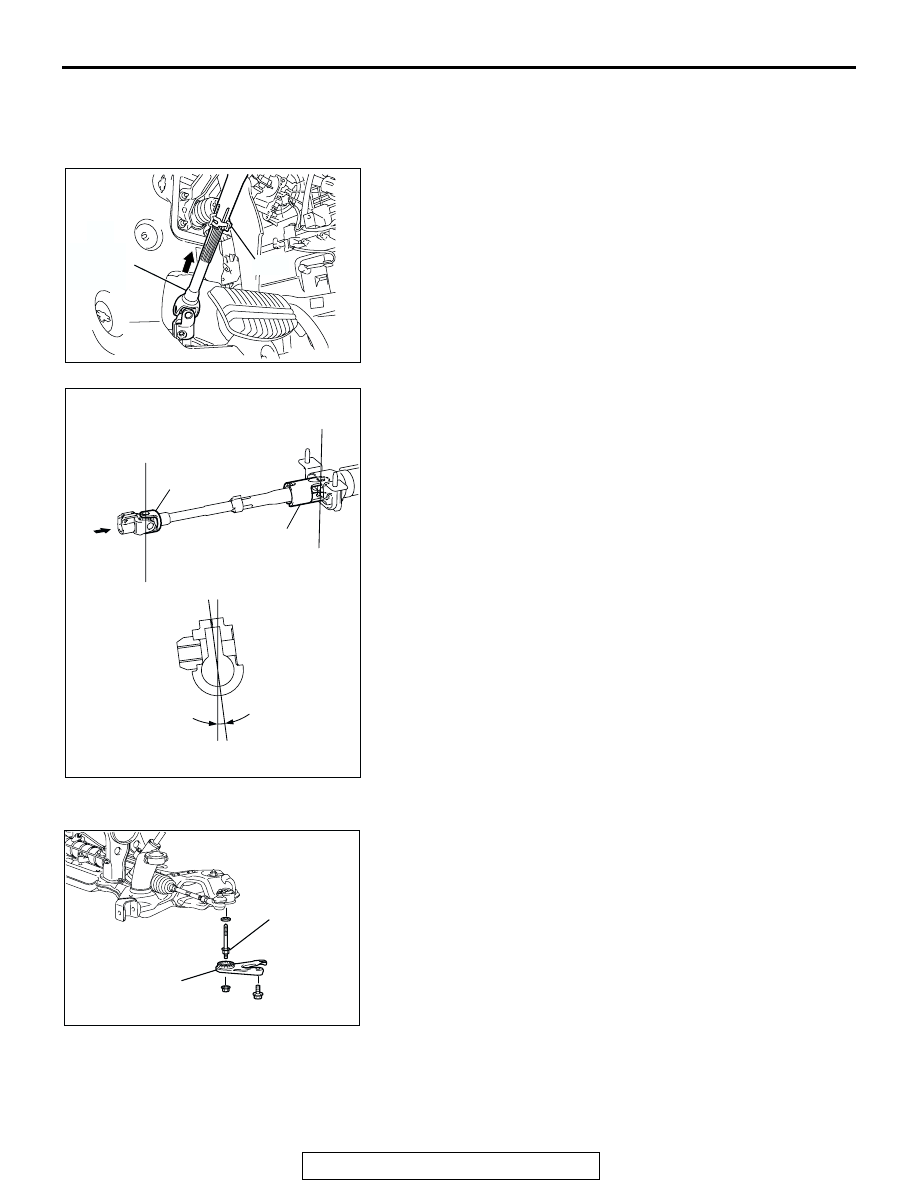

ASSEMBLY DISCONNECTION
1. Remove the steering gear and steering column assembly

connecting bolt.

2. Pinch the steering column shaft clip with pliers, and pull up

the shaft in the direction shown to disengage the steering
column assembly.

NOTE: If the steering column shaft is removed accidentally,
remove the steering column assembly and be sure to insert the
steering column shaft into the steering column as shown in the
figure.

.

<<C>> FRONT AXLE CROSSMEMBER STAY REMOVAL
The crossmember mounting bolts need not be unscrewed
when the front axle crossmember stay is replaced. However,
the bolts may be loosened while the front axle crossmember
stay is removed. It is recommended that you retighten the bolts
to 180

± 20 N⋅m (133 ± 14 ft-lb).

AC306565 AB

CLIP

STEERING
COLUMN
SHAFT

AC306564 AB

X

X

Y

Y

X

X

Y

Y

YOKE Y

VIEW A

7.6˚ ± 3˚

YOKE X

A

AC306568 AB

FRONT AXLE
CROSSMEMBER
STAY

CROSSMEMBER
MOUNTING BOLT

STABILIZER BAR

TSB Revision

FRONT SUSPENSION

33-24

INSTALLATION SERVICE POINTS

.

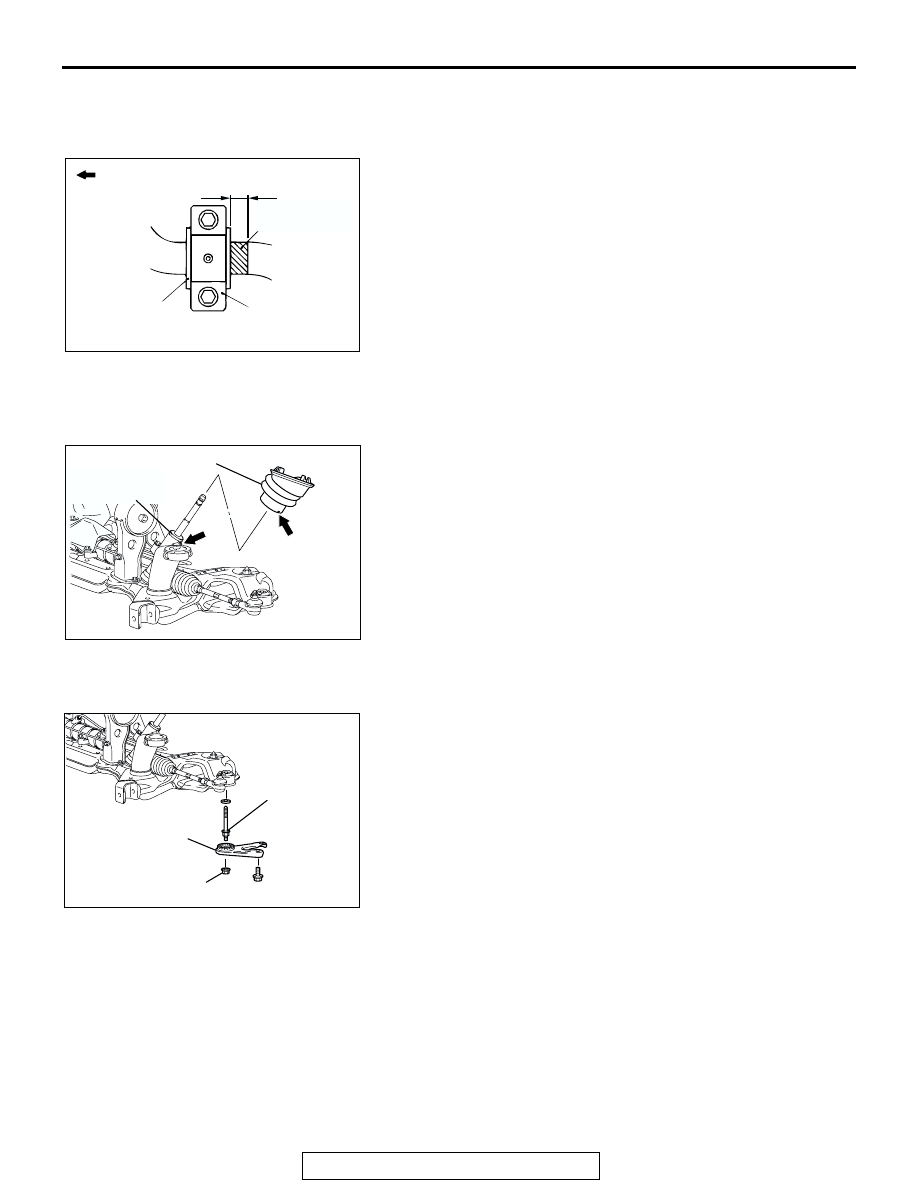

>>A<< STABILIZER BAR/STABILIZER BUSHING/STABI-
LIZER BRACKET INSTALLATION
Align the stabilizer bar identification mark with the right end of
the bushing (LH).

.

>>B<< FRONT AXLE NO.1 CROSSMEMBER, REAR ROLL
STOPPER AND STEERING GEAR ASSEMBLY
INSTALLATION
Align the steering column dash panel cover notch (arrow A)
with the steering gear lug (arrow B), and install the front axle
number 1 crossmember, the rear roll stopper and steering gear
assembly.

.

>>C<< FRONT AXLE CROSSMEMBER
STAY/SELF-LOCKING NUT INSTALLATION
Ensure that the crossmember mounting bolts have been tight-
ened to 180

± 20 N⋅m (133 ± 14 ft-lb), and then install the front

crossmember stay with the self-locking nut.

AC006141AE

STABILIZER
BRACKET (LH)

OUTSIDE OF
VEHICLE

STABILIZER
BUSHING (LH)

APPROXIMATELY
20 mm ( 0.79 in )

IDENTIFICATION
MARK

AC306751 AB

B

A

STEERING GEAR

STEERING COLUMN
DASH PANEL COVER

AC306568 AC

FRONT AXLE
CROSSMEMBER
STAY

CROSSMEMBER
MOUNTING BOLT

SELF-LOCKING NUT

STABILIZER BAR

TSB Revision

FRONT SUSPENSION

33-25

INSPECTION

M1332002000291

• Check the stabilizer bushings for wear and deterioration.

• Check the stabilizer bar for deterioration or damage.

• Check all bolts for condition and straightness.

.

STABILIZER LINK BALL JOINT BREAKAWAY TORQUE
CHECK

Required Special Tool:

• MB990326: Preload Socket

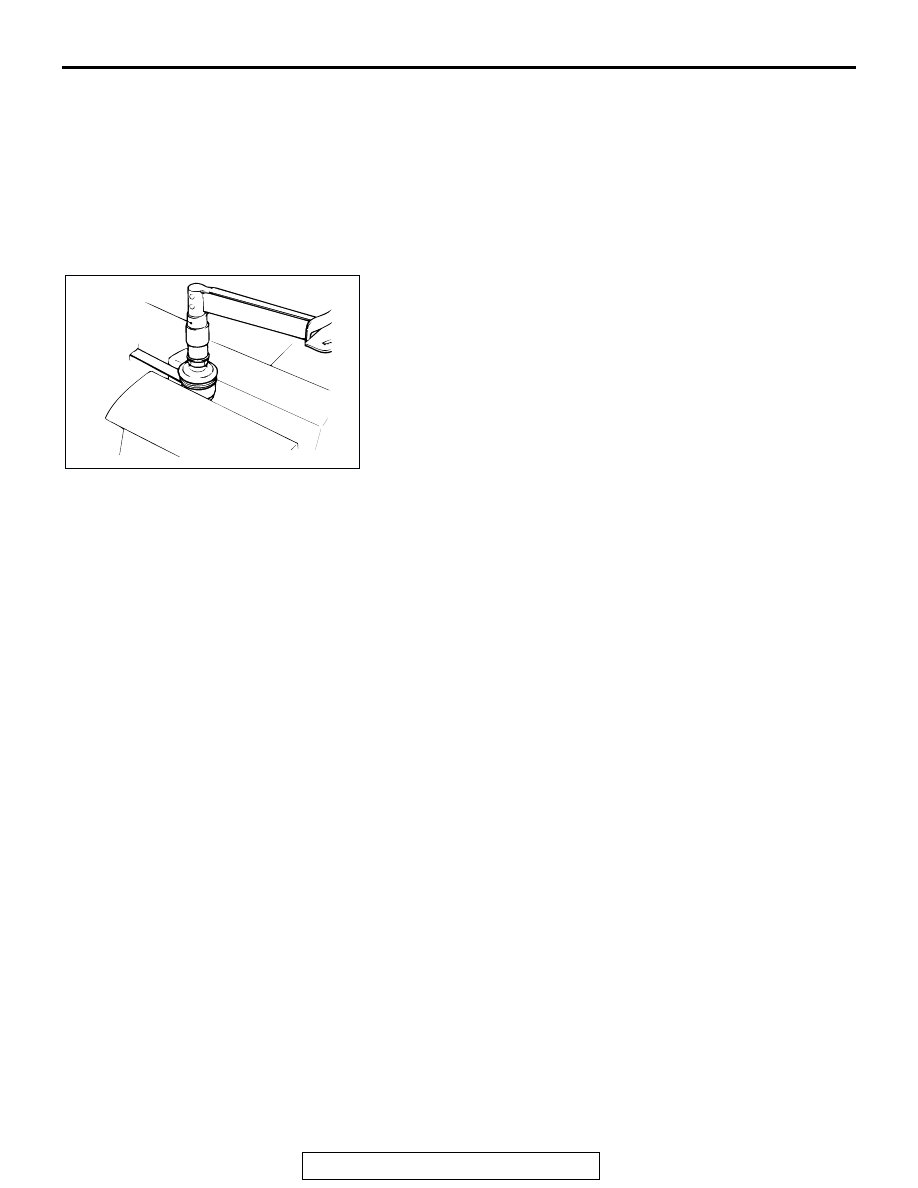

1. After shaking the ball joint stud several times, install the nut

to the stud and use special tool MB990326 to measure the
breakaway torque of the ball joint.

Standard value: 3.4

 9.0 Nm (30  80 in-lb)

2. When the measured value exceeds the standard value,

replace the stabilizer link.

3. When the measured value is lower than the standard value,

check that the ball joint turns smoothly without excessive
play. If so, it is possible to re-use that ball joint.

.

STABILIZER LINK BALL JOINT DUST COVER CHECK
1. Check the dust cover for cracks or damage by pushing it

with your finger.

2. If the dust cover is cracked or damaged, replace the

stabilizer link.
NOTE: Cracks or damage of the dust cover may cause
damage to the ball joint.

AC001129

MB990326

AB

SPECIFICATIONS

TSB Revision

FRONT SUSPENSION

33-26

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

M1332008500227

GENERAL SPECIFICATIONS

M1332000200233

COIL SPRING

ITEM

SPECIFICATION

Lower arm assembly
Lower arm to crossmember connection bolt

165

± 15 N⋅m (122 ± 11 ft-lb)

Lower arm to crossmember connection nut (self-locking
nut)

165

± 15 N⋅m (122 ± 11 ft-lb)

Lower arm to knuckle connection nut (self-locking nut)

65

± 6 N⋅m (48 ± 4 ft-lb)

Stabilizer bar
Crossmember to body connection bolt and nut

180

± 20 N⋅m (133 ± 14 ft-lb)

Front axle crossmember stay bolt and nut

83

± 12 N⋅m (61 ± 9 ft-lb)

Pressure hose clamp bolt

12

± 2 N⋅m (102 ± 22 in-lb)

Rear roll stopper connection nut

58

± 7 N⋅m (43 ± 5 ft-lb)

Return tube clamp bolt and nut

12

± 2 N⋅m (102 ± 22 in-lb)

Stabilizer bracket bolt

58

± 7 N⋅m (43 ± 5 ft-lb)

Stabilizer link nut

48

± 7 N⋅m (36 ± 5 ft-lb)

Steering gear and joint connecting bolt

18

± 2 N⋅m (13 ± 2 ft-lb)

Steering gear and pressure tube flare nut

15

± 3 N⋅m (11 ± 2 ft-lb)

Steering gear and return tube flare nut

15

± 3 N⋅m (11 ± 2 ft-lb)

Tie rod to knuckle connection nut

29

± 4 N⋅m (21 ± 3 ft-lb)

Strut assembly
Stabilizer link nut

48

± 7 N⋅m (36 ± 5 ft-lb)

Strut assembly to body connection nut

48

± 7 N⋅m (36 ± 5 ft-lb)

Strut assembly to knuckle connection nut

305

± 25 N⋅m (225 ± 18 ft-lb)

Strut nut (self-locking nut)

65

± 5 N⋅m (48 ± 4 ft-lb)

ITEM

2.4L ENGINE

3.8L ENGINE

Wire diameter mm (in)

15.3 (0.60)

15.0 (0.59)

Average diameter mm (in)

170

− 180 (6.7 − 7.1)

170

− 180 (6.7 − 7.1)

Free length mm (in)

348.0 (13.70)

333.5 (13.13)
