MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-689

STEP 12. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13B-5

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0446 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

DTC P0451: Evaporative Emission System Pressure Sensor Range/Performance

AC306278

A

B

C

D

E

F

G

O

P

Q

N

M

L

H

I

J

K

AC

INTAKE MANIFOLD PLENUM

FUEL TANK

EVAPORATIVE EMISSION
VENTILATION SOLENOID

CHECK VALVE

EVAPORATIVE EMISSION
PURGE SOLENOID

EVAPORATIVE
EMISSION CANISTER

ONBOARD REFUELING
VAPOR RECOVERY(ORVR)
VENT VALVE MODULE

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

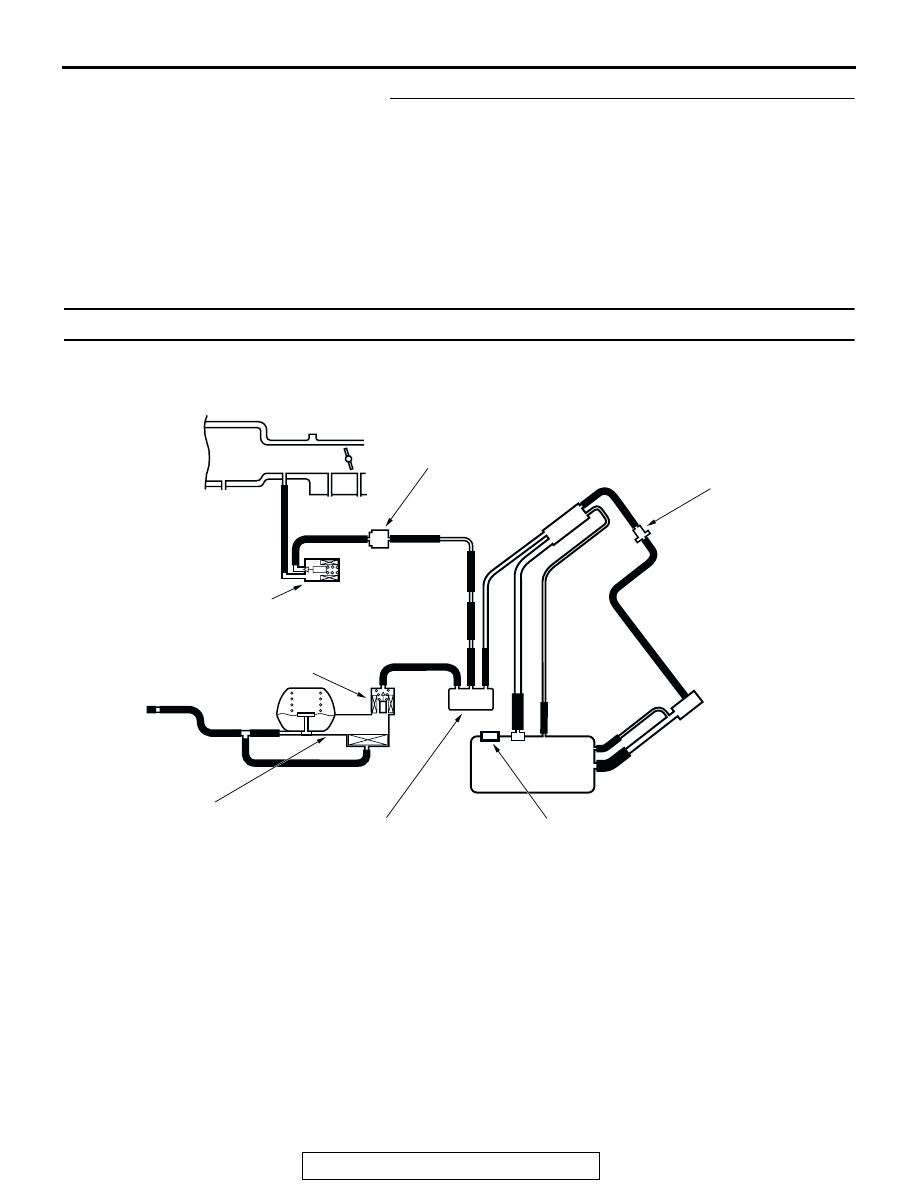

SYSTEM DIAGRAM

CHAMBER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-690

FUEL TANK
DIFFERENTIAL
PRESSURE
SENSOR

POWERTRAIN
CONTROL
MODULE

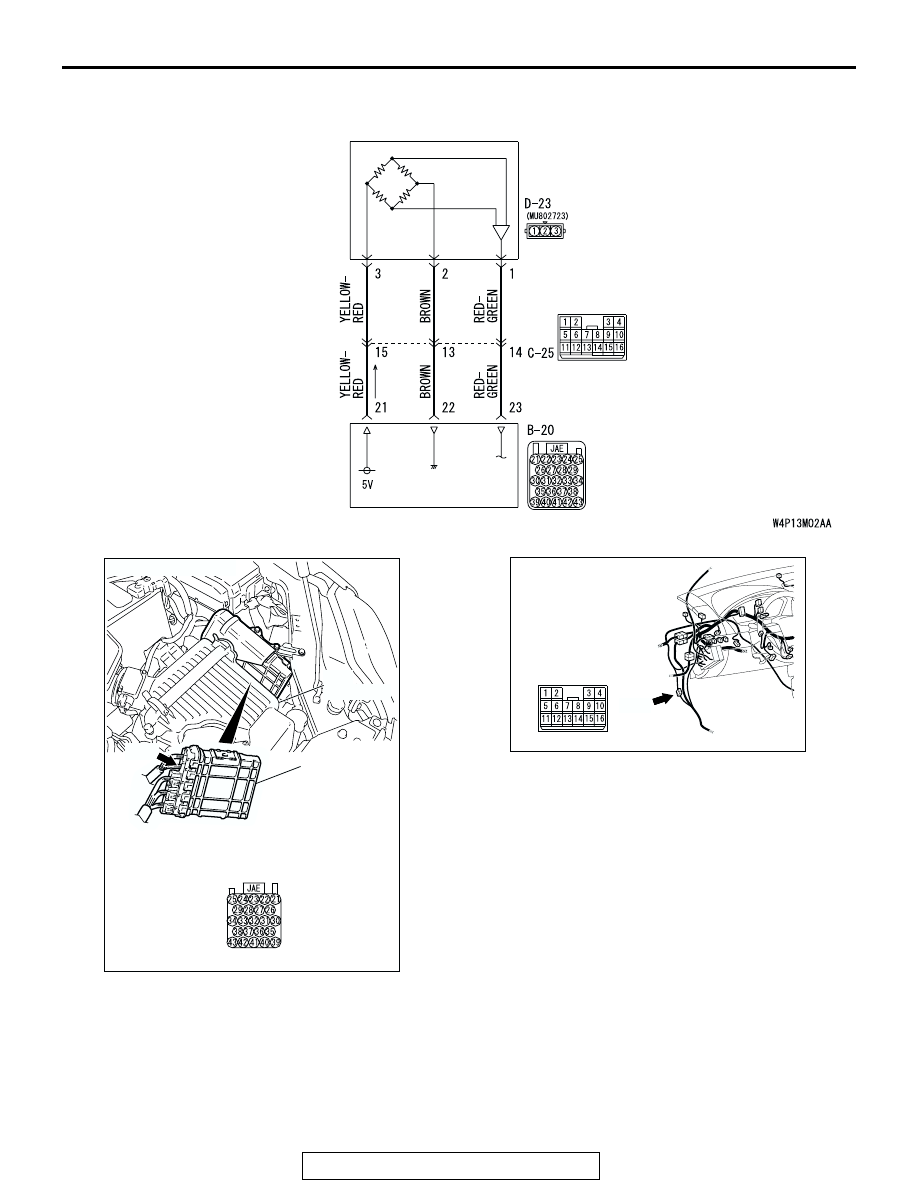

Fuel Tank Differential Pressure Sensor Circuit

AC306128

AC306248

B-20 HARNESS

CONNECTOR:

COMPONENT SIDE

AB

B-20

CONNECTOR: B-20

PCM

AIR
CLEANER

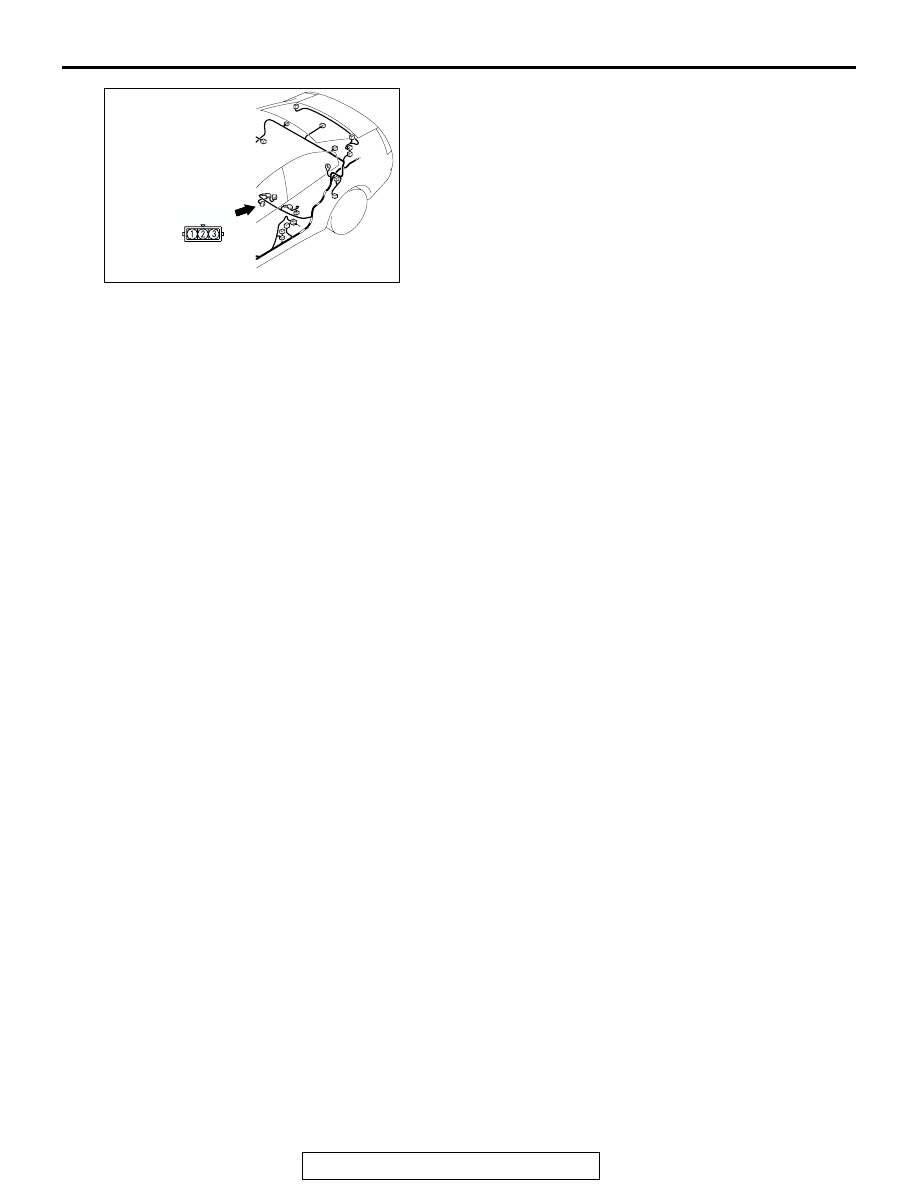

AC305231

CONNECTOR: C-25

AM

C-25

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-691

.

CIRCUIT OPERATION

• The PCM (terminal 21) supplies a 5-volt refer-

ence signal to the fuel tank differential pressure
sensor (terminal 3). The fuel tank differential
pressure sensor (terminal 2) is grounded through
the PCM (terminal 22).

• The fuel tank differential pressure sensor (termi-

nal 1) returns a voltage signal to the PCM (termi-
nal 23) that is proportional to the pressure in the
fuel tank.

.

TECHNICAL DESCRIPTION

• The PCM monitors the fuel tank differential pres-

sure sensor signal voltage.

• The PCM determines whether the fuel tank differ-

ential pressure sensor signal voltage is within
normal operating parameters.

.

DESCRIPTIONS OF MONITOR METHODS

• Detect malfunction if change of fuel tank differen-

tial pressure sensor output voltage during idling
stays large during specified go/stop operations.

.

MONITOR EXECUTION

• Continuous.

.

MONITOR EXECUTION CONDITIONS (Other
Monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Evaporative emission purge solenoid monitor

• Evaporative emission ventilation solenoid monitor

 Sensor (The sensors below are determined to be

normal)

• Mass airflow sensor

• Barometric pressure sensor

• Intake air temperature sensor

• Engine coolant temperature sensor

.

AC305266

CONNECTOR: D-23

AB

D-23 (B)

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-692

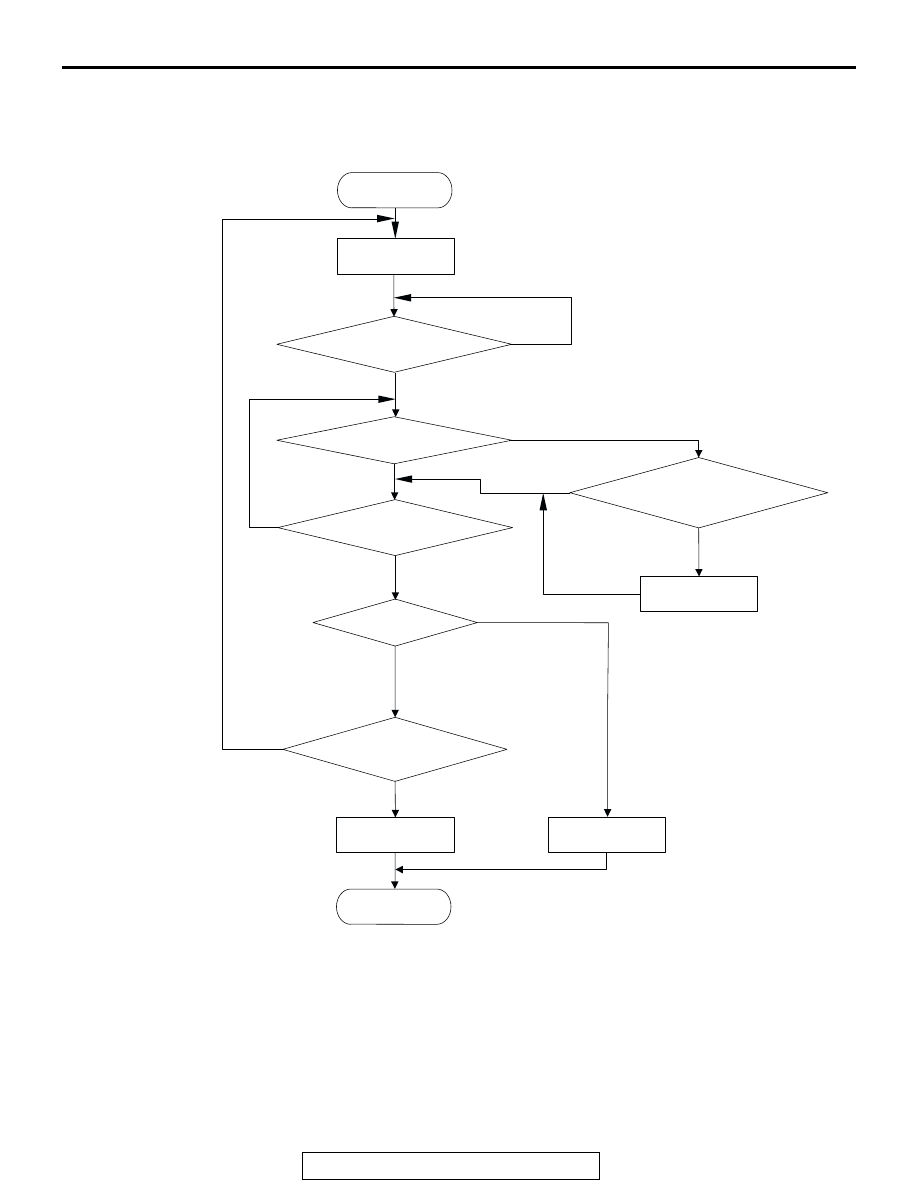

LOGIC FLOW CHARTS (Monitor Sequence)

.

DTC SET CONDITIONS

Check Conditions

• Throttle valve is closed.

• Vehicle speed is 1.5 km/h (0.93 mph) or less.

Judgment Criteria

• If the voltage signal from the fuel tank differential

pressure sensor changes by 0.2 volt or more,
DTC P0451 will set. The code may also set if a
sudden pressure fluctuation occurs twenty times
while the engine is idling, and then eight consec-
utive times during normal driving.

START



YES

NO



NO



OFF-IDLING CONDITION



IDLING CONDITION?



F1 = 0



END



NO

NO

YES



YES



MALFUNCTION



F1 > 20



SPECIFIED TIMES

MONITORED



FTPS OUTPUT



VOLTAGE      > 0.2V



FLUCTUATION



NO

YES



YES

F1 = F1 + 1



GOOD



YES



NO





OFF-IDLING CONDITION

AC306647

RATIONALITY - NOISE
