MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-449

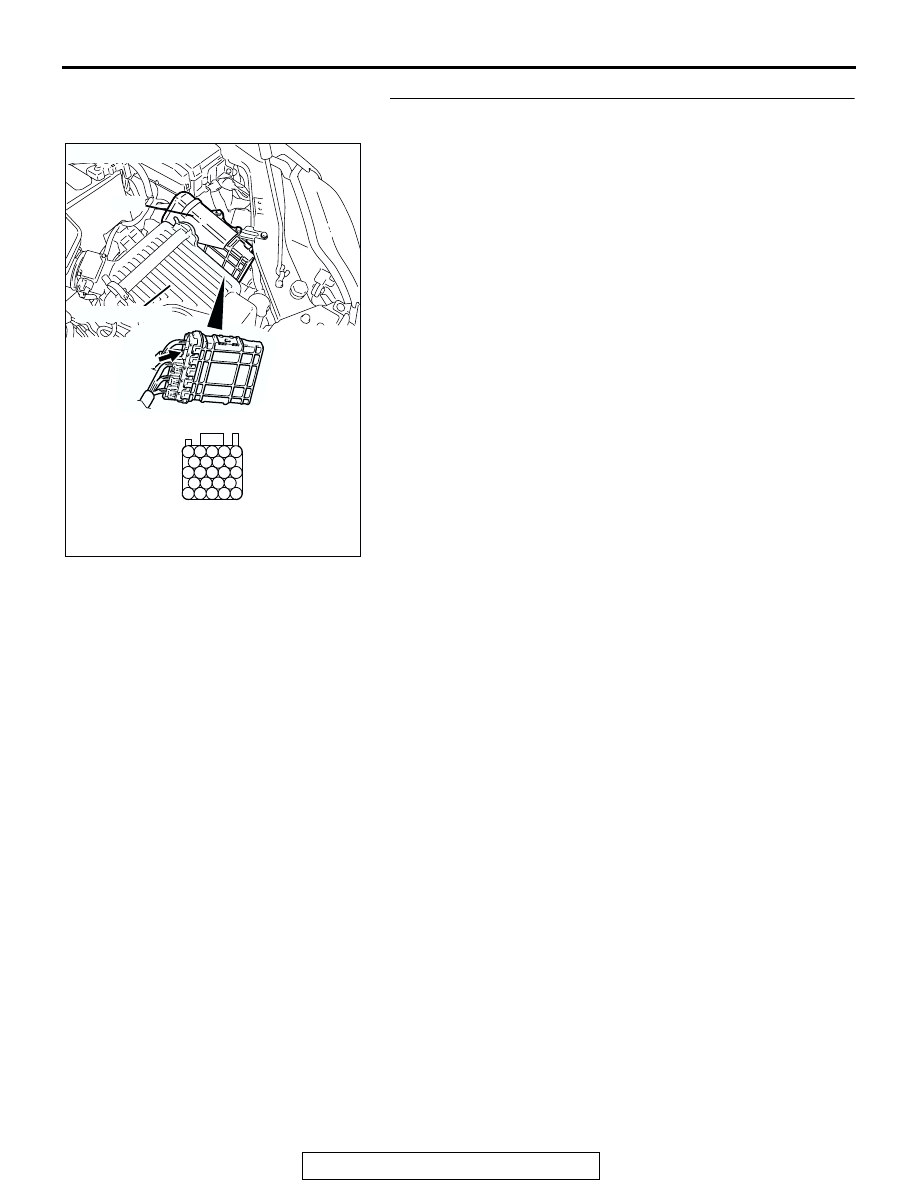

STEP 8. Check harness connector B-20 at PCM for
damage.

Q: Is the harness connector in good condition?

YES : Go to Step 9.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK303092

25

21

24 23 22

29 28 27 26

34 33 32 31 30

38 37 36 35

43 42 41 40 39

CONNECTOR: B-20

B-20

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-450

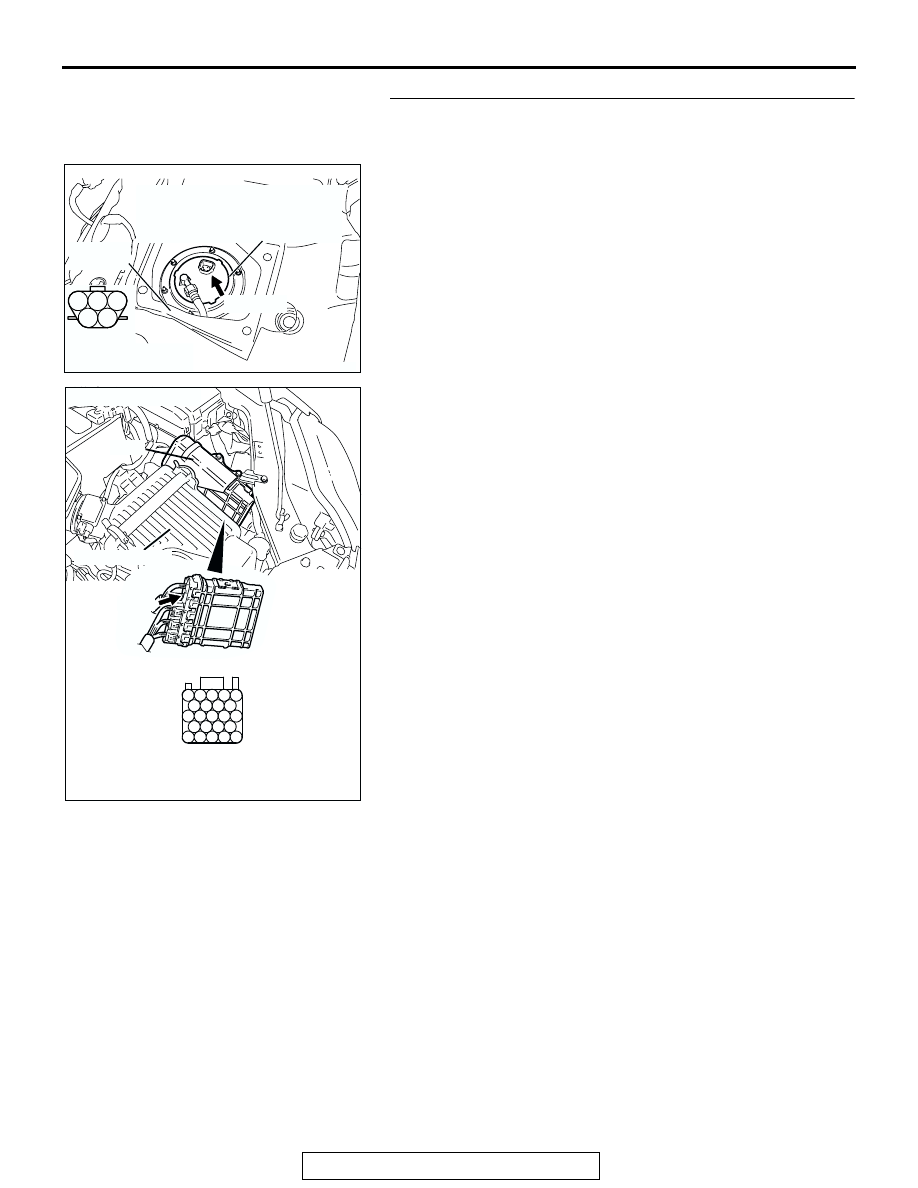

STEP 9. Check for short circuit to ground between fuel
tank temperature sensor connector D-18 (terminal No. 3)
and PCM connector B-20 (terminal No. 41).

NOTE: Check harness after checking intermediate connector
C-25. If intermediate connector is damaged, repair or replace it.
Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then go to Step 12.
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 12.
NO :  Repair it. Then go to Step 12.

1

2

3

4

5

AK303088

HARNESS
CONNECTOR:
COMPONENT SIDE

SERVICE
HOLE

AB

FUEL PUMP MODULE
(INCORPORATING FUEL LEVEL
SENSOR (MAIN) AND FUEL
TANK TEMPERATURE SENSOR)

CONNECTOR: D-18

D-18 (GR)

AK303092

25

21

24 23 22

29 28 27 26

34 33 32 31 30

38 37 36 35

43 42 41 40 39

CONNECTOR: B-20

B-20

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-451

STEP 10. Check harness connector B-20 at PCM for
damage.

Q: Is the harness connector in good condition?

YES : Go to Step 11.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 12.

AK303092

25

21

24 23 22

29 28 27 26

34 33 32 31 30

38 37 36 35

43 42 41 40 39

CONNECTOR: B-20

B-20

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.8L ENGINE>

13B-452

STEP 11. Check for harness damage between fuel tank
temperature sensor connector D-18 (terminal No. 3) and
PCM connector B-20 (terminal No. 41).

NOTE: Check harness after checking intermediate connector
C-25. If intermediate connector is damaged, repair or replace it.
Refer to GROUP 00E, Harness Connector Inspection

P.00E-2

.

Then go to Step 12.
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 12.
NO :  Repair it. Then go to Step 12.

1

2

3

4

5

AK303088

HARNESS
CONNECTOR:
COMPONENT SIDE

SERVICE
HOLE

AB

FUEL PUMP MODULE
(INCORPORATING FUEL LEVEL
SENSOR (MAIN) AND FUEL
TANK TEMPERATURE SENSOR)

CONNECTOR: D-18

D-18 (GR)

AK303092

25

21

24 23 22

29 28 27 26

34 33 32 31 30

38 37 36 35

43 42 41 40 39

CONNECTOR: B-20

B-20

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE
