SUNROOF

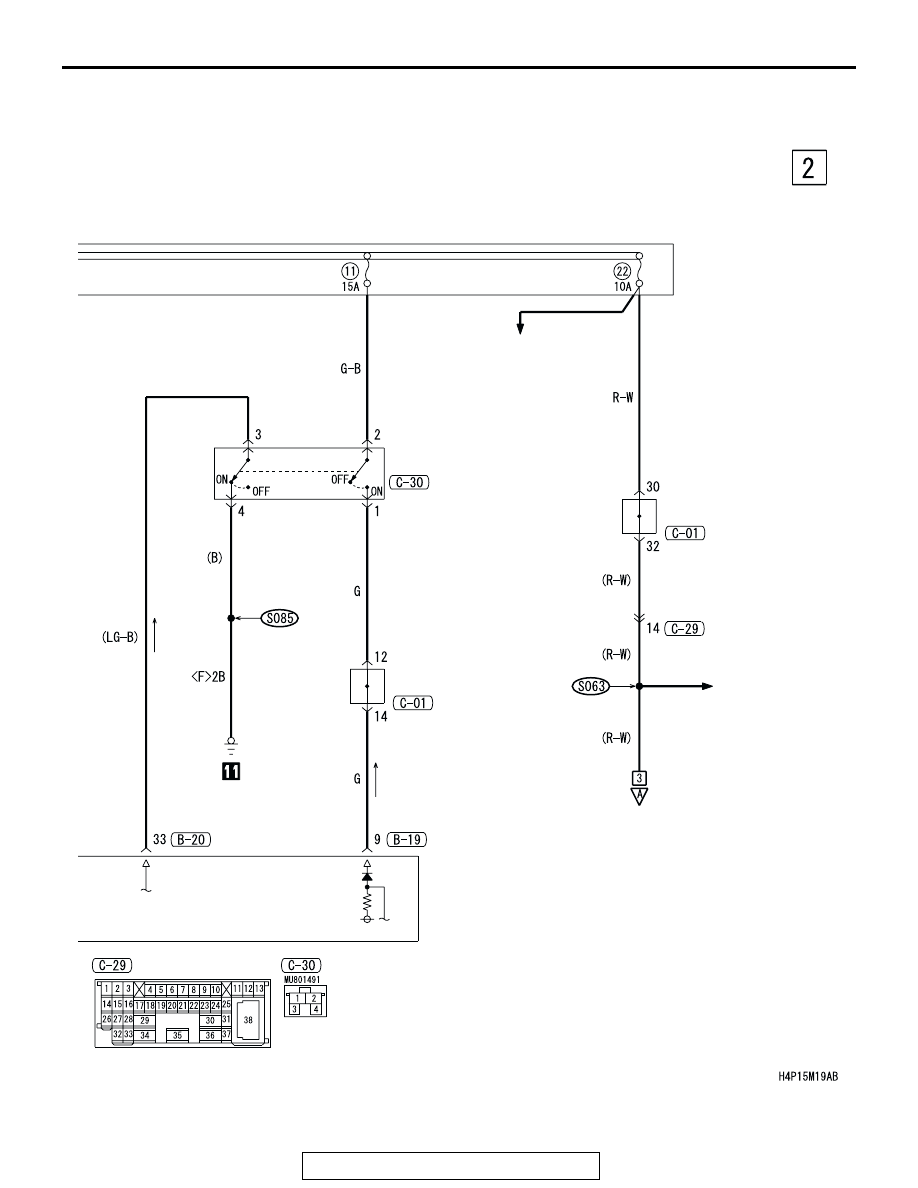

TSB Revision

CIRCUIT DIAGRAMS

90-215

SUNROOF ASSEMBLY

SUNROOF
MOTOR

HALL
IC 1

HALL
IC 2

PULSE SENSOR

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW
SB : SKY BLUE     BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET

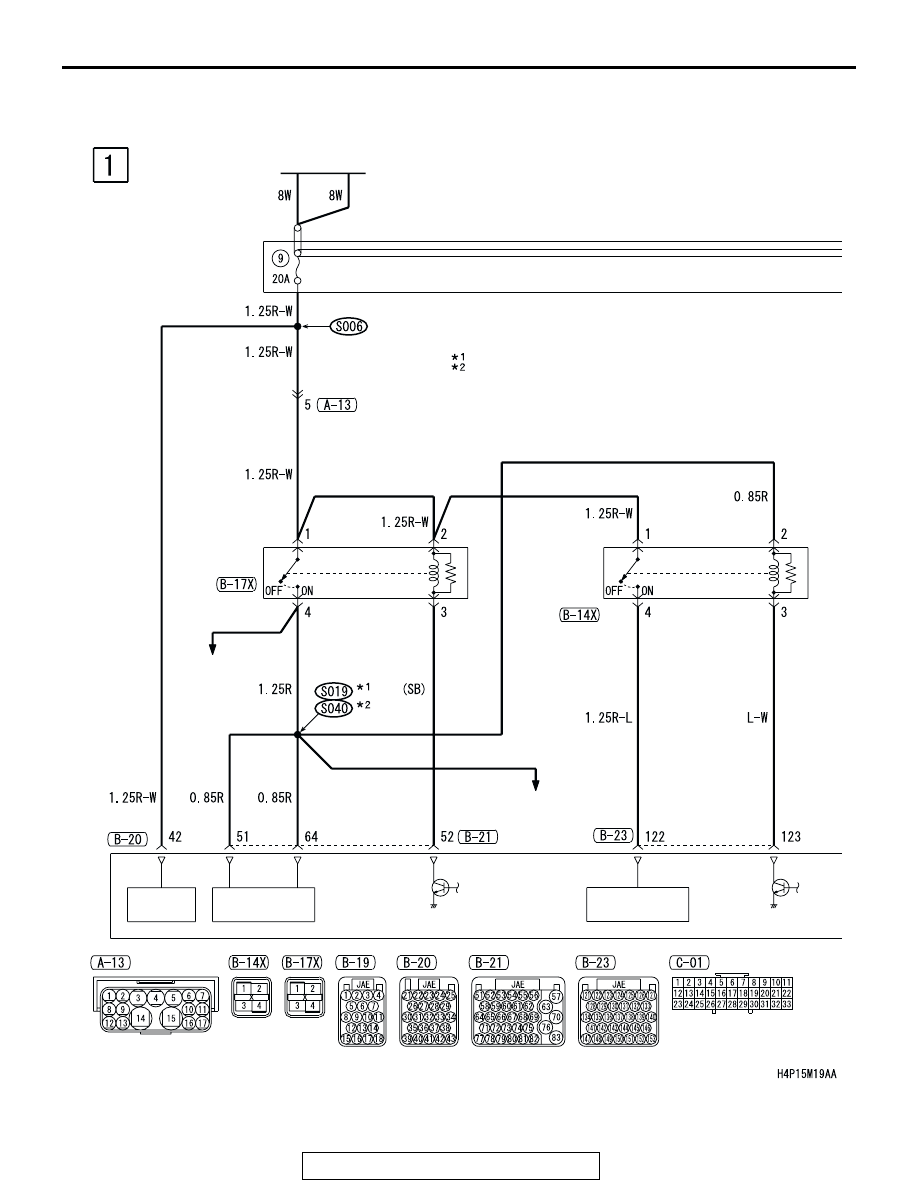

AUTO-CRUISE CONTROL SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-216

AUTO-CRUISE CONTROL SYSTEM

M1901009301043

BATTERY

RELAY
BOX

MFI
RELAY

BATTERY
BACKUP

POWER SUPPLY

POWER SUPPLY

THROTTLE
ACTUATOR
CONTROL
MOTOR
RELAY

NOTE

:2.4L ENGINE
:3.8L ENGINE

MFI SYSTEM

MFI SYSTEM

AUTO-CRUISE CONTROL SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-217

STOPLIGHT
SWITCH

JOINT
CONNECTOR (1)

POWERTRAIN
CONTROL
MODULE

·FOG LIGHT
·HEADLIGHT
·TAILLIGHT,
 POSITION LIGHT,
 FRONT SIDE
 MARKER LIGHT
 AND LICENSE
 PLATE LIGHT
·TURN-SIGNAL
 LIGHT AND
 HAZARD
 WARNING LIGHT
·WINDSHIELD
 WIPER AND
 WASHER

·AUDIO SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·CONTROLLER AREA
 NETWORK (CAN)
·FOG LIGHT
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·HEADLIGHT
·MANUAL AIR
 CONDITIONING
 SYSTEM
·MULTI CENTER
 DISPLAY
·TAILLIGHT, POSITION
 LIGHT, FRONT SIDE
 MARKER LIGHT AND
 LICENSE PLATE LIGHT
·TURN-SIGNAL LIGHT
 AND HAZARD
 WARNING LIGHT
·VANITY MIRROR
 LIGHT
·WINDSHIELD WIPER
 AND WASHER

JOINT
CONNECTOR (1)

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET

AUTO-CRUISE CONTROL SYSTEM

TSB Revision

CIRCUIT DIAGRAMS

90-218

AUTO-CRUISE CONTROL SYSTEM (CONTINUED)

IGNITION
SWITCH (IG1)

JUNCTION
BLOCK

JOINT
CONNECTOR (1)

INVECS-II
4A/T

OUTPUT
SHAFT
SPEED
SENSOR

POWERTRAIN
CONTROL
MODULE

RELAY BOX
(FUSE     )

JOINT
CONNECTOR (2)

COMBINATION
METER

RHEOSTAT
CIRCUIT
