DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-21

NOTES

FLOOR AND ROOF

TSB Revision

CONFIGURATION DIAGRAMS

80A-22

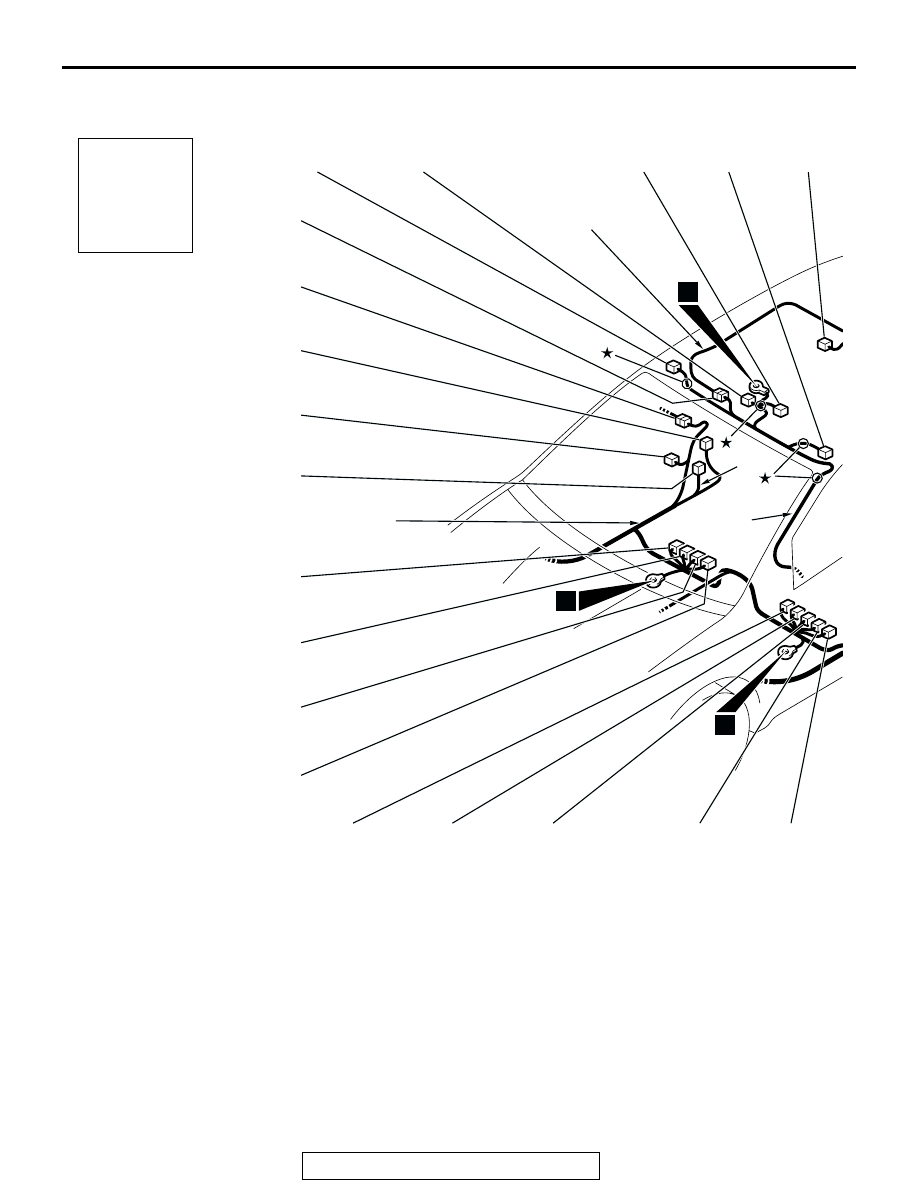

FLOOR AND ROOF

M1801000900510

AC304364

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

Connector
symbol

D

FLOOR
WIRING
HARNESS

REAR DOME
LIGHT WIRING
HARNESS

4

AB

Y

2

15

D-01

D-02
D-03

D-04

D-05

D-06

D-24

D-25

D-26

D-27

D-28

D-29

D-30

D-31

D-32

D-33

D-34

D-35

D-36

D-37

ROOF
WIRING
HARNESS

D-01

(2)

VANITY MIRROR LIGHT (RH)

D-02

(4)

MAP LIGHT ASSEMBLY <WITHOUT
SUNROOF>

D-03

(7)

OVERHEAD CONSOLE ASSEMBLY
<WITH SUNROOF>

D-04

(10)

SUNROOF ASSEMBLY

D-05

(2)

VANITY MIRROR LIGHT (LH)

D-06

(3)

REAR DOOR SWITCH (RH)

D-07

(3)

REAR DOME LIGHT

D-08

(1)

DEFOGGER (

−)

D-09

(2)

REAR SPEAKER (RH)

D-10

(2)

TRUNK LIGHT

D-11

(1)

DEFOGGER (+)

D-12

(2)

REAR SPEAKER (LH)

D-13

(2)

CHOKE COIL

D-14

(2)

CHOKE COIL

D-15

(1-B)

CAPACITOR

D-16

(3)

REAR DOOR SWITCH (LH)

D-17

(2)

FUEL LEVEL SENSOR (SUB)

D-18

(5-GR)

FUEL PUMP MODULE

D-19

(10)

FLOOR WIRING HARNESS AND
REAR DOOR WIRING HARNESS
(LH) COMBINATION

D-20

(2)

SIDE IMPACT SENSOR (LH)

D-21

(2-B)

SEAT BELT PRETENSIONER (LH)

FLOOR AND ROOF

TSB Revision

CONFIGURATION DIAGRAMS

80A-23

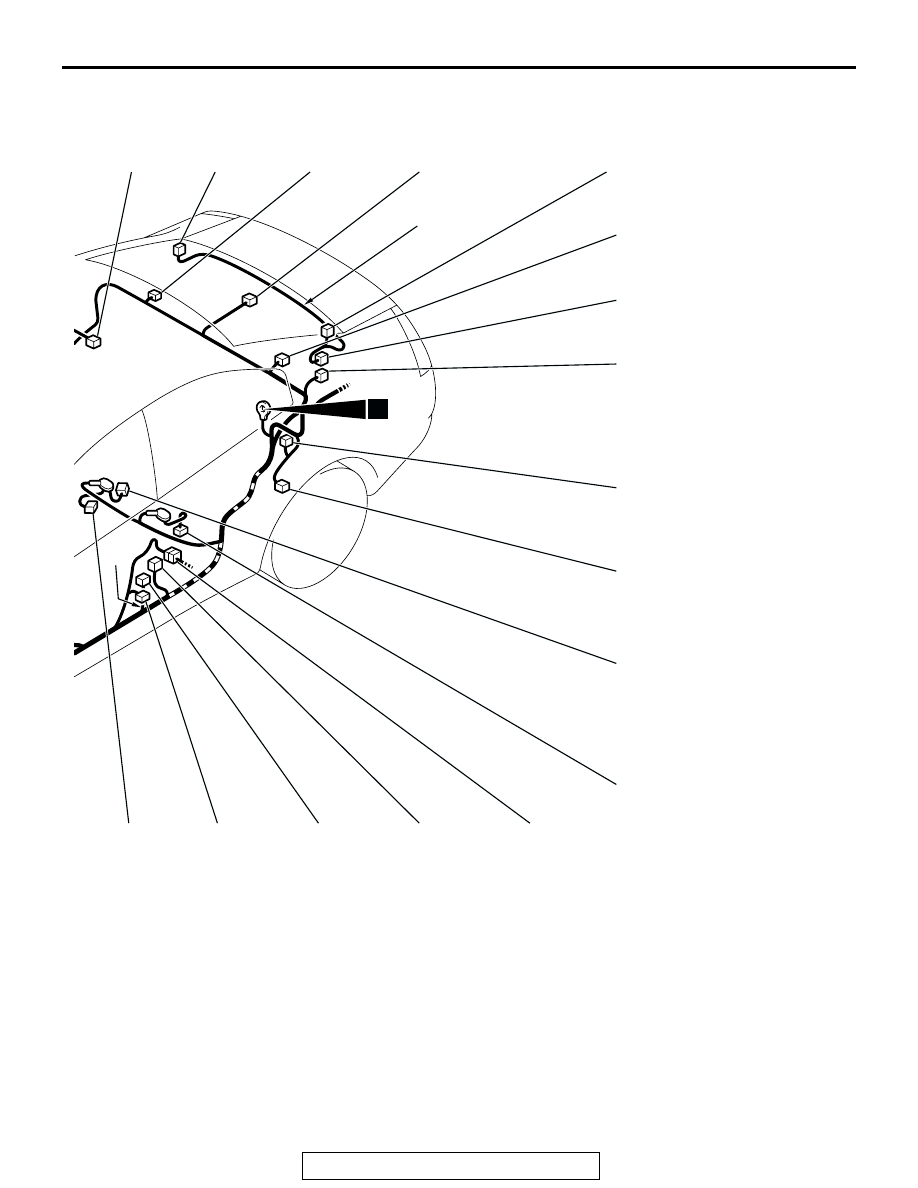

AC304365AB

CHOKE COIL
WIRING
HARNESS

7

D-07

D-08

D-09

D-10

D-11

D-12

D-13

D-14

D-15

D-16

D-17

D-18

D-19

D-20

D-21

D-22

D-23

Y

D-22

(3)

FRONT DOOR SWITCH (LH)

D-23

(3-B)

FUEL TANK DIFFERENTIAL
PRESSURE SENSOR

D-24

(2-R)

SIDE AIR BAG MODULE (SQUIB)
(LH)

D-25

(2-B)

POWER SEAT ASSEMBLY

D-26

(3-B)

HEATED SEAT ASSEMBLY (LH)

D-27

(2-GR)

SEAT SLIDE SENSOR

D-28

(5-B)

SEAT BELT BUCKLE SWITCH
(DRIVER’S SIDE)

D-29

(3)

SEAT BELT BUCKLE SWITCH
(PASSENGER’S SIDE)

D-30

(3-GR)

OCCUPANT CLASSIFICATION-ECU

D-31

(3-B)

HEATED SEAT ASSEMBLY (RH)

D-32

(2-R)

SIDE AIR BAG MODULE (SQUIB)
(RH)

D-33

(2-B)

SEAT BELT PRETENSIONER (RH)

D-34

(3)

FRONT DOOR SWITCH (RH)

D-35

(2)

SIDE IMPACT SENSOR (RH)

D-36

(10)

FLOOR WIRING HARNESS AND
REAR DOOR WIRING HARNESS
(RH) COMBINATION

D-37

(3)

ROOF WIRING HARNESS AND
REAR DOME LIGHT WIRING
HARNESS COMBINATION

DOOR

TSB Revision

CONFIGURATION DIAGRAMS

80A-24

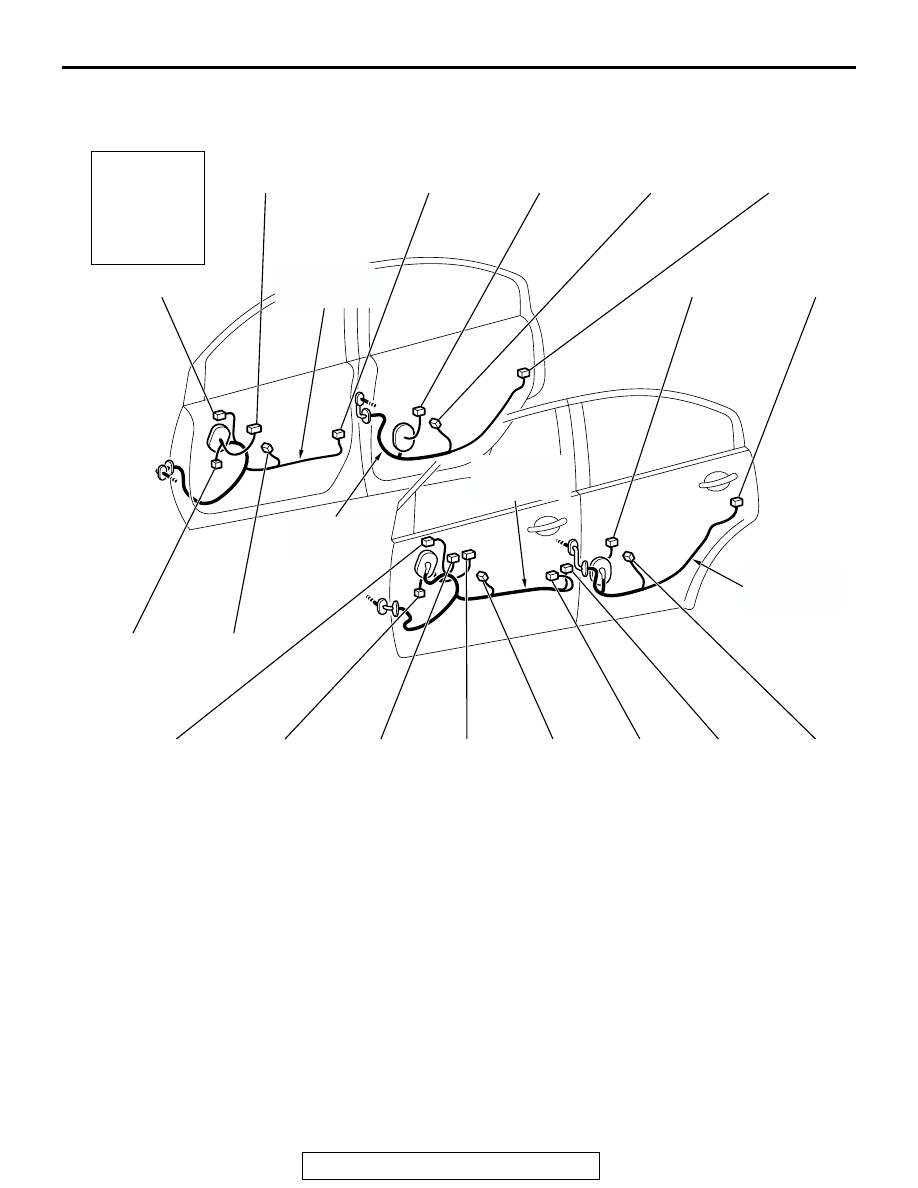

DOOR

M1801001400541

AC304367

Connector
symbol

E

AB

FRONT DOOR
WIRING
HARNESS (RH)

FRONT DOOR
WIRING
HARNESS (LH)

REAR DOOR
WIRING
HARNESS (RH)

REAR DOOR
WIRING
HARNESS (LH)

E-01

E-04

E-05

E-06

E-07

E-08

E-02

E-03

E-17

E-18

E-09

E-10

E-11

E-12

E-13

E-14

E-15

E-16

E-01

(6-GR)

REMOTE CONTROLLED MIRROR
(RH)

E-02

(2)

FRONT DOOR SPEAKER (RH)

E-03

(2-GR)

FRONT POWER WINDOW
REGULATOR MOTOR (RH)

E-04

(8)

FRONT POWER WINDOW SUB
SWITCH

E-05

(6-B)

FRONT DOOR LOCK ACTUATOR
(RH)

E-06

(8)

REAR POWER WINDOW SUB
SWITCH (RH)

E-07

(2-GR)

REAR POWER WINDOW
REGULATOR MOTOR (RH)

E-08

(6-B)

REAR DOOR LOCK ACTUATOR
(RH)

E-09

(6-GR)

REMOTE CONTROLLED MIRROR
(LH)

E-10

(2)

FRONT DOOR SPEAKER (LH)

E-11

(11)

REMOTE CONTROLLED MIRROR
SWITCH

E-12

(11)

POWER WINDOW MAIN SWITCH

E-13

(2-GR)

FRONT POWER WINDOW
REGULATOR MOTOR (LH)

E-14

(3-B)

DOOR LOCK KEY CYLINDER
SWITCH

E-15

(6-B)

FRONT DOOR LOCK ACTUATOR
(LH)

E-16

(2-GR)

REAR POWER WINDOW
REGULATOR MOTOR (LH)

E-17

(8)

REAR POWER WINDOW SUB
SWITCH (LH)

E-18

(6-B)

REAR DOOR LOCK ACTUATOR (LH)
