ENGINE AND TRANSAXLE <3.8L ENGINE>

TSB Revision

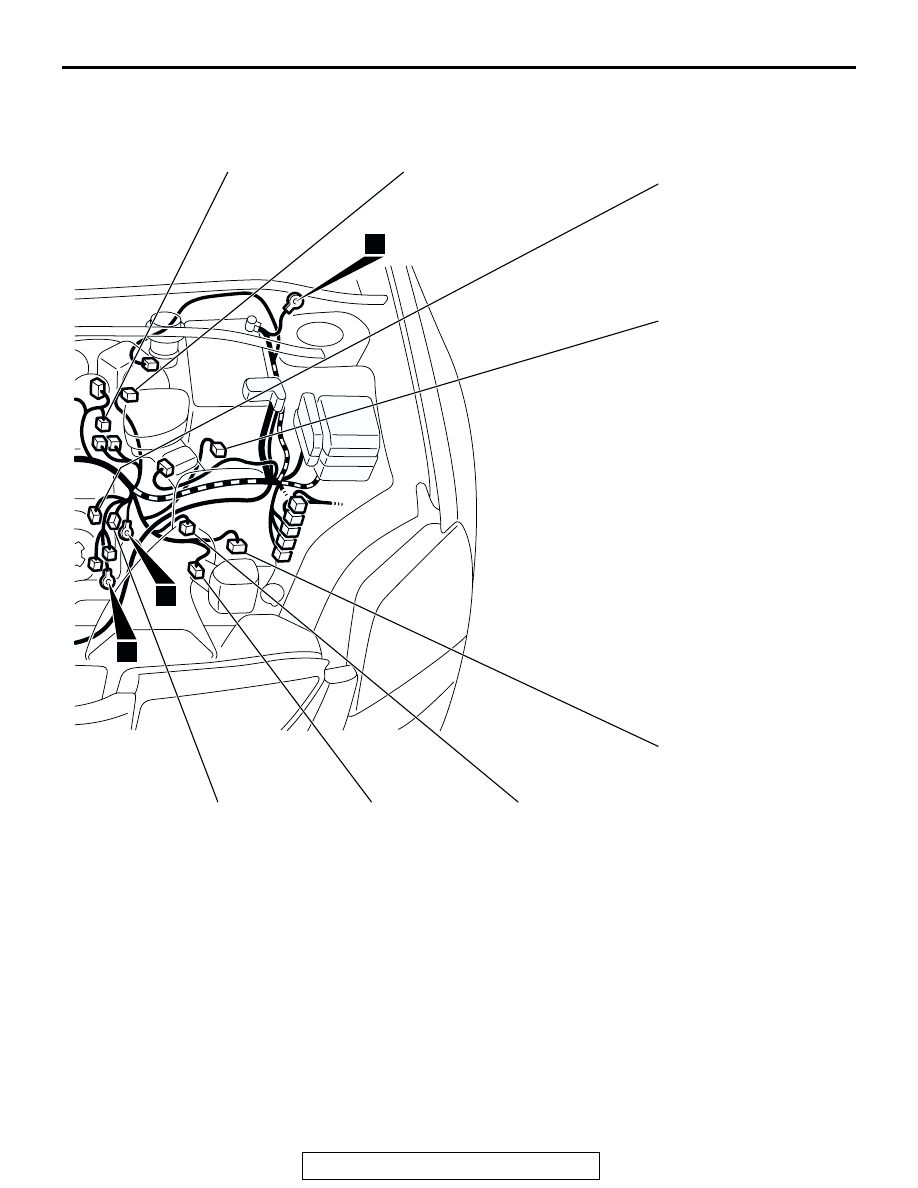

CONFIGURATION DIAGRAMS

80A-13

AC304358 AC

B-104

B-105

B-106

B-107

B-108

B-109

B-110

B-111

B-111 (1-B)

CAPACITOR

B-112 (1)

STARTER

B-113 (1-B)

STARTER

B-114 (3-GR)

IGNITION COIL 6

B-115 (1)

GENERATOR

B-116 (4-GR)

GENERATOR

B-117 (3-GR)

IGNITION COIL 4

B-118 (3-GR)

IGNITION COIL 2

B-119 (3-B)

CRANKSHAFT POSITION SENSOR

B-120 (2-GR)

KNOCK SENSOR

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-14

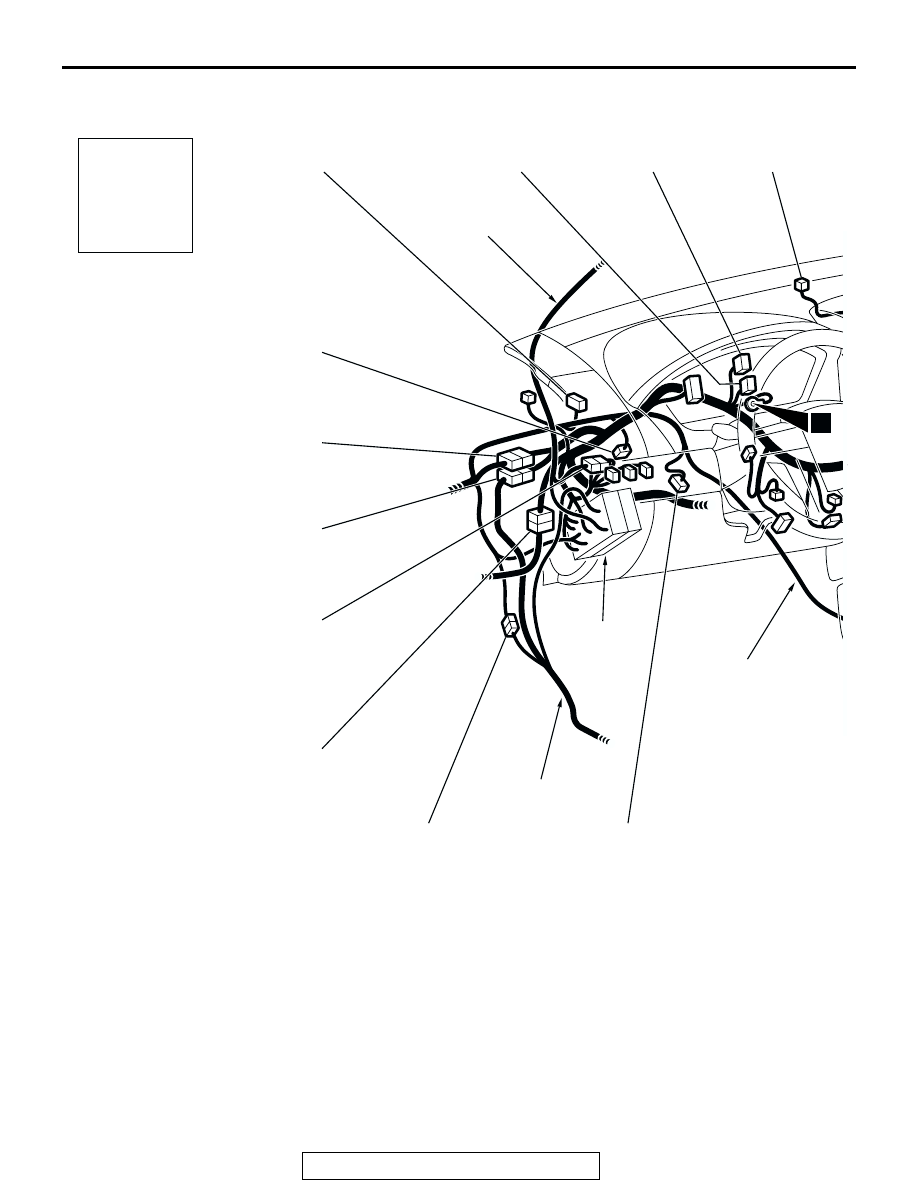

DASH PANEL

M1801000600638

AC304360

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

Connector
symbol

-01
thru
-30

ROOF WIRING
HARNESS

JUNCTION
BLOCK

FRONT WIRING
HARNESS

FLOOR WIRING
HARNESS

C-01

C-02

C-03

C-04

C-24

C-25

C-26

C-27

C-28

C-29

C-30

C-01

(33)

J/C (1)

C-02

(22)

J/C (3)

C-03

(33)

J/C (2)

C-04

(2)

PHOTO SENSOR <AUTOMATIC A/C>

C-05

(20-B)

MULTI CENTER DISPLAY UNIT

C-06

(3)

AIR BAG OFF INDICATOR LIGHT
(PASSENGER’S SIDE)

C-07

(4)

SEAT BELT WARNING LIGHT
(PASSENGER’S SIDE)

C-08

(4)

HAZARD WARNING LIGHT SWITCH

C-09

(12-B)

A/C-ECU <MANUAL A/C (LOW)>

C-10

(16-B)

A/C-ECU <MANUAL A/C (LOW)>

C-11

(2)

INSTRUMENT PANEL WIRING
HARNESS AND FRONT WIRING
HARNESS COMBINATION

C-12

(19)

INSTRUMENT PANEL WIRING
HARNESS AND FRONT DOOR WIRING
HARNESS (RH) COMBINATION

C-13

(8)

INSTRUMENT PANEL WIRING
HARNESS AND FLOOR WIRING
HARNESS COMBINATION

C-14

(6)

BLOWER SWITCH <MANUAL A/C
(LOW)>

C-15

(20-B)

A/C-ECU <MANUAL A/C (MIDDLE),
AUTOMATIC A/C>

C-16

(16-B)

A/C-ECU <MANUAL A/C (MIDDLE),
AUTOMATIC A/C>

C-17

(2)

ACCESSORY SOCKET (1)

C-18

(1-B)

PARKING BRAKE SWITCH

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-15

AC304361AB

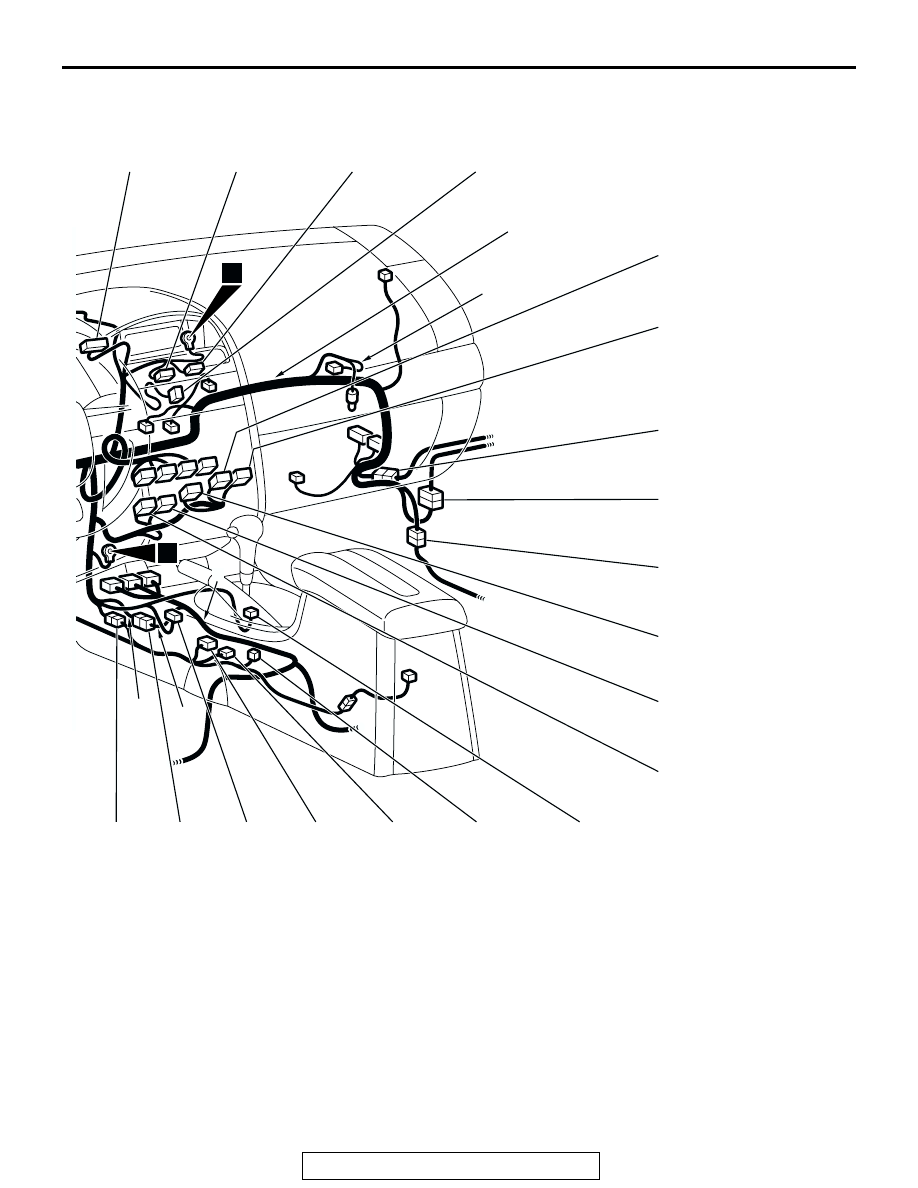

INSTRUMENT PANEL
WIRING HARNESS

C-05

C-06

C-07

C-08

C-09

C-10

C-11

C-12

C-13

C-14

C-15

C-16

C-17

C-18

C-19

C-20

C-21

C-22

C-23

C-19

(2)

A/T SELECTOR LEVER POSITION
ILLUMINATION LIGHT <2.4L ENGINE>

C-20

(6)

SHIFT SWITCH ASSEMBLY <3.8L
ENGINE>

C-21

(9)

HEATED SEAT SWITCH

C-22

(28-Y)

INSTRUMENT PANEL WIRING
HARNESS AND FLOOR WIRING
HARNESS COMBINATION

C-23

(8)

INSTRUMENT PANEL WIRING
HARNESS AND FRONT WIRING
HARNESS COMBINATION

C-24

(6-B)

ACCELERATOR PEDAL POSITION
SENSOR

C-25

(16)

FRONT WIRING HARNESS AND FLOOR
WIRING HARNESS COMBINATION

C-26

(32)

INSTRUMENT PANEL WIRING
HARNESS AND FRONT DOOR WIRING
HARNESS (LH) COMBINATION

C-27

(4)

INSTRUMENT PANEL WIRING
HARNESS AND ROOF WIRING
HARNESS COMBINATION

C-28

(43)

INSTRUMENT PANEL WIRING
HARNESS AND FLOOR WIRING
HARNESS COMBINATION

C-29

(38)

INSTRUMENT PANEL WIRING
HARNESS AND FRONT WIRING
HARNESS COMBINATION

C-30

(4)

STOPLIGHT SWITCH

DASH PANEL

TSB Revision

CONFIGURATION DIAGRAMS

80A-16

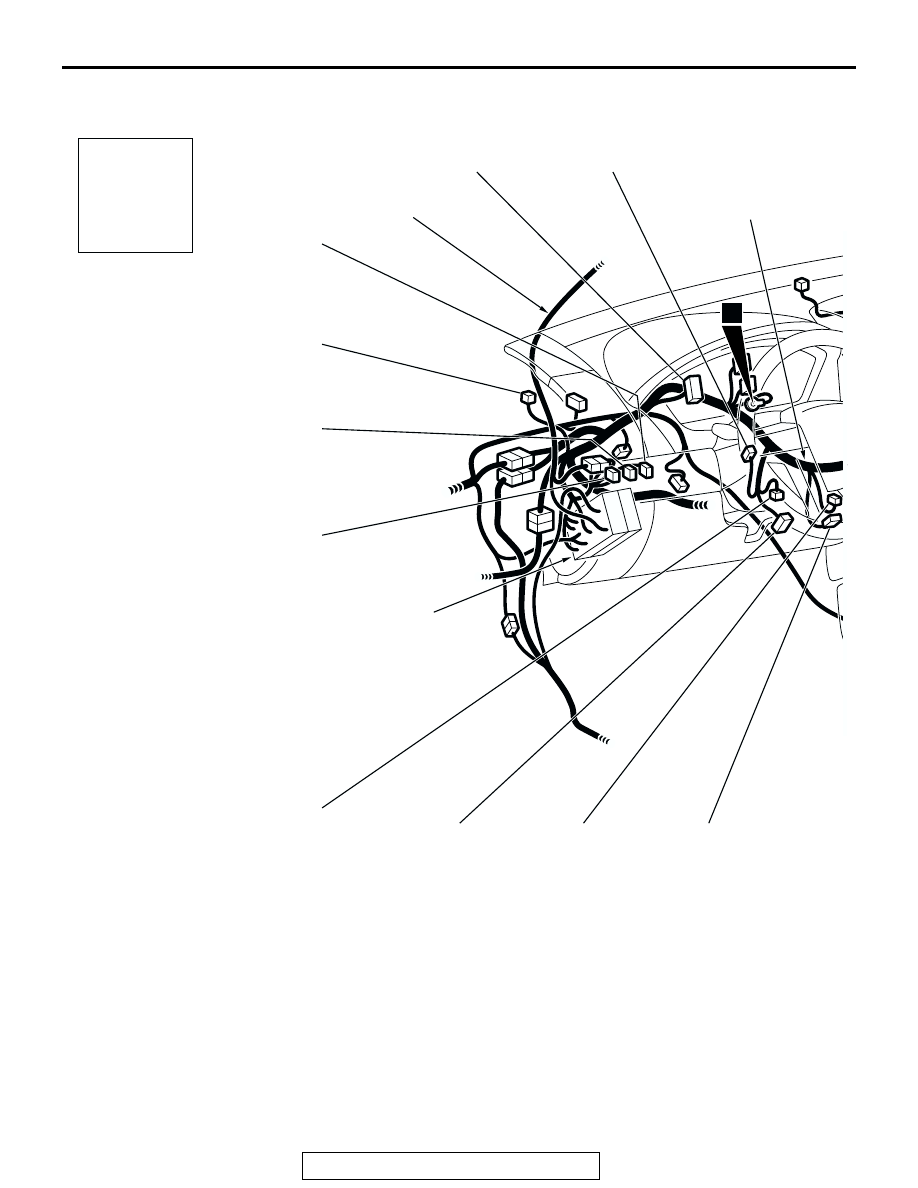

DASH PANEL (CONTINUED)

AC304360

Connector
symbol

-101
thru
-131

CONNECTOR COLOR
CODE
B: BLACK
BR: BROWN
G: GREEN
GR: GRAY
L: BLUE
NONE: MILK WHITE
O: ORANGE
R: RED
V: VIOLET
Y: YELLOW

INSTRUMENT PANEL
WIRING HARNESS

ROOF WIRING
HARNESS

JUNCTION
BLOCK

C-101

C-102

C-131

C-130
C-129

C-128

C-127

C-126

C-125

C-124

C-123

C-101 (22)

COMBINATION METER

C-102 (7)

MODE SELECTION DAMPER
CONTROL MOTOR AND
POTENTIOMETER

C-103 (4)

RESISTOR <MANUAL A/C (LOW)>

C-104 (4)

POWER TRANSISTOR <MANUAL
A/C (MIDDLE), AUTOMATIC A/C>

C-105 (7)

AIR MIXING DAMPER CONTROL
MOTOR AND POTENSIOMETER

C-106 (5)

OUTSIDE/INSIDE AIR SELECTION
DAMPER CONTROL MOTOR

C-107 (8)

RADIO AND CD PLAYER <WITH
MULTI CENTER DISPLAY (MIDDLE)>

C-108 (2-B)

TWEETER (RH) <WITHOUT AUDIO
AMPLIFIER>

C-109 (2)

TWEETER (RH) <WITH AUDIO
AMPLIFIER>

C-110 (4-Y)

AIR BAG MODULE (SQUIB)
(PASSENGER’S SIDE)

C-111 (14)

RADIO AND CD PLAYER OR RADIO,
CD PLAYER AND CD CHANGER

C-112 (2)

GLOVE BOX LIGHT

C-113 (18)

AUDIO AMPLIFIER

C-114 (12)

AUDIO AMPLIFIER
