Mitsubishi Galant (2004+). Manual - part 39

BODY REPAIR

TSB Revision

BASE OF BODY REPAIR

9-35

Polyurethane

PUR

−

100 (176

−

212)

Bumper, Steering wheel

Polyurethane
(formed)

PUR-E

−

100 (176

−

212)

Seat cushion, Arm rest, Door trim,
Instrument panel

Glass fiber
reinforced RIM
urethane

PUR-GF [RIM]

100

−

120 (212

−

248)

Airdam panel

Polyvinyl alcohol

PVAL

Polyvinyl butyral

PVB

Polyvinyl chloride

PVC

80 (176)

Steering wheel, Side protector molding,
Shift lever cover, Window molding

Thermoplastic
elastomer (olefine)

TPO (TEO)

80 (176)

Mud guard, Side airdam

Urea formaldehyde UF

120

−

145 (248

−

293)

Glass fiber
reinforced
unsaturated
polyester

UP-(GT + TD)
[SMC], [BMC]

200 (392)

Rear air spoiler

Ethylene vinyl
acetate

E/VAC (EVA)

60 (140)

Mud guard

Talc filled
polypropylene

PP + E/P-TD
[HMPP]

−

100 (176

−

212)

Bumper face, Side airdam, Side
protector molding

Polyvinyl chloride,
Polyurethane

PVC, PUR-E

Instrument panel pad

Thermoplastic
elastomer
(styrene), Talc filled
polypropylene

TES, PP-TD

100

−

120 (212

−

248)

Side splash

Polycarbonate +
Acrylonitrile
butadiene

PC + ABS

120

−

125 (248

−

257)

Door outside handle

Polycarbonate +
Polyethylene
terephthalate

PC + PET

120 (248)

Door outside handle

Polycarbonate +
Polybutylene
terephthalate

PC + PBT

130

−

140 (266

−

284)

Door outside handle

Polyphenylene
ether + Polyamide
6

PPE (PPO) + PA6 150

−

160 (302

−

320)

Wheel cover

Polyphenylene
ether + Polyamide
66

PPE (PPO) +
PA66

160

−

170 (320

−

338)

Wheel cover

Polyphenylene
ether + Polystyrene

PPE (PPO) + PS

120

−

130 (248

−

266)

Wheel cover

MATERIAL NAME ABBREVIATION

HEAT-DEFORMATION
TEMPERATURE

C (

WHERE MAINLY USED

BODY REPAIR

TSB Revision

BASE OF BODY REPAIR

9-36

NOTE:

•

A slash (/) in the abbreviation indicates that two
different materials make two-layer construction.
A plus sign (+) indicates that the two different
materials mix each other.

•

If the new material symbols designated by the
ISO differ form the old symbols, both are given,
with the old symbol being enclosed in brackets.
ISO: International Organization for Standardiza-
tion

•

*1: Temperature differs depending on the ratio of
the materials included.

•

*2: Impossible to fix the temperature due to the
multi-layer and foam material structure.

•

If an infra-red lamp is used for drying, use a
heat-resistant cover, etc., to protect parts.

HOW TO DISTINGUISH TYPES OF PLASTICS

M4090017000024

There are various methods that can be employed to
determine types of plastics, among them (1) using a
chemical solvent, etc., to check it chemically, (2)
scratching the material to determine its make-up, (3)
cutting of a small piece (where the scar can't be
seen) and burning it to judge by the way it burns, etc.
The following is an outline of the burning method,
which is a relatively simple method.

PLASTIC NAME

ABBREVIATION

FLAME COLOR

COMBUSTION CONDITIONS

SELF-
EXTINGUISHING

ODOR

Polyvinyl chloride PVC

Yellow flame top
Blue flame
bottom

Burns to black residue Yes

Irritating acid
odor

Polyethylene

Yellow flame top
Blue flame
bottom

Burns cleanly while
melting

Candle-like
odor

Polypropylene

Yellow flame top
Blue flame
bottom

•

Burns briskly and
drips

•

Slight white smoke

Petroleum-like
odor

Polyurethane

PUR

Orange

Crackles as burns;
drips

Rubber odor

TRUR

Orange

Polycarbonate

Yellow

Cinders remain

To some
extent

Sweet odor

Polyamide
(nylon)

Yellow flame top
Blue flame
bottom

Melts and drips

Yes

Strong formic
acid odor

Polyester resin

Yellow

Ashes remain

Styrene odor

Glass-fiber-reinfo
rced plastic

FRP

Yellow

Ashes with glass-fiber
remnants remain

Differs
according to
plastic type

Phenol resin

Yellow

Ashes remain

Yes

Formalin odor

ABS resin

ABS

Orange

Burns accompanied by
foaming and black
smoke

Rubber odor

CORROSION PROTECTION

TSB Revision

BASE OF BODY REPAIR

9-37

CORROSION PROTECTION

ANTICORROSION TREATMENT AT THE FACTORY

M4090019000031

Anticorrosion treatment at the time of production
includes the following measures.

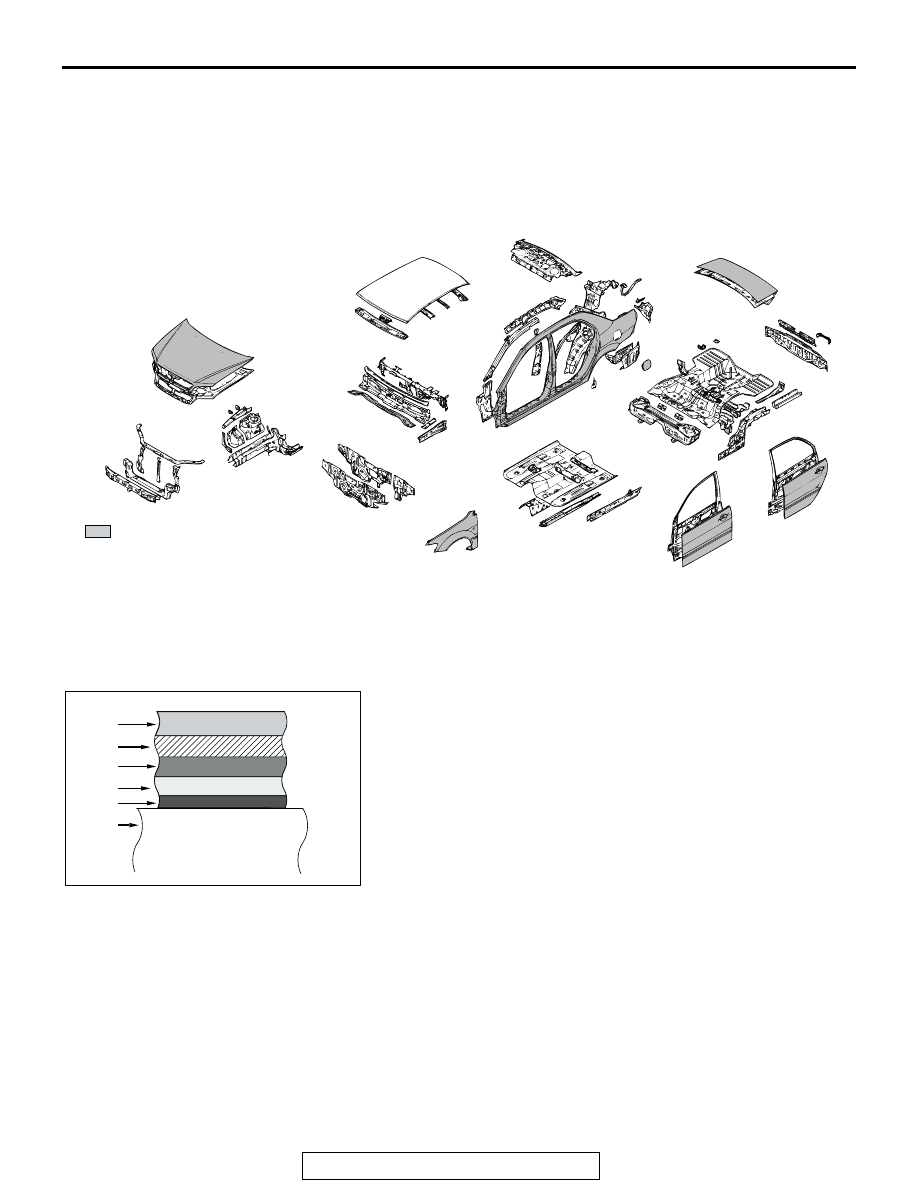

THE USE OF GALVANIZED STEEL PLATE

Because galvanized steel plate has excellent corro-
sion resistance, it is used in areas which have a high
possibility of painting deficiency.

ZINC PHOSPHATE COATING

In order to improve the adhesive properties of the paint coat on
the steel plate, and also to improve the finish of the paint coat,
the entire body is coated with a film of zinc phosphate prior to
undergoing the electrodeposition undercoating process.

1. Final coat
2. Intermediate coat
3. Anticorrosion primer
4. Undercoat
5. Zinc phosphate film
6. Steel plate

AB200136 AB

: locations where galvanized steel
plate is used.

AB200109

4
5

CORROSION PROTECTION

TSB Revision

BASE OF BODY REPAIR

9-38

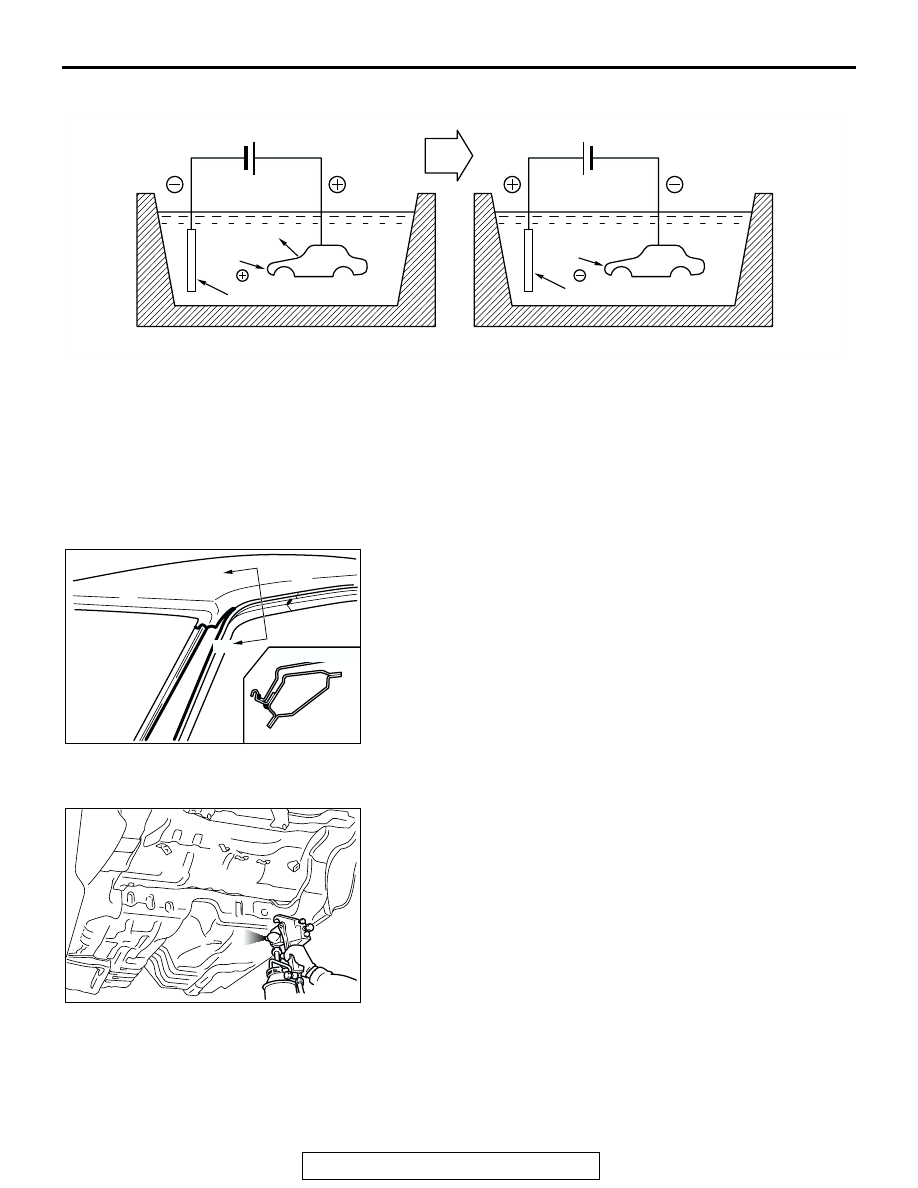

CATIONIC ELECTRODEPOSITION UNDERCOATING

In the cationic electrodeposition method, the car
body is the negative pole, thus preventing damage to
the zinc plating of the galvanized body panels or to
the chemically formed phosphate crystals. This
method, therefore, maximizes the corrosion resis-
tance and the results obtained are much better than
those from conventional anionic electrodeposition.

BODY SEALING

Sealant has been applied to all body panel joints and seams in
order to provide resistance to water, dust, and corrosion.

UNDERBODY COATING

An underbody coating has been applied to the underside of the
floor pans, the inside of the doors, etc., in order to provide
resistance to vibration, corrosion, and wear.

AB200110AB

ANIONIC ELECTRODEPOSITION

CATIONIC ELECTRODEPOSITION

COUNTERAGENT

ANIONIC
COATING

CATIONIC
COATING

COUNTERAGENT

ALKALI
SOLUTION

AB301462

A – A Section

AB200112
