SOLENOID AND SOLENOID VALVE

TSB Revision

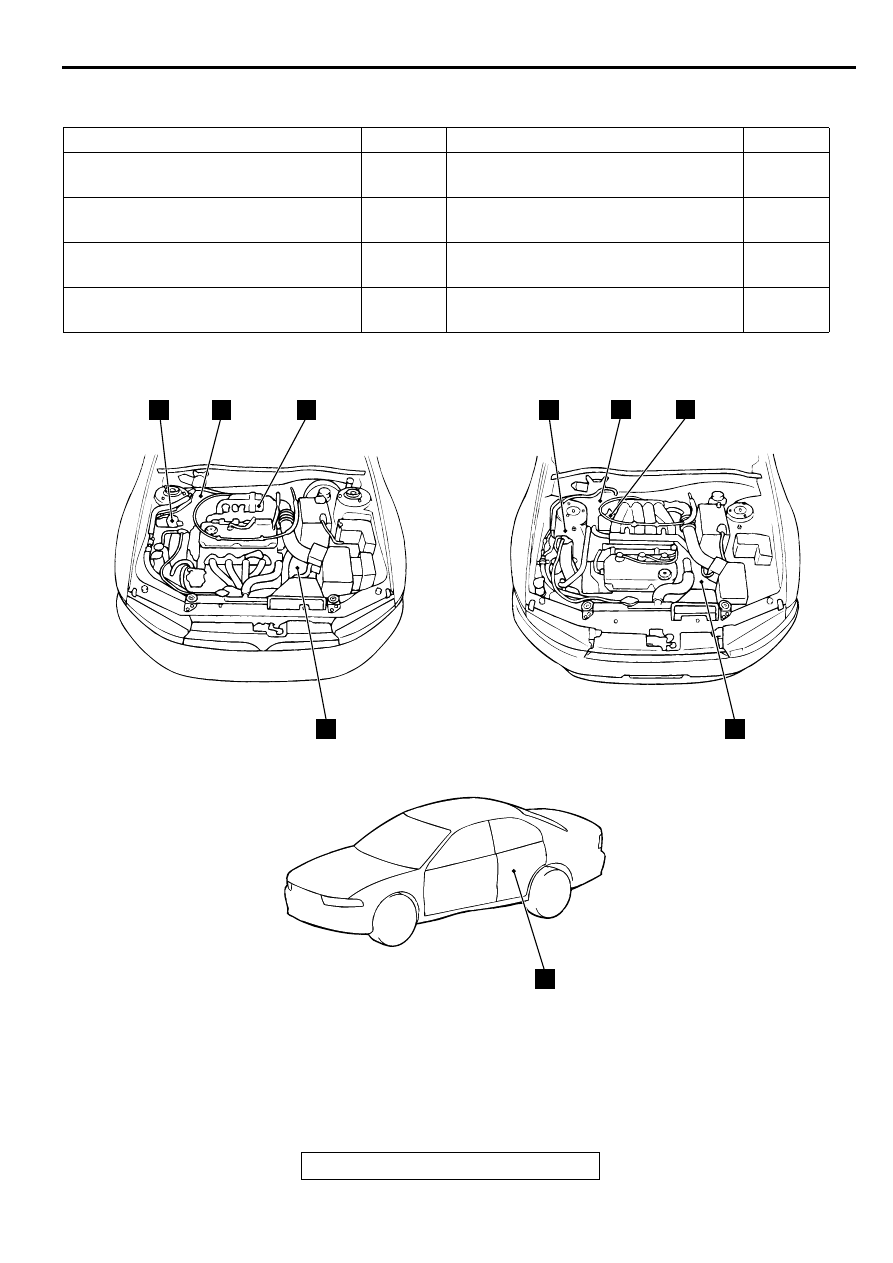

COMPONENT LOCATIONS

70-16

SO LEN O ID  A N D  SO LEN O ID  VA LVE

M1701000800066

NAME

SYMBOL NAME

SYMBOL

A/T control solenoid valve assembly

E

Evaporative emission purge solenoid
valve <2.4L Engine>

C

Auto-cruise control vacuum pump (with
built-in control valve and release valve)

A

Evaporative emission purge solenoid
valve <3.0L Engine>

D

EGR solenoid valve <2.4L Engine>

C

Evaporative emission ventilation
solenoid

F

EGR solenoid valve <3.0L Engine>

D

Hydraulic unit (with built-in ABS
solenoid valve)

B

AC002326AB

<3.0L ENGINE>

<2.4L ENGINE>

A

B

D

C

A

B

E

E

F

SOLENOID AND SOLENOID VALVE

TSB Revision

COMPONENT LOCATIONS

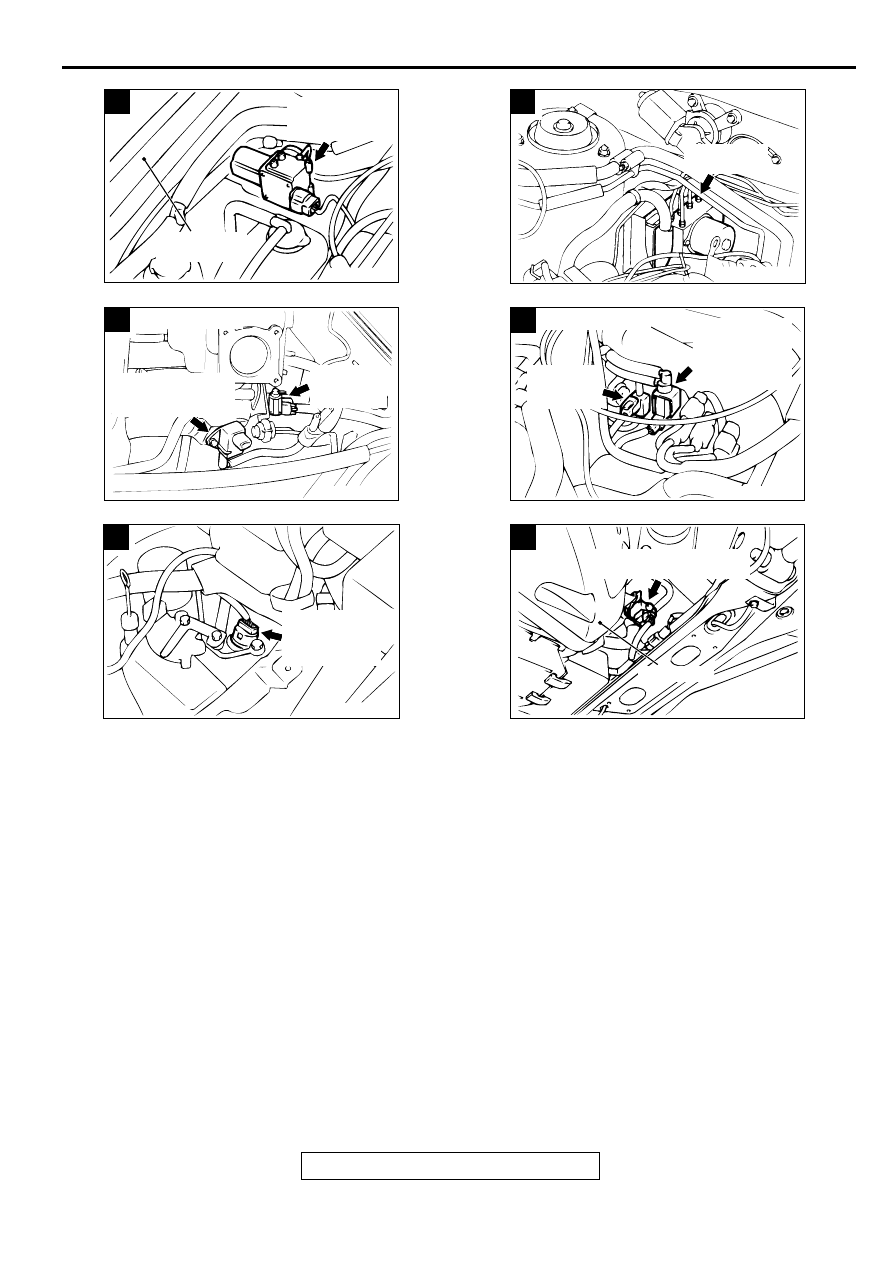

70-17

ACX02511

A

AC

AUTO-CRUISE
CONTROL
VACUUM PUMP

FRONT
FENDER (RH)

AC002327

B

AB

HYDRAULIC
UNIT

ACX02513

C

AF

EVAPORATIVE
EMISSION PURGE
SOLENOID VALVE

EGR
SOLENOID
VALVE

<2.4L ENGINE>

ACX02514AF

D

EGR
SOLENOID
VALVE

EVAPORATIVE
EMISSION
PURGE
SOLENOID
VALVE

<3.0L ENGINE>

ACX02515AC

A/T CONTROL
SOLENOID
VALVE
ASSEMBLY

E

ACX02516

F

AF

EVAPORATIVE EMISSION
VENTILATION SOLENOID

FUEL TANK

OTHER DEVICES

TSB Revision

COMPONENT LOCATIONS

70-18

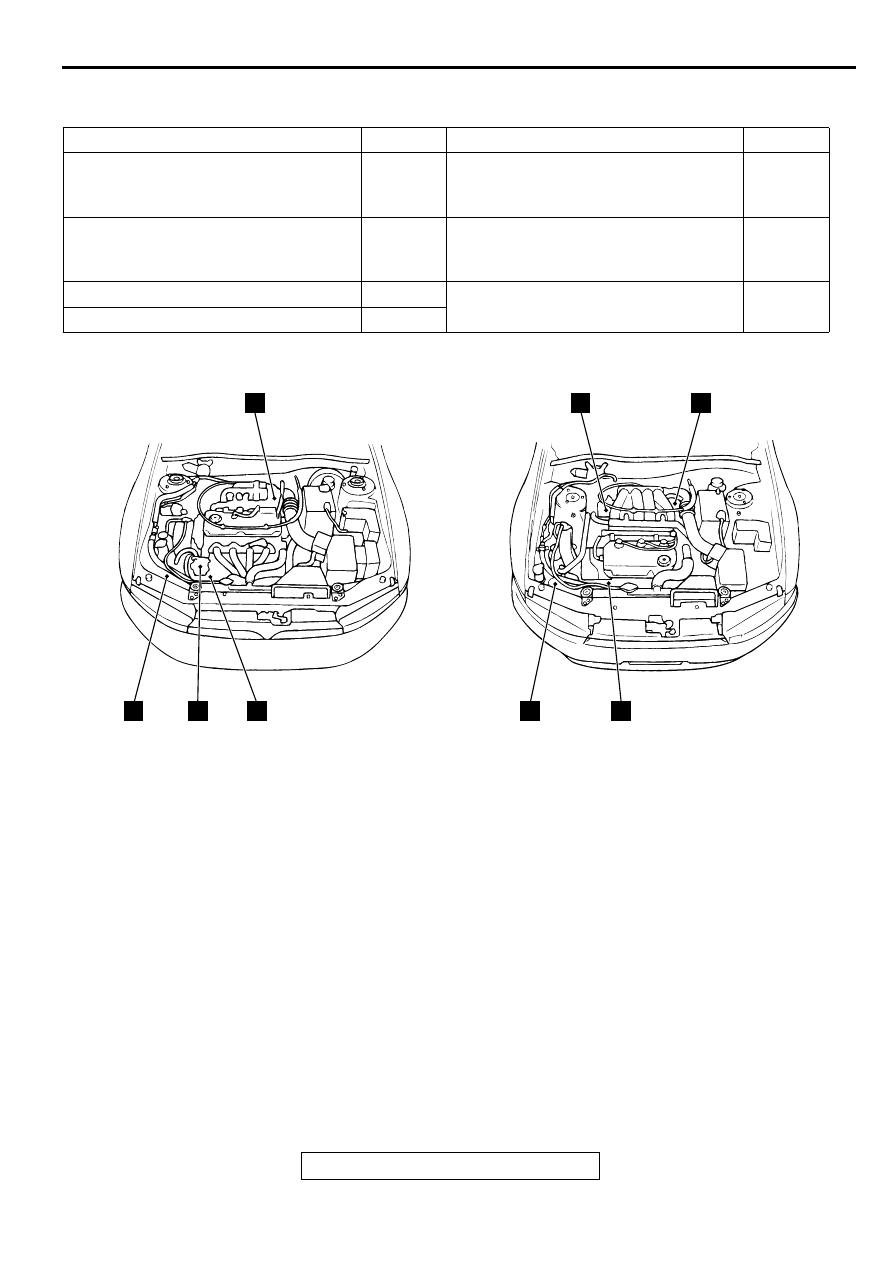

O THER D EVIC ES

M1701005600067

NAME

SYMBOL NAME

SYMBOL

A/C compressor assembly (with built-in
A/C refrigerant temperature switch)
<2.4L Engine>

F

Idle air control motor <3.0L Engine>

C

A/C compressor assembly (with built-in
A/C refrigerant temperature switch)
<3.0L Engine>

B

Power steering pressure switch <2.4L
Engine>

E

Dual pressure switch

D

Power steering pressure switch <3.0L
Engine>

G

Idle air control motor <2.4L Engine>

A

AC002328AB

A

B

E

F

G

C

D

D

<3.0L ENGINE>

<2.4L ENGINE>

OTHER DEVICES

TSB Revision

COMPONENT LOCATIONS

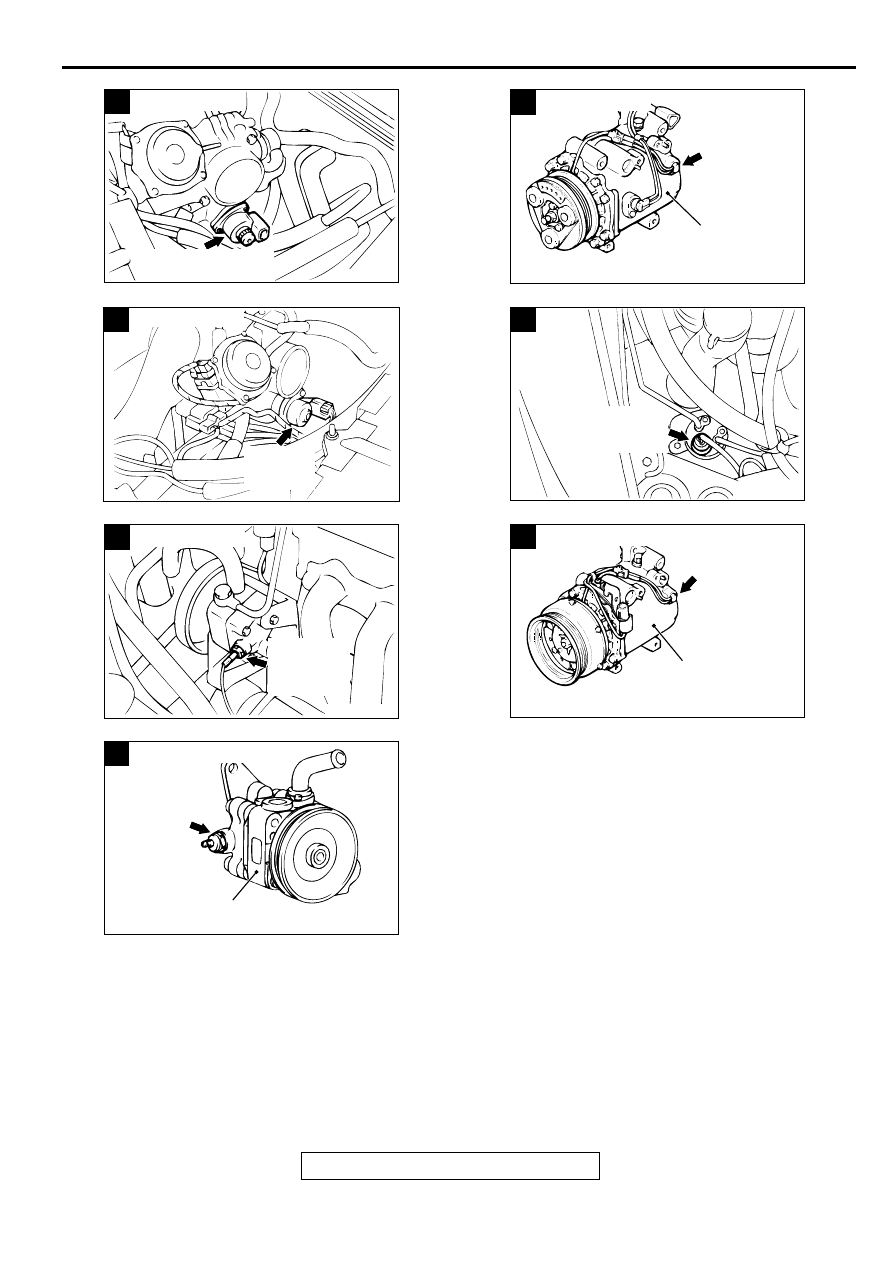

70-19

ACX02519

A

AE

IDLE AIR
CONTROL MOTOR

<2.4L ENGINE>

ACX02524

B

AC

A/C
REFRIGERANT
TEMPERATURE
SENSOR

A/C COMPRESSOR
ASSEMBLY

<3.0L ENGINE>

ACX02523

C

AE

IDLE AIR
CONTROL
MOTOR

<3.0L ENGINE>

AC002329

D

AB

DUAL
PRESSURE
SWITCH

ACX02520AE

E

POWER
STEERING
PRESSURE
SWITCH

<2.4L ENGINE>

ACX02521

F

AC

A/C
COMPRESSOR
ASSEMBLY

A/C
REFRIGERANT
TEMPERATURE
SENSOR

<2.4L ENGINE>

ACX02522

G

AE

POWER
STEERING
PRESSURE
SWITCH

POWER STEERING
OIL PUMP

<3.0L ENGINE>
