Mitsubishi Galant. Manual - part 701





SWS DIAGNOSIS

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-199

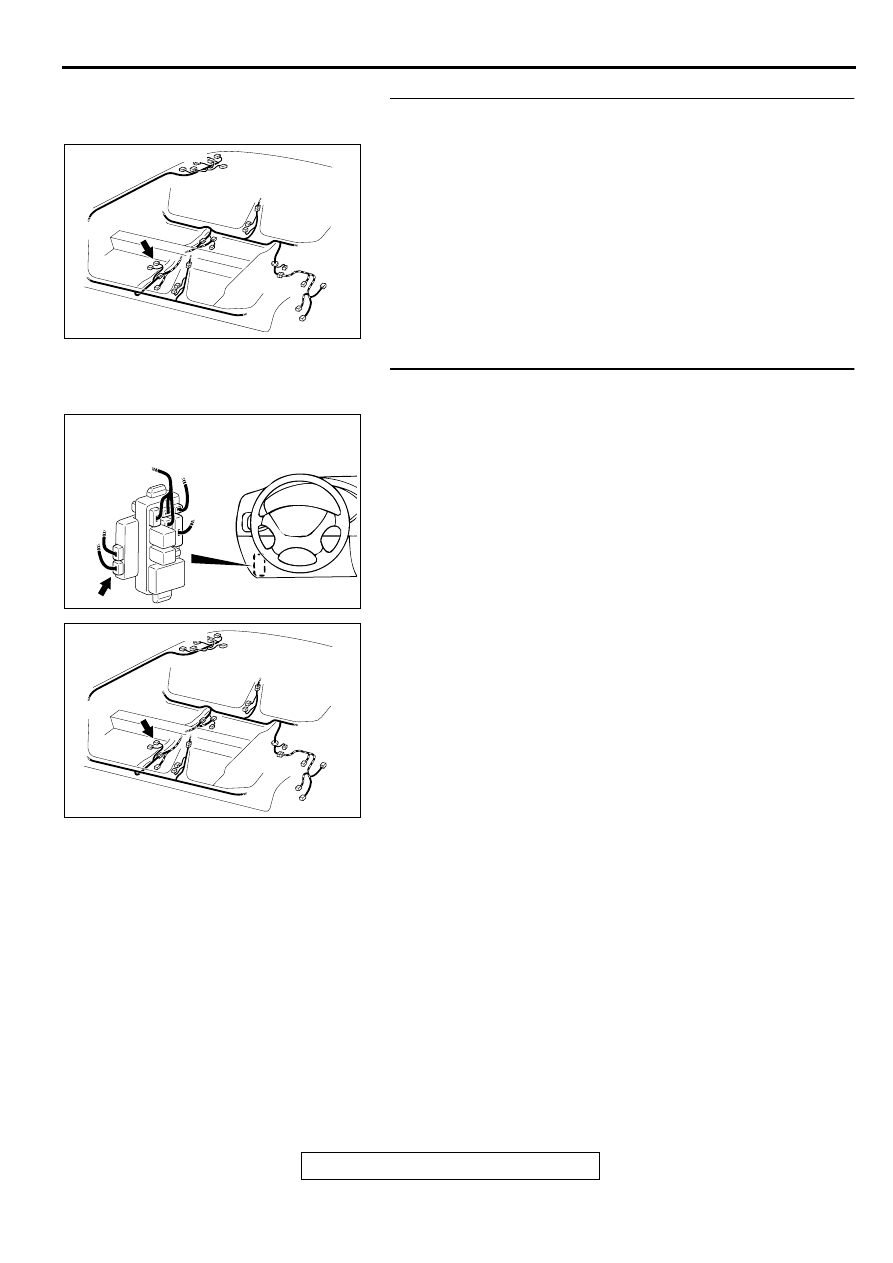

STEP 4. Check the harness wire between driver's seat belt
switch connector D-25 and ground.
Q: Is the harness wire between driver's seat belt switch

connector D-25 and ground in good condition?
YES :
There is no action to be taken.
NO :  Repair it. The driver's seat belt switch input signal

should be able to be checked and the functions,
which are described in the "Technical Description
(comment)," should work normally.

STEP 5. Check driver's seat belt switch connector D-25
and ETACS-ECU connector C-82 for damage.
Q: Are driver's seat belt switch connector D-25 and ETACS-

ECU connector C-82 in good condition?
YES :
Go to Step 6.
NO :  Repair or replace them. Refer to GROUP 00E,

Harness Connector Inspection

P.00E-2

 . The driver's

seat belt switch input signal should be able to be
checked and the functions, which are described in the
"Technical Description (comment)," should work
normally.

AC003084 AC

CONNECTOR: D-25

AC003082AC

JUNCTION BLOCK
(FRONT VIEW)

CONNECTOR: C-82

AC003084 AC

CONNECTOR: D-25

SWS DIAGNOSIS

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-200

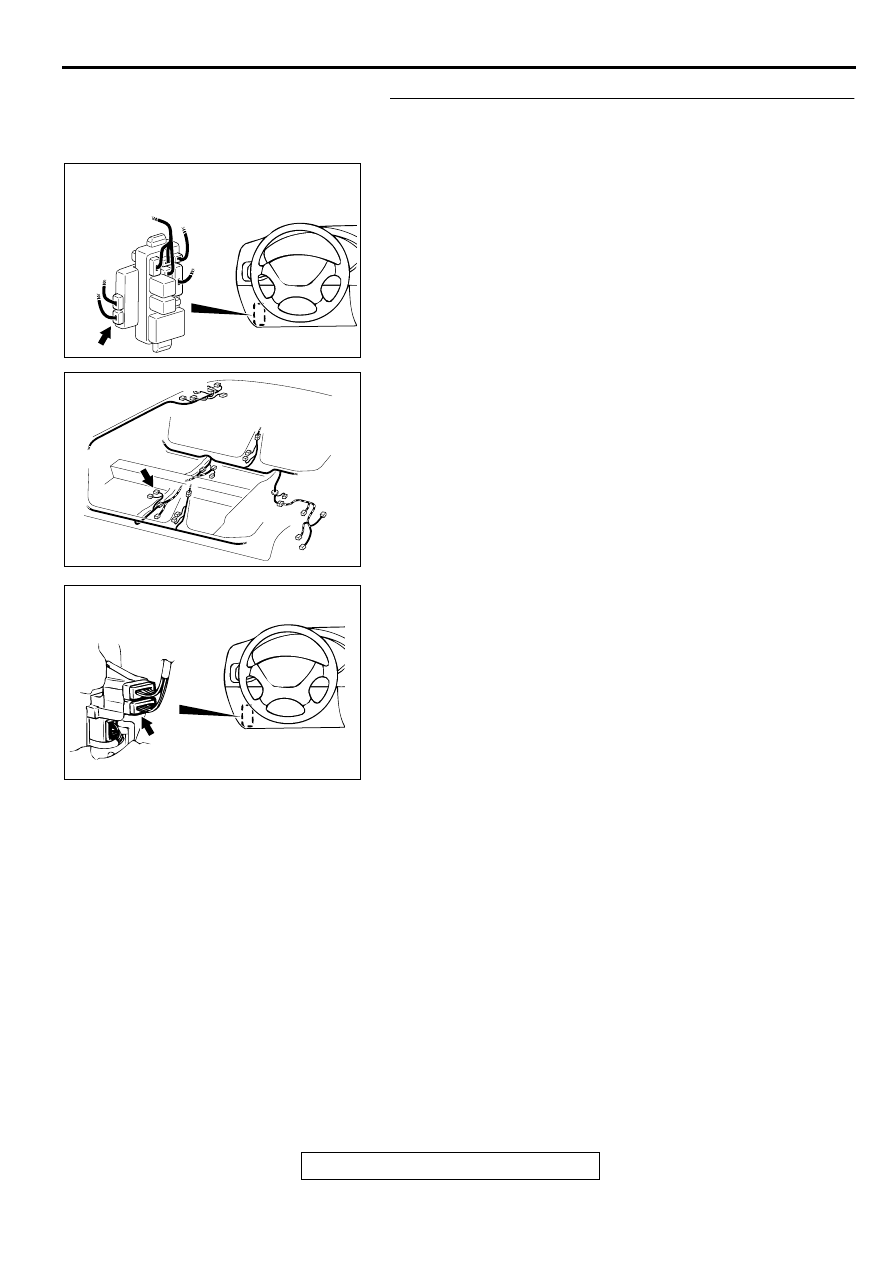

STEP 6. Check the harness wires between driver's seat
belt switch connector D-25 and ETACS-ECU connector C-
82.
NOTE: After checking intermediate connector C-67, check the
wires. If intermediate connector C-67 is damaged, repair or
replace it. Refer to GROUP 00E, Harness Connector
Inspection

P.00E-2

 .

Q: Are the harness wires between driver's seat belt switch

connector D-25 and ETACS-ECU connector C-82 in
good condition?
YES :
Replace the ETACS-ECU. The driver's seat belt

switch input signal should be able to be checked and
the functions, which are described in the "Technical
Description (comment)," should work normally.

NO :  Repair them. The driver's seat belt switch input signal

should be able to be checked and the functions,
which are described in the "Technical Description
(comment)," should work normally.

AC003082AC

JUNCTION BLOCK
(FRONT VIEW)

CONNECTOR: C-82

AC003084 AC

CONNECTOR: D-25

AC003079AJ

CONNECTOR: C-67

SWS DIAGNOSIS

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-201

Inspection Procedure N-7: The driver's or front passenger's door switch or door switches signal is
not sent to the ETACS-ECU.

AC004239

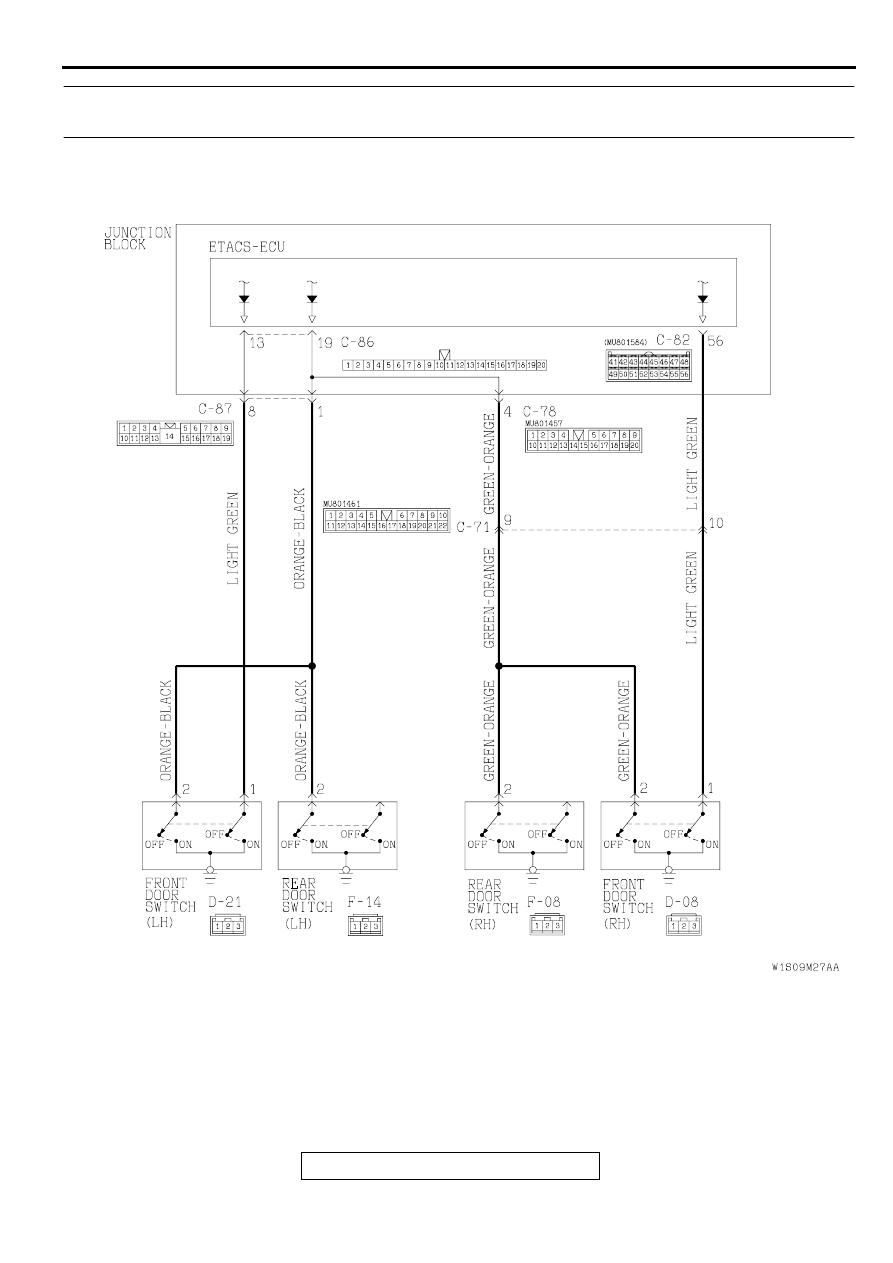

Driver's Front Passenger's or Rear Door Switch Input Circuit <1999 Models>

SWS DIAGNOSIS

TSB Revision

SIMPLIFIED WIRING SYSTEM (SWS)

54B-202

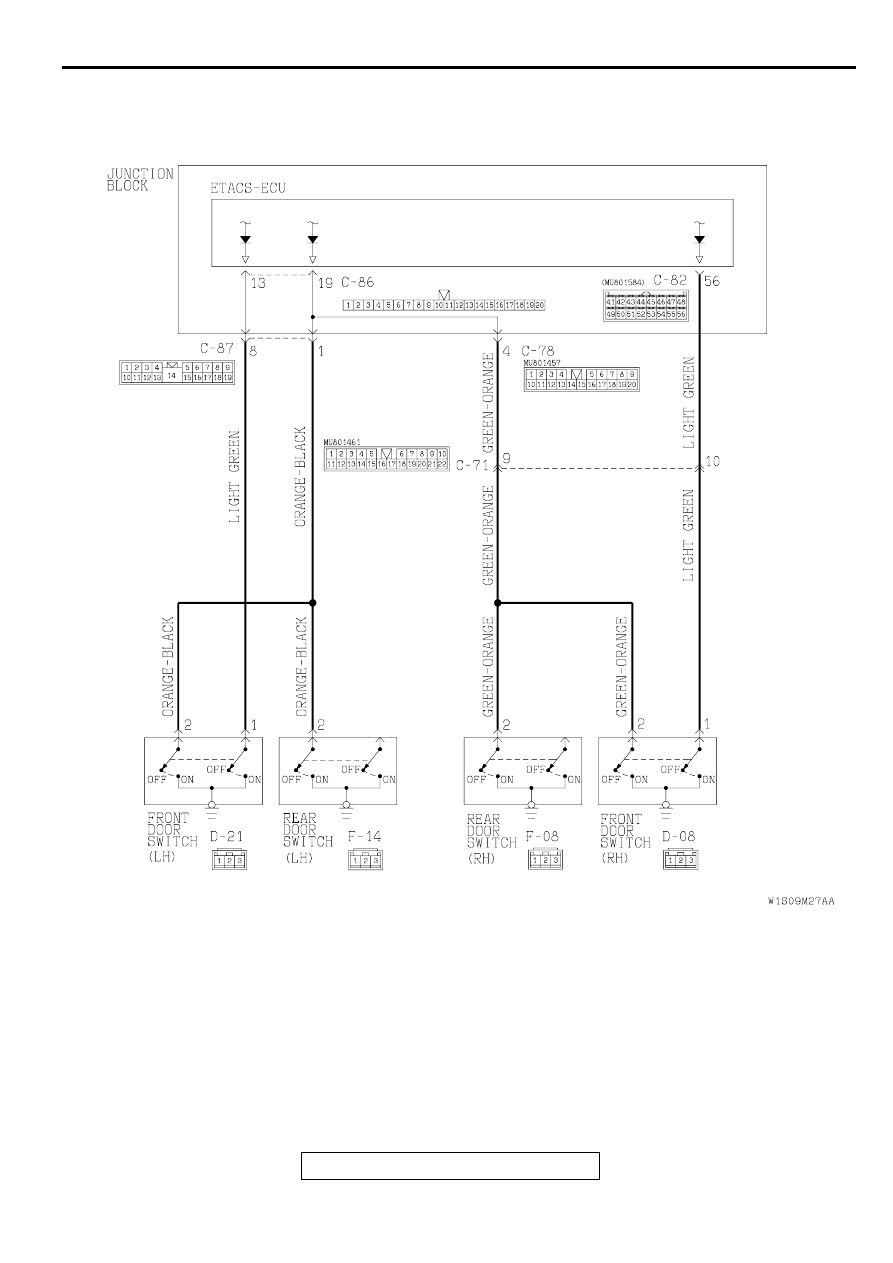

Driver's Front Passenger's or Rear Door switch Input Circuit <2000 Models>

AC004240
