GRILLES AND GARNISHES

TSB Revision

EXTERIOR

51-9

REMOVAL SERVICE POINT

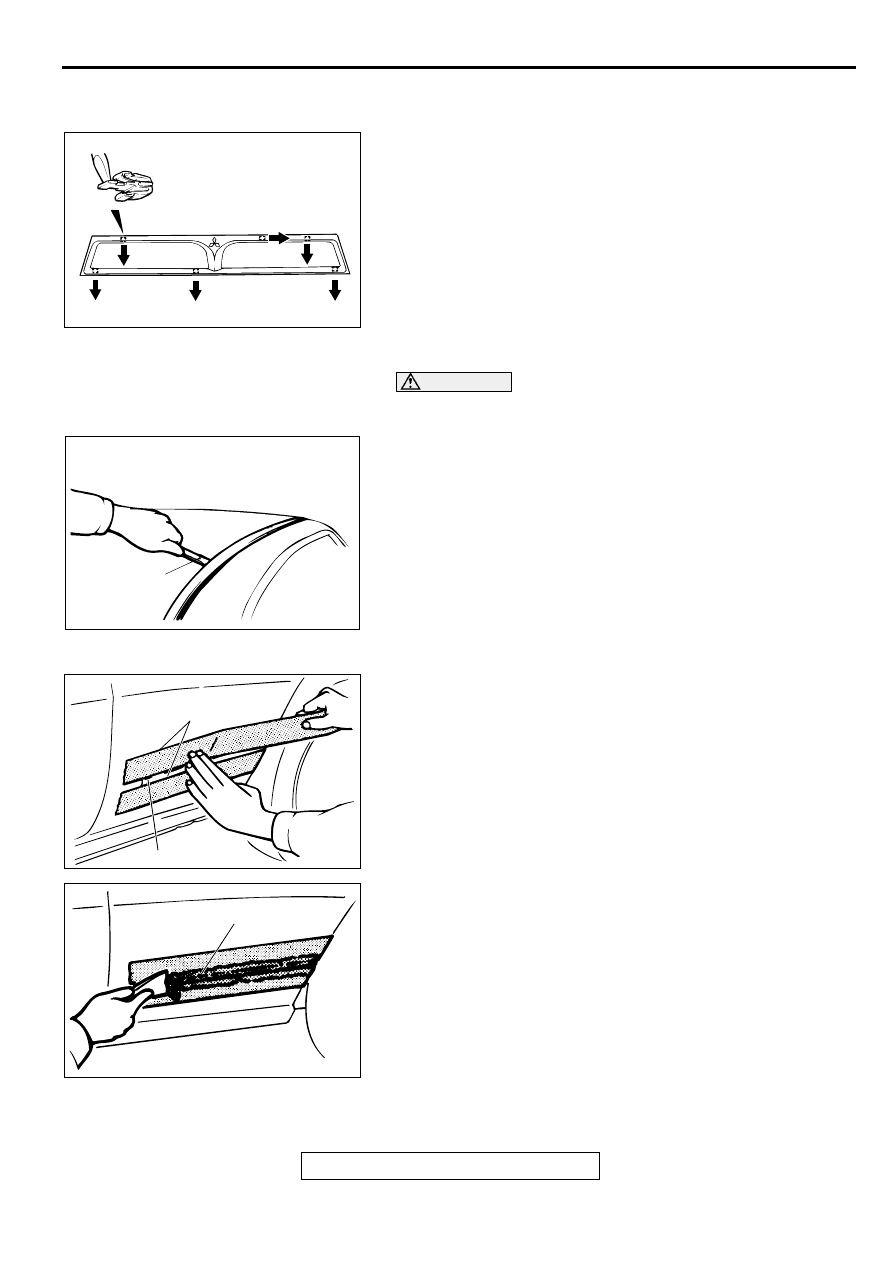

<<A>> RADIATOR GRILLE REMOVAL
1. Remove the radiator grille by pushing its tab clips in the

direction of the arrows with a flat-tipped screwdriver, while
lightly pulling the radiator grille toward you.

2. Remove the clip used for mounting and still remaining on the

body side. Mount it on the radiator grille

<<B>> ROOF DRIP MOLDING REMOVAL

CAUTION

If the molding has become warped, it should not be re-
used.
Use special tool MB990449 to lever out the molding.

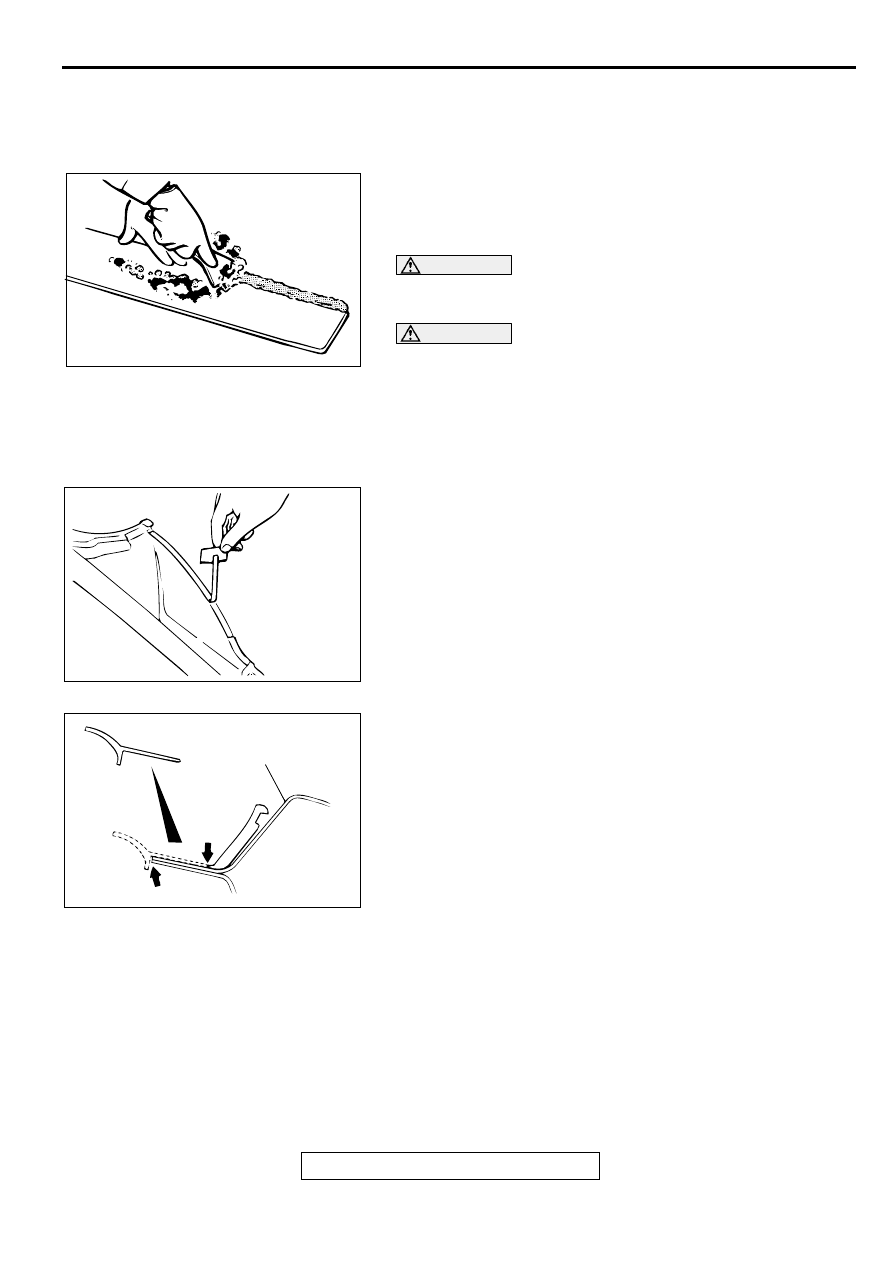

<<C>> DOOR MOLDING/SIDE GARNISH REMOVAL
1. Attach protection tape all the way along the edges of the

double-sided tape which is still adhering to the body.

2. Use a resin spatula to scrape off the double-sided tape.

3. Peel off the protection tape.

4. Wipe the body surface and clean it with a rag moistened

with isopropyl alcohol.

AC000555AB

ACX00433

MB990449

AB

AC000420

DOUBLE-SIDED TAPE

PROTECTION TAPE

AB

AC000421

DOUBLE-SIDED TAPE

AB

GRILLES AND GARNISHES

TSB Revision

EXTERIOR

51-10

INSTALLATION SERVICE POINTS

>>A<< DOOR MOLDING/GARNISH INSTALLATION
Double-sided tape affixing to the door molding/garnish
(When reusing)
1. Scrape off the double-sided tape with a resin spatula or

gasket scraper.

2. Use a shop towel moistened with 3M

 AAD Part number

8906 or equivalent to wipe the door molding/garnish surface.

CAUTION

Do not remove all of the residual adhesive.

3. Remove only a small portion of the residual adhesive.

CAUTION

Always apply it evenly on the entire surface, because a
lot or little will reduce its strength.

Do not touch the painted surface.

4. Affix the specified double-sided tape to the door molding/

garnish. (Refer to

P.51-8

.)

DOOR MOULDING/GARNISH INSTALLATION
1. Tear off the double-sided tape backing paper.

NOTE: If you attach the adhesive tape to the edge of the
backing paper, if will be easy to tear off.

2. Install the door molding/garnish.

NOTE:  If the double-sided tape is difficult to affix in cold
temperature, etc., warm the bonding surfaces of the body
and the door molding/garnish to about 40 - 60

°°°°

C (104 -

140

°°°°

F) before affixing the tape.

3. Firmly press in the door molding/garnish.

>>B<< ROOF DRIP MOLDING INSTALLATION
After installing the clip to the front pillar outer in alignment with
its section A, cut from section B.

AC000422

AC000657

AC000562

SECTION A

SECTION

B

FRONT PILLAR

OUTER

AB

REAR SPOILER

TSB Revision

EXTERIOR

51-11

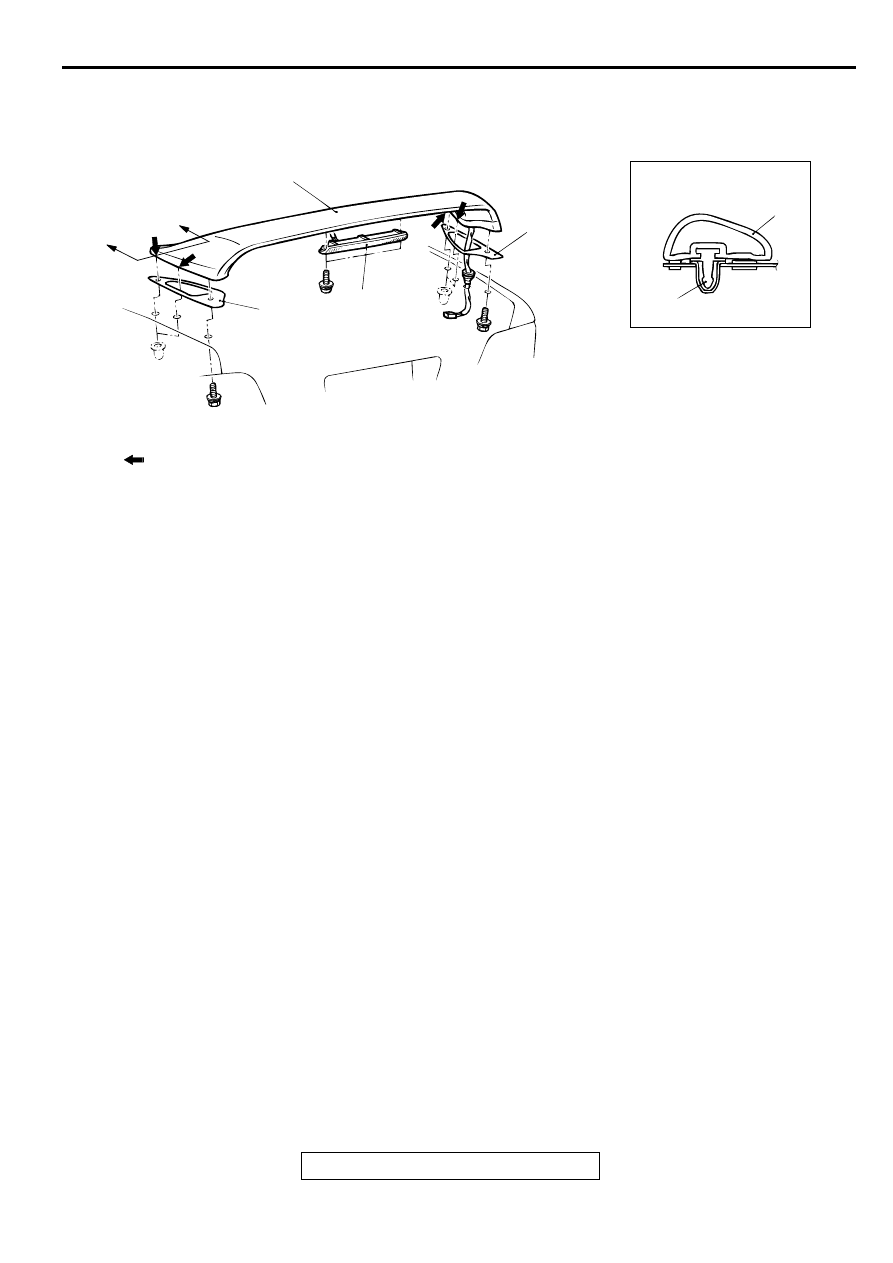

R EAR  SPO ILER

REMOVAL AND INSTALLATION

M1511006100039

W IN D SH IELD  W IPER  A N D  WA SH ER

GENERAL DESCRIPTION

M1511000100149

OPERATION
WINDSHIELD WIPER AND WASHER
Low-speed (and high-speed) Wiper Operation

If the wiper switch is turned to the "LO" position
with the ignition switch at the "ACC" or "ON"
position, the column switch sends a low-speed
wiper ON and high-speed wiper OFF signals to
the front-ECU. This turns the wiper signal on and
the wiper speed switching relay off (low-speed),
causing the wipers to operate at low-speed.

If the wiper switch is turned to the "HI" position,
the column switch sends a low-speed wiper OFF
and high-speed wiper ON signals to the front-
ECU. This turns both the wiper signal and the
wiper speed switching relay on (high-speed),
causing the wipers to operate at high-speed.

Intermittent wiper operation

The ETACS-ECU calculates the wiper operation
interval according to the voltage signal sent from
the column switch. Then the ETACS-ECU sends
a signal to the front-ECU. The front-ECU
determines the wiper operation interval and turns
on the wiper relay signal. This causes the wiper
auto stop relay to turn on. Then the wiper auto
stop relay will turn off after the wipers reach the
park position. This causes the wiper signal relay
and then the wipers to turn off. If the wiper signal
relay remains off for the wiper operation interval,
the relay turns on again, causing the wipers to
operate in intermittent mode.

Mist wiper operation

If the wiper switch is turned to the "MIST" position
with the ignition switch at "ACC" or "ON" position,
the mist wiper high-speed operation signal is sent
to the front-ECU. This signal turns on the wiper
speed switching relay, causing the wipers to work
at high-speed while the mist switch is on.

AC000658AB

1

2

3

3

A

NOTE

: CLIP POSITION

SECTION A – A

1

CLIP

REMOVAL STEPS
1. REAR SPOILER ASSEMBLY

2. HIGH MOUNTED STOP LAMP

ASSEMBLY (REFER TO GROUP
54A

P.54A-79

)

3. PACKING

REMOVAL STEPS (Continued)

WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-12

While the mist wiper switch remains turned on
when the intermittent mode is still working, the
wipers work as the mist wiper. However, the
wipers return to the intermittent mode again when
the wiper auto stop signal turns on after the mist
wiper switch is turned off.

Washer-wiper operation

If the wiper switch is turned to the "WASHER"
position with the ignition switch at "ACC" or "ON"
position, the washer ON signal is sent to the
front-ECU, causing the wiper signal to turn on
after 0.6 seconds. After the washer switch signal
turns off, the wiper signal turns off in 3 seconds. If
the wiper switch is turned the "WASHER" position
while the wiper is at intermittent mode, the
washer works for that period when the washer
switch remains on. Then the wipers return to the
intermittent mode.

WINDSHIELD WIPER AND WASHER DIAGNOSIS

M1511000700107

The windshield wiper and washer are controlled by
the Smart Wiring System (SWS). For
troubleshooting, refer to GROUP 54B, SWS
Diagnosis

P.54B-5

.

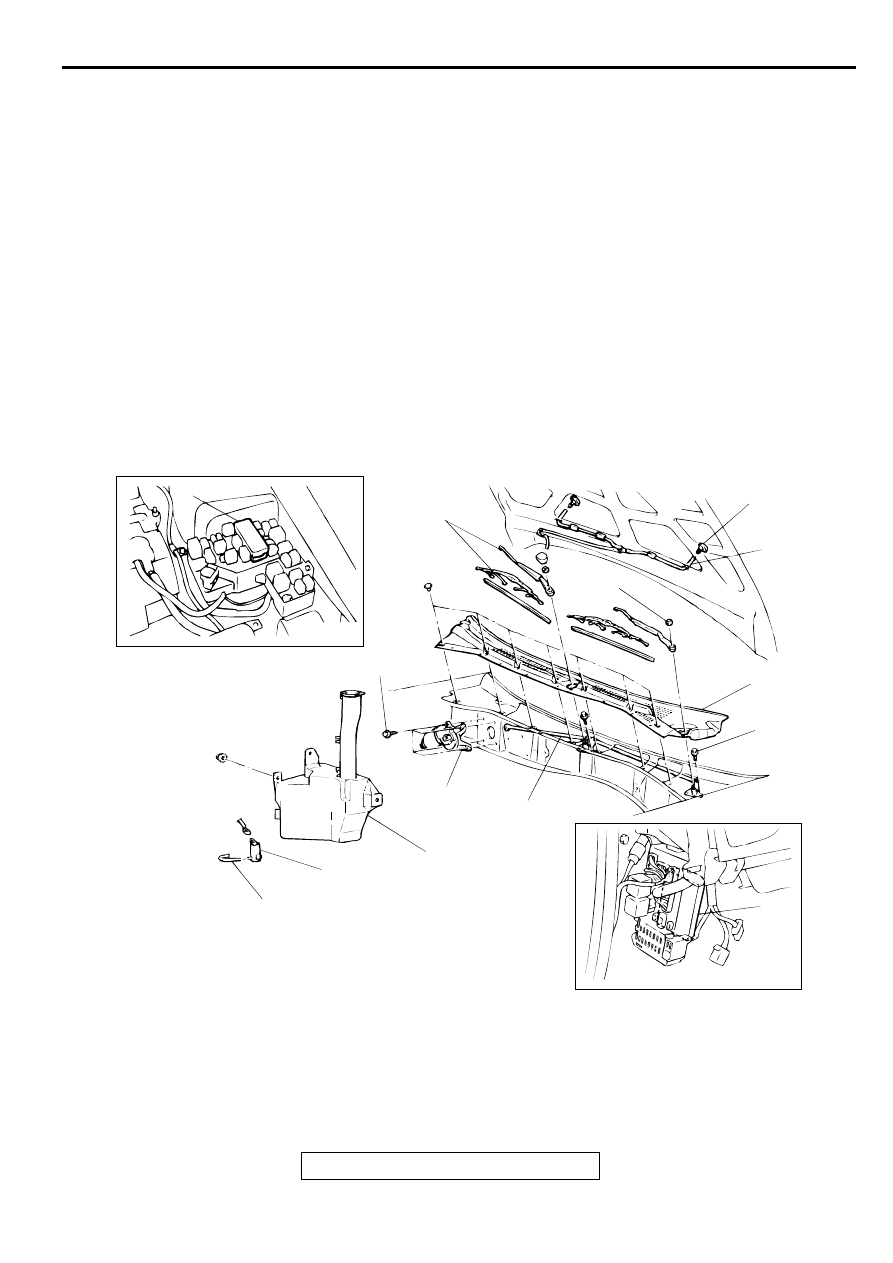

REMOVAL AND INSTALLATION

M1511007600060

AC000659

1

2

3

4

5

6

7

8

7

9

10

9 N·m

80 in-lb

13 N·m

115 in-lb

5 N·m

44 in-lb

AB

1. FRONT-ECU
2. ETACS-ECU
WIPER MOTOR AND LINK ASSEMBLY
REMOVAL STEPS

>>A<<

3. WIPER ARM AND BLADE

 ASSEMBLY

4. FRONT DECK GARNISH

<<A>>

5. WIPER MOTOR
6. WIPER LINK ASSEMBLY

WIPER MOTOR AND LINK ASSEMBLY
REMOVAL STEPS (Continued)
