ON-VEHICLE SERVICE

TSB Revision

POWER STEERING

37A-19

POWER STEERING PRESSURE SWITCH CHECK

M1372007200056

Required Special Tools:

MB990662: Pressure Gauge

MB991548: Power Steering Oil Pressure Gauge Adapter
(Pump Side)

MB991549: Power Steering Oil Pressure Gauge Adapter
(Hose Side)

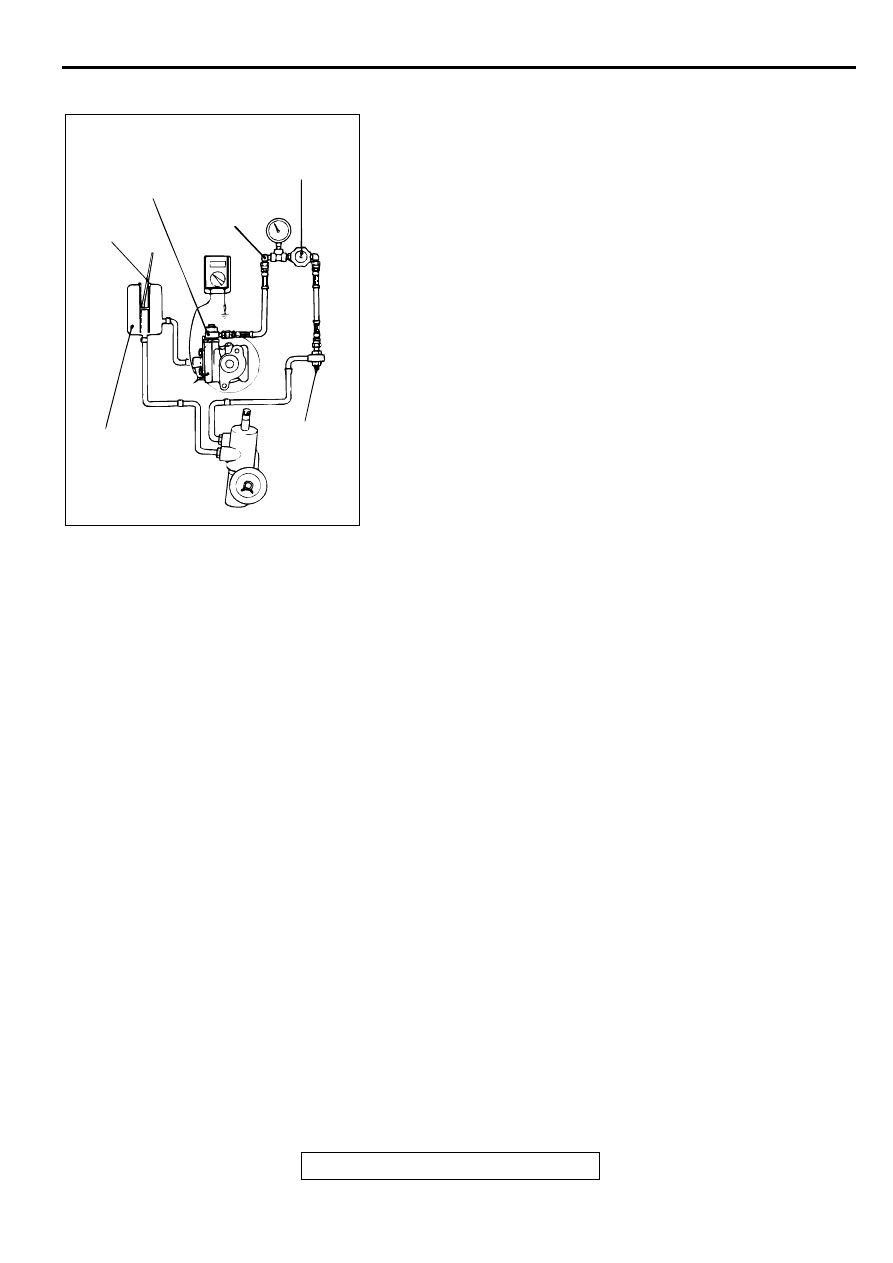

1. Disconnect the pressure hose from the oil pump, and then

connect special tools MB991548, MB990662 and
MB991549.

2. Bleed air, and then turn the steering wheel several times

while the vehicle is not moving so that the temperature of
the fluid rises to approximately 50

 60

°

C (122

 140

°

F).

3. The engine should be idling.

4. Disconnect the connector for the oil pressure switch, and

place an ohmmeter.

5. Gradually close the shut-off valve of the pressure gauge and

increase the hydraulic pressure, then check whether or not
the hydraulic pressure that activates the switch is the
standard value.

Standard value: 1.8

−−−−

 2.4 MPa (261

−−−−

 348 psi)

6. Gradually open the shut-off valve and reduce the hydraulic

pressure; then check whether or not the hydraulic pressure
that deactivates the switch is the standard value.

Standard value: 0.8

−−−−

 2.4 MPa (116

−−−−

 348 psi)

7. Remove special tools MB991548, MB990662 and

MB991549, and then tighten the pressure hose to the
specified torque.

Tightening torque: 57 N

⋅⋅⋅⋅

m (42 ft-lb)

8. Bleed the system.

BALL JOINT DUST COVER INSPECTION

M1372008600046

1. Press the dust cover with your finger to check whether the

dust cover is cracked or damaged.

2. If the dust cover is cracked or damaged, replace the tie rod

end.

NOTE: If the dust cover is cracked or damaged, the ball joint
could be damaged.

ACX01134 AB

THERMO-
METER

ADAPTER
(MB991548)

RESERVOIR

OIL
PUMP

ADAPTER
(MB991549)

SHUT-OFF
VALVE

PRESSURE
GAUGE
(MB990662)

STEERING WHEEL AND SHAFT ASSEMBLY

TSB Revision

POWER STEERING

37A-20

STEER IN G  W H EEL A N D  SH AFT A SSEM BLY

REMOVAL AND INSTALLATION

M1372002600059

WARNING

Before removing the air bag module, refer to GROUP 52B, Service Precautions and Air
Bag Module and Clock Spring

P.52B-15

.

When removing and installing the steering wheel, do not let it bump against the air bag
module.

Post-installation Operation
Checking Steering Wheel Position with Wheels Straight
Ahead

AC003426

1

9

8

7

6

5

4

3

2

25 N·m
18 ft-lb

12 N·m
106 in-lb

18 N·m
13 ft-lb

4.9 N·m
44 in-lb

AB

41 N·m
30 ft-lb

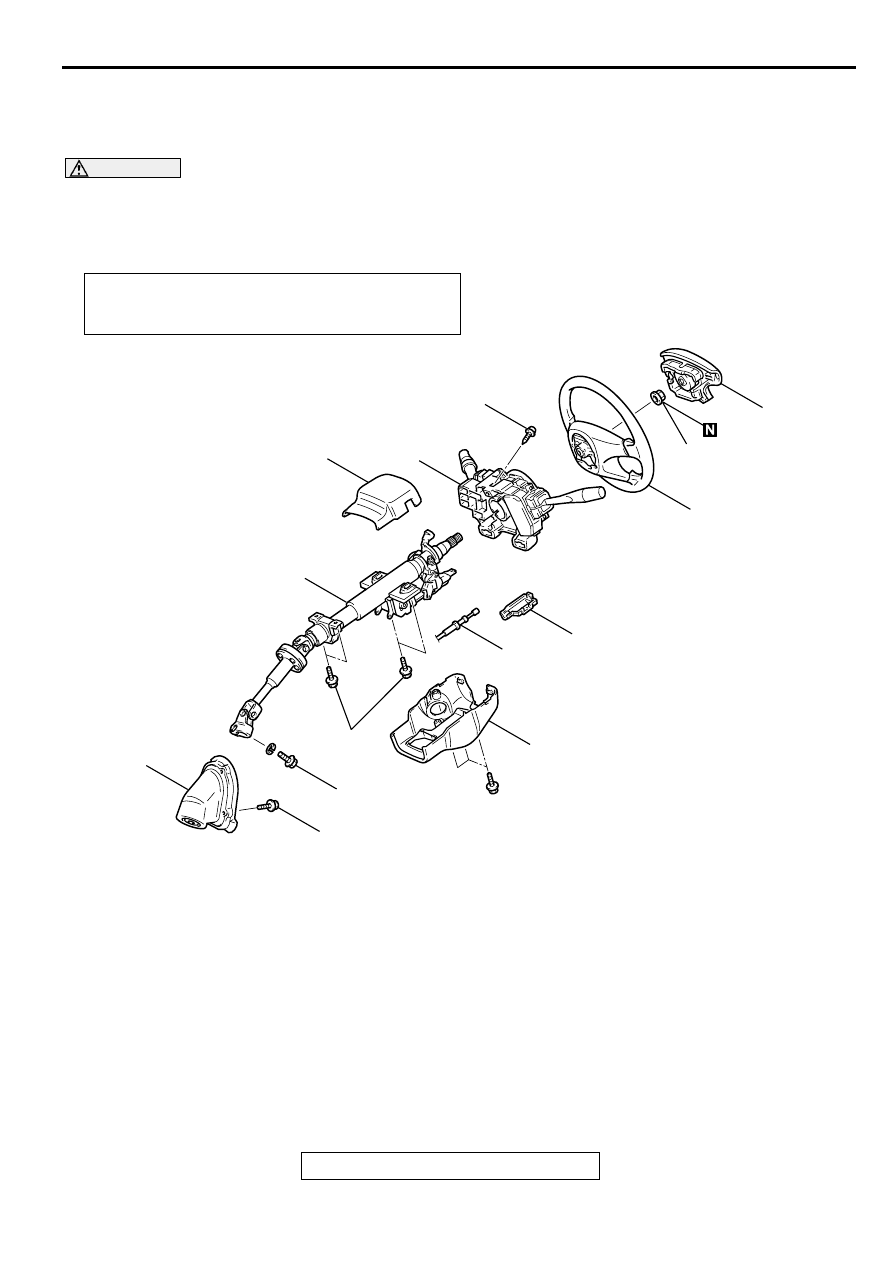

REMOVAL STEPS

1.

AIR BAG MODULE (REFER TO
GROUP 52B, AIR BAG MODULE
AND CLOCK SPRING

P.52B-67

.)

<<A>>

2.

STEERING WHEEL

INSTRUMENT PANEL UNDER
COVER (REFER TO GROUP 52A,
INSTRUMENT PANEL

P.52A-4

.)

3.

LOWER COLUMN COVER

4.

UPPER COLUMN COVER

5.

CLOCK SPRING AND COLUMN
SWITCH ASSEMBLY (REFER TO
GROUP 52B, AIR BAG MODULE
AND CLOCK SPRING

P.52B-67

.)

6.

COVER

7.

KEY INTERLOCK CABLE

8.

STEERING SHAFT ASSEMBLY

9.

STEERING COVER ASSEMBLY

REMOVAL STEPS (Continued)

STEERING WHEEL AND SHAFT ASSEMBLY

TSB Revision

POWER STEERING

37A-21

Required Special Tool:

MB990803:Steering Wheel Puller

REMOVAL SERVICE POINT

<<A>> STEERING WHEEL REMOVAL

CAUTION

Do not hammer on the steering wheel to remove it; doing
so will damage the collapsible mechanism.
Use special tool MB990803 to remove the steering wheel.

DISASSEMBLY AND ASSEMBLY

M1372002800053

AC003427

MB990803

AB

AC003429AC

1

2

4

5

6

5

9

8

3

7

N

N

N

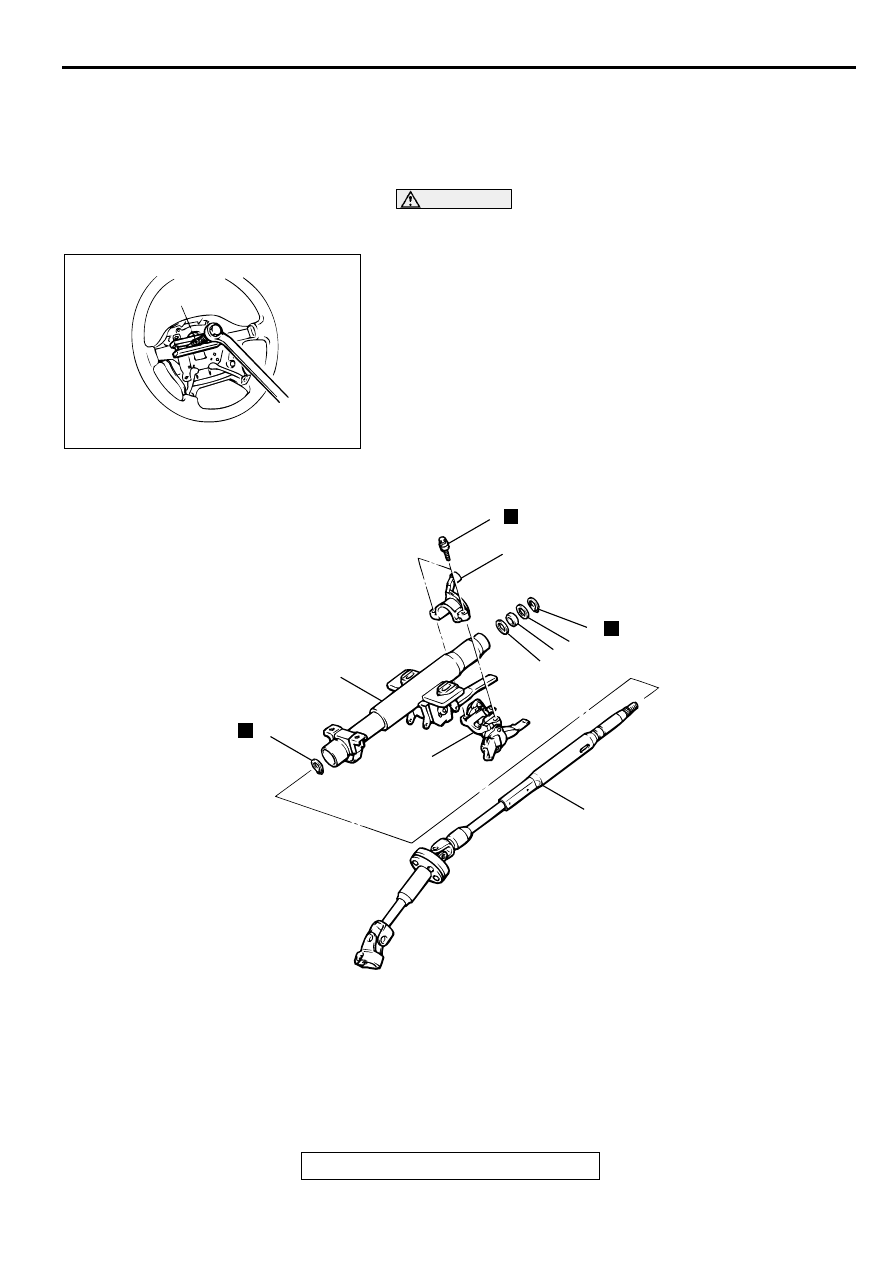

DISASSEMBLY STEPS

>>A<<

1.

SPECIAL BOLT

<<A>> >>A<<

2.

STEERING LOCK BRACKET

<<A>> >>A<<

3.

STEERING LOCK CYLINDER

4.

SNAP RING

5.

STOPPER

6.

SPACER

7.

STEERING SHAFT ASSEMBLY

8.

SNAP RING

9.

STEERING COLUMN ASSEMBLY

DISASSEMBLY STEPS (Continued)

STEERING WHEEL AND SHAFT ASSEMBLY

TSB Revision

POWER STEERING

37A-22

DISASSEMBLY SERVICE POINT

<<A>> STEERING LOCK BRACKET/STEERING LOCK
CYLINDER REMOVAL

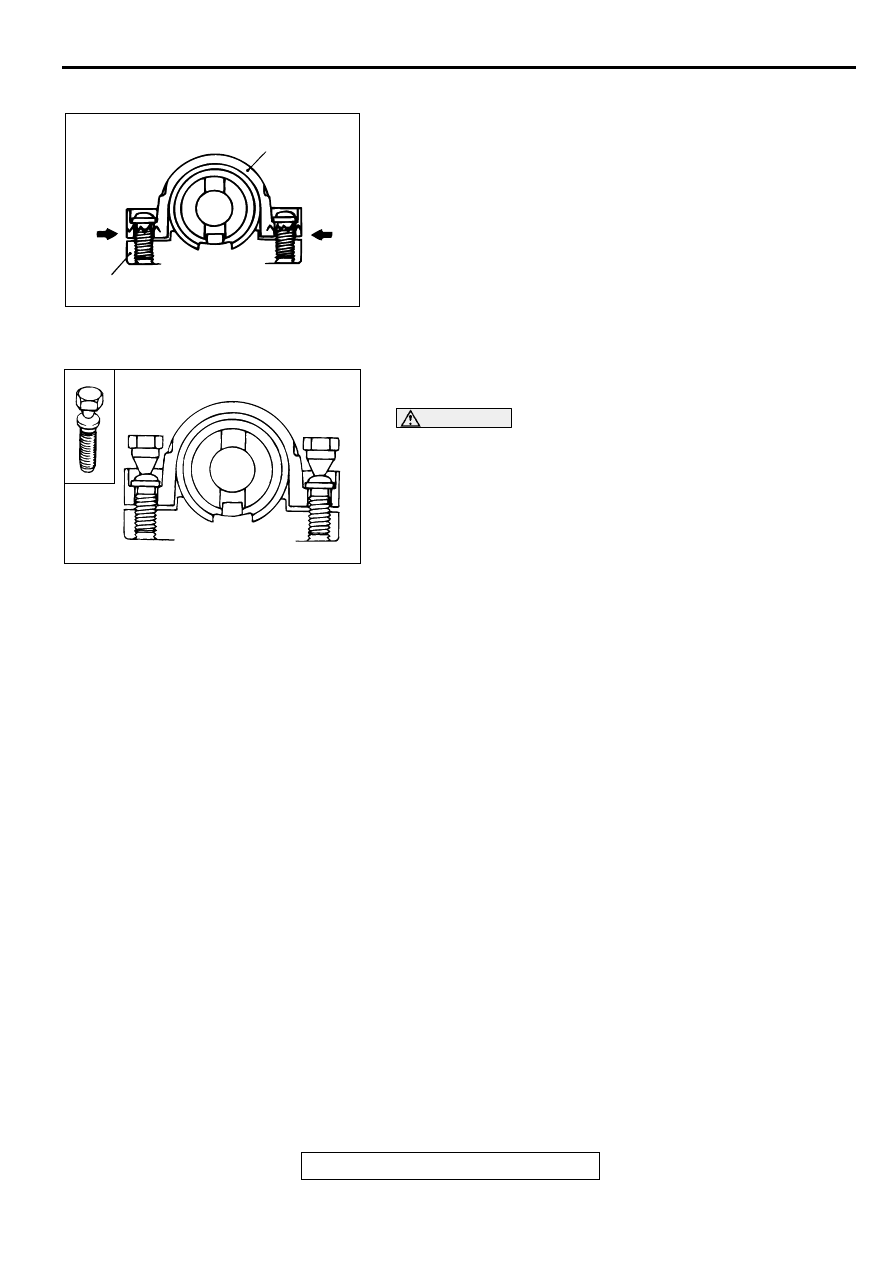

If it is necessary to remove the steering lock cylinder, use a
hacksaw to cut the special bolts at the steering lock bracket
side.

ASSEMBLY SERVICE POINT

>>A<< STEERING LOCK CYLINDER/STEERING LOCK
BRACKET/SPECIAL BOLT INSTALLATION

CAUTION

The steering lock bracket and bolts must be replaced with
new ones when the steering lock is installed.
1. When installing the steering lock cylinder and steering lock

bracket to the column tube, temporarily install the steering
lock in alignment with the column boss.

2. After checking that the lock works properly, tighten the

special bolts until the head twists off.

AC000993 AB

STEERING LOCK CYLINDER

STEERING LOCK BRACKET

ACX01139 AB
