ON-VEHICLE SERVICE

TSB Revision

ANTI-LOCK BRAKING SYSTEM(ABS)

35B-45

The result should be as shown in the diagram above.
7. If the result of inspection is abnormal, repair according to the

Diagnosis Table below.

Diagnosis Table

8. After inspection, disconnect the scan tool immediately after

turning the ignition switch to the "LOCK" (OFF) position.

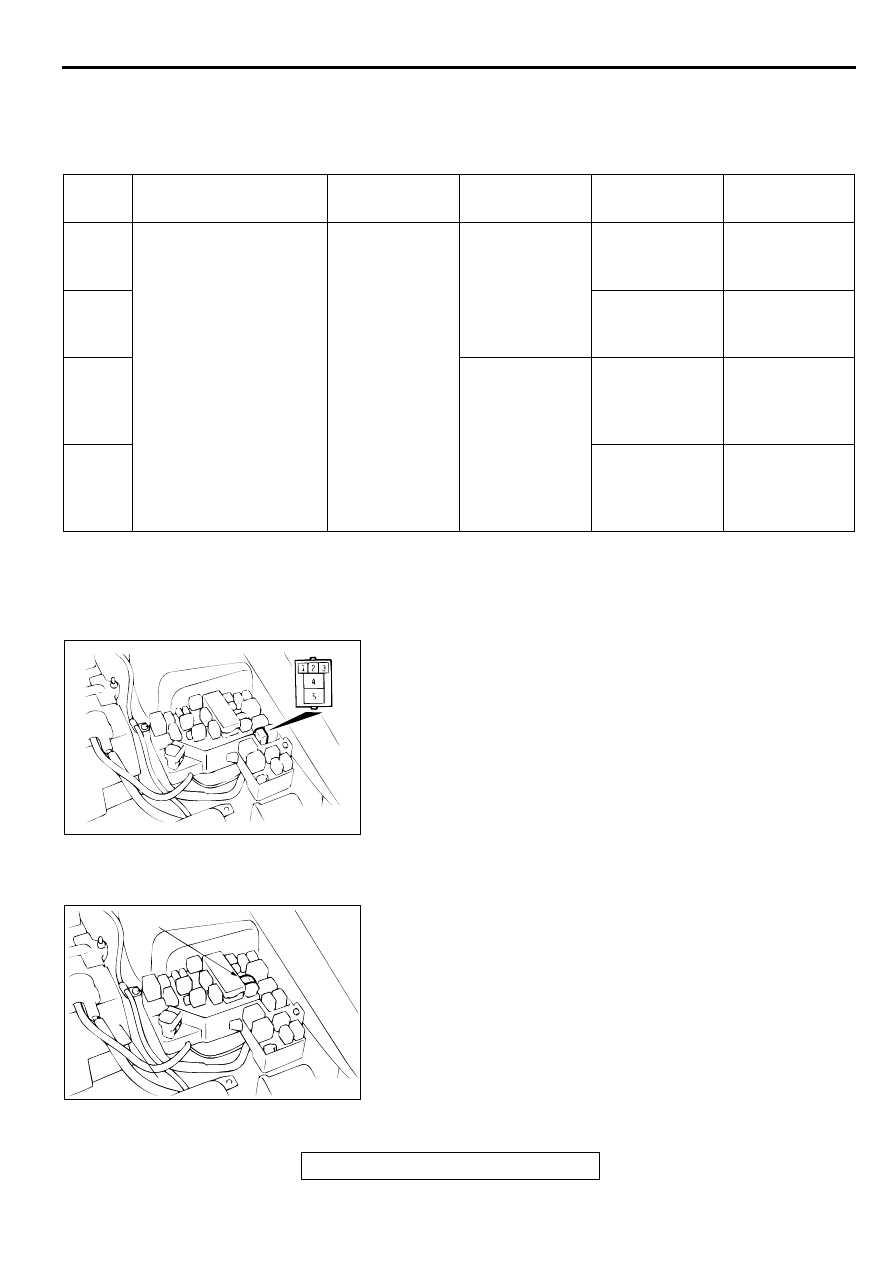

ABS WARNING LIGHT RELAY CHECK

M1352010900053

1. Remove the ABS warning light relay.

2. Check continuity between the number 1 terminal and the

number 3 terminal, and between the number 5 terminal and
the number 2 terminal. Confirm that there is continuity.

3. Apply the positive terminal of the battery to the number 1

terminal and the negative terminal to the number 3 terminal
to check the continuity between the number 5 terminal and
number 2 terminal. Confirm that there is no continuity.

DISCHARGED BATTERY

M1352003500064

The ABS system consumes a large amount of battery current
for its self-check function. If the battery is completely
discharged and booster cables are used to start the engine, the
engine must be allowed to idle for a few minutes to recharge. If
the battery does not recharge, the engine may misfire or stall.
To prevent this condition,

allow the engine to idle for a few minutes before driving the
vehicle, or

NO.

OPERATION

NORMAL
CONDITION

ABNORMAL
CONDITION

PROBABLE
CAUSE

REMEDY

01

1. Depress brake pedal

to lock wheel.

2. Using scan tool

MB991502, select the
wheel to be checked
and force the actuator
to operate.

3. Turn the selected

wheel manually to
check the change of
brake force.

Brake force re-
leased for three
locking.

Wheel does not
lock when brake
pedal is de-
pressed.

Clogged brake
line other than
hydraulic unit

Check and clean
brake line

02

Clogged hydrau-
lic circuit in hy-
draulic unit

Replace hydrau-
lic unit assembly

03

Brake force is
not released

Incorrect hy-
draulic unit
brake tube con-
nection

Connect correct-
ly

04

Hydraulic unit
solenoid valve
not functioning
correctly

Replace hydrau-
lic unit assembly

AC004009

AC004010

FUSIBLE LINK

AB

MASTER CYLINDER AND BRAKE BOOSTER

TSB Revision

ANTI-LOCK BRAKING SYSTEM(ABS)

35B-46

temporarily disable the ABS system by removing the fusible
link for the ABS circuit. The ABS warning light will illuminate
when the ABS fusible link is removed. After the battery is
recharged, reinstall the ABS fusible link and check that the
ABS warning light is not illuminated.

M A STER  C YLIN D ER A N D  BR AK E BO O STER

REMOVAL AND INSTALLATION

M1352004000040

Refer to GROUP 35A, Master Cylinder and Brake
Booster

P.35A-31

.

MASTER CYLINDER

M1352004500045

DISASSEMBLY AND ASSEMBLY

CAUTION

Do not disassemble the primary and secondary piston assemblies.

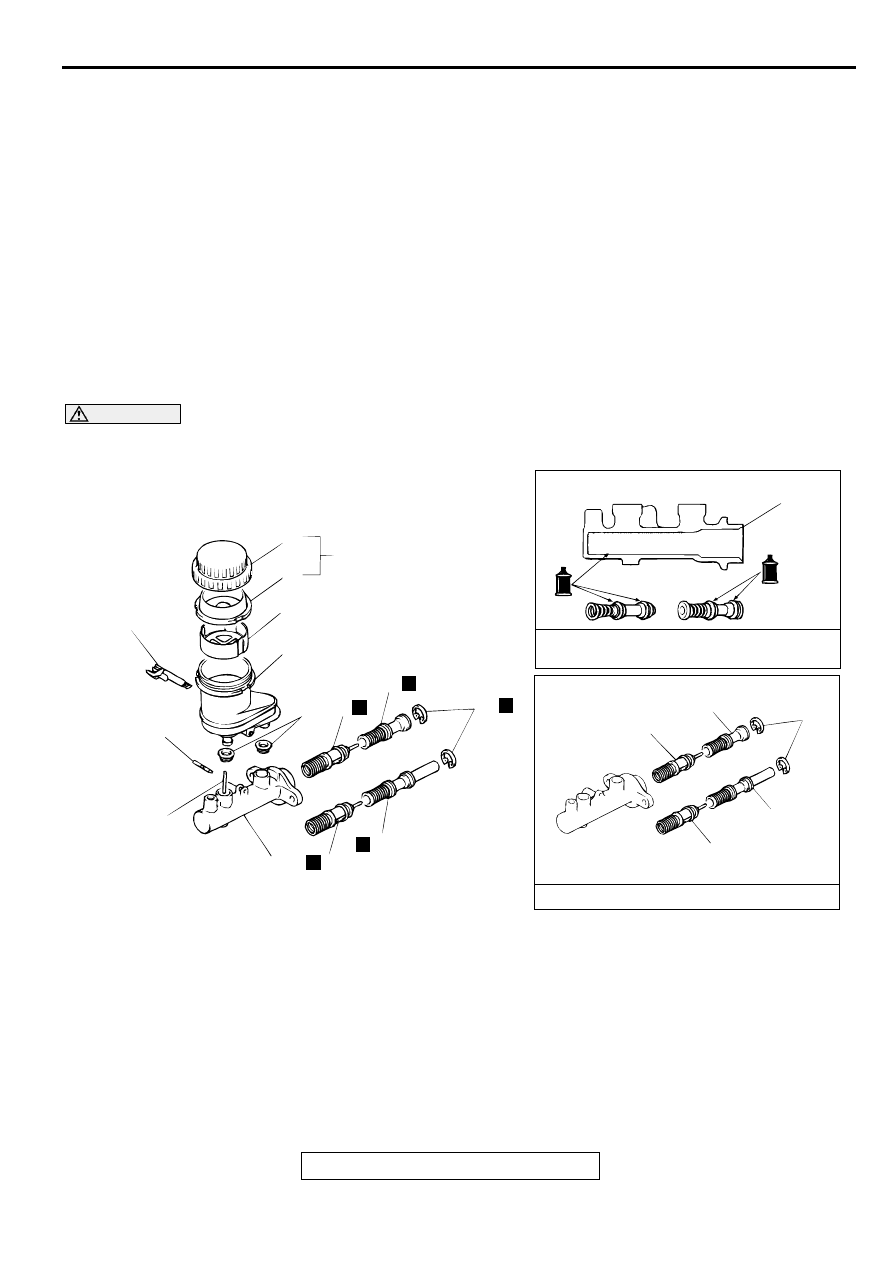

AC000955

1

2

3

4

7

6

5

8

9

13

N

12

11

N

N

12

11

N

10

N

<VEHICLES WITHOUT TCL>

<VEHICLES WITHOUT TCL>

<VEHICLES WITH TCL>

<VEHICLES WITH TCL>

12

11

10

11

12

13

BRAKE FLUID:
CONFORMING TO DOT3 OR DOT4

BRAKE MASTER CYLINDER KIT

AC

DISASSEMBLY STEPS

1. RESERVOIR CAP ASSEMBLY
2. RESERVOIR CAP
3. DIAPHRAGM
4. FILTER
5. SPRING PIN
6. BRAKE FLUID LEVEL SENSOR
7. RESERVOIR

8. RESERVOIR SEAL
9. PIN

<<A>>

10. PISTON STOPPER RING
11. PRIMARY PISTON ASSEMBLY
12. SECONDARY PISTON ASSEMBLY
13. MASTER CYLINDER BODY

DISASSEMBLY STEPS (Continued)

HYDRAULIC UNIT

TSB Revision

ANTI-LOCK BRAKING SYSTEM(ABS)

35B-47

DISASSEMBLY SERVICE POINT

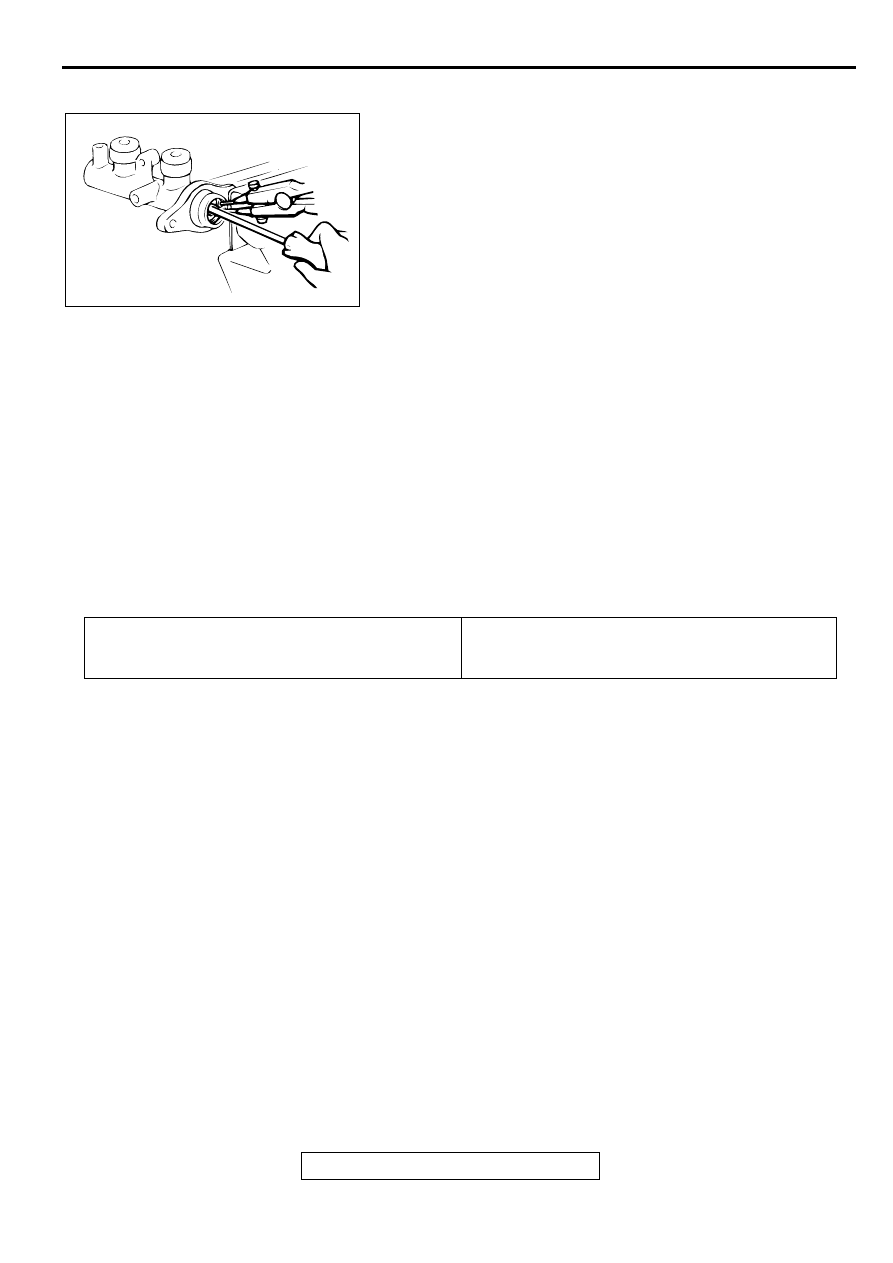

<<A>> PISTON STOPPER RING DISASSEMBLY
While depressing the piston, remove the piston stopper ring.

INSPECTION

M1352004600042

Check the inner surface of the master cylinder body for
corrosion or pitting.

Check the primary and secondary pistons for corrosion,
scoring, wear or damage.

Check the diaphragm for cracks and wear.

H YD R A U LIC  U N IT

REMOVAL AND INSTALLATION

M1352008600044

NOTE: The ABS-ECU is integrated in the hydraulic unit.

AC000903

Pre-removal Operation

Brake Fluid Draining

Post-installation Operation

Brake Fluid Filling

Bake Line Bleeding (Refer to

P.35B-41

.)

HYDRAULIC UNIT

TSB Revision

ANTI-LOCK BRAKING SYSTEM(ABS)

35B-48

REMOVAL SERVICE POINTS

<<A>> HARNESS CONNECTOR REMOVAL
Pull the lock lever in the direction shown in the illustration, and
remove the harness.

<<B>> HYDRAULIC UNIT REMOVAL

WARNING

The hydraulic unit is heavy. Use care when removing
it.

CAUTION

The hydraulic unit cannot be disassembled. Never
loosen its nuts or bolts.

Do not drop or shock the hydraulic unit.

Do not turn the hydraulic unit upside down or lay it on
its side.

AC004011

1

2

3

4

15 N·m
11 ft-lb

9 N·m
80 in-lb

AB

REMOVAL STEPS

>>A<<

1. BRAKE TUBE

<<A>>

2. HARNESS CONNECTOR

3. BRACKET ASSEMBLY

<<B>>

4. HYDRAULIC UNIT

REMOVAL STEPS (Continued)

AC004014

LOCK LEVER

AB
