ANTI-SKID BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM(ABS)

35B-9

CIRCUIT OPERATION

A toothed ABS rotor generates a voltage pulse as
it moves across the pickup field of each wheel
speed sensor.

The amount of voltage generated at each wheel
is determined by the clearance between the ABS
rotor teeth and the wheel speed sensor, and by
the speed of rotation.

The wheel speed sensors transmit the frequency
of the voltage pulses and the amount of voltage
generated by each pulse to the ABS electronic
control unit (ABS-ECU).

The ABS hydraulic unit modulates the amount of
braking force individually applied to each wheel
cylinder.

ABS DTC SET CONDITIONS

DTCs 11, 12, 13, 14 are output when signal is not
input due to breakage of the (+) or (-) wire of one
or more of the four wheel-speed sensors. DTCs
21, 22, 23, 24 are output in the following cases:

Open circuit is not found but no input is received
by one or more of the four wheel-speed sensors
at 10 km/h (6 mph) or more.

Sensor output drops due to a malfunctioning
sensor or warped ABS rotor.

TROUBLESHOOTING HINTS (The most likely
causes for these DTCs to set are:)
DTC 11, 12, 13, 14

Malfunction of the wheel speed sensor

Damaged wiring harness or connector

Malfunction of the hydraulic unit (Integrated with
ABS-ECU)

DTC 21, 22, 23, 24

Malfunction of the wheel speed sensor

Damaged wiring harness and connector

Malfunction of the hydraulic unit (Integrated with
ABS-ECU)

Malfunction of the ABS rotor

Malfunction of the wheel bearing

Excessive clearance between the sensor and
ABS rotor

DIAGNOSIS

Required Special Tool:

MB991223: Harness Set

STEP 1. Check the wheel speed sensor installation.
Q: Is the wheel speed sensor bolted securely in place at

the front knuckle or the rear knuckle?
YES :
Go to Step 2.
NO :  Install it properly. Then go to Step 9. Refer to

P.35B-

49

.

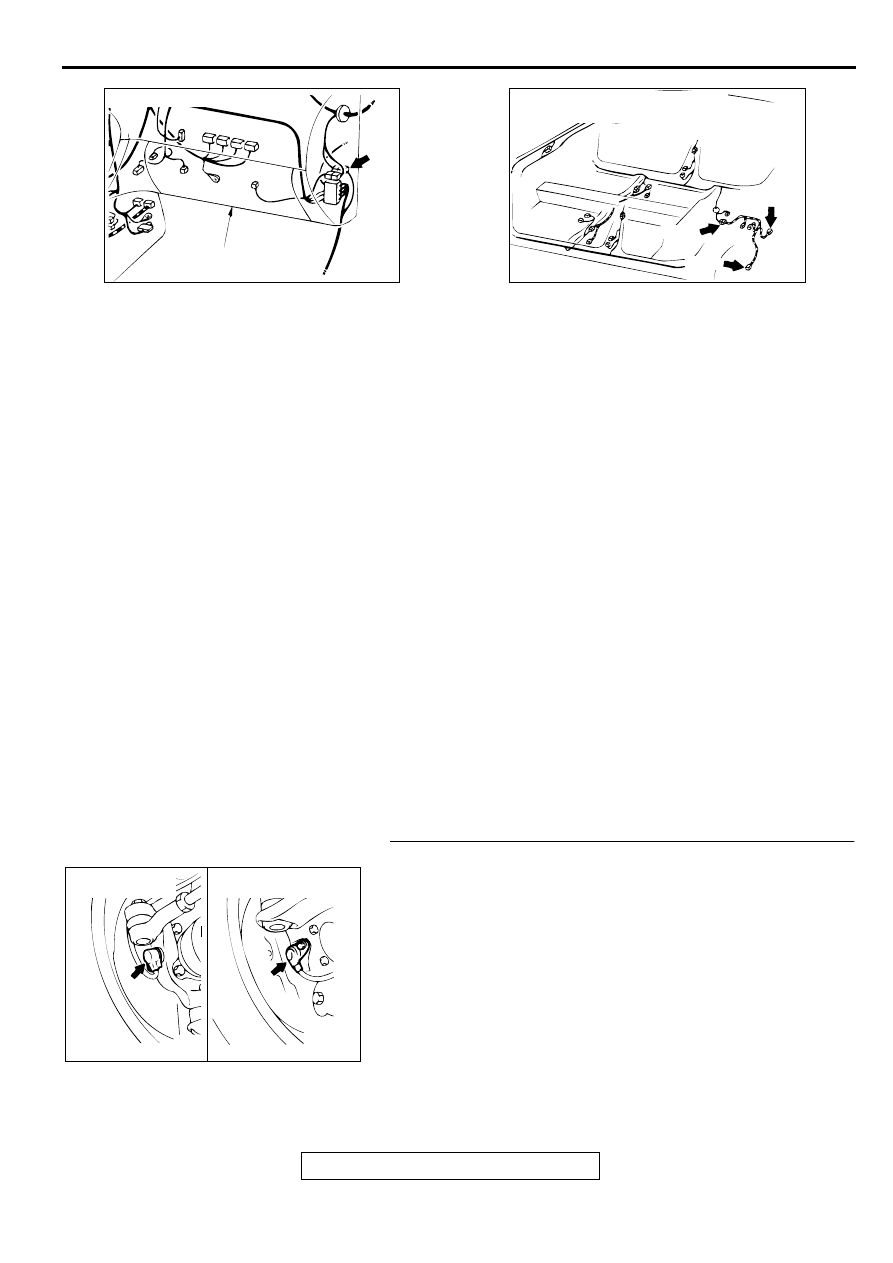

AC003858

GLOVE BOX

AB

CONNECTOR: C-13

AC003859AB

CONNECTORS: D-10, D-12, D-15
(UNDER THE FLROOR)

D-10

D-15

D-12

AC000939

FRONT WHEEL
SPEED SENSOR

REAR WHEEL
SPEED SENSOR

AB

ANTI-SKID BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM(ABS)

35B-10

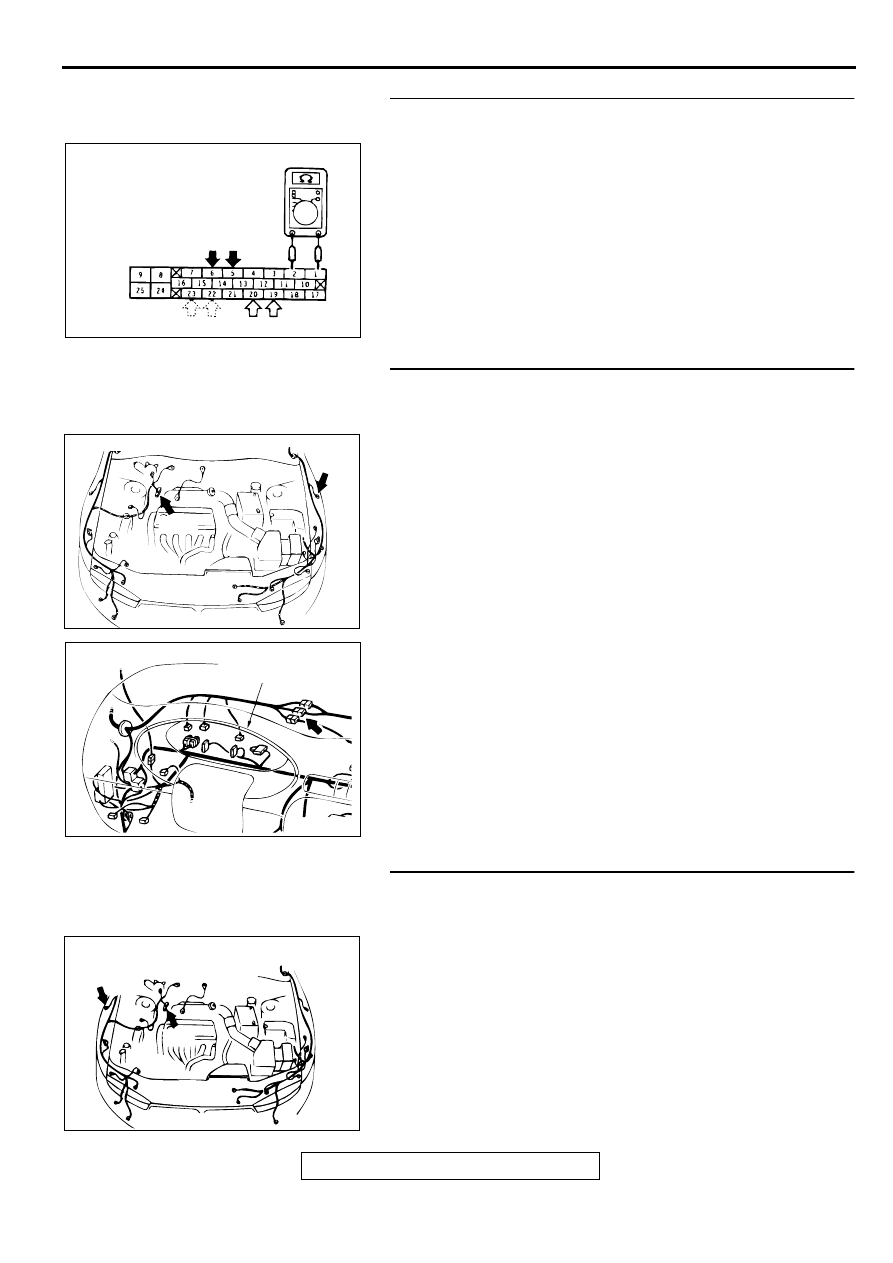

STEP 2. Check wheel speed sensor circuit at the ABS-ECU
connector A-03.
(1) Disconnect connector A-03 and measure at the harness

side.

(2) Measure the resistance between the ABS-ECU connector

terminals 1 and 3, 5 and 6, 19 and 20, 22 and 23.

Standard Value: 1.28

−−−−

 1.92 k

Q: Is the resistance between terminals 1 and 2, 5 and 6, 19

and 20, 22 and 23 within the standard value?
YES :
Go to Step 6.
NO :  Go to Step 3. or 4or 5.

STEP 3. Check the harness wires between ABS-ECU
connector A-03 and wheel speed sensor <front: LH>
connector A-22.
NOTE: After inspecting intermediate connector C-05, inspect
the wire. If intermediate connector C-05 is damaged, repair or
replace it. Refer to GROUP 00E, Harness Connector
Inspection

P.00E-2

. If the connector has been repaired or

replaced, go to Step 9.

Q: Are any harness wires between ABS-ECU connector A-

03 and wheel speed sensor <front: LH> connector A-22
damaged?
YES :
Repair them and go to Step 9.
NO :  Go to Step 7.

STEP 4. Check the harness wires between ABS-ECU
connector A-03 and wheel speed sensor <front: RH>
connector A-36.
Q: Are any harness wires between ABS-ECU connector A-

03 and wheel speed sensor <front: RH> connector A-36
damaged?
YES :
Repair them and then go to Step 9.
NO :  Go to Step 7.

AC003860

A-03 (HARNESS SIDE)

AB

AC003865 AB

CONNECTORS: A-03, A-22

A-22

A-03

AC003856AB

CONNECTOR: C-05

COMBINATION
METER

AC003891

A-03

A-36

CONNECTORS: A-03, A-36

AB

ANTI-SKID BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM(ABS)

35B-11

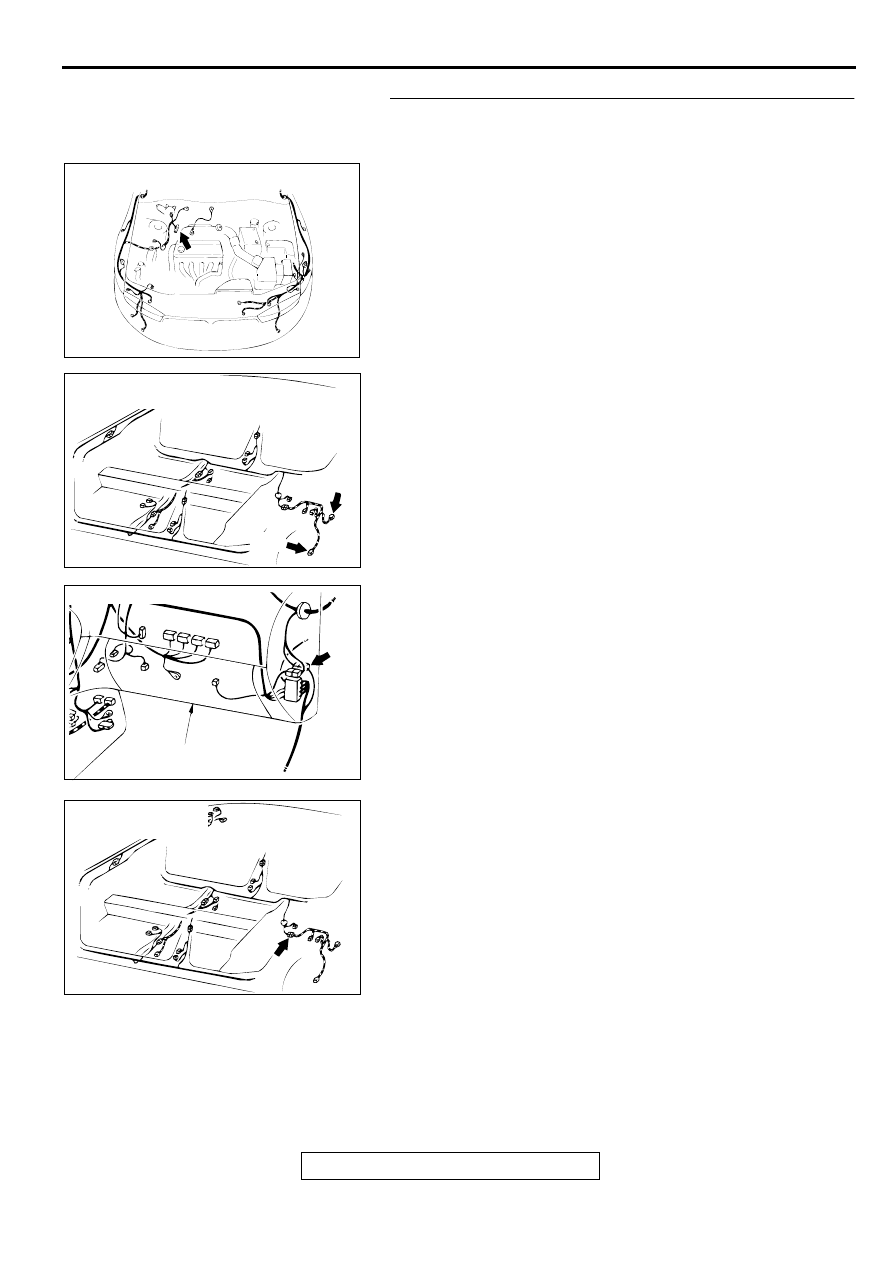

STEP 5. Check the harness wires between ABS-ECU
connector A-03 and wheel speed sensor connector D-12
<rear: LH> or D-10 <rear RH>.
NOTE: After inspecting intermediate connector C-13,D-15 or
D-16, inspect the wire. If intermediate connector C-13,D-15 or
D-16 is damaged, repair or replace it. Refer to GROUP 00E,
Harness Connector Inspection

P.00E-2

. If the connector has

been repaired or replaced, go to Step 9 .

Q: Are any harness wires between ABS-ECU connector A-

03 and wheel speed sensor connector D-12 <rear: LH>
or D-10 <rear RH> damaged?
YES :
Repair them and then go to Step 9.
NO :  Go to Step 7.

AC003695 AB

CONNECTOR: A-03

AC003866

D-10

D-12

CONNECTORS: D-10, D-12
(UNDER THE  FLOOR)

AB

AC003858

GLOVE BOX

AB

CONNECTOR: C-13

AC003867AB

CONNECTOR:  D-15
(UNDER THE  FLOOR)

ANTI-SKID BRAKING SYSTEM (ABS) DIAGNOSIS

TSB Revision

ANTI-LOCK BRAKING SYSTEM(ABS)

35B-12

STEP 6. Check the wheel speed sensor output voltage.
Refer to

P.35B-42

.

Output Voltage:

When measured with a voltmeter: 42 mV or more

When measured with oscilloscope (maximum voltage): 200
mV or more

Q: Does the voltage meet the specification?

YES : Replace the hydraulic unit (integrated with ABS-ECU)

and then go to Step 9.

NO :  Go to Step 7.

STEP 7. Check the wheel speed sensor or ABS rotor.
Refer to

P.35B-50

.If there is damaged in any of the check

items, replace the wheel speed sensor.
Check items:

Wheel speed sensor internal resistance

Standard value: 1.28

−−−−

 1.92 k

Wheel speed sensor insulation resistance

Standard value: 100 k

Toothed ABS rotor check

Q: Is the wheel speed sensor or ABS rotor damaged?

YES :  Replace it and then go to Step 9.
NO :  Go to Step 8.

STEP 8. Check the wheel bearing.
Refer to GROUP 26, Front Hub Assembly

P.26-7

.

Refer to GROUP 27, Rear Axle Hub

P.27-6

.

Q: Is the wheel bearing damaged?

YES :  Replace it and then go to Step 9.
NO :  Go to Step 9.

STEP 9. Check the diagnostic trouble codes.

Q: Do the diagnostic trouble codes 11, 12, 13, 14, 21, 22, 23

and 24 reset?
YES :
Go to Step 1.
NO :  This diagnosis is complete.
