SPECIAL TOOLS

TSB Revision

REAR SUSPENSION

34-5

SPECIA L TO O LS

M1341000600057

O N -VEH IC LE SERVIC E

REAR WHEEL ALIGNMENT CHECK AND
ADJUSTMENT

M1341011000059

Measure wheel alignment with an alignment equipment on
level ground.
The rear suspension and wheels should be serviced to the
normal condition prior to wheel alignment.

Toe-in

Standard value: 3

±±±±

 3 mm (0.12

±±±±

 0.12 inch)

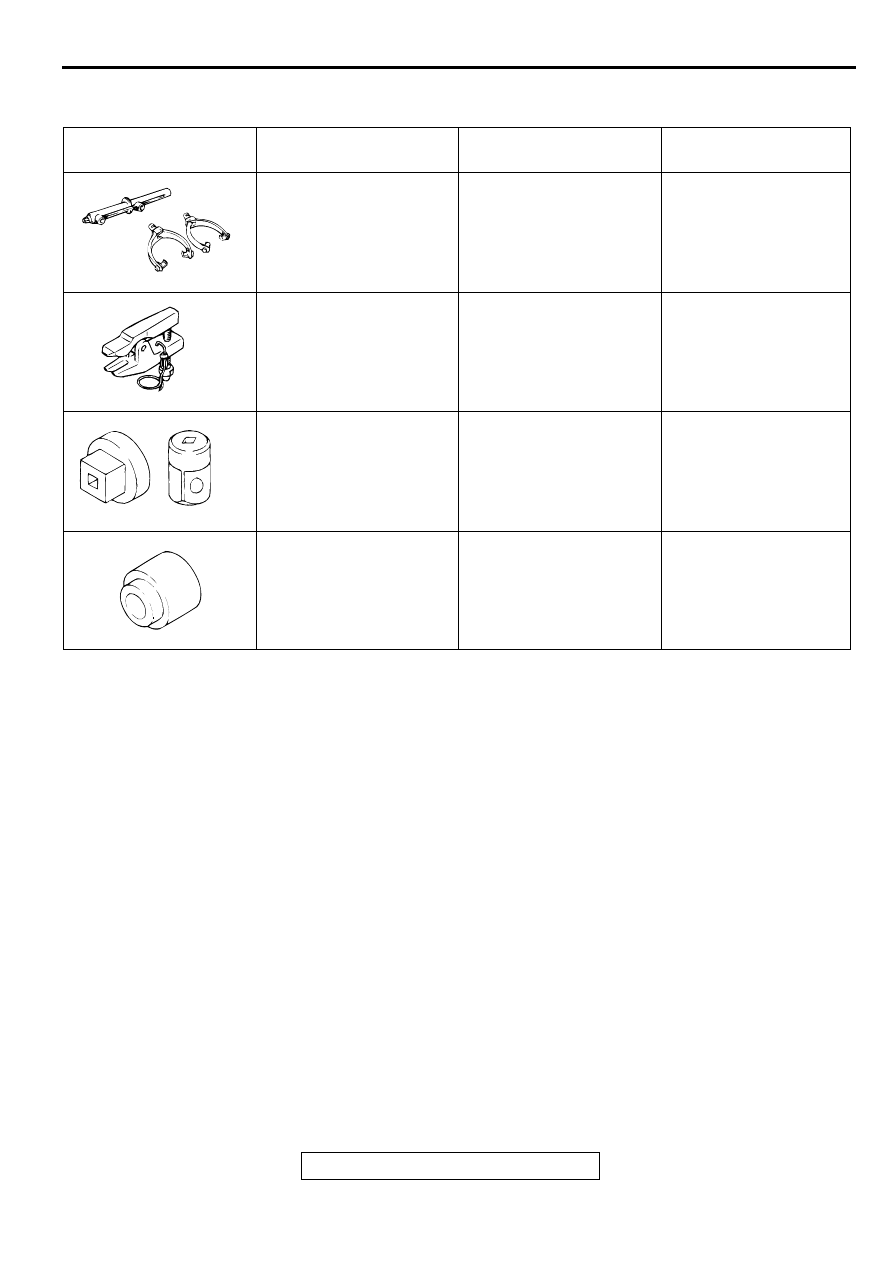

TOOL

TOOL NUMBER AND
NAME

SUPERSESSION

APPLICATION

•

A: MB991237
Spring compressor
body

•

B: MB991239
Arm set

MIT221369Coil spring removal and

installation

MB990635 or MB991113
Steering linkage puller

MB991113-01
MB990635-01 or General
service tool

Ball joint disconnection

MB990326
Preload socket

General service tool

Ball joint rotating torque
check

MB990800
Ball joint remover and
installer

MB990800-01 or General
service tool

Dust cover installation

MB991237

A

B

MB990635

MB990326

MB990800

REAR SUSPENSION ASSEMBLY

TSB Revision

REAR SUSPENSION

34-6

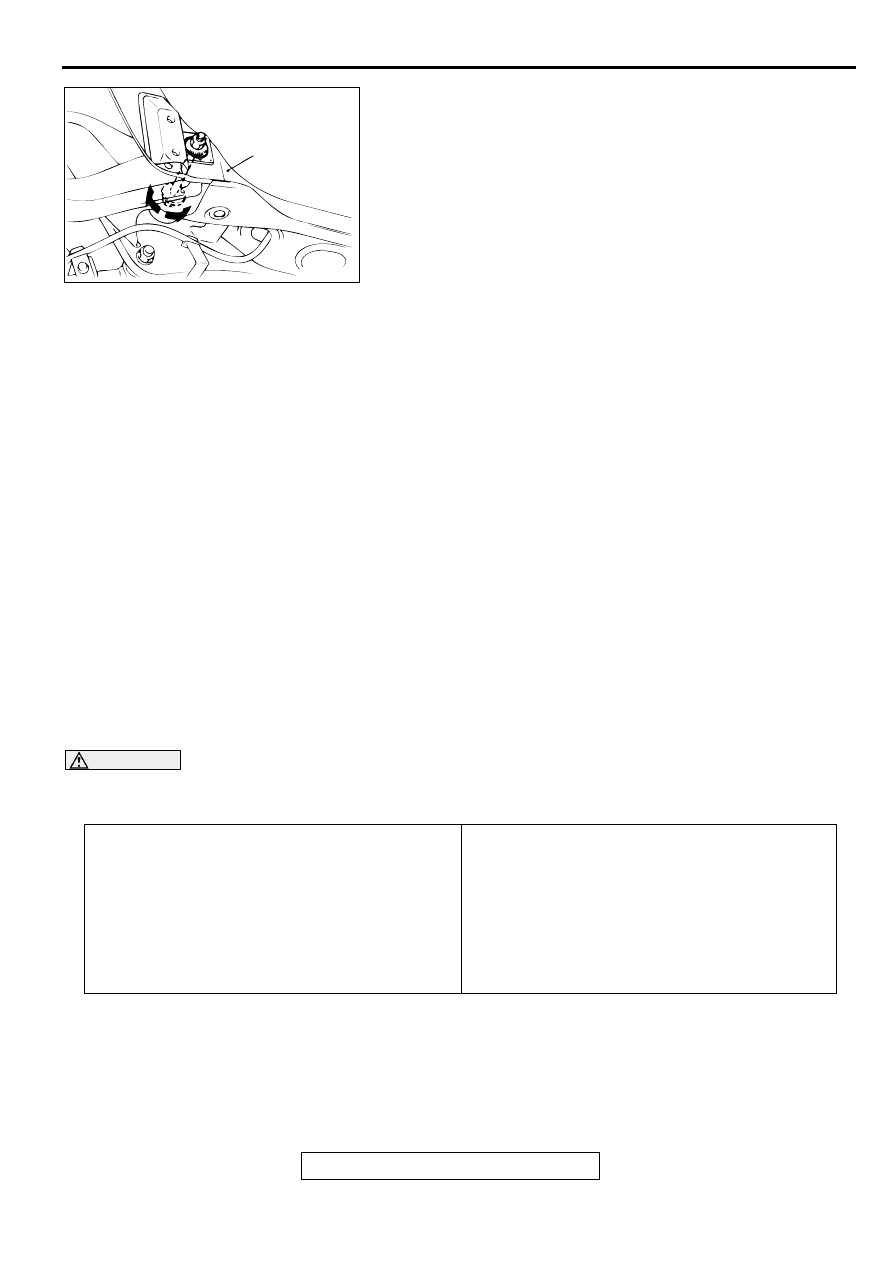

Loosen nut, then turn the toe control arm mounting bolt to
adjust toe.

NOTE:

.

•

LH: Clockwise viewed from the rear

→

 Toe-out

•

RH: Clockwise viewed from the rear

→

 Toe-in

•

Toe adjustment can be made at graduations of
approximately 2.5 mm (0.10 inch).

Camber

Standard value:

−−−−

1

°°°°

20'

±±±±

30' (Difference between right

and left within 30')

NOTE: Camber is preset at the factory and cannot be adjusted.

NOTE: If camber is not within the standard value, check and
replace bent or damaged parts.

BALL JOINT DUST COVER INSPECTION

M1341012800069

1. Check dust covers for cracks or damage by pushing it with

your finger.

2. If a dust cover is cracked or damaged, replace the toe

control arm assembly or stabilizer link.

NOTE: Cracks or damage to the dust cover may cause
damage to the ball joint.

R EAR  SU SPENSIO N  A SSEM BLY

REMOVAL AND INSTALLATION

M1341001000025

CAUTION



*

: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on

the ground in the unladen condition.

AC001056AB

CROSSMEMBER

Pre-removal Operation

•

Brake Fluid Draining <Vehicles with drum brake>

•

Rear Shelf Trim Removal (Refer to GROUP 52A, Trims

P.52A-12

.)

Post-installation Operation

•

Rear Shelf Trim Installation (Refer to GROUP 52A, Trims

P.52A-12

.)

•

Parking Brake Lever Stroke Check (Refer to GROUP 36,
On-vehicle Service

−

 Parking Brake Lever Stroke Check

and Adjustment

P.36-4

.)

•

Brake Line bleeding <Vehicles with drum brake> (Refer to
GROUP 35A, On-vehicle Service

−

 Bleeding

P.35A-21

.)

•

Wheel Alignment Check and Adjustment
(Refer to

P.34-5

.)

REAR SUSPENSION ASSEMBLY

TSB Revision

REAR SUSPENSION

34-7

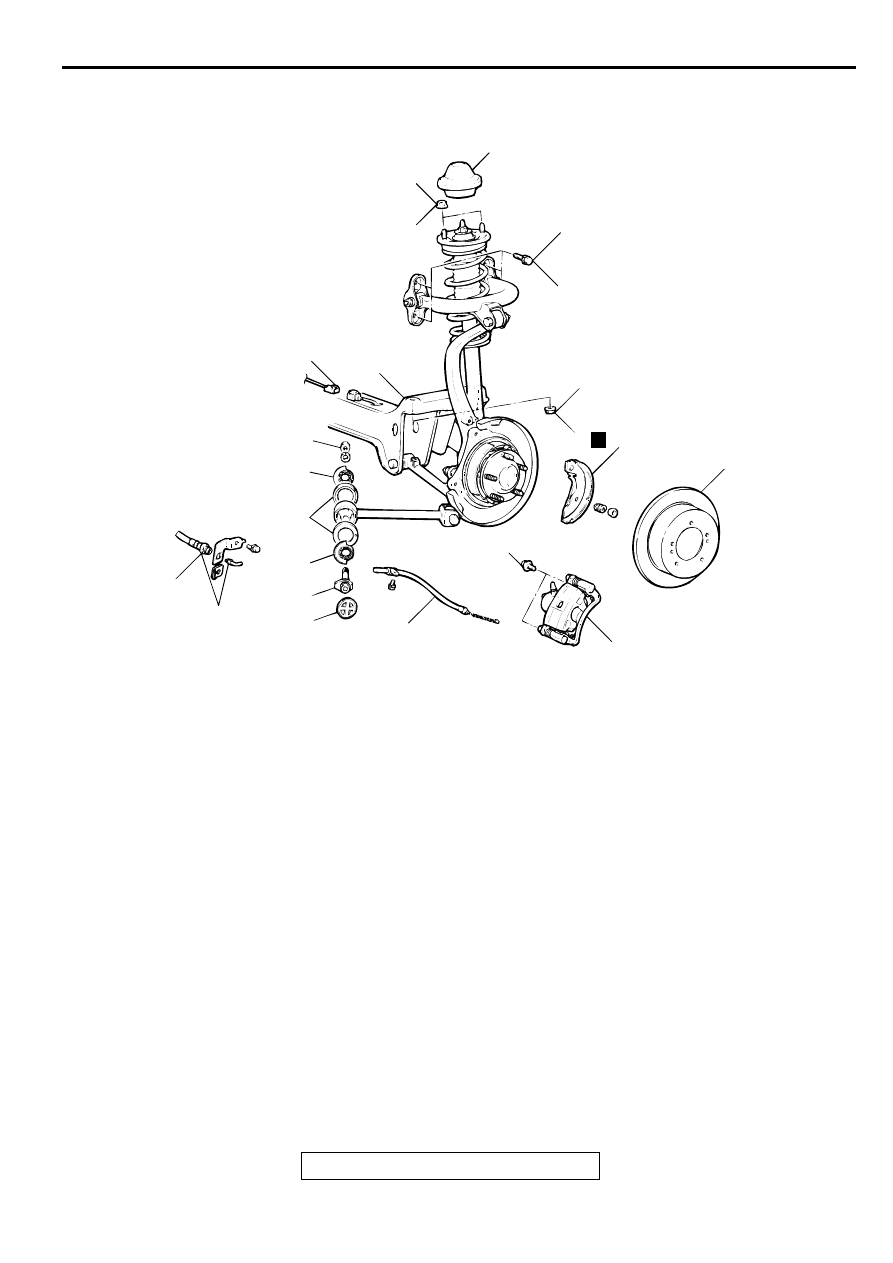

AC003096

N

8

13

44 N·m
32 ft-lb

AB

14

7

6

5

4

3

2

1

39 N·m
29 ft-lb

88 N·m
65 ft-lb

55 – 65 N·m
41 – 48 ft-lb

15

11

11

12

10

9

15 N·m
11 ft-lb

137 – 157 N·m*
101 – 108 ft-lb*

REMOVAL STEPS

1.

CAP

2.

SHOCK ABSORBER MOUNTING
NUTS

<<A>>

3.

BRAKE CALIPER ASSEMBLY

4.

BRAKE DISC OR BRAKE DRUM

5.

SHOE AND LINING ASSEMBLY
(DRUM BRAKE: REFER TO
GROUP 36, PARKING BRAKE
CABLE

P.36-7

. /DRUM-IN-DISC

BRAKE: REFER TO GROUP 36,
PARKING BRAKE CABLE

P.36-8

.)

6.

PARKING BRAKE CABLE
CONNECTION (DRUM BRAKE:
REFER TO GROUP 36, PARKING
BRAKE CABLE

P.36-7

. /DRUM-IN-

DISC BRAKE: REFER TO GROUP
36, PARKING BRAKE CABLE

P.36-8

.)

7.

BRAKE HOSE CONNECTION
<VEHICLES WITH DRUM
BRAKE>

8.

UPPER ARM MOUNTING BOLTS

9.

GROMMET

10. TRAILING ARM MOUNTING BOLT

>>A<<

11. STOPPER A

>>A<<

12. STOPPER B

<<B>>

13. CROSSMEMBER MOUNTING

NUTS

14. REAR WHEEL SPEED SENSOR

CONNECTOR CONNECTION
<VEHICLES WITH ABS>

15. REAR SUSPENSION ASSEMBLY

REMOVAL STEPS (Continued)

REAR SUSPENSION ASSEMBLY

TSB Revision

REAR SUSPENSION

34-8

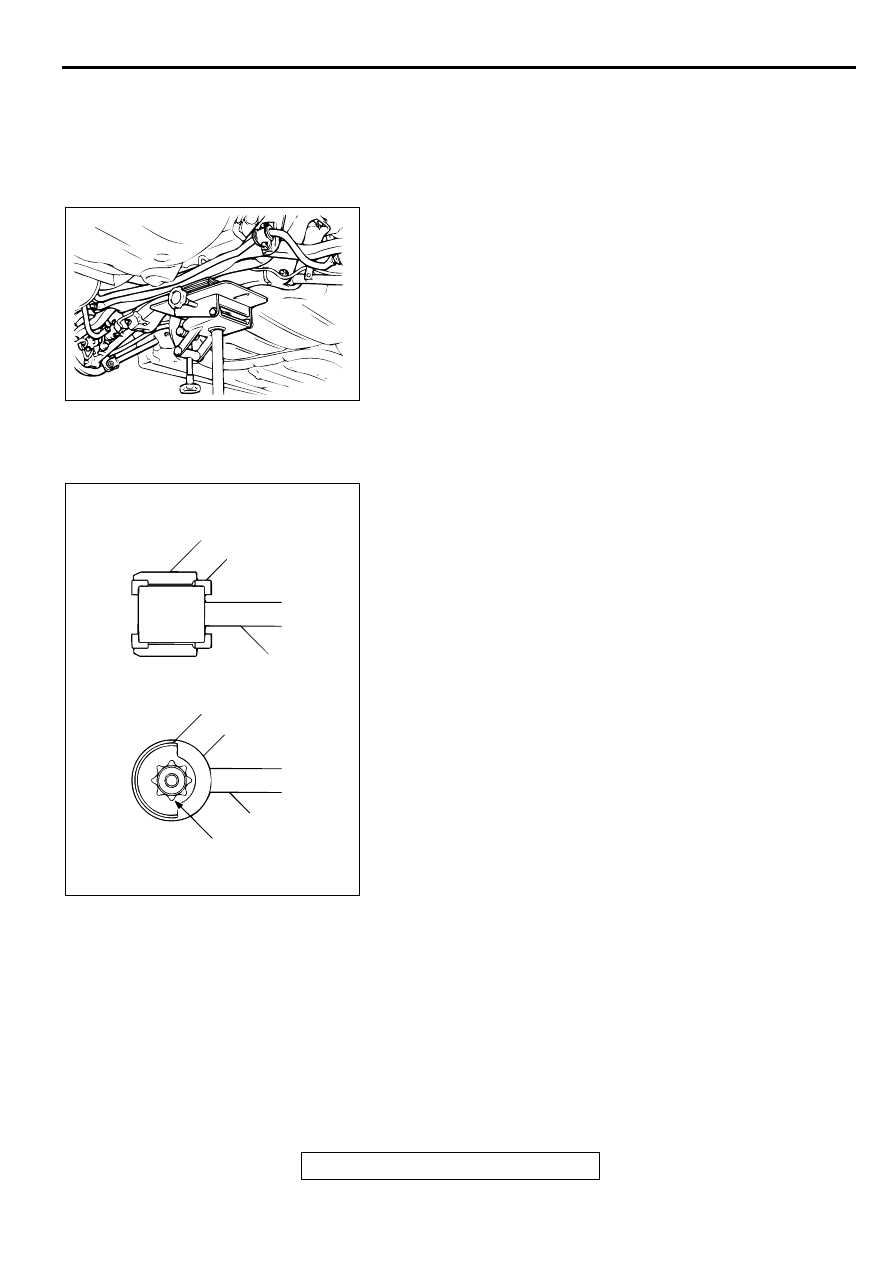

REMOVAL SERVICE POINTS

<<A>> BRAKE CALIPER ASSEMBLY REMOVAL
Secure the removed caliper assembly with a wire, so that it
does not fall.

<<B>> CROSSMEMBER MOUNTING NUT REMOVAL
Support the crossmember with a garage jack or transmission
jack to remove the crossmember mounting nut.

INSTALLATION SERVICE POINT

>>A<< STOPPER B/STOPPER A INSTALLATION
1. Install stopper B in the shown direction.

2. Install stopper A in the shown direction while checking that

the notches on stopper A are engaged with the projections
on the trailing arm bushing.

INSPECTION

M1341001100022

Check crossmember for cracks or other damage.

AC001058

AC001059

STOPPER A

STOPPER A

STOPPER B

STOPPER B

TRAILING ARM

TRAILING ARM

NOTCHES AND PROJECTIONS
