SPECIAL TOOLS

TSB Revision

FRONT AXLE

26-5

MB991248 or
MB998801
Inner shaft
remover

MD998348-01

Inner shaft removal

MB990925
Bearing and oil
seal installer set

MB990925-01 or
General service
tool

Bearing removal and dust seal
installation
MB990930
MB990932
MB990934
MB990938

MB990890
Rear
suspension bush
base

MB990890-1

Oil seal installation

MB991561
Boot band
crimping tool

MB991561

Resin boot band installation

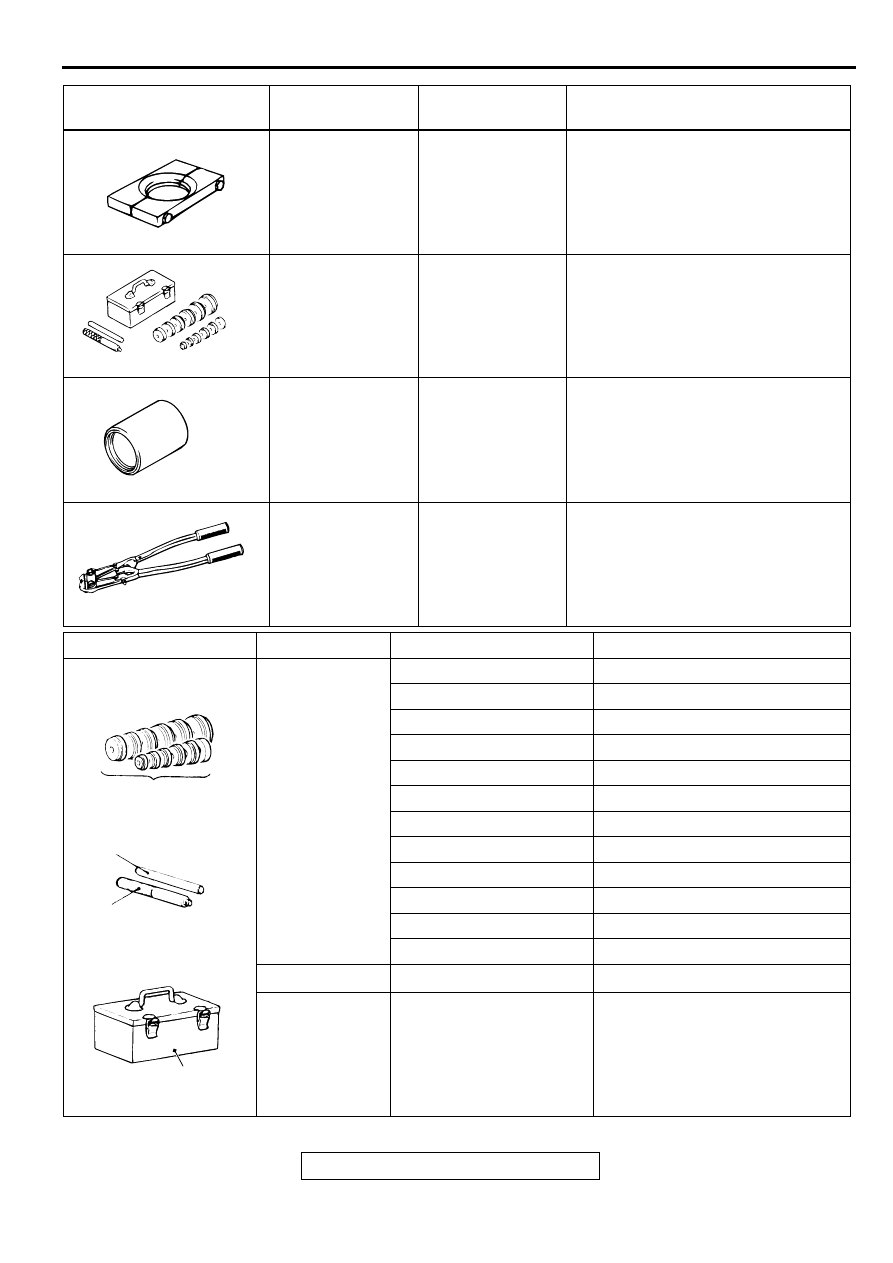

TOOL

TOOL NUMBER
AND NAME

SUPERSESSION

APPLICATION

MB991248

MB990925

MB990890

MB991561

TOOL

TYPE

TOOL NUMBER

O D mm (in)

A

MB990926

39.0 (1.54)

MB990927

45.0 (1.77)

MB990928

49.5 (1.95)

MB990929

51.0 (2.00)

MB990930

54.0 (2.13)

MB990931

57.0 (2.24)

MB990932

61.0 (2.40)

MB990933

63.5 (2.50)

MB99093467.5 (2.66)

MB990935

71.5 (2.81)

MB990936

75.5 (2.97)

MB990937

79.0 (3.11)

B

MB990938

C

MB990939

ACX02372

A

B

C

BRASS BAR

BAR (SNAP-IN TYPE)

TOOL BOX

MB990925

AB

INSTALL ADAPTER

ON-VEHICLE SERVICE

TSB Revision

FRONT AXLE

26-6

O N -VEH IC LE SERVIC E

HUB END PLAY CHECK

M1261000900053

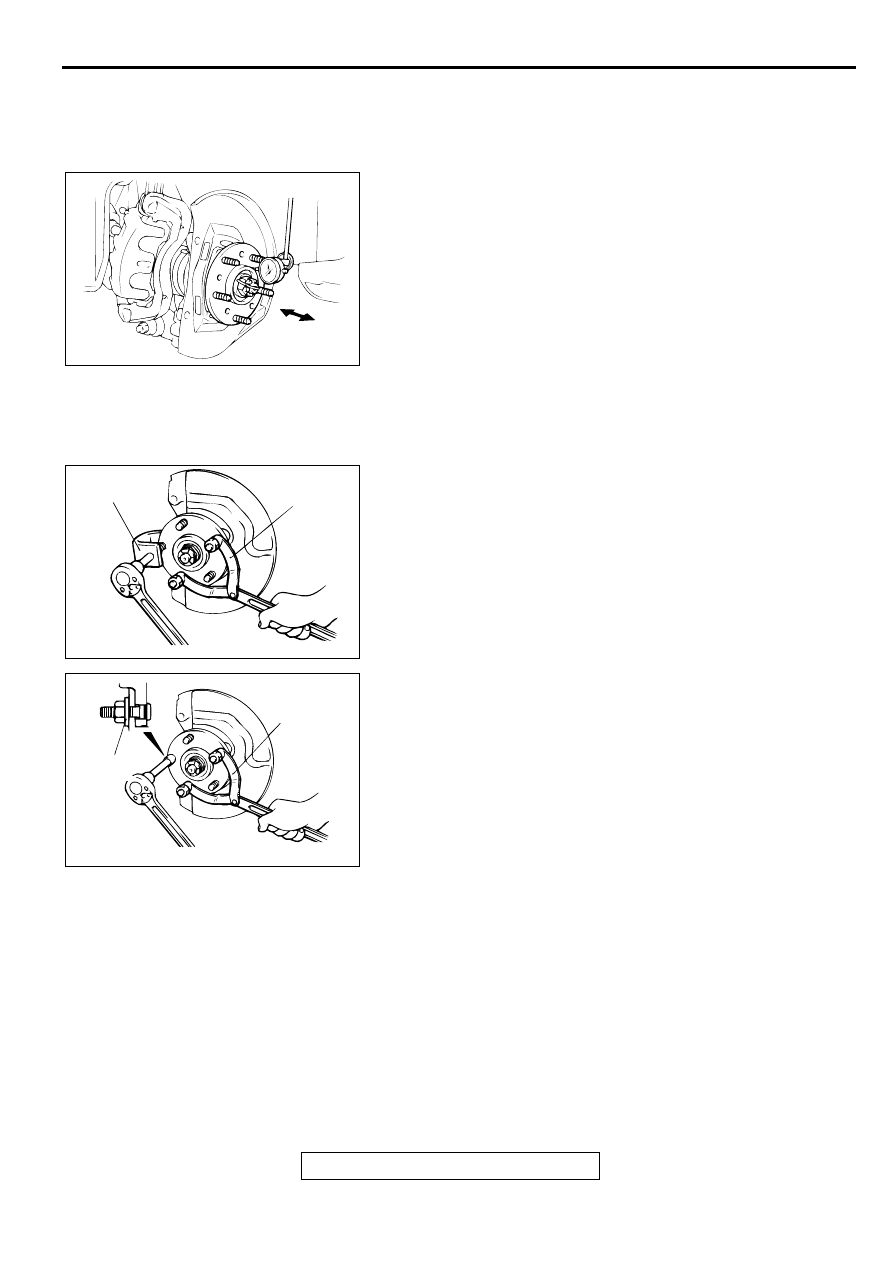

1. Remove the disc brake caliper and suspend it with a wire.

2. Remove the brake disc from the front hub.

3. Attach a dial gauge as shown in the illustration, and then

measure the end play while moving the hub in the axial
direction.

Limit: 0.05 mm (0.002 inch)

4. If end play exceeds the limit, replace the front hub assembly.

HUB BOLT REPLACEMENT

M1261001000053

Required Special Tools:

MB990767: End Yoke Holder

MB991618: Hub Bolt Remover

1. Remove the caliper assembly and suspend it with wire so

that it does not fall.

2. Remove the brake disc.

3. Use special tools MB990767 and MB991618 to remove the

hub bolts.

4. Install the plain washer to the new hub bolt, and install the

bolt with a nut.

AC001146

AC001147

MB990767

AB

MB991618

AC001148

MB990767

AB

PLAIN
WASHER

FRONT AXLE HUB ASSEMBLY

TSB Revision

FRONT AXLE

26-7

FR O N T A XLE H U B  A SSEM B LY

REMOVAL AND INSTALLATION

M1261001700052

CAUTION

For vehicles with ABS, be careful when handling the projection at the tip of the speed sensor so
as not to damage it by striking against other parts.

The front hub assembly should not be dissembled. When removing the front hub assembly, the
wheel bearing inner race may be left at the spindle side. In this case, always replace the front hub
assembly, otherwise the hub will damage the oil seal, causing oil leaks or excessive play.

Required Special Tools:

MB990326: Preload Wrench

MB990767: End Yoke Holder

MB990998: Front Hub Remover and Installer

MB991113 or MB990635: Steering Linkage Puller

Post-installation Operation
Press Dust Cover with a Finger to check for Crack or
Damage in Ball Joint Dust Cover.

AC001149

N

7

N

N

24 – 33 N·m
17 – 25 ft-lb

1

6

9

3

5

4

196 – 255 N·m
145 – 188 ft-lb

2

98 – 118 N·m
72 – 87 ft-lb

8

88 N·m
65 ft-lb

90 – 110 N·m
66 – 81 ft-lb

AC

44 N·m

32 ft-lb







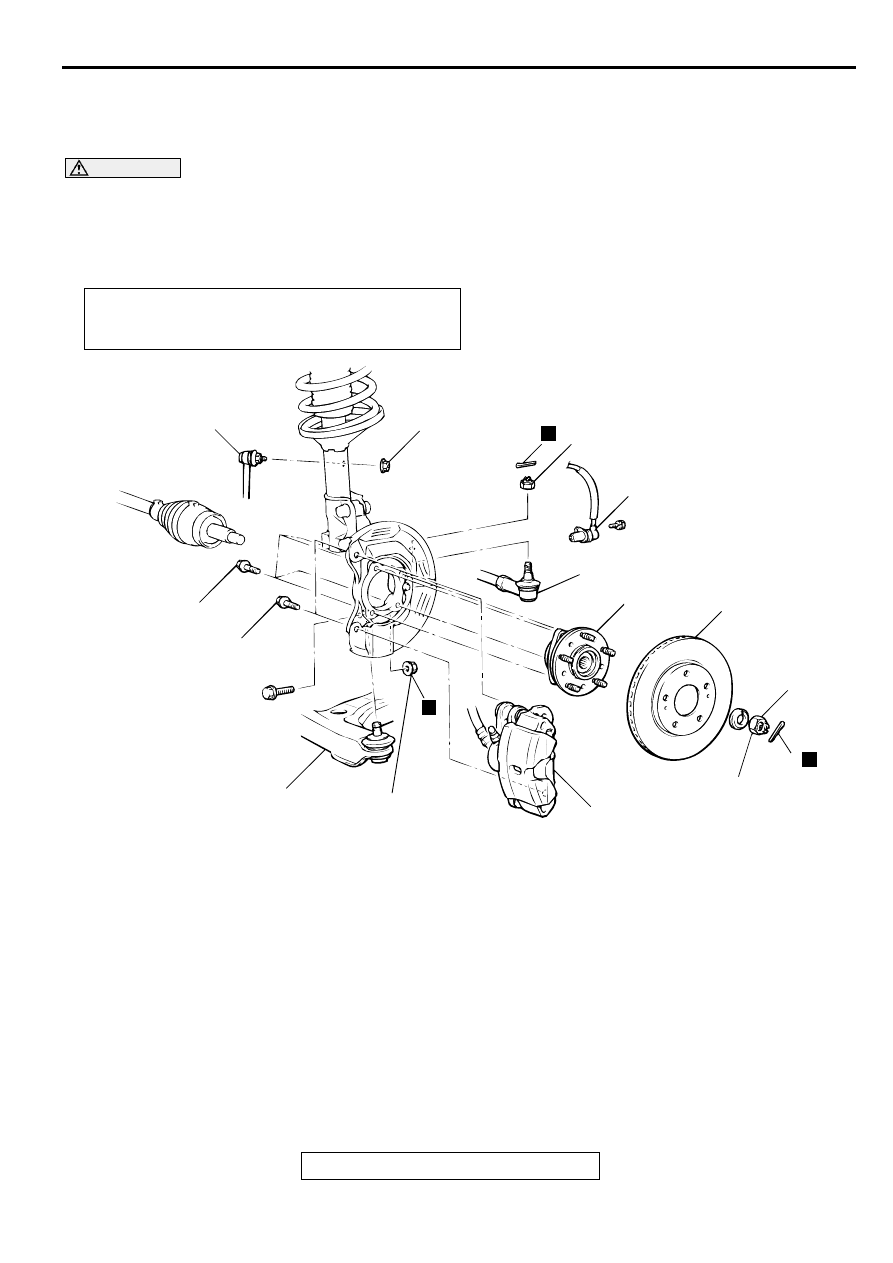

REMOVAL STEPS





1.  FRONT SPEED SENSOR

<VEHICLES WITH ABS>

<<A>>

2.  CALIPER ASSEMBLY





3.  BRAKE DISC





4.  COTTER PIN

<<B>> >>A<<

5.  DRIVE SHAFT NUT

<<C>>

6.  TIE ROD END CONNECTION





7.  STABILIZER LINK CONNECTION





8.  LOWER ARM ASSEMBLY

CONNECTION





9.  FRONT HUB ASSEMBLY

FRONT AXLE HUB ASSEMBLY

TSB Revision

FRONT AXLE

26-8

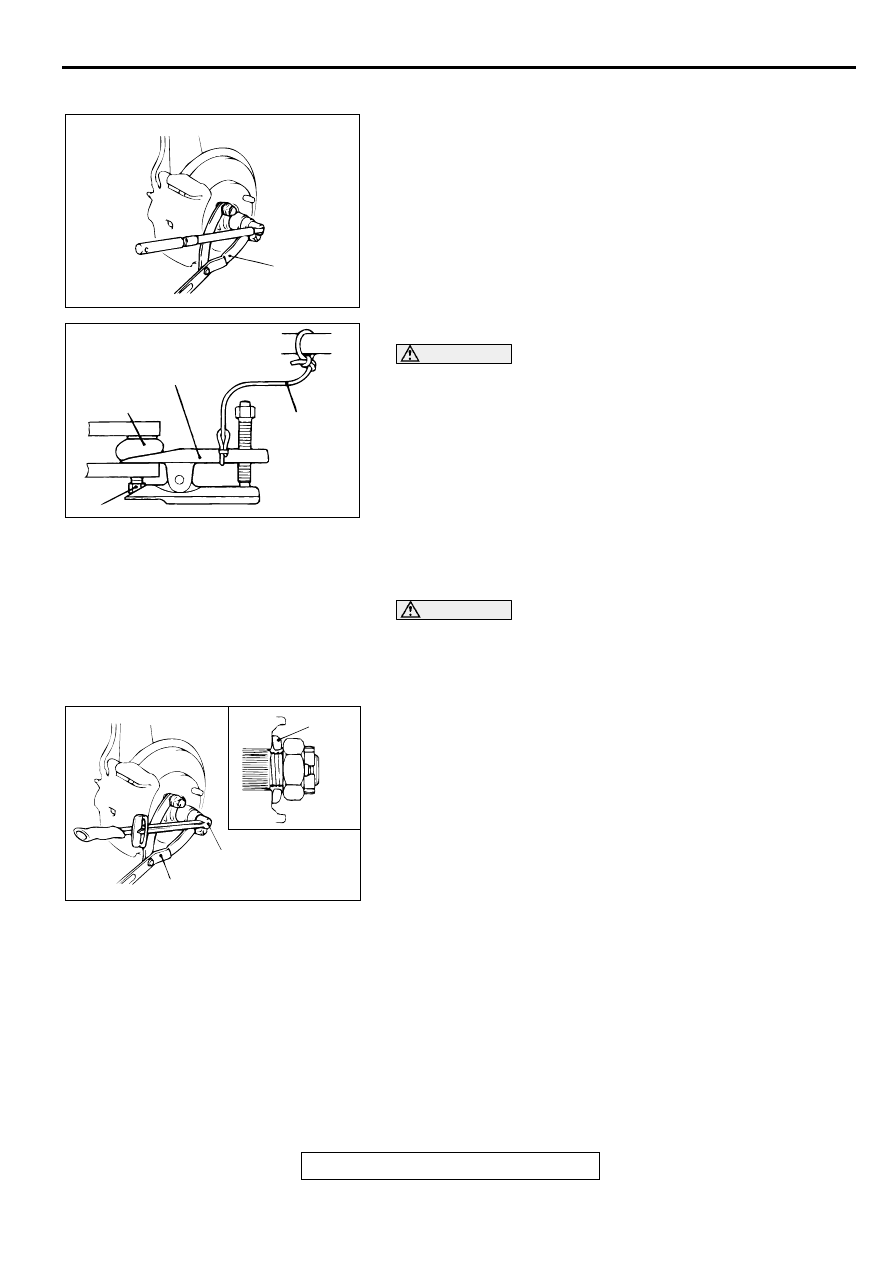

REMOVAL SERVICE POINTS

<<A>> CALIPER ASSEMBLY REMOVAL
Secure the removed caliper assembly with wire, etc.

<<B>> DRIVE SHAFT NUT REMOVAL

<<C>> TIE ROD END DISCONNECTION

WARNING

Support special tool MB991113 or MB990635 with a
cord, etc. to prevent it coming off.

Use special tool MB991113 or MB990635 to disconnect the tie
rod from the knuckle.

NOTE: Only loosen mounting nut, do not remove it from the
ball joint.

INSTALLATION SERVICE POINT

>>A<< DRIVE SHAFT NUT INSTALLATION

CAUTION

Before securely tightening the driveshaft nuts, make sure
that there is no load on the wheel bearings.
1. Be sure to install the driveshaft washer in the specified

direction.

2. Using special tool MB990767, tighten the driveshaft nut.

AC001150AB

MB990767

ACX00715AC

BALL JOINT

CORD

NUT

MB991113 OR
MB990635

AC001151

WASHER

MB990767

AC

196 – 255 N·m
145 – 188 ft-lb
