AUTOMATIC TRANSAXLE

23A-295

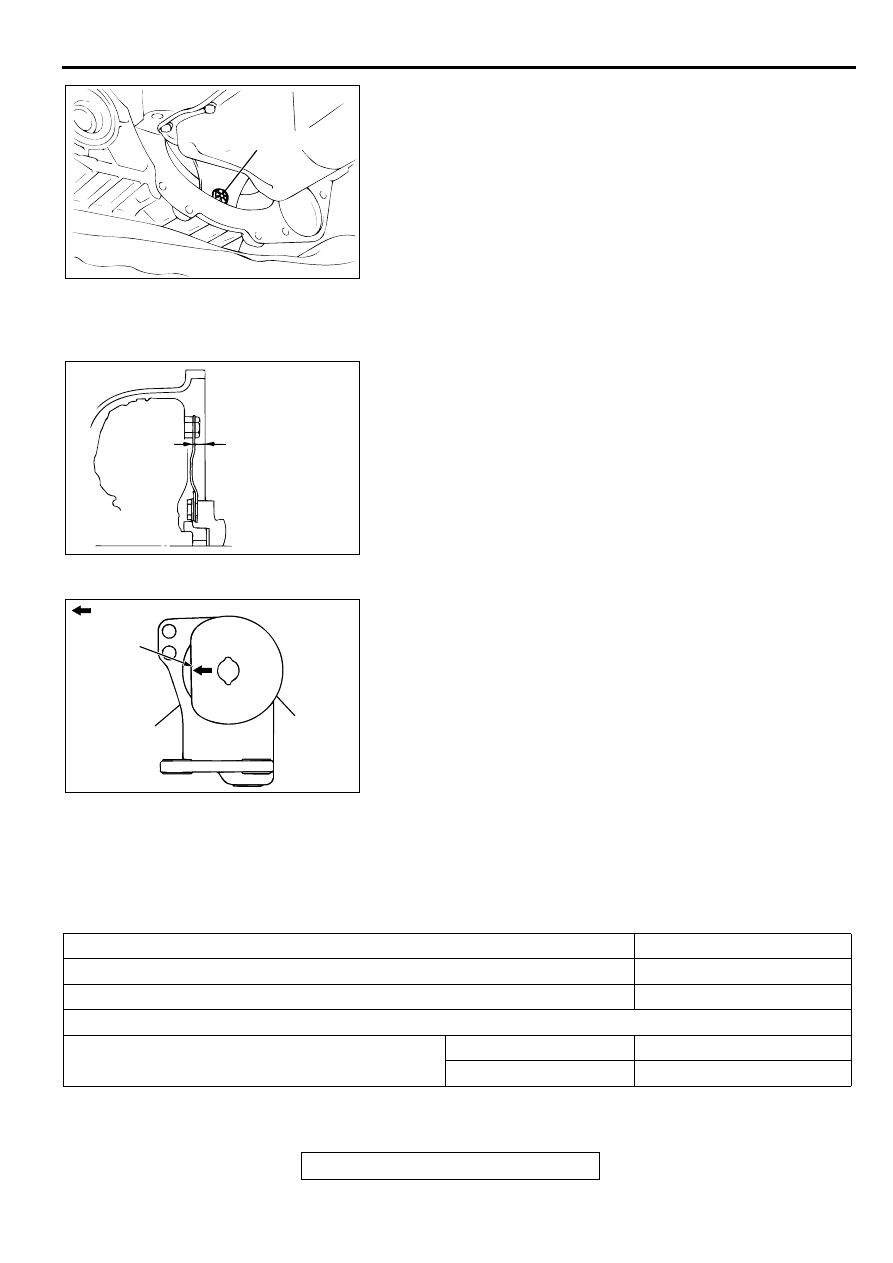

<<F>> DRIVE PLATE BOLTS/TRANSAXLE ASSEMBLY
LOWER PART COUPLING BOLTS/TRANSAXLE ASSEMBLY
REMOVAL
1. Support the transaxle assembly by using a transaxle jack.

2. Remove the drive plate bolts while turning the crank shaft.

3. Press in the torque converter to the transaxle side so that

the torque converter does not stay engaged to the drive
plate.

4. Remove the transaxle assembly lower bolts and lower the

transaxle assembly.

INSTALLATION SERVICE POINTS

>>A<< TRANSAXLE ASSEMBLY INSTALLATION
Inserting the torque converter into the transaxle oil pump so
that the shown dimension is approximately. 12.2 mm (0.48
inch) <2.4L ENGINE>, approximately 9.4 mm (0.37 inch) <3.0L
ENGINE>. Install the transaxle assembly to the engine.

>>B<< TRANSAXLE MOUNT STOPPER INSTALLATION
Install the transaxle mount stopper so that the arrow mark
points as shown in the illustration.

SPECIFIC ATIO NS

FASTENER TIGHTENING SPECIFICATIONS

M1231012400063

AC001645AB

DRIVE PLATE BOLT

AC001646AB

APPROXMATELY
12.2 mm (0.48 in)
<2.4L ENGINE>
9.4 mm (0.37 in)
<3.0L ENGINE>

AC001647AB

TRANSAXLE
MOUNT
STOPPER

ENGINE SIDE

ARROW

TRANSAXLE
MOUNT
BRACKET

ITEMS

SPECIFICATIONS

Key interlock cable

11 N

⋅

m (97 in-lb)

Shift lock cable

11 N

⋅

m (97 in-lb)

Transaxle assembly

Bell housing cover <2.4L engine>

To engine

8.8 N

⋅

m (78 in-lb)

To transaxle

26 N

⋅

m (19 ft-lb)

SPECIFICATIONS

TSB Revision

AUTOMATIC TRANSAXLE

23A-296

SERVICE SPECIFICATIONS

M1231000300047

Centermember assembly

Front

93 N

⋅

m (69 ft-lb)

Front roll stopper

45 N

⋅

m (33 ft-lb)

Rear

74 N

⋅

m (53 ft-lb)

Drive plate bolt

49 N

⋅

m (37 ft-lb)

Drive shaft and inner shaft <3.0L engine>

40 N

⋅

m (30 ft-lb)

Lower arm connection

108 N

⋅

m (80 ft-lb)

Rear roll stopper bracket

45 N

⋅

m (34 ft-lb)

Transaxle control cable connection

11 N

⋅

m (97 in-lb)

Starter motor

30 N

⋅

m (23 ft-lb)

Starter cover mounting bolt <2.4L engine>

4.9 N

⋅

m (44 in-lb)

Stabilizer link connection

44 N

⋅

m (33 ft-lb)

Tie rod end connection

29 N

⋅

m (21 ft-lb)

Transaxle assembly lower part cou-
pling bolt

2.4L engine

48 N

⋅

m (36 ft-lb)

3.0L engine

71 N

⋅

m (52 ft-lb)

Transaxle assembly upper part cou-
pling bolt

2.4L engine

48 N

⋅

m (36 ft-lb)

3.0L engine

Bolt, flange

71 N

⋅

m (52 ft-lb)

Bolt, washer assembled 88 N

⋅

m (65 ft-lb)

Transaxle mount bracket

57 N

⋅

m (42 ft-lb)

Transaxle mount stopper

83 N

⋅

m (61 ft-lb)

Transaxle control

Detent spring

1.5 N

⋅

m (14 in-lb)

Indicator panel assembly

1.5 N

⋅

m (14 in-lb)

Key interlock cable connection

11 N

⋅

m (97 in-lb)

Lever assembly

11 N

⋅

m (97 in-lb)

Nut

11 N

⋅

m (97 in-lb)

Shift lock cable connection

11 N

⋅

m (97 in-lb)

Shift knob

1.8 N

⋅

m (16 in-lb)

Selector lever assembly

11 N

⋅

m (97 in-lb)

Transaxle control cable assembly

11 N

⋅

m (97 in-lb)

ITEMS

SPECIFICATIONS

ITEMS

STANDARD VALUE

Line pressure kPa (psi)

1,010

−

1,050 (147

−

152)

A/T fluid temperature sensor k

Ω

at 0

C (32

16.7

−

20.5

at 20

C (68

7.3

−

8.9

at 40

C (104

3.4

−

4.2

at 60

C (140

1.9

−

2.2

at 80

C (176

1.0

−

1.2

at 100

C (212

0.57

−

0.69

Resistance of torque converter clutch control solenoid valve coil [at 20

(68

F)]

Ω

2.7

−

3.4

SPECIFICATIONS

TSB Revision

AUTOMATIC TRANSAXLE

23A-297

LUBRICANTS

M1231000400055

Resistance of low-reverse solenoid valve coil [at 20

C (68

F)]

Ω

2.7

−

3.4

Resistance of second solenoid valve coil [at 20

C (68

F)]

Ω

2.7

−

3.4

Resistance of underdrive solenoid valve coil [at 20

C (68

F)]

Ω

2.7

−

3.4

Resistance of overdrive solenoid valve coil [at 20

C (68

F)]

Ω

2.7

−

3.4

Stall speed r/min

2,100

−

2,600

ITEMS

STANDARD VALUE

ITEMS

SPECIFIED LUBRICANTS

QUANTITY

A/T fluid dm

(qt)

F4A42

DIAMOND ATF SP III, ATF SP II M or
equivalent

7.8 (8.2)

F4A51

8.5 (9.0)

NOTES
