AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-191

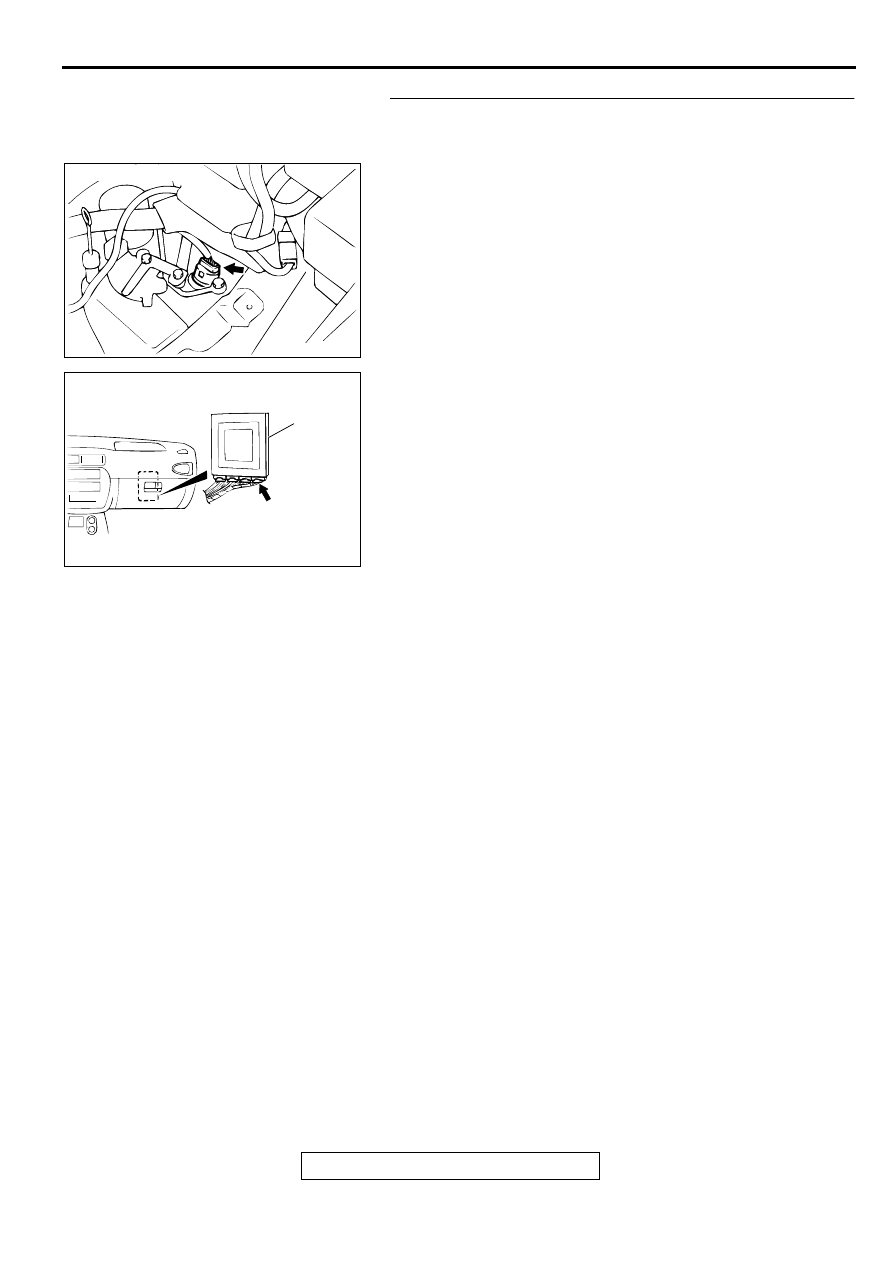

STEP 14. Check harness for open circuit, or short circuit to
ground between solenoid valve assembly connector B-38
terminal 7 and PCM connector C-42 terminal 107.
Q: Is the harness wire in good condition?

YES : Replace the PCM.
NO :  Repair it.

ACX02479

CONNECTOR: B-38

AF

AC004197

PCM

AF

CONNECTOR: C-42

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-192

DTC 41: 1st Gear Incorrect Ratio
DTC 42: 2nd Gear Incorrect Ratio
DTC 43: 3rd Gear Incorrect Ratio
DTC 44: 4th Gear Incorrect Ratio
DTC 46: Reverse Gear Incorrect Ratio

AC004619

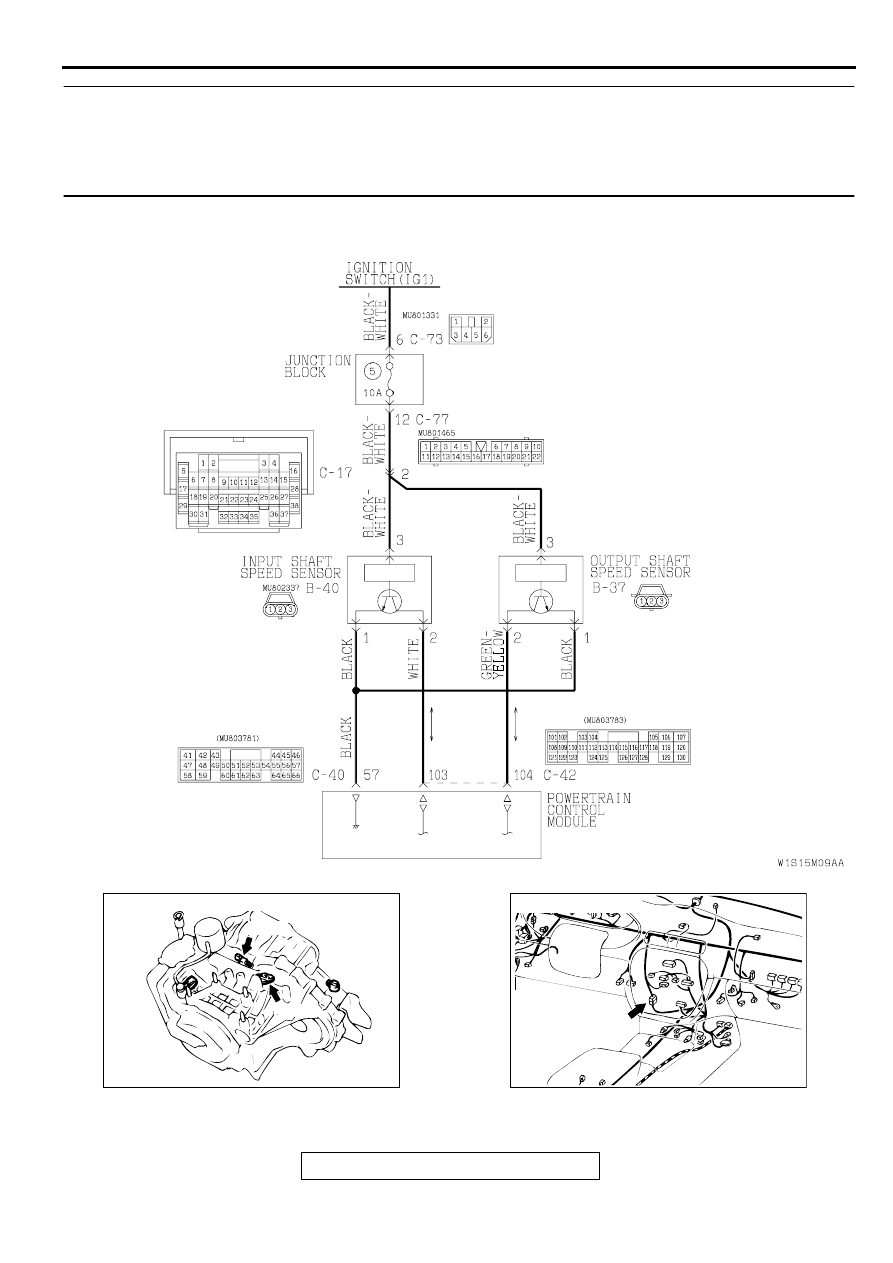

Input Shaft Speed Sensor and Output Shaft Speed Sensor System Circuit

AB

AC001850AE

CONNECTORS: B-37, B-40

B-37

B-40

AC004308AB

CONNECTOR: C-17

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-193

CIRCUIT OPERATION

A coil built into the input shaft speed sensor
generates pulse signal of 0

 5 volts at both

ends of this coil when the input shaft rotates. The
pulse signal frequency increases with the rise in
input shaft speed.

Both ends of the coil are connected to the PCM
(terminals 57 and 103) via the input shaft speed
sensor connector (terminals 1 and 2).

The PCM detects the input shaft speed with the
signal input to terminal (terminal 103).

A coil built into the output shaft speed sensor
generates pulse signal of 0

 5 volts at both

ends of this coil when the output shaft rotates.
The pulse signal frequency increases with the
rise in output shaft speed.

Both ends of the coil are connected to the PCM
(terminals 57 and 104) via the output shaft speed
sensor connector (terminals 1 and 2).

The PCM detects the output shaft speed with the
signal input to terminal (terminal 104).

DTC SET CONDITIONS
If the output from the output shaft speed sensor
multiplied by the 1st gear ratio is not the same as the
output from the input shaft speed sensor after
shifting to 1st gear has been completed, diagnostic
trouble code number "41" is output. If diagnostic
trouble code number "41" is output four times, the
transmission is locked into 3rd gear as a fail-safe
measure.

TROUBLESHOOTING HINTS (The most likely

causes for this code to be set:)

Malfunction of the input shaft speed sensor

Malfunction of the output shaft speed sensor

Malfunction of the PCM

Malfunction of the underdrive clutch retainer

Malfunction of the transfer drive gear or driven
gear

Malfunction of the low-reverse brake system (for
code number "41," "46")

Malfunction of the underdrive clutch system (for
code number "41," "42," "43")

Malfunction of the second brake system (for code
number "42," "44")

Malfunction of the overdrive clutch system (for
code number "43," "44")

Malfunction of the reverse clutch system (for
code number "46")

Noise generated

DIAGNOSIS

Required Special Tool:
MB991502: Scan Tool (MUT-II)

AC004197

PCM

C-40

C-42

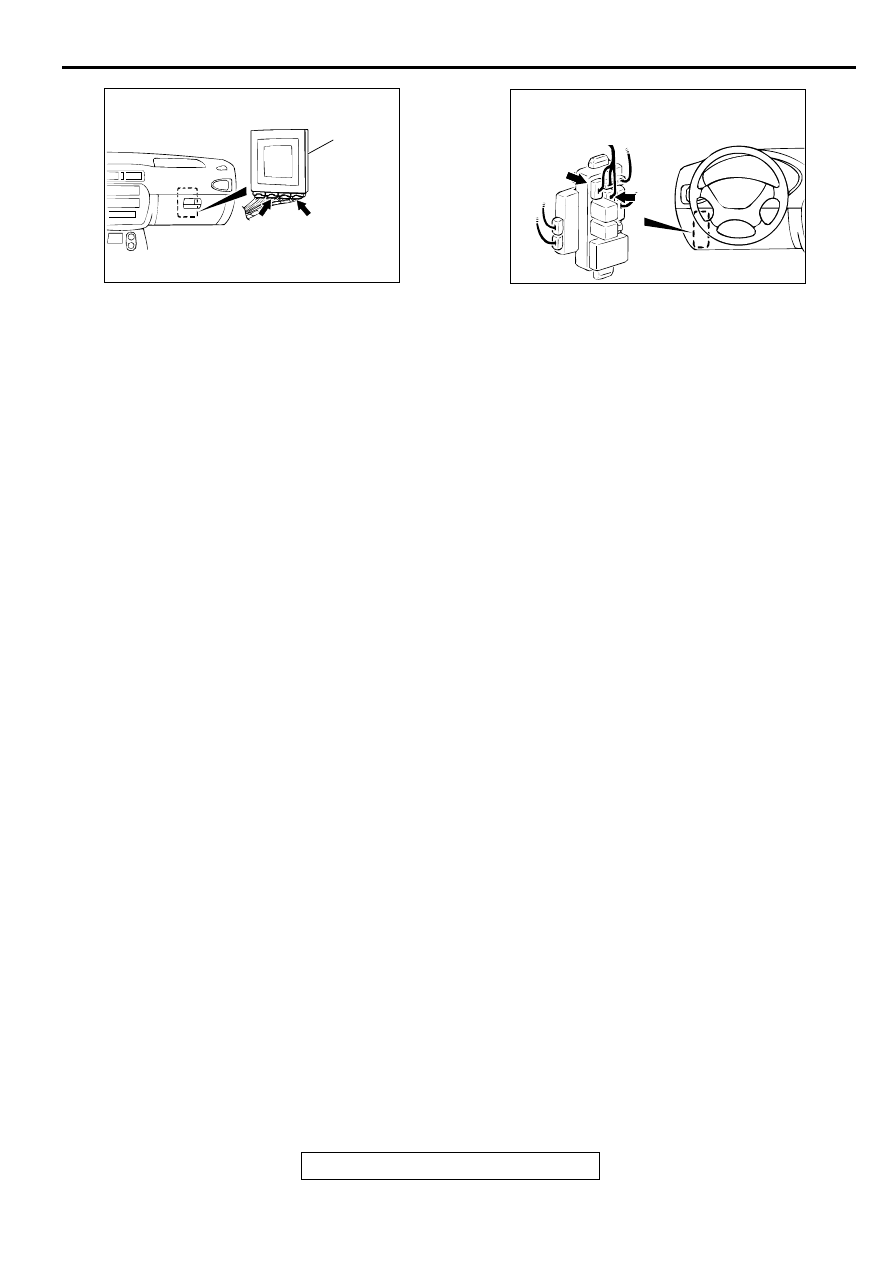

CONNECTORS: C-40, C-42

AE

AC004307

CONNECTORS: C-73, C-77

C-73

JUNCTION BLOCK
(FRONT VIEW)

C-77

AB

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-194

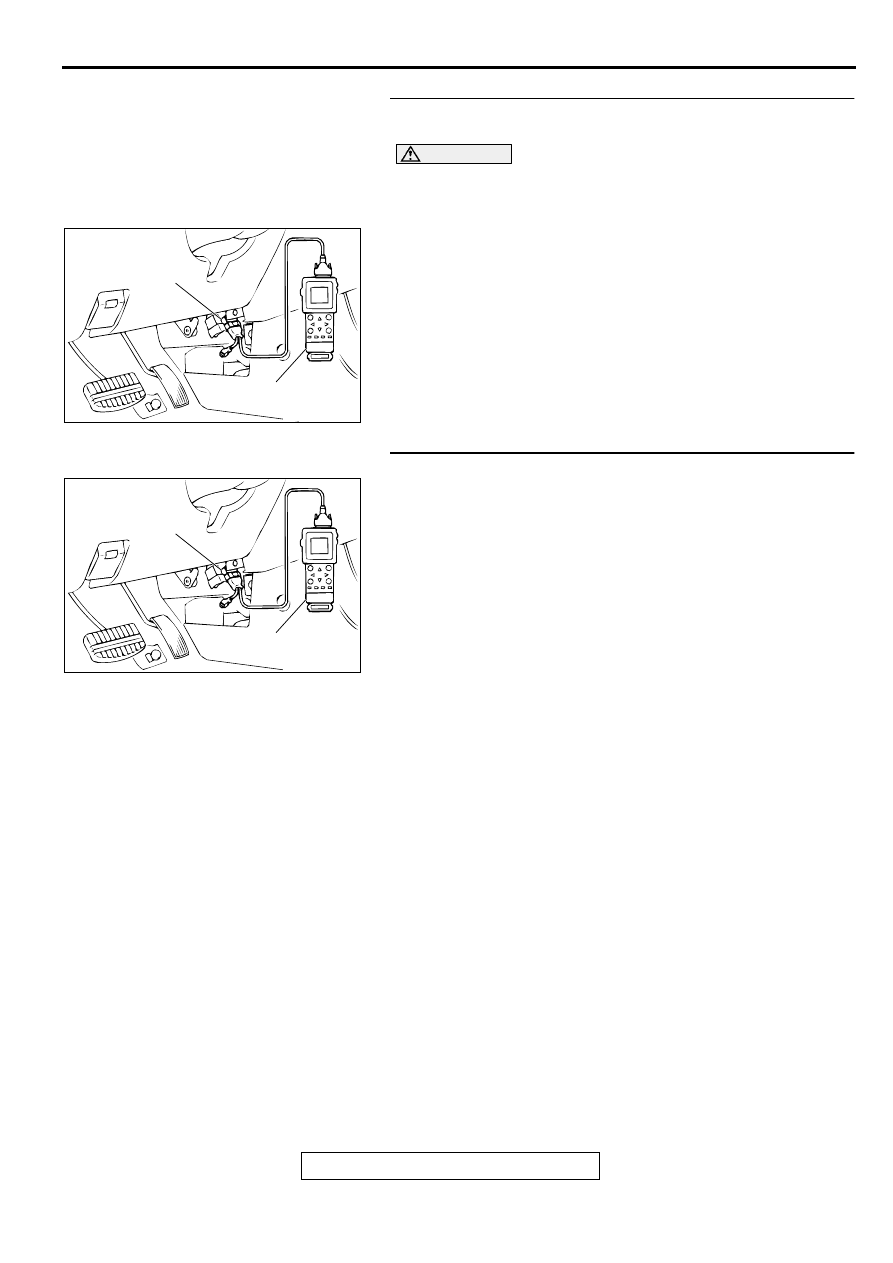

STEP 1. Using scan tool MB991502, read the A/T
diagnostic trouble code.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the A/T diagnostic trouble code.
(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is A/T diagnostic trouble code numbers "22" or "23"

output?
YES :
Refer to

P.23A-94

code number 22: Input Shaft

Speed Sensor System, or refer to

P.23A-105

code

number 23: Output Shaft Speed Sensor System.

NO :  Go to Step 2.

STEP 2. Using scan tool MB991502, check actuator test.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to "ON" position.
(3) Set scan tool MB991502 to actuator test mode for following

items.

a. item 01: Low-reverse Solenoid Valve
b. item 02: Underdrive Solenoid Valve

c. item 03: Second Solenoid Valve

d. item 04: Overdrive Solenoid Valve

An operation sound should be heard from solenoid
valve when solenoid valve is operated.

(4) Turn the ignition switch to "LOCK" (OFF) position.

Q: Is the solenoid valve operating properly?

YES : Go to Step 3.
NO :  Replace the corresponding solenoid valve. Refer to

GROUP 23B, Valve Body

P.23B-68

.

AC003081AC

MB991502

DATA LINK
CONNECTOR

AC003081AC

MB991502

DATA LINK
CONNECTOR
