IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-50

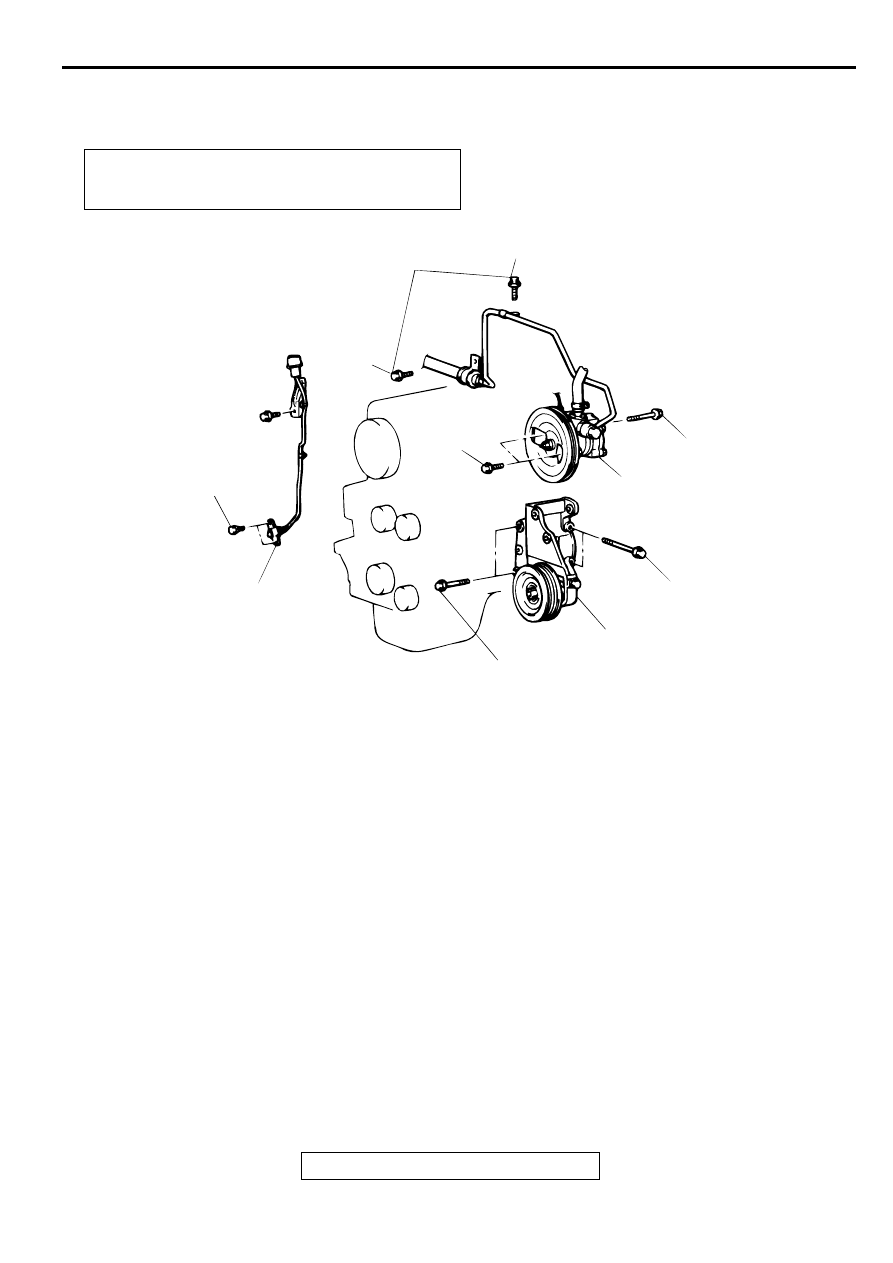

CRANKSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION <2.4L ENGINE>

M1163003500086

Pre-removal and Post-installation Operation

•

Timing Belt Removal and Installation (Refer to GROUP
11A, Timing Belt and Timing Belt B

P.11A-30

.)

AC000292

1

1

2

3

4

12 N·m
106 in-lb

8.8 N·m
78 in-lb

28 N·m
21 ft-lb

28 N·m
21 ft-lb

49 N·m
36 ft-lb

49 N·m
36 ft-lb

AC

REMOVAL STEPS

1.

PRESSURE HOSE AND TUBE
ASSEMBLY CONNECTION

2.

POWER STEERING OIL PUMP
ASSEMBLY

3.

POWER STEERING OIL PUMP
BRACKET

4.

CRANKSHAFT POSITION
SENSOR

REMOVAL STEPS (Continued)

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-51

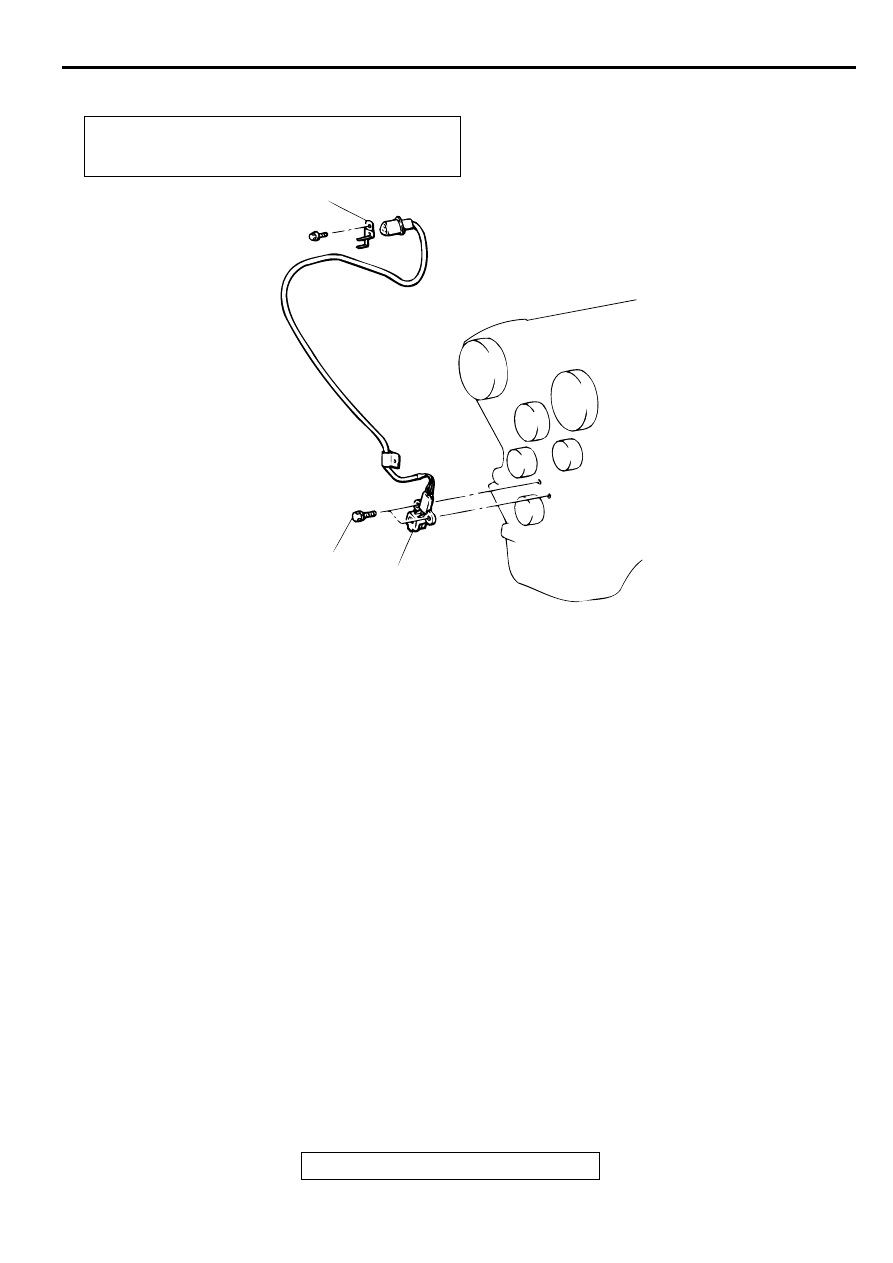

REMOVAL AND INSTALLATION <3.0L ENGINE>

M1163003500097

Pre-removal and Post-installation Operation

•

Timing Belt Removal and Installation (Refer to GROUP
11C, Timing Belt

P.11C-29

.)

AC000293

1

2

8.8 N·m
78 in-lb

AC

REMOVAL STEPS

1.

CLIP

2.

CRANKSHAFT POSITION
SENSOR

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-52

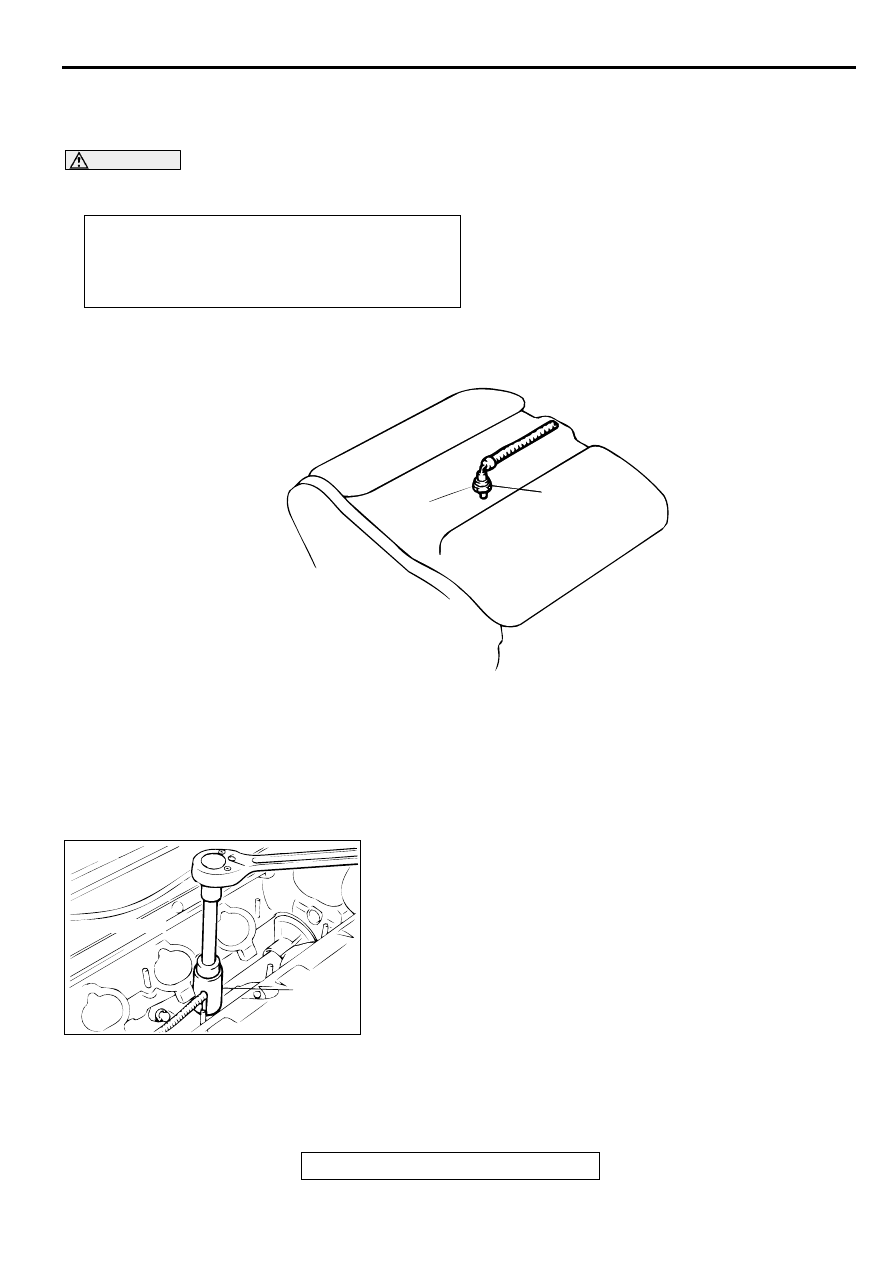

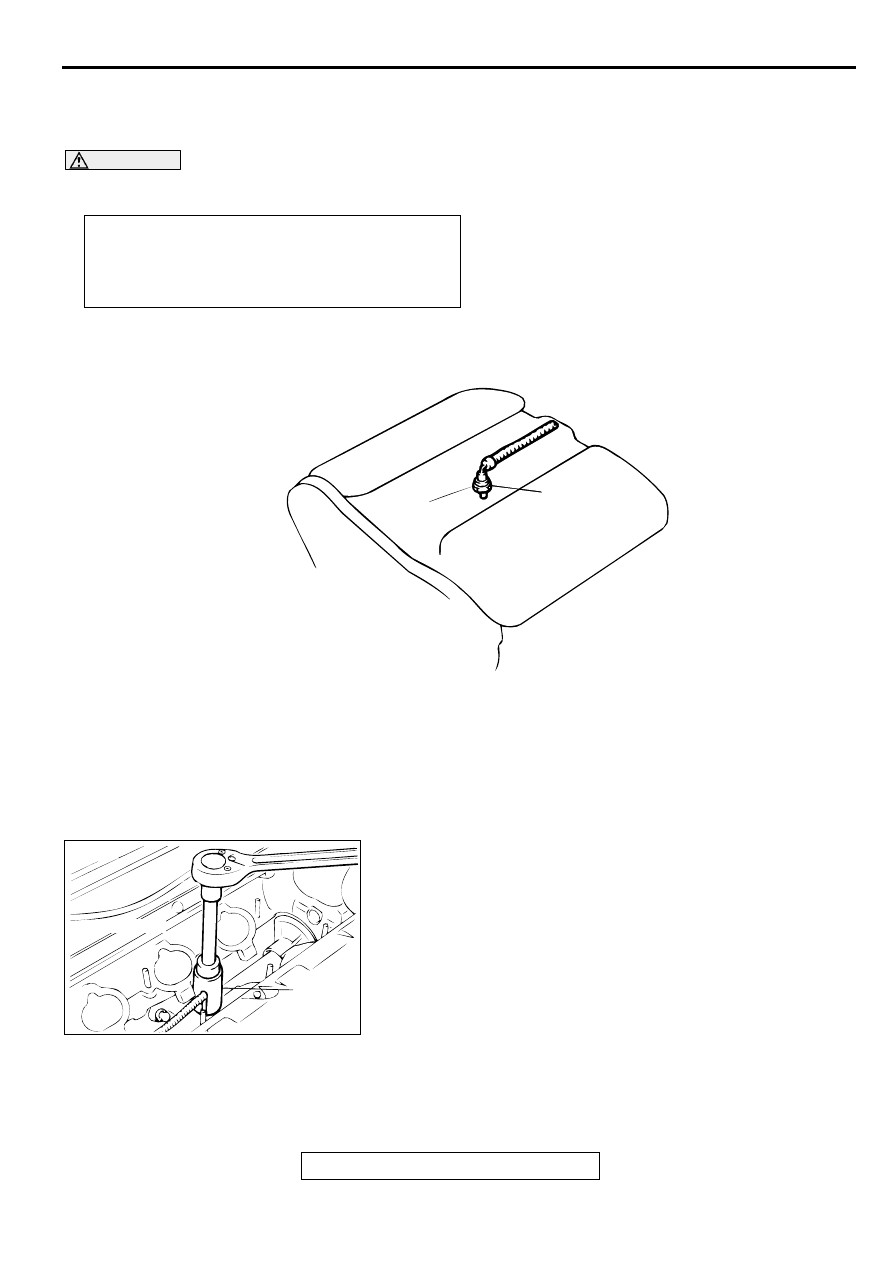

KNOCK SENSOR

REMOVAL AND INSTALLATION <3.0L ENGINE>

M1163002800084

CAUTION

Do not drop or hit the knock sensor against other components. Internal damage may result, and the
knock sensor will need to be replaced.

Required Special Tool:
MD998773: Knock Sensor Wrench

REMOVAL SERVICE POINT

<<A>> KNOCK SENSOR REMOVAL
Use special tool MD998773 to removal the knock sensor.

INSTALLATION SERVICE POINT

>>A<< KNOCK SENSOR INSTALLATION
Use special tool MD998773 to install the knock sensor.

Pre-removal and Post-installation Operation

•

Air Cleaner Removal and Installation (Refer to GROUP
15, Air Cleaner

P.15-4

.)

•

Intake Manifold Stay Removal and Installation (Refer to
GROUP 15, Intake Manifold

P.15-10

.)

AC004371AB

1

22 N·m
16 ft-lb

<<A>>

>>A<<

1.

KNOCK SENSOR

AC004372

MD998773

AB

SPECIFICATIONS

TSB Revision

ENGINE ELECTRICAL

16-53

SPECIFIC ATIO NS

FASTENER TIGHTENING SPECIFICATIONS

M1161002100067

ITEM

SPECIFICATION

Charging system

Bearing retainer

3.7 N

⋅

m (33 in-lb)

Front bracket assembly bolt

4.4 N

⋅

m (39 in-lb)

Generator bolt<2.4L ENGINE>

20

−

 25 N

⋅

m

 (15

−

 18 ft-lb)

Generator bolt<3.0L ENGINE>

21 N

⋅

m (15 ft-lb)

Generator brace bolt<2.4L ENGINE>

23 N

⋅

m (17 ft-lb)

Generator brace bolt<2.4L ENGINE>

9 N

⋅

m (80 in-lb)

Generator brace bolt<3.0L ENGINE>

49 N

⋅

m (36 ft-lb)

Generator nut

44 N

⋅

m (32 ft-lb)

Oil level gauge unit bolt<3.0L ENGINE>

14 N

⋅

m (117 in-lb)

Oil pressure hose and tube clamp bolt<2.4L ENGINE>

12 N

⋅

m (106 in-lb)

Oil return tube clamp bolt<2.4L ENGINE>

12 N

⋅

m (106 in-lb)

Regulator assembly

3.7 N

⋅

m (33 in-lb)

Starting system

Brush holder screw

5.7 N

⋅

m (51 in-lb)

Cover nut

3.4 N

⋅

m (30 in-lb)

Cover bolt

5.8 N

⋅

m (52 in-lb)

Magnetic switch bolt

5.8 N

⋅

m (52 in-lb)

Rear bracket bolt

3.4 N

⋅

m (30 in-lb)

Starter bolt

30 N

⋅

m (22 ft-lb)

Starter cover bolt<2.4L ENGINE>

4.9 N

⋅

m (43 in-lb)

Starter screw

5.8 N

⋅

m (52 in-lb)

Ignition system

Camshaft position sensor bolt<2.4L ENGINE>

8.8 N

⋅

m (78 in-lb)

Crankshaft position sensor bolt<2.4L ENGINE>

8.8 N

⋅

m (78 in-lb)

Crankshaft position sensor bolt<3.0L ENGINE>

8.8 N

⋅

m (78 in-lb)

Distributor cap<3.0L ENGINE>

2.3 N

⋅

m (20 in-lb)

Distributor nut<3.0L ENGINE>

12 N

⋅

m (106 in-lb)

Ignition coil bolt<2.4L ENGINE>

9.8 N

⋅

m (87 in-lb)

Ignition failure sensor bolt<2.4L ENGINE>

4.9 N

⋅

m (43 in-lb)

Knock sensor

22 N

⋅

m (16 ft-lb)

Power steering oil pump assembly bolt<2.4L ENGINE>

28 N

⋅

m (21 ft-lb)

Power steering oil pump bracket bolt<2.4L ENGINE>

49 N

⋅

m (36 ft-lb)

Pressure hose and tube connection bolt<2.4L ENGINE>

12 N

⋅

m (106 in-lb)

Spark plug

25 N

⋅

m (18 ft-lb)
