MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-357

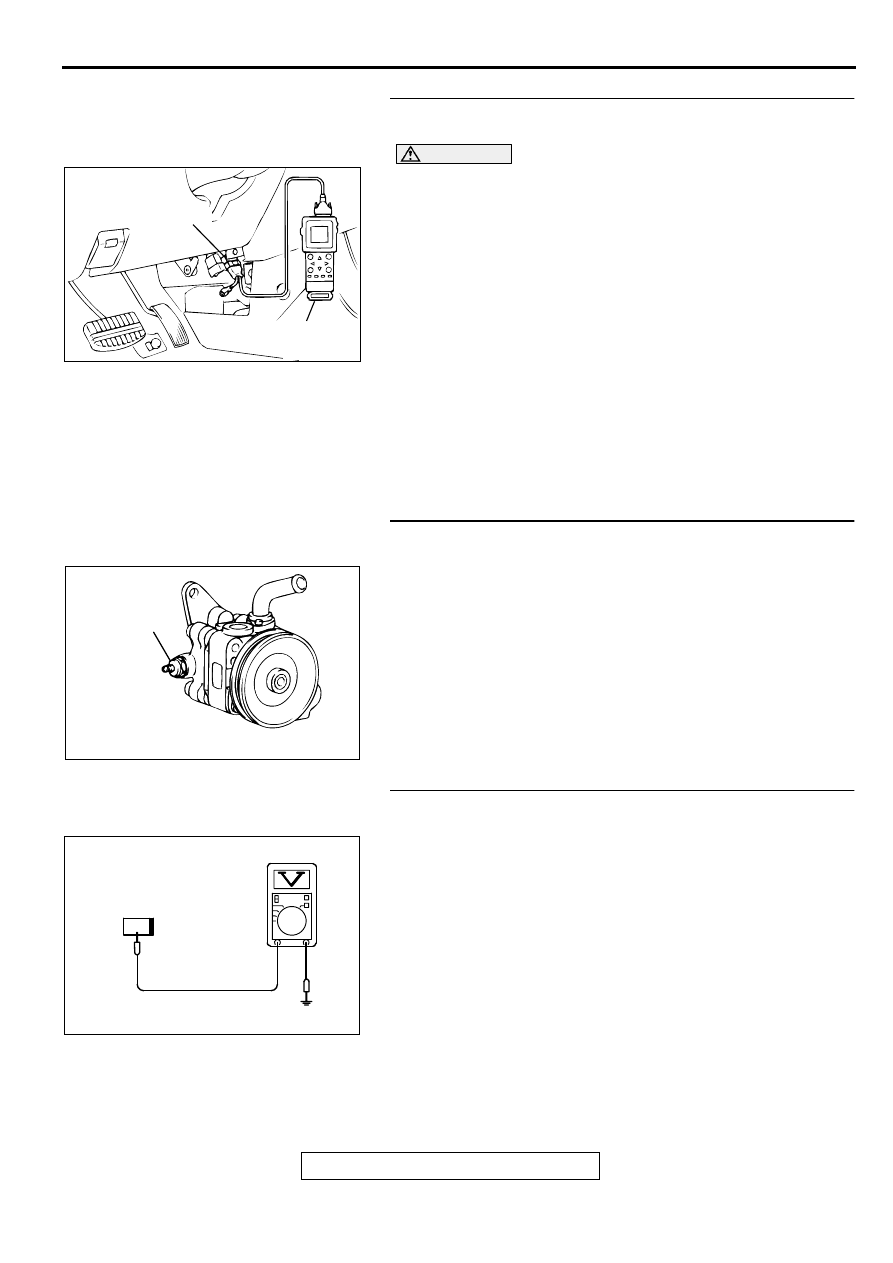

STEP 1. Using scan tool MB991502, check data list item 27:
Power Steering Pressure Switch.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK"(OFF) position before
connecting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Start the engine and run at idle.
(3) Set scan tool MB991502 to the data reading mode for item

27, Power Steering Pressure Switch.

If the steering wheel is stopped while idling, "OFF" will
be displayed.

If the steering wheel is steered while idling, "ON" will be
displayed.

(4) Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points(

P.00-8

).

NO :  Go to Step 2.

STEP 2. Check the power supply voltage at power steering
pressure switch connector B-44 by backprobing
(1) Do not disconnect the connector B-44.
(2) Start the engine and run at idle.
(3) Measure the voltage between terminal 1 and ground by

backprobing.

When steering wheel is stationary, voltage should be
battery positive voltage.

When steering wheel is turned, voltage should be 1 volt
or less.

(4) Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is the voltage normal?

YES : Go to Step 3.
NO :  Go to Step 5.

STEP 3. Check connector B-44 at power steering pressure
switch for damage.
Q: Is the connector in good condition?

YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection(

P.00E-2

). Then go to Step 14.

AC003081 AB

16 PIN

MB991502

AK000259

B-44 CONNECTOR
HARNESS SIDE VIEW

1

AC

ACX02522

CONNECTOR:B-44

POWER
STEERING
PRESSURE
SWITCH

AF

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-358

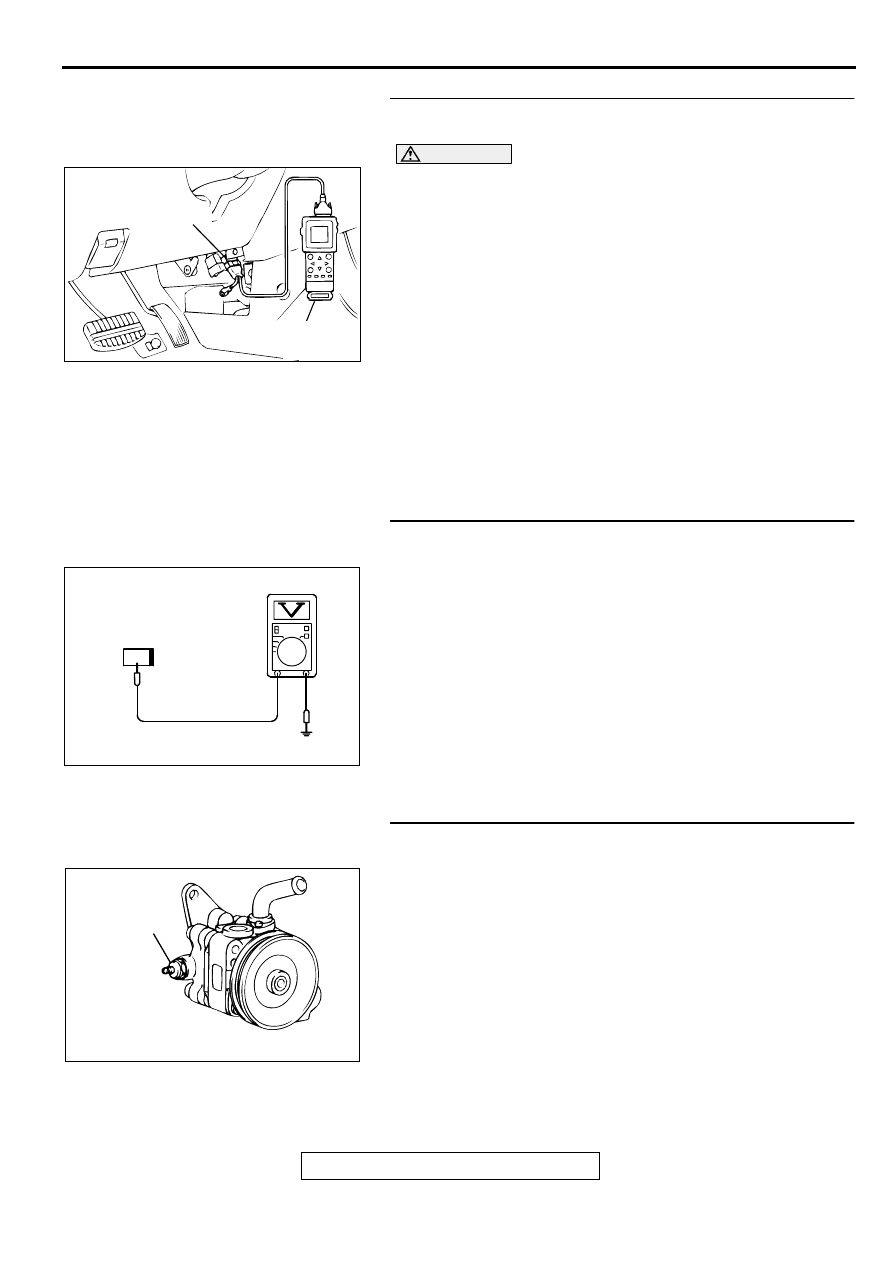

STEP 4. Using scan tool MB991502, check data list item 27:
Power Steering Pressure Switch.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK"(OFF) position before
connecting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Start the engine and run at idle.
(3) Set scan tool MB991502 to the data reading mode for item

27, Power Steering Pressure Switch.

If the steering wheel is stopped while idling, "OFF" will
be displayed.

If the steering wheel is steered while idling, "ON" will be
displayed.

(4) Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use Troubleshooting/
Inspection Service Points(

P.00-8

).

NO :  Replace the PCM. Then go to Step 14.

STEP 5. Check connector B-44 at power steering pressure
switch for damage.
Q: Is the connector in good condition?

YES : Go to Step 6.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection(

P.00E-2

). Then go to Step 14.

STEP 6. Check the power supply voltage at power steering
pressure switch harness side connector B-44.
(1) Disconnect the connector B-44 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 1 and ground.

Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is the voltage normal?

YES : Go to Step 11.
NO :  Go to Step 7.

AC003081 AB

16 PIN

MB991502

ACX02522

CONNECTOR:B-44

POWER
STEERING
PRESSURE
SWITCH

AF

AK000260

B-44 HARNESS
SIDE CONNECTOR

1

AC

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-359

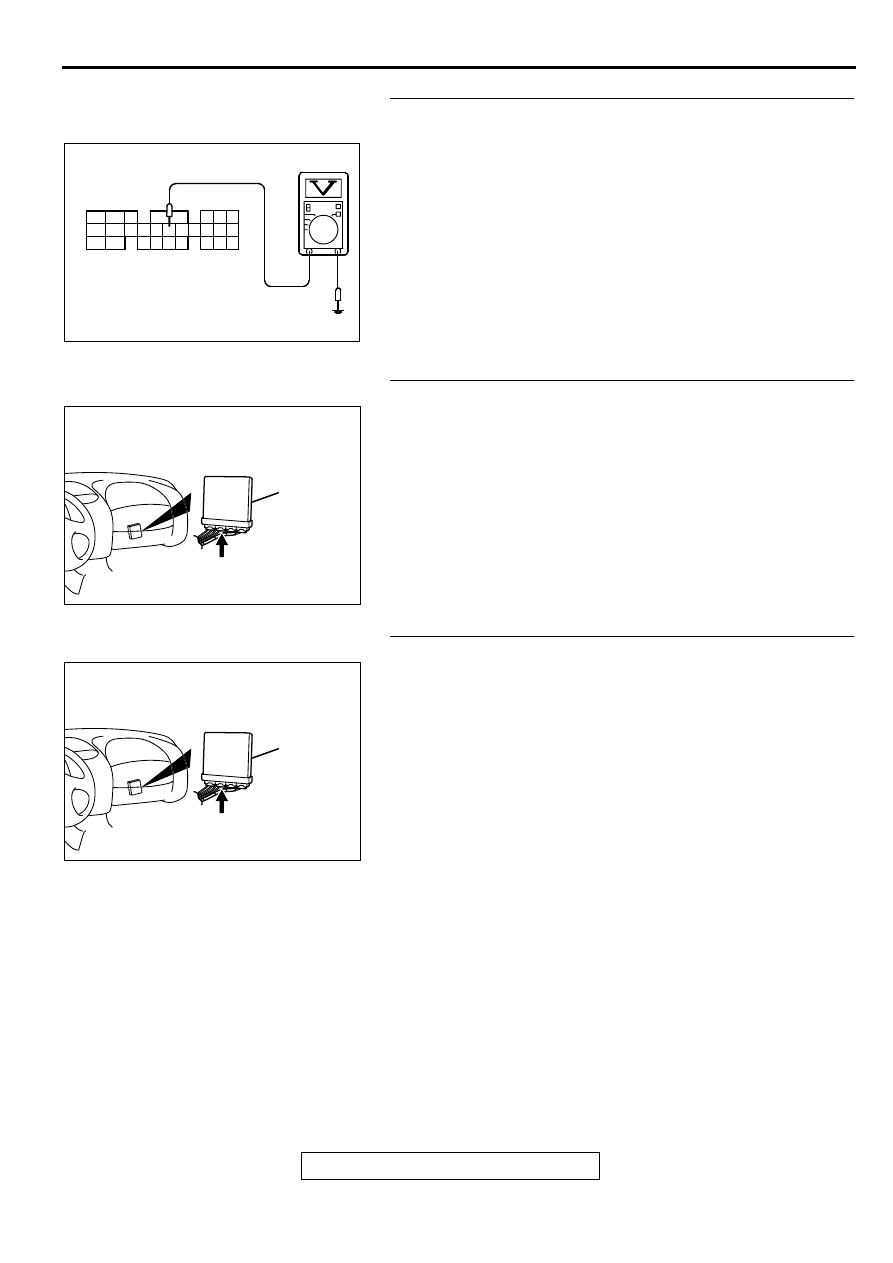

STEP 7. Check the power supply voltage at PCM connector
C-40 by backprobing
(1) Do not disconnect the PCM connector C-40.
(2) Disconnect the power steering pressure switch connector

B-44.

(3) Turn the ignition switch to the "ON" position.
(4) Measure the voltage between terminal 52 and ground by

backprobing.

Voltage should be between battery positive voltage.

(5) Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is the voltage normal?

YES : Go to Step 8.
NO :  Go to Step 9.

STEP 8. Check connector C-40 at PCM for damage.
Q: Is the connector in good condition?

YES : Check connector B-24 at intermediate connector for

damage, and repair or replace as required. Refer to
GROUP 00E, Harness Connector Inspection(

P.00E-

2

). If intermediate connector is in good condition,

repair harness wire between power steering pressure
switch connector B-44 terminal 1 and PCM connector
C-40 terminal 52 because of open circuit. Then go to
Step 14.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection(

P.00E-2

). Then go to Step 14.

STEP 9. Check connector C-40 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 10.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection(

P.00E-2

). Then go to Step 14.

AK000309

C-40 CONNECTOR
HARNESS SIDE VIEW

46
57
66

45
56
65

44
55

43
49

54

64

42
48
59

41
47
58

53
63

52
62

51
61

50
60

AC

AK000280

CONNECTOR : C-40

PCM

AV

AK000280

CONNECTOR : C-40

PCM

AV

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-360

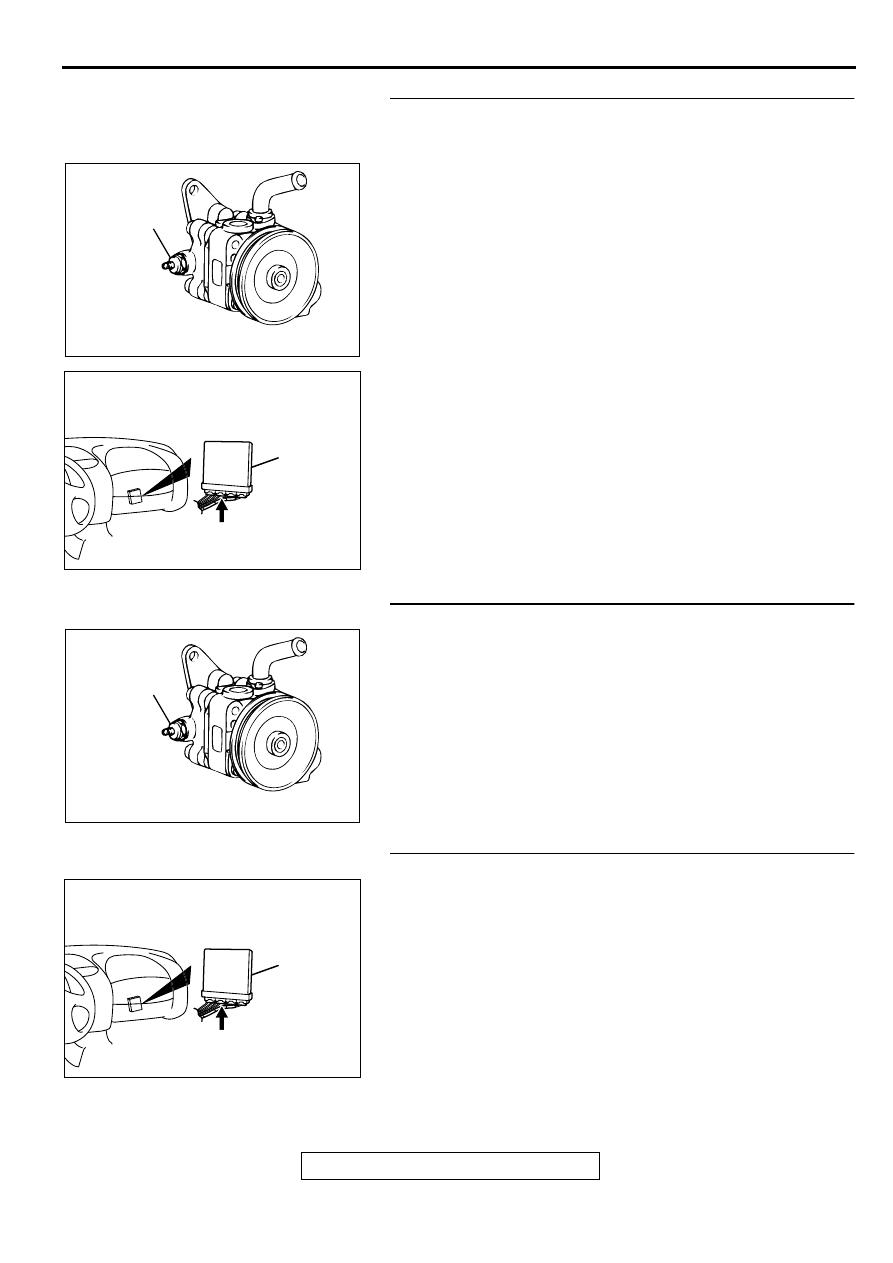

STEP 10. Check for short circuit to ground between power
steering pressure switch connector B-44 terminal 1 and
PCM connector C-40 terminal 52.
NOTE: Check harness after checking intermediate connector
B-24. If intermediate connector is damaged, repair or replace
them. Refer to GROUP 00E, Harness Connector
Inspection(

P.00E-2

). Then go to Step 14.

Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 14.
NO :  Repair it. Then go to Step 14.

STEP 11. Replace the power steering pressure switch.
(1) Replace the power steering pressure switch.
(2) Check the trouble symptoms.
(3) Check the diagnostic trouble code (DTC).

Q: Is the DTC P0551 is output?

YES : Go to Step 12.
NO :  Go to Step 14.

STEP 12. Check connector C-40 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 13.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection(

P.00E-2

). Then go to Step 14.

ACX02522

CONNECTOR:B-44

POWER
STEERING
PRESSURE
SWITCH

AF

AK000280

CONNECTOR : C-40

PCM

AV

ACX02522

CONNECTOR:B-44

POWER
STEERING
PRESSURE
SWITCH

AF

AK000280

CONNECTOR : C-40

PCM

AV
