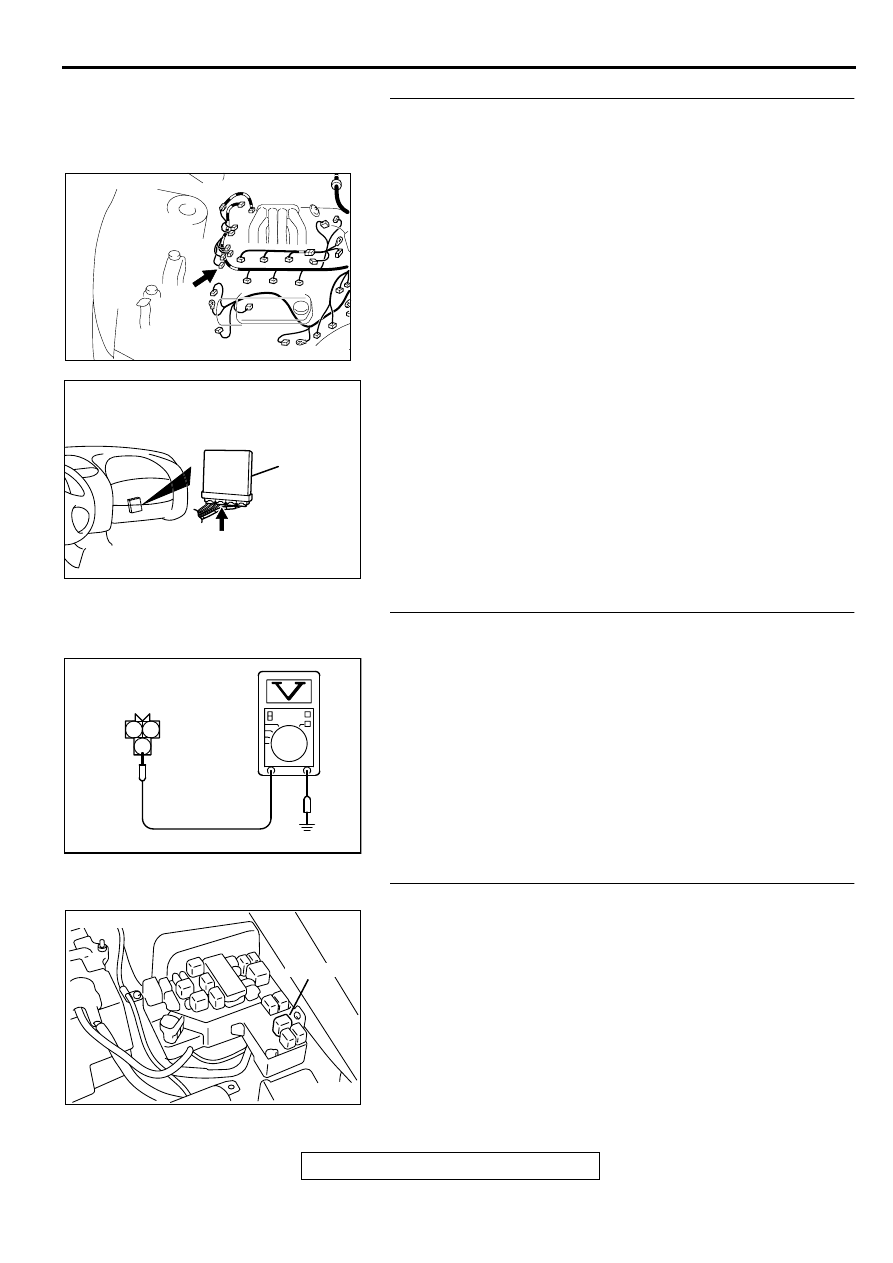

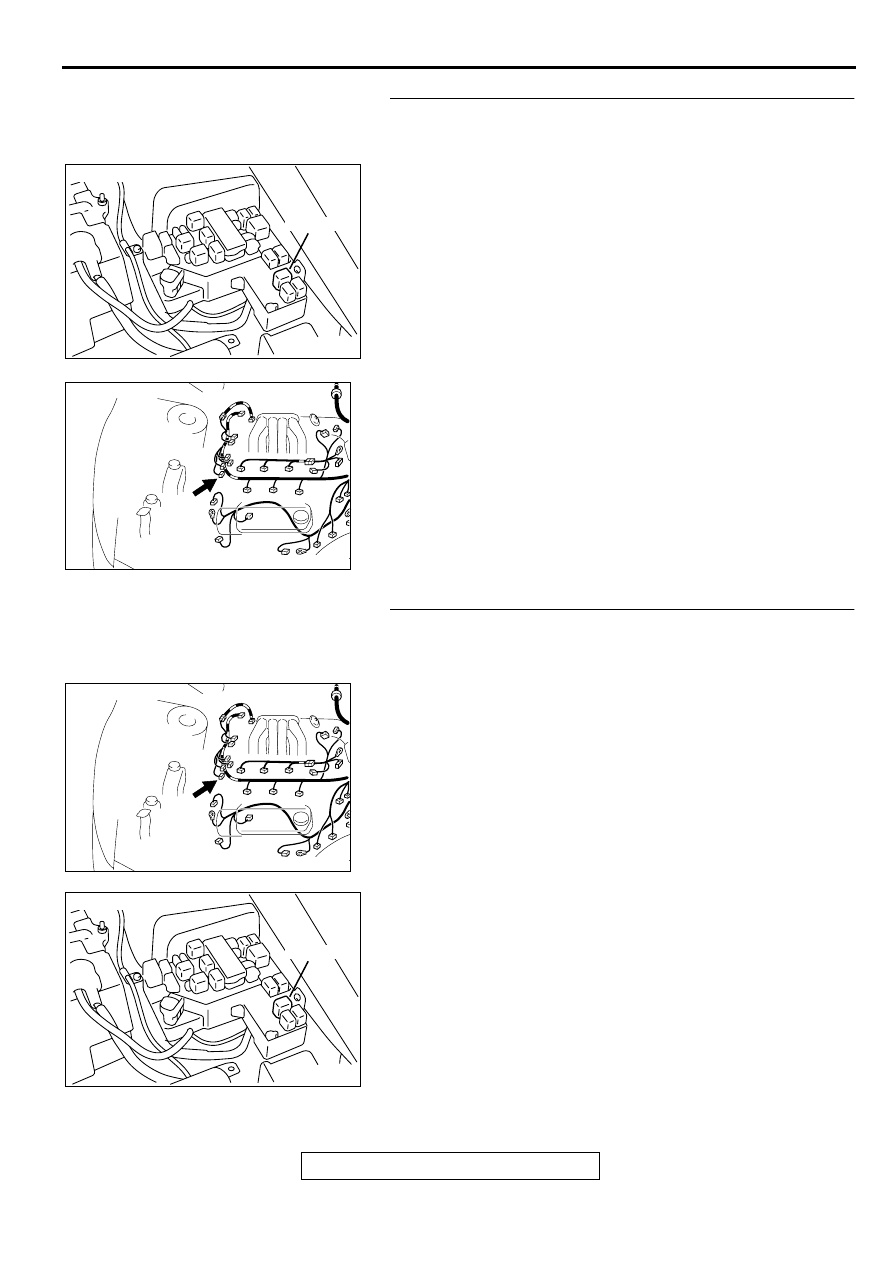

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-245

STEP 10. Check for short circuit to ground between
crankshaft position sensor connector B-20 terminal 2 and
PCM connector C-40 terminal 45.
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 20.
NO :  Repair it. Then go to Step 20.

STEP 11. Check the power supply voltage at crankshaft
position sensor harness side connector B-20.
(1) Disconnect the connector B-20 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.
(3) Measure the voltage between terminal 3 and ground.

Voltage should be battery positive voltage.

(4) Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is the voltage normal?

YES : Go to Step 13.
NO :  Go to Step 12.

STEP 12. Check connector A-21X at MFI relay for damage.
Q: Is the connector in good condition?

YES : Repair harness wire between MFI relay connector A-

21X terminal 1 and crankshaft position sensor
connector B-20 terminal 3 because of open circuit or
short circuit to ground. Then go to Step 20.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 20.

AK000617

CONNECTOR:B-20

AD

AK000280

CONNECTOR : C-40

PCM

AV

AKX01417AC

2 1

3

B-20 HARNESS
SIDE CONNECTOR

AK000555AB

CONNECTOR : A-21X

MFI RELAY

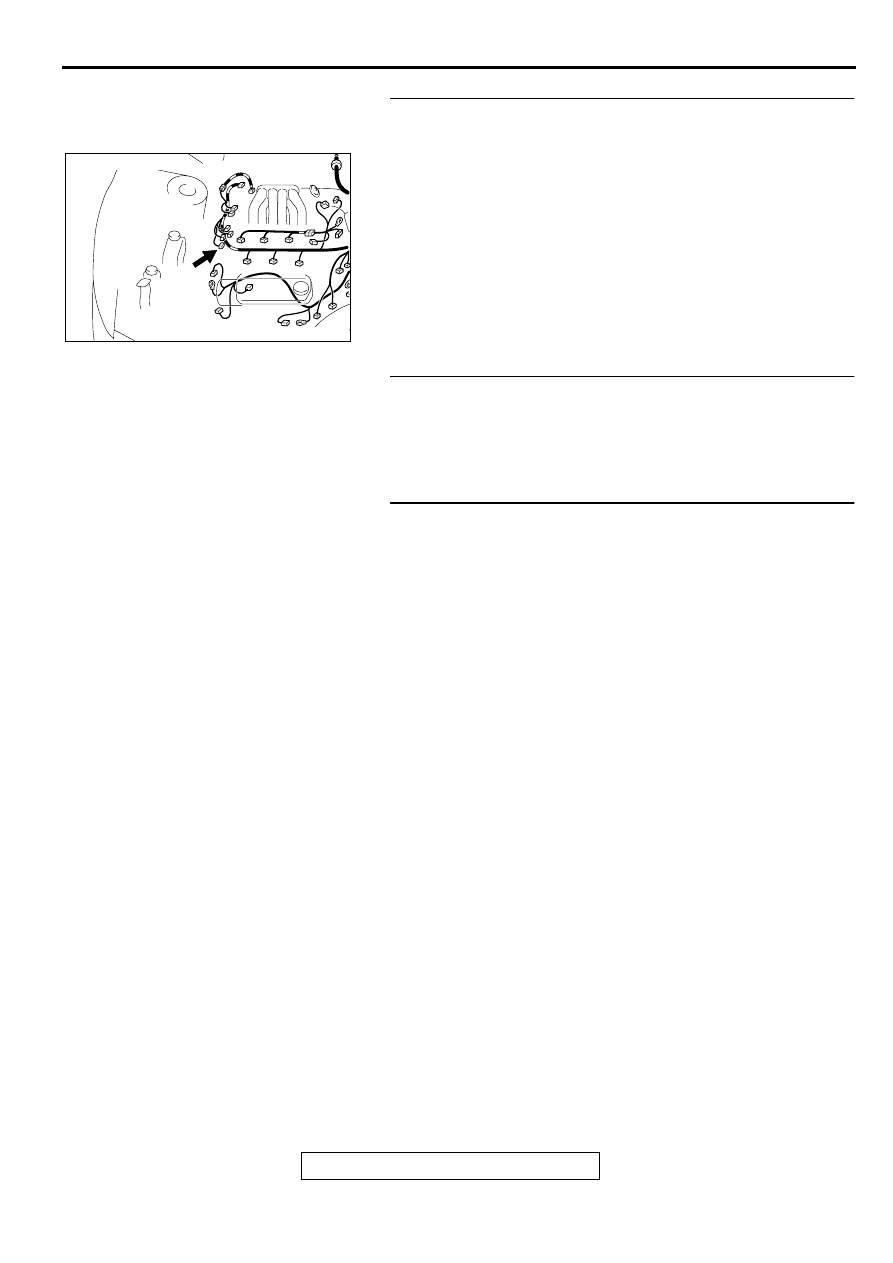

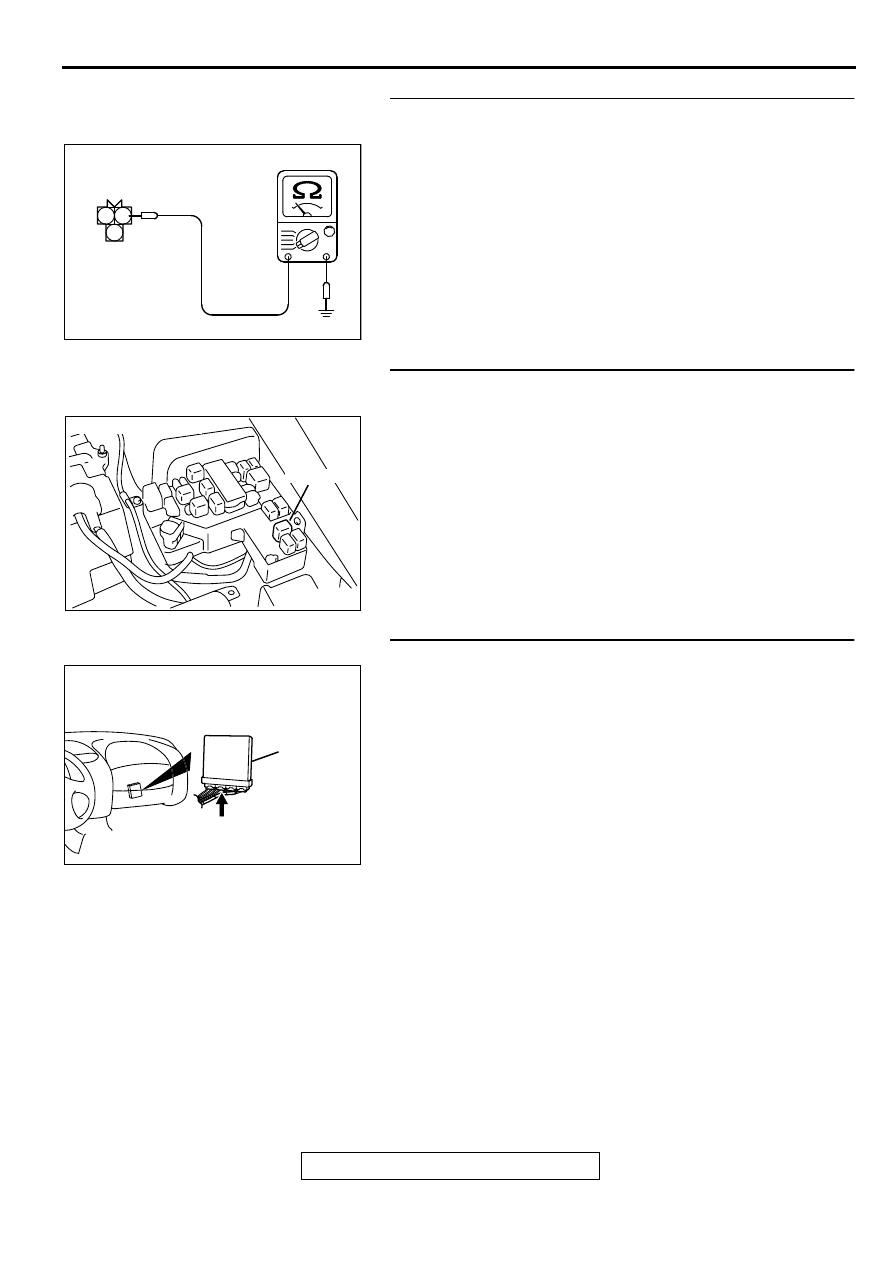

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-246

STEP 13. Check the continuity at crankshaft position
sensor harness side connector B-20.
(1) Disconnect the connector B-20 and measure at the harness

side.

(2) Check for the continuity between terminal 1 and ground.

Should be less than 2 ohm.

Q: Is the continuity normal?

YES : Go to Step 14.
NO :  Repair harness wire between crankshaft position

sensor connector B-20 terminal 1 and ground
because of open circuit or harness damage. Then go
to Step 20.

STEP 14. Check connector A-21X at the MFI relay for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 15.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 20.

STEP 15. Check connector C-40 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 16.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 20.

AKX01418 AC

2 1

3

B-20 HARNESS
SIDE CONNECTOR

AK000555AB

CONNECTOR : A-21X

MFI RELAY

AK000280

CONNECTOR : C-40

PCM

AV

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-247

STEP 16. Check for harness damage between MFI relay
connector A-21X terminal 1 and crankshaft position
sensor connector B-20 terminal 3.
Q: Is the harness wire in good condition?

YES : Go to Step 17.
NO :  Repair it. Then go to Step 20.

STEP 17. Check for harness damage between crankshaft
position sensor connector B-20 terminal 2 and PCM
connector C-40 terminal 45.
Q: Is the harness wire in good condition?

YES : Go to Step 18.
NO :  Repair it. Then go to Step 20.

AK000555AB

CONNECTOR : A-21X

MFI RELAY

AK000617

CONNECTOR:B-20

AD

AK000617

CONNECTOR:B-20

AD

AK000555AB

CONNECTOR : A-21X

MFI RELAY

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-248

STEP 18. Check for harness damage between crankshaft
position sensor connector B-20 terminal 1 and ground.
Q: Is the harness wire in good condition?

YES : Go to Step 19.
NO :  Repair it. Then go to Step 20.

STEP 19. Check the crankshaft position sensor vane.

Q: Is the vane in a good condition?

YES : Replace the crankshaft position sensor. Then go to

Step 20.

NO :  Repair it. Then go to Step 20.

STEP 20. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to,

Procedure 6

 Other Monitor(

P.13B-4

).

(2) Check the diagnostic trouble code (DTC).

Q: Is the DTC P0335 is output?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

AK000617

CONNECTOR:B-20

AD
