MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-237

CIRCUIT OPERATION

The knock sensor sends a signal voltage to the
PCM (terminal 90).

TECHNICAL DESCRIPTION

The knock sensor converts the vibration of the
cylinder block into a voltage and outputs it. If
there is a malfunction of the knock sensor, the
voltage output will not change.

The PCM checks whether the voltage output
changes.

DTC SET CONDITIONS

Check Conditions

Ignition switch: ON

60 seconds or more have passed after the
ignition switch was turned on or the starting
sequence was completed.

Engine speed is higher than 3,000 r/min.

Judgment Criteria

Knock sensor output voltage (knock sensor peak
voltage in each 1/3 turn of the crankshaft) has not
changed more than 0.06 V in the last consecutive
200 periods.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

Knock sensor failed.

Open or shorted knock sensor circuit, or loose
connector.

PCM failed.

DIAGNOSIS

Required Special Tools
MB991502: Scan Tool (MUT-II)

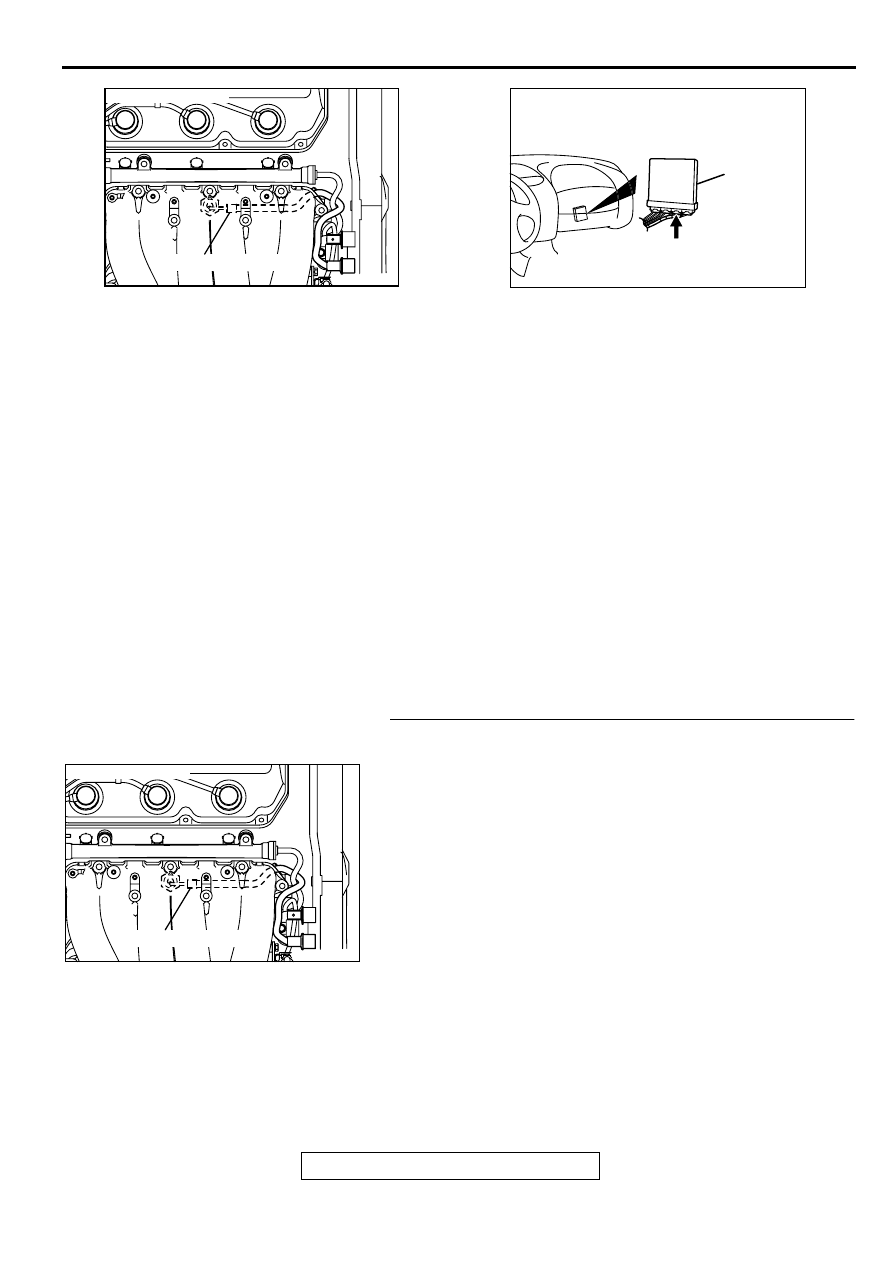

STEP 1 Check connector B-32 at the knock sensor for
damage.
Q: Is the connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 6.

AK000100

CONNECTOR:B-32

KNOCK SENSOR

AE

AK000280

CONNECTOR : C-41

PCM

AY

AK000100

CONNECTOR:B-32

KNOCK SENSOR

AE

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-238

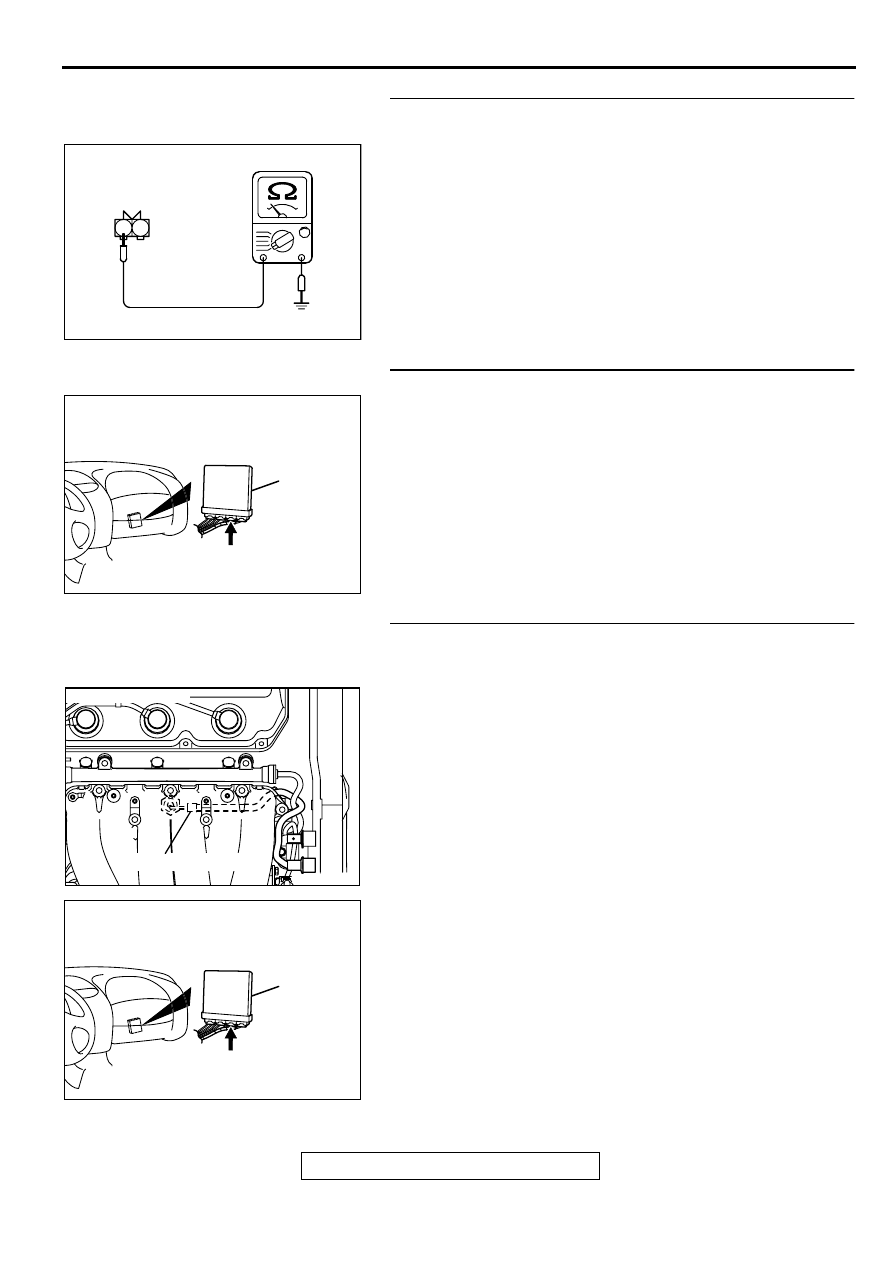

STEP 2 Check the continuity at knock sensor harness side
connector B-32.
(1) Disconnect the connector B-32 and measure at the harness

side.

(2) Check for the continuity between terminal 2 and ground.

Should be less than 2 ohm.

Q: Is the continuity normal?

YES : Go to Step 3.
NO :  Repair harness wire between knock sensor connector

B-32 terminal 2 and ground because of open circuit or
harness damage. Then go to Step 6.

STEP 3. Check connector C-41 at PCM for damage.
Q: Is the connector in good condition?

YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection (

P.00E-2

). Then go to Step 6.

STEP 4. Check for open circuit, short circuit to ground and
harness damage between knock sensor connector B-32
terminal 1 and PCM connector C-41 terminal 90.
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair it. Then go to Step 6.

AKX01415

2 1

B-32  HARNESS
SIDE CONNECTOR

AD

AK000280

CONNECTOR : C-41

PCM

AY

AK000100

CONNECTOR:B-32

KNOCK SENSOR

AE

AK000280

CONNECTOR : C-41

PCM

AY

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-239

STEP 5. Replace the knock sensor.
(1) Replace the knock sensor.
(2) Carry out a test drive.
(3) Check the diagnostic trouble code (DTC).

Q: Is the DTC P0325 is output?

YES : Replace the PCM. Then go to Step 6.
NO :  The inspection is complete.

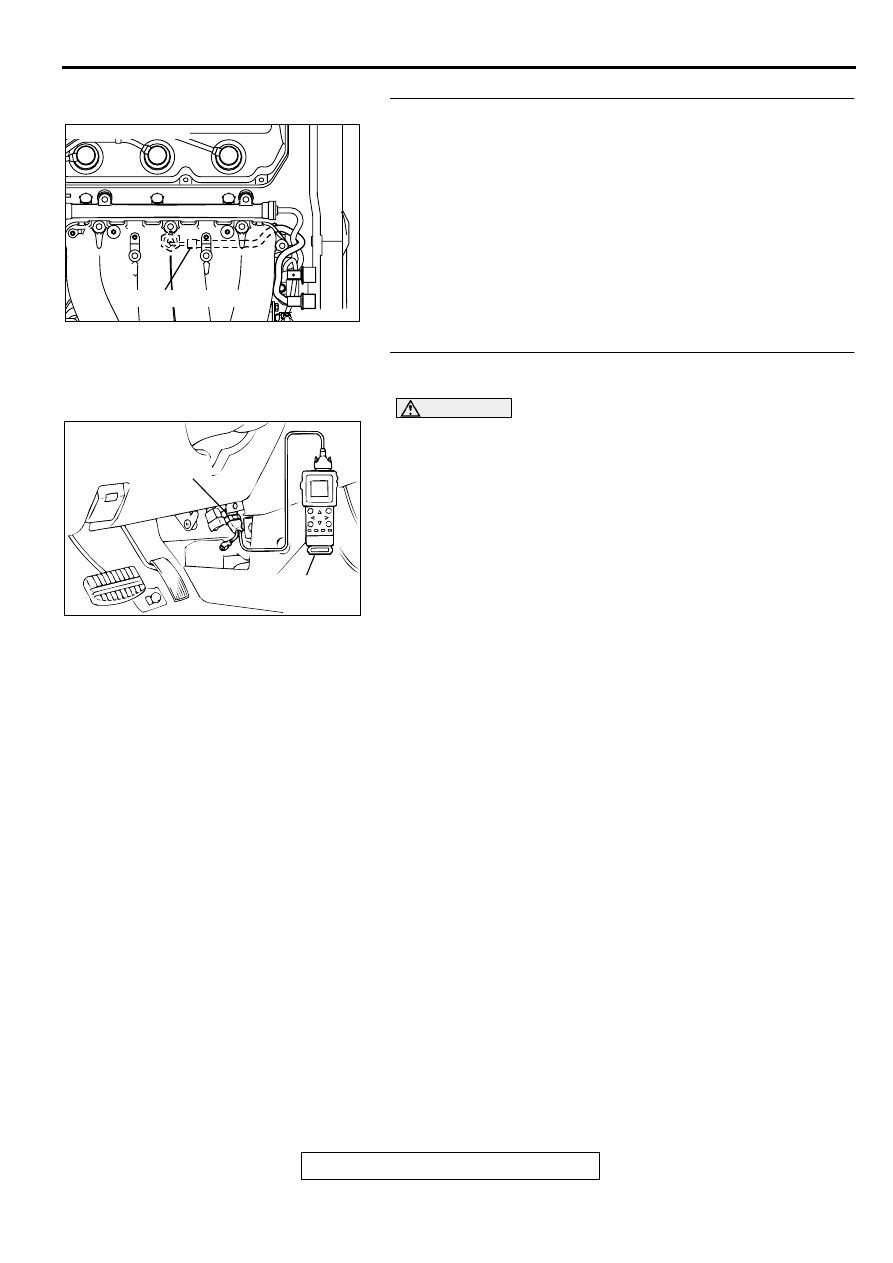

STEP 6. Using scan tool MB991502, check data list item 44:
Ignition Coils and Ignition Power Transistor.

CAUTION

To prevent damage to scan tool MB991502, always turn the
ignition switch to the "LOCK"(OFF) position before
connecting or disconnecting scan tool MB991502.
(1) Connect scan tool MB991502 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991502 to the data reading mode for item

44, Ignition Coils and Ignition Power Transistor.

Ignition timing with the knock sensor connector
disconnected should retard more than the ignition timing
with the knock sensor connector connected.

(4) Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is the ignition timing changes normally?

YES : The inspection is complete.
NO :  Retry the troubleshooting.

AK000100

CONNECTOR:B-32

KNOCK SENSOR

AE

AC003081 AB

16 PIN

MB991502

MULTIPORT FUEL INJECTION(MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <3.0L>

13B-240

DTC P0335: Crankshaft Position Sensor Circuit Malfunction

AK000512

1 2

3

2

3 4

1

RED-

WHITE

RED-

WHITE

RED-

WHITE

RED

BLA

CK

GREEN-

RED

BATTERY

A-21X

MFI
RELAY

CRANKSHAFT
POSITION
SENSOR

     B-20
MU802603

45

1

1

2

2

3

3

4

5V

POWERTRAIN CONTROL
MODULE(PCM)

      C-40
(MU803781)

42 43
48 49 50 51 52 53 54 55 56 57

46

45

44

58 59

60 61 62 63

64 65 66

47

41
