Mitsubishi Galant. Manual - part 72





OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-37

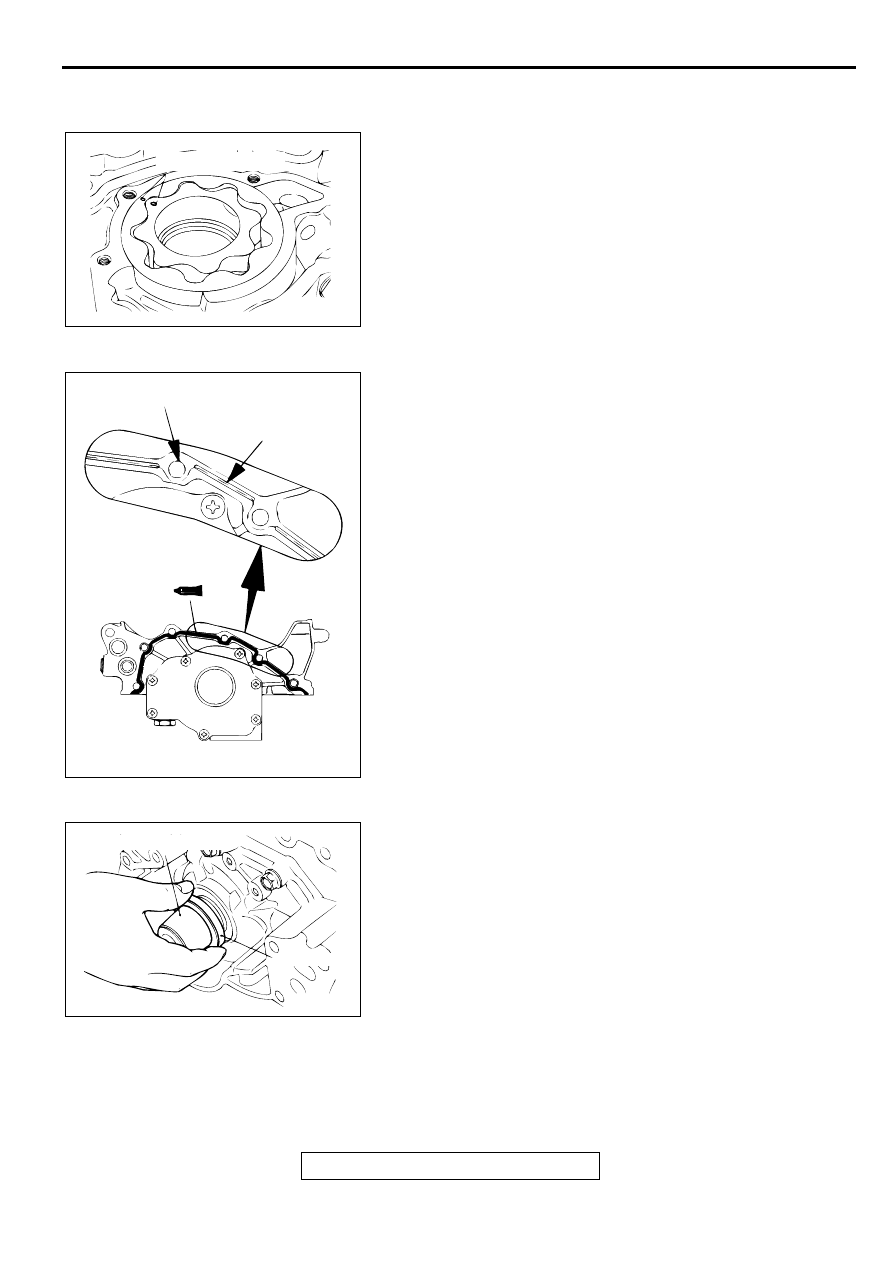

INSTALLATION SERVICE POINTS

>>A<< INNER ROTOR/OUTER ROTOR INSTALLATION
Apply engine oil to the rotors. Then, install the rotors ensuring
that the alignment dots made at disassembly are properly
aligned.

>>B<< OIL PUMP CASE ASSEMBLY INSTALLATION
1. Clean the gasket mating surfaces of oil pump case and

cylinder block.

2. Apply a 3-mm (0.1-inch) diameter bead of sealant

(Mitsubishi Genuine Parts number MD970389 or equivalent)
to the oil pump case.
Apply sealant as indicated by the broken line in the
illustration; the grooves must be traced and the bolt holes
must be surrounded with a bead of sealant.

3. Install the oil pump case assembly to the front of the cylinder

block.

NOTE: Be sure to install the oil pump case quickly while the
sealant is wet (within 15 minutes).

4. Tighten the oil pump case mounting bolts to the specified

torque.

Tightening torque:

14  N

⋅⋅⋅⋅

m (122 in-lb) <M8 bolt>

41  N

⋅⋅⋅⋅

m (30 ft-lb) <M10 bolt>

NOTE: After installation, keep the sealed area away from oil
and coolant for approximately one hour.

>>C<< CRANKSHAFT FRONT OIL SEAL INSTALLATION
1. Install the guide of special tool MD998717 to the front end of

the crankshaft.

2. Apply engine oil to the lip area of a new oil seal and push it

in until it contacts the oil pump case.

AKX00742AB

ALIGNMENT DOTS

AKX00674

BOLT HOLE

GROOVE

AB

AKX00659 AB

MD998717 (GUIDE)

OIL SEAL

OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-38

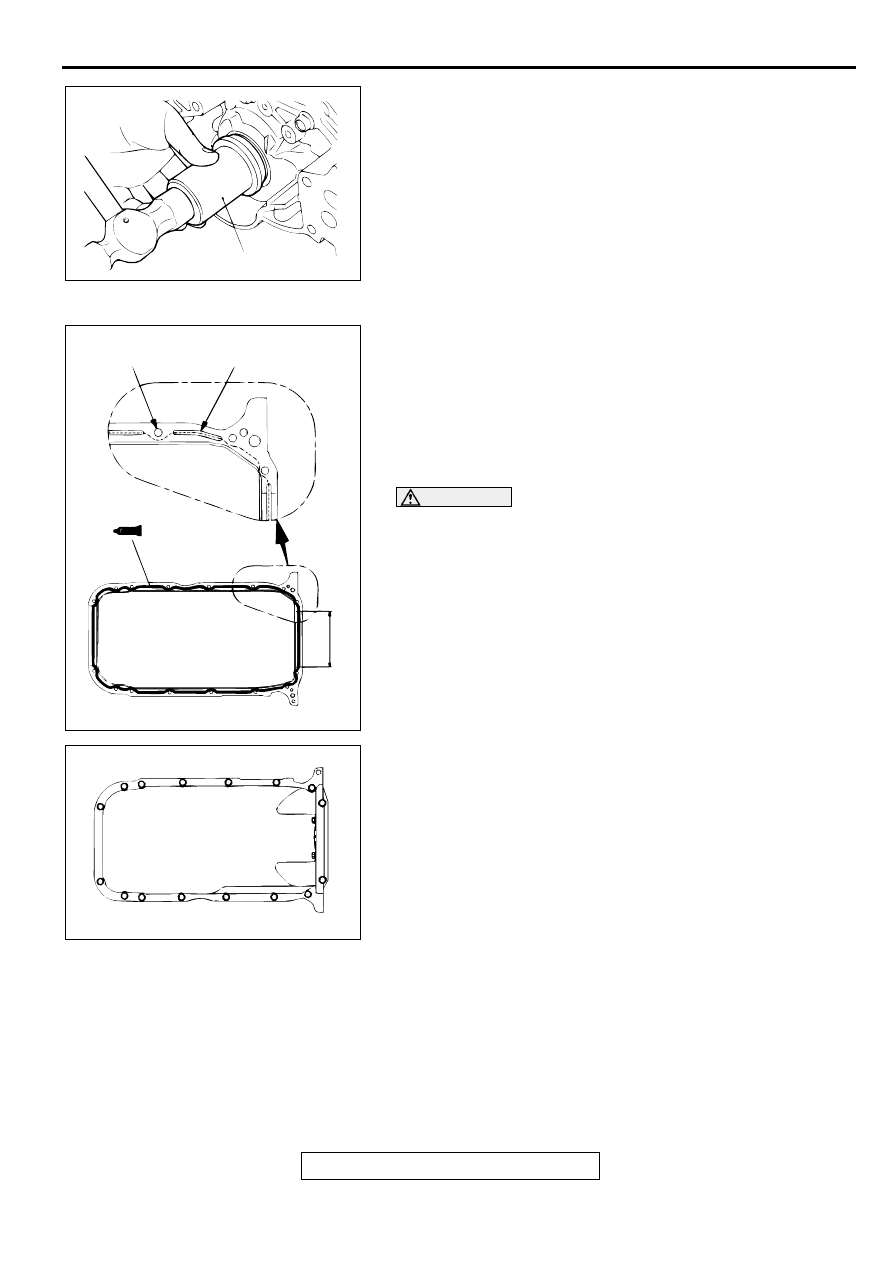

3. Using special tool MD998717, press-fit the oil seal into the

oil pump case.

>>D<< OIL PAN, UPPER INSTALLATION
1. Clean both gasket surfaces of the upper oil pan and cylinder

block.

2. Apply a 4 mm (0.2 inch) diameter bead of sealant

(Mitsubishi Genuine Parts number MD970389 or equivalent)
to the upper oil pan.
Apply sealant as indicated by the broken line in the
illustration; the grooves must be traced and the bolt holes
must be surrounded with a bead of sealant.

CAUTION

When installing the upper oil pan, be sure not to expel the
sealant from the oil pan flange at portion A in the
illustration.
3. Install the oil pan to the bottom of the cylinder block.

NOTE: Be sure to install the oil pan quickly while the sealant
is wet (within 15 minutes).

4. Tighten the upper oil pan bolts in the sequence shown.

Tightening torque: 5.9 N

⋅⋅⋅⋅

m (52 in-lb)

NOTE: After installation, keep the sealed area away from
the oil and coolant for approximately one hour.

AKX00660

MD998717

AB

AKX00675

BOLT HOLE

GROOVE

A

AB

AKX00676

9

5

1

4

8

12

16

15

11 7

3

2

6

10

14

13

AB

OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-39

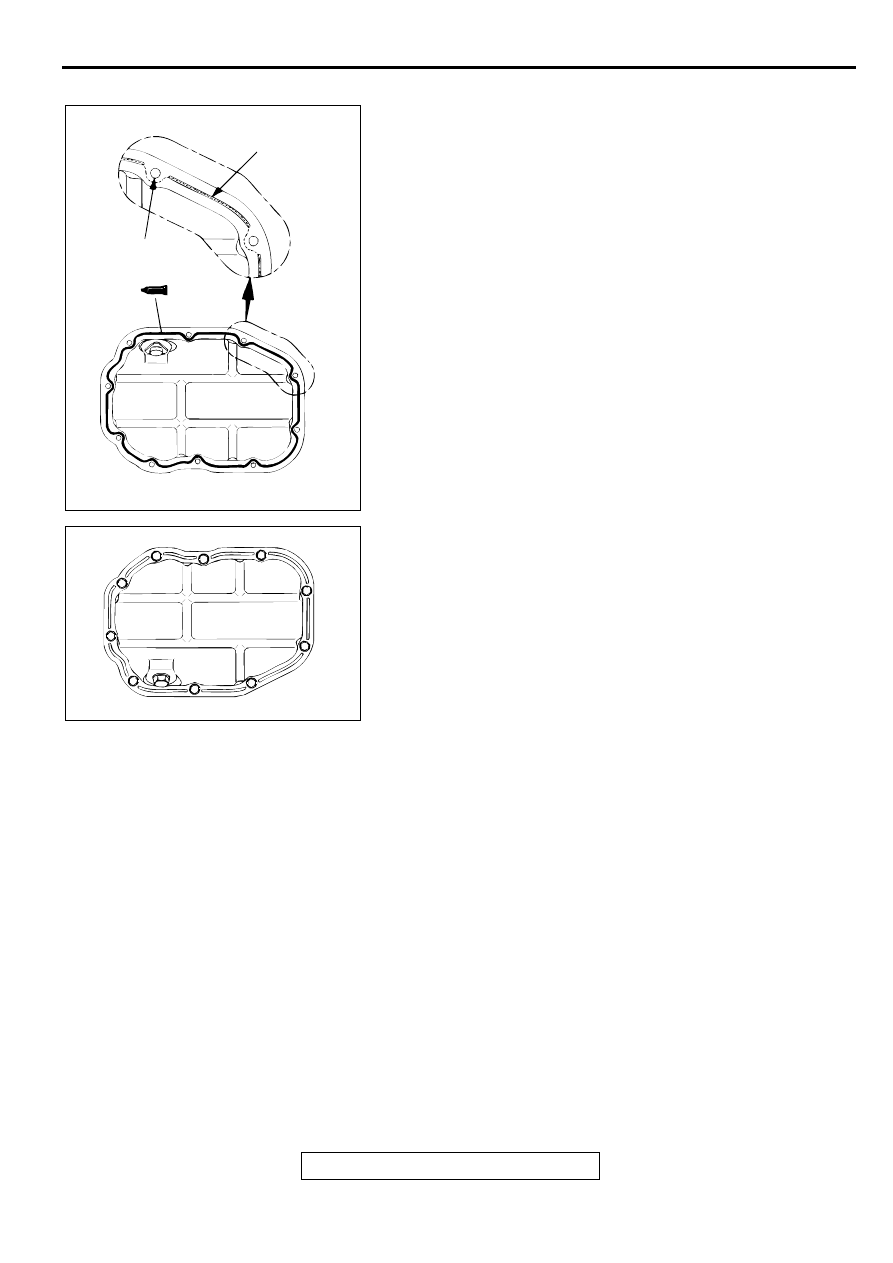

>>E<< OIL PAN, LOWER INSTALLATION
1. Clean both gasket surfaces of the upper and lower oil pans.

2. Apply a 4 mm (0.2 inch) diameter bead of sealant

(Mitsubishi Genuine Parts number MD970389 or equivalent)
to the lower oil pan.
Apply sealant as indicted by the broken line in the
illustration; the grooves must be traced and the bolt holes
must be surrounded with a bead of sealant.

3. Install the lower oil pan to the upper oil pan.

NOTE: Be sure to install the oil pan quickly while the sealant
is wet (within 15 minutes).

4. Tighten the lower oil pan bolts in the sequence shown.

Tightening torque: 11 N

⋅⋅⋅⋅

m (95 in-lb)

NOTE: After installation, keep the sealed area away from oil
for approximately one hour.

AKX00677

GROOVE

BOLT HOLE

AB

AKX00678

4

9

7

3

1

5

8

10

6

2

AB

OIL PAN AND OIL PUMP

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-40

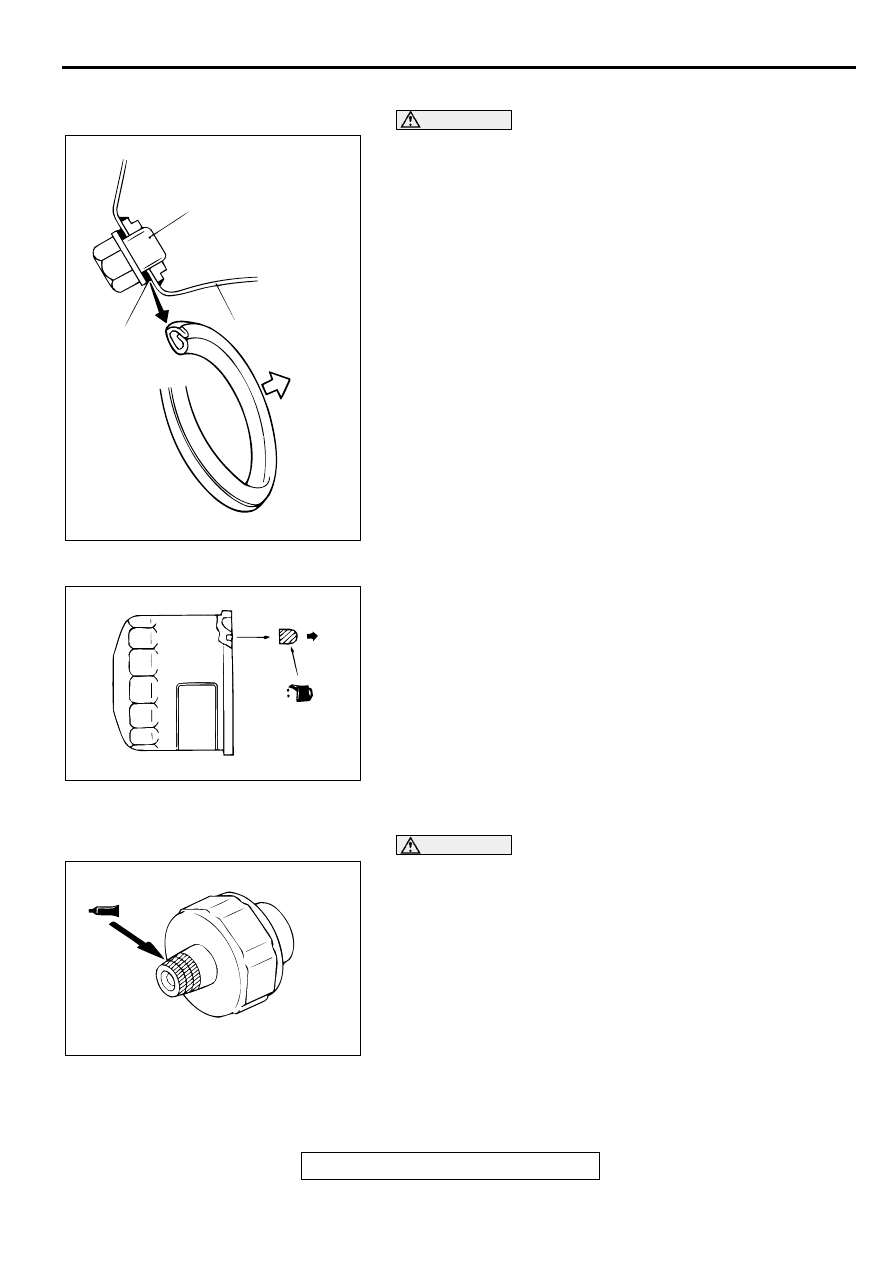

>>F<< DRAIN PLUG GASKET INSTALLATION

CAUTION

If the gasket is installed in the wrong direction, oil leaks
will be occurred.
Install the drain plug gasket in the direction shown.

>>G<< OIL FILTER INSTALLATION
1. Clean the installation surface of the filter bracket.

2. Apply engine oil to the O-ring of the oil filter.

3. Install the oil filter to the bracket and tighten it to the

specified torque.

Tightening torque: 14 N

⋅⋅⋅⋅

m (122 in-lb)

4. If no torque wrench can be used for tightening, follow the

following procedure.

(1) Screw in the oil filter until its O-ring contacts the oil filter

bracket.

(2) Tighten the oil filter 3/4 turn.

>>H<< OIL PRESSURE SWITCH INSTALLATION

CAUTION

Be careful not to block the oil passage with sealant.
1. Apply 3M

 AAD Part number 8672 or equivalent to the

thread of oil pressure switch.

2. Tighten the switch to the specified torque.

Tightening torque: 10 N

⋅⋅⋅⋅

m (87 in-lb)

AKX00726

DRAIN PLUG

OIL
PAN
SIDE

GASKET

OIL PAN

AB

AKX00692

BRACKET
SIDE

AB

AKX00688
