Mitsubishi Galant. Manual - part 64

GENERATOR AND DRIVE BELT

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-5

REMOVAL SERVICE POINT

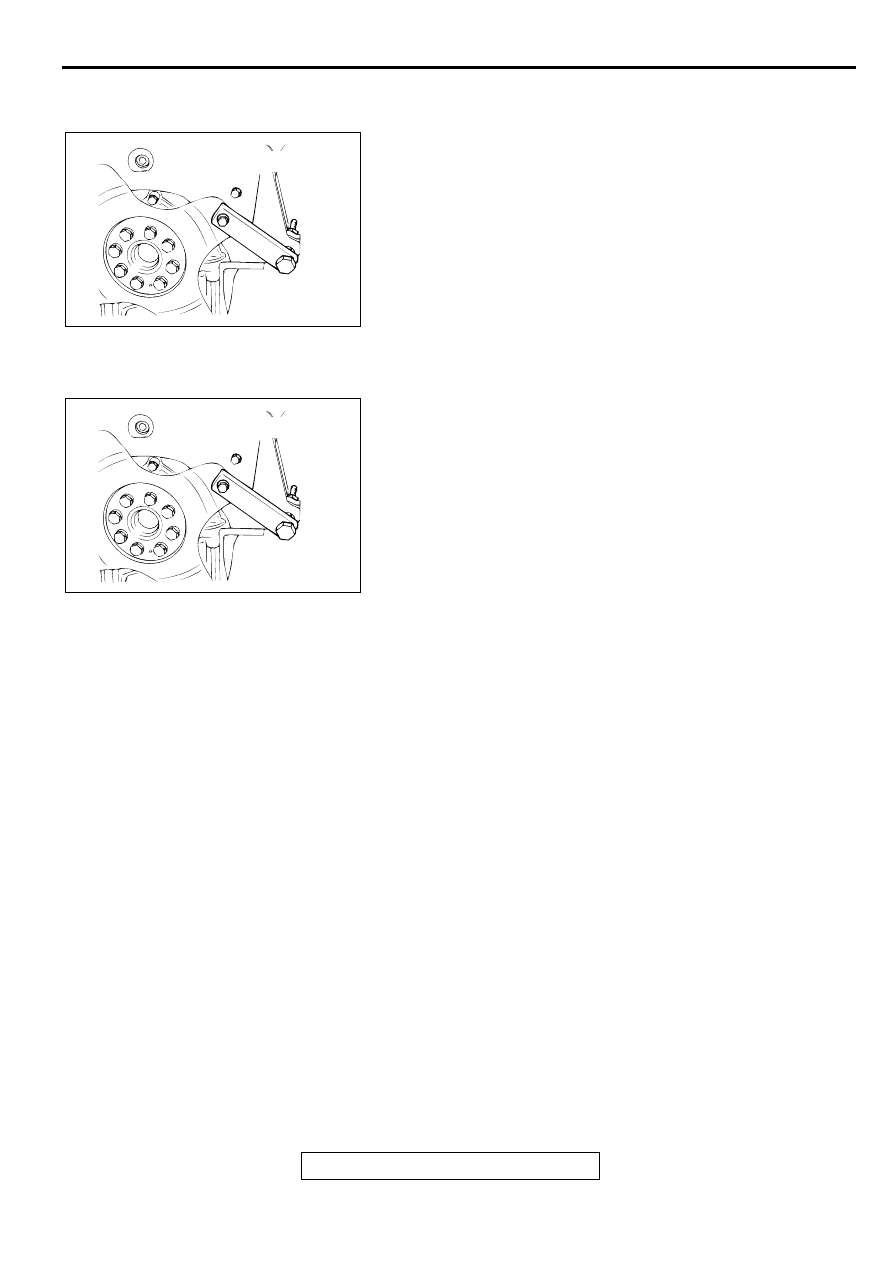

<<A>> CRANKSHAFT BOLT LOOSENING
1. Install special tool MD998781 to hold the drive plate.

2. Loosen and remove the crankshaft bolt and washer.

INSTALLATION SERVICE POINT

>>A<< CRANKSHAFT BOLT TIGHTENING
1. Install special tool MD998781 to hold the drive plate.

2. Install the washer and crankshaft bolt, and then tighten the

bolt.

Tightening torque: 181 N

⋅⋅⋅⋅

m (134 ft-lb)

AKX00643AB

MD998781

AKX00643AB

MD998781

INTAKE MANIFOLD PLENUM AND THROTTLE BODY ASSEMBLY

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-6

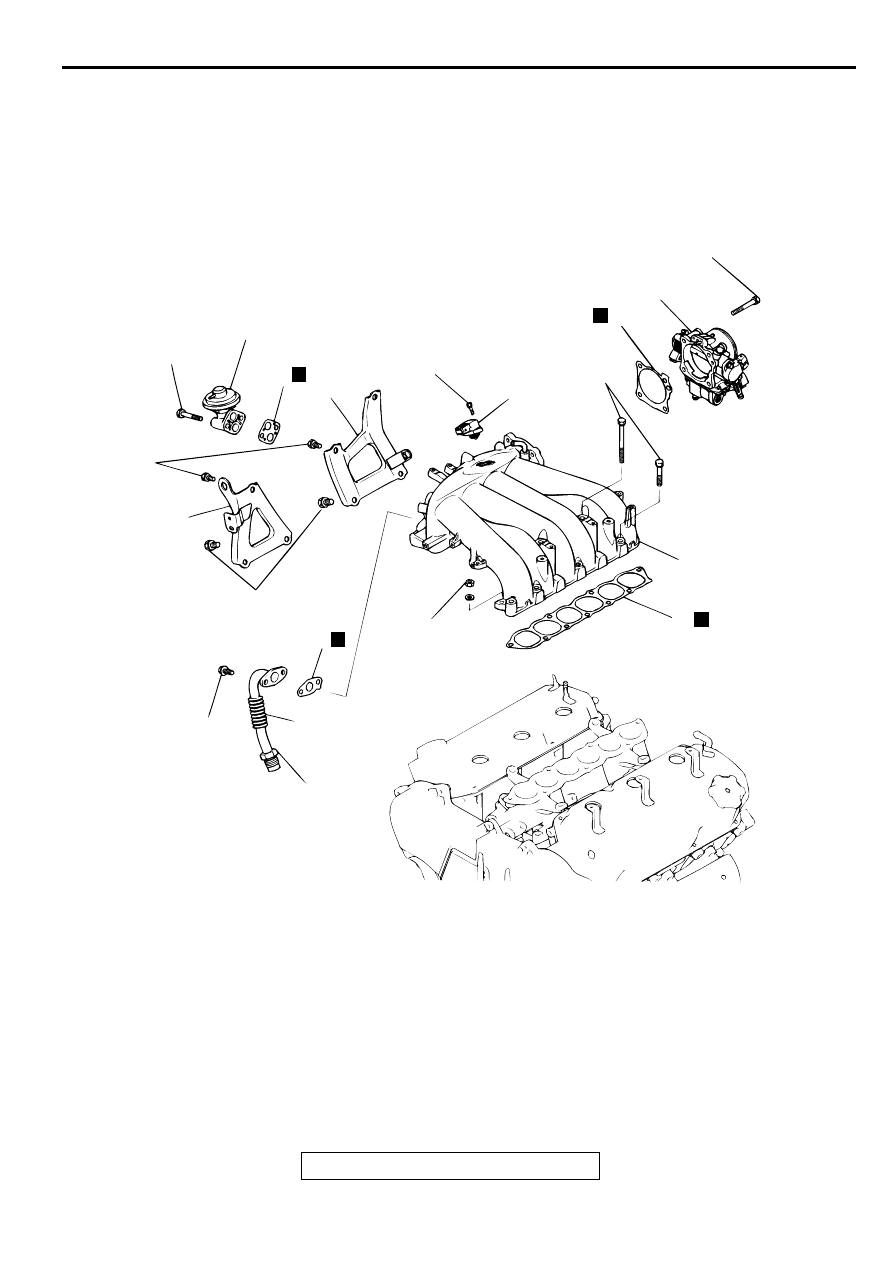

IN TA K E M A N IFO LD PLEN U M A N D TH R O TTLE B O D Y

A SSEM BLY

REMOVAL AND INSTALLATION

M1113003300087

AKX00662

12 N·m
104 in-lb

22 N·m
16 ft-lb

4.9 N·m
43 in-lb

18 N·m
13 ft-lb

35 N·m
26 ft-lb

18 N·m
13 ft-lb

59 N·m
43 ft-lb

REMOVAL STEPS
1. INTAKE MANIFOLD PLENUM STAY,

FRONT

2. INTAKE MANIFOLD PLENUM STAY,

REAR

3 EGR VALVE
4. EGR VALVE GASKET
5. EGR PIPE

6. EGR PIPE GASKET
7. MANIFOLD DIFFERENTIAL PRES-

SURE SENSOR

8. THROTTLE BODY

>>A<<

9. THROTTLE BODY GASKET
10.INTAKE MANIFOLD PLENUM
11. INTAKE MANIFOLD PLENUM GASKET

REMOVAL STEPS (Continued)

INTAKE MANIFOLD PLENUM AND THROTTLE BODY ASSEMBLY

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-7

INSTALLATION SERVICE POINT

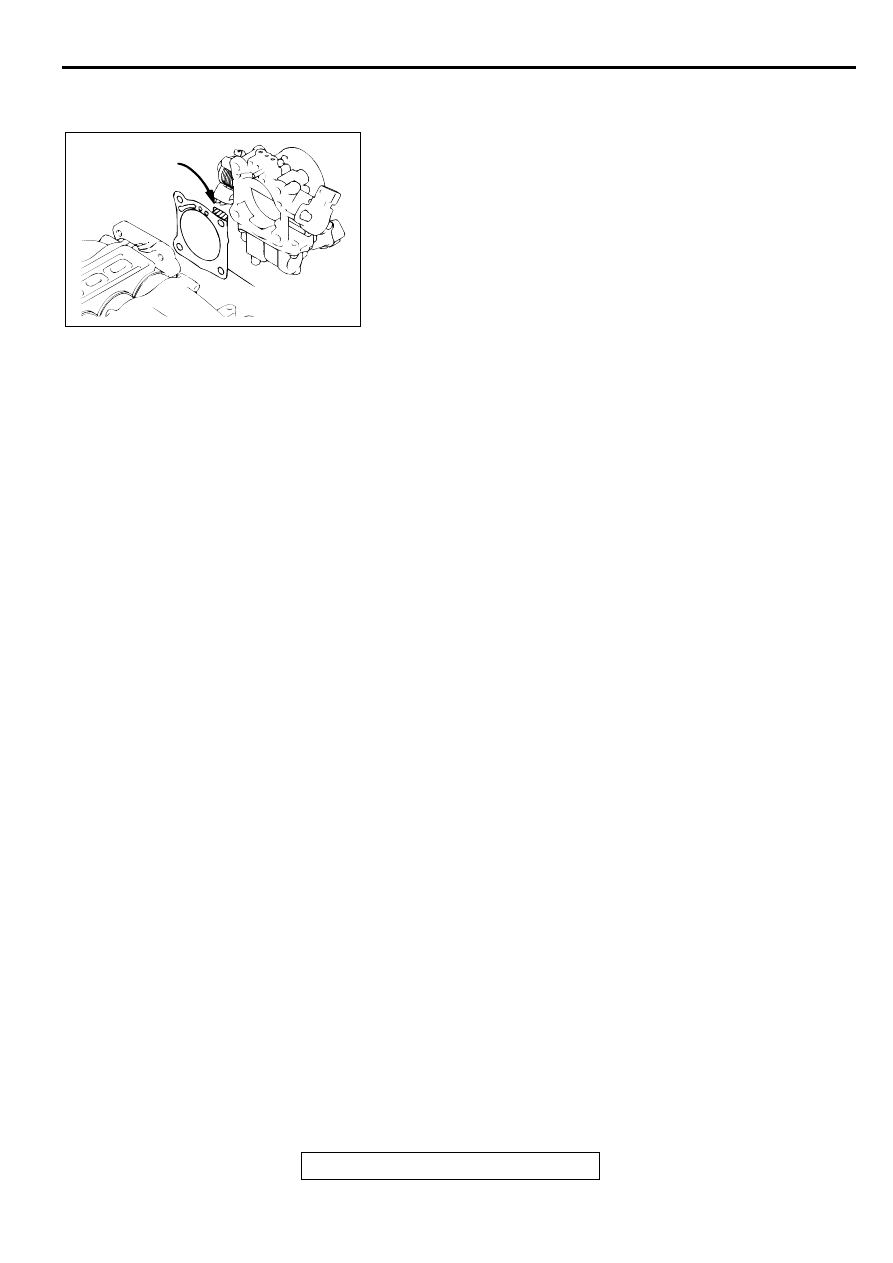

>>A<< THROTTLE BODY GASKET INSTALLATION
Install the gasket so that the tab is positioned as shown in the
illustration.

AKX00691

TAB

GASKET

IGNITION SYSTEM

TSB Revision

ENGINE OVERHAUL <3.0L>

11D-8

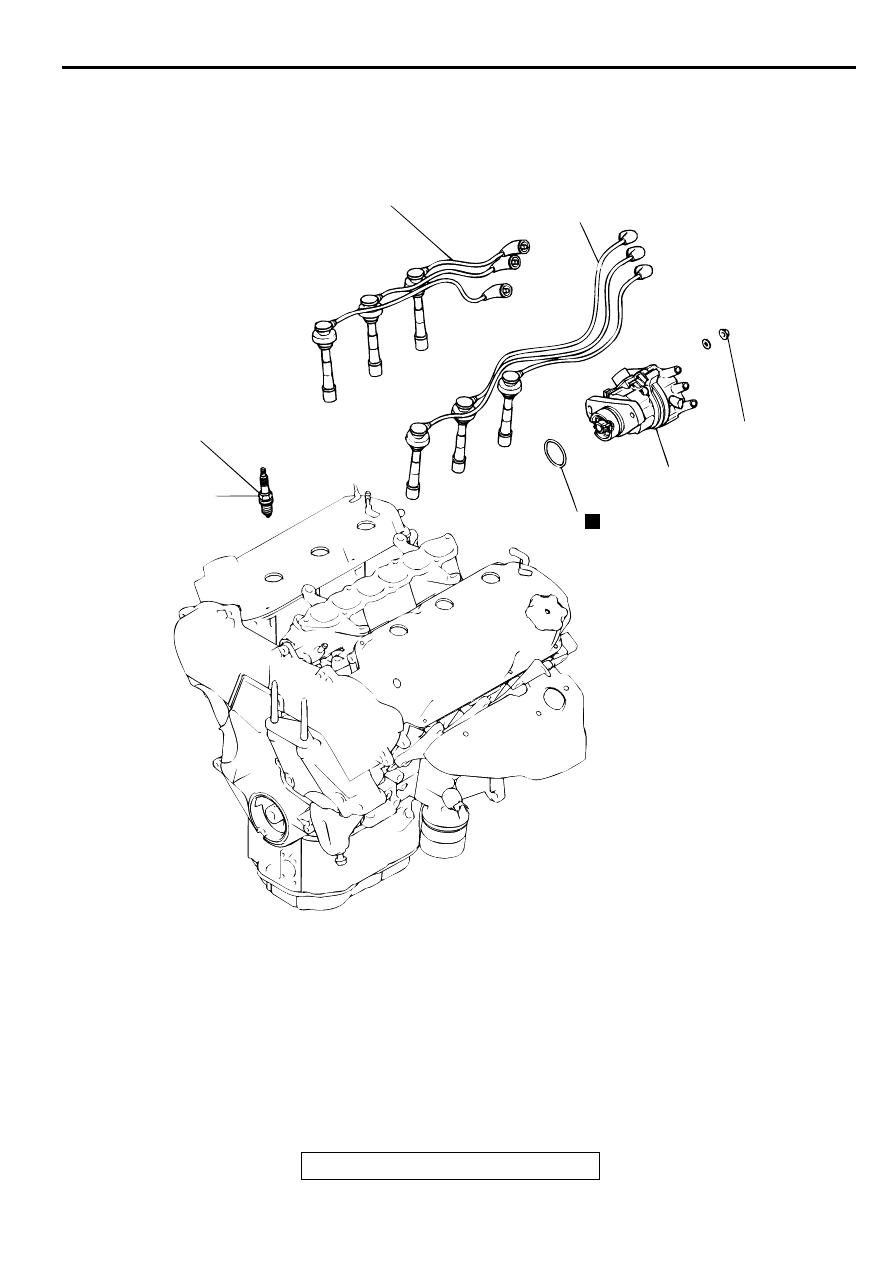

IG N ITIO N SYSTEM

REMOVAL AND INSTALLATION

M1113001600071

INSTALLATION SERVICE POINT

>>A<< DISTRIBUTOR INSTALLATION
1. Turn the crankshaft to bring the piston in No.1 cylinder to the

top dead center on the compression stroke.

AKX00663

25 N·m
18 ft-lb

13 N·m
113 in-lb

REMOVAL STEPS
1. SPARK PLUG CABLES
2. SPARK PLUGS

>>A<<

DISTRIBUTOR

4. O-RING
