Mitsubishi Galant. Manual - part 25





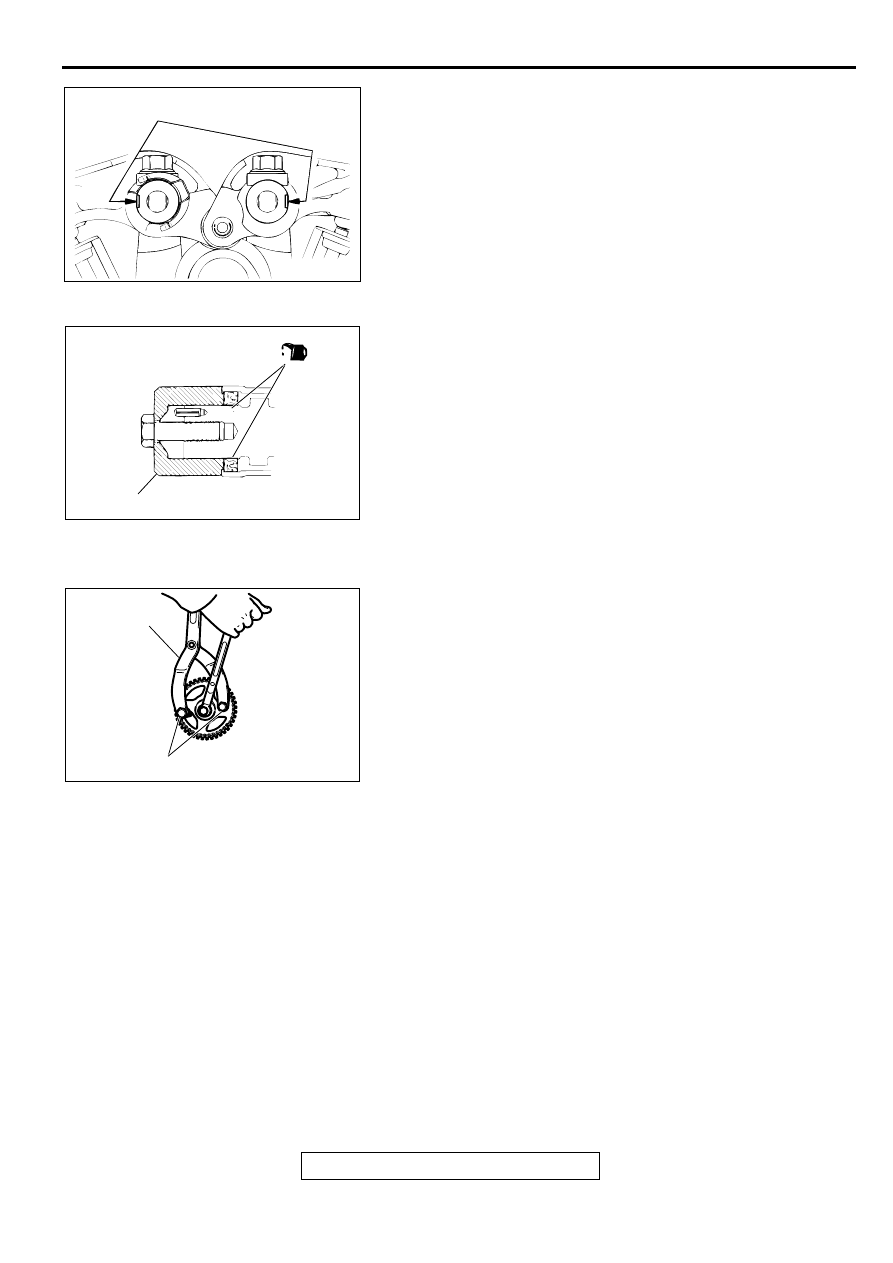

CAMSHAFT AND CAMSHAFT OIL SEAL

TSB Revision

ENGINE MECHANICAL <2.4L>

11A-19

5. Make sure that the notch in the end of the rocker arm shaft

is facing the direction shown.

>>B<< CAMSHAFT OIL SEAL INSTALLATION
1. Apply engine oil to the camshaft oil seal lip.

2. Use special tool MD998713 to press-fit the camshaft oil

seal.

>>C<< CAMSHAFT SPROCKET INSTALLATION
1. Install the camshaft sprocket.
2. Use special tools MB990767 and MD998719 to tighten the

camshaft sprocket securing bolt to the specified torque.

Tightening torque: 88 N

⋅⋅⋅⋅

m (65 ft-lb)

AC000131

NOTCH

AB

ACX00372 AC

MD998713

ACX00301

MB990767

MD998719

AC

OIL PAN

TSB Revision

ENGINE MECHANICAL <2.4L>

11A-20

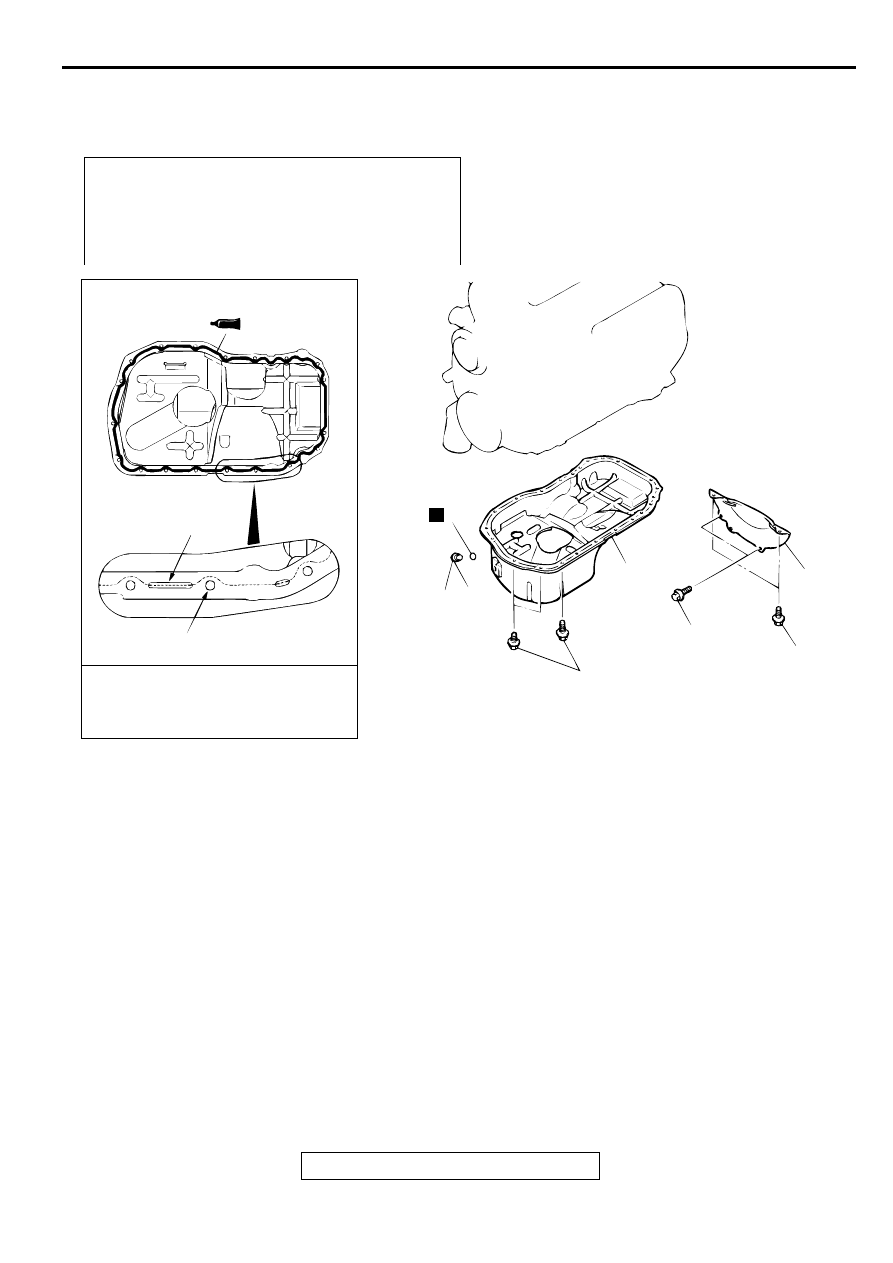

O IL PA N

REMOVAL AND INSTALLATION

M1112002800127

Required Special Tool:

MD998727: Oil Pan Remover

Pre-removal and Post-installation Operation

Engine Oil Draining and Refilling (Refer to GROUP 12,
On-vehicle Service

 Engine Oil Replacement

P.12-3

.)

Oil Dipstick Removal and Installation

Front Exhaust Pipe Removal and Installation (Refer to
GROUP 15, Exhaust Pipe and Main Muffler

P.15-18

.)

AC000132

SEALANT:
       MITSUBISHI     GENUINE     PART
       NO.MD970389 OR EQUIVALENT

Ø 4 mm
(0.2 in)

GROOVE

BOLT HOLE

1

4

3

N

2

39 N·m
29 ft-lb

6.9 N·m
61 in-lb

25 N·m
18 ft-lb

8.8 N·m
78 in-lb

AC

REMOVAL STEPS

1.

DRAIN PLUG

>>B<<

2.

DRAIN PLUG GASKET

3.

BELL HOUSING COVER

<<A>>

>>A<<

4.

OIL PAN

REMOVAL STEPS (Continued)

OIL PAN

TSB Revision

ENGINE MECHANICAL <2.4L>

11A-21

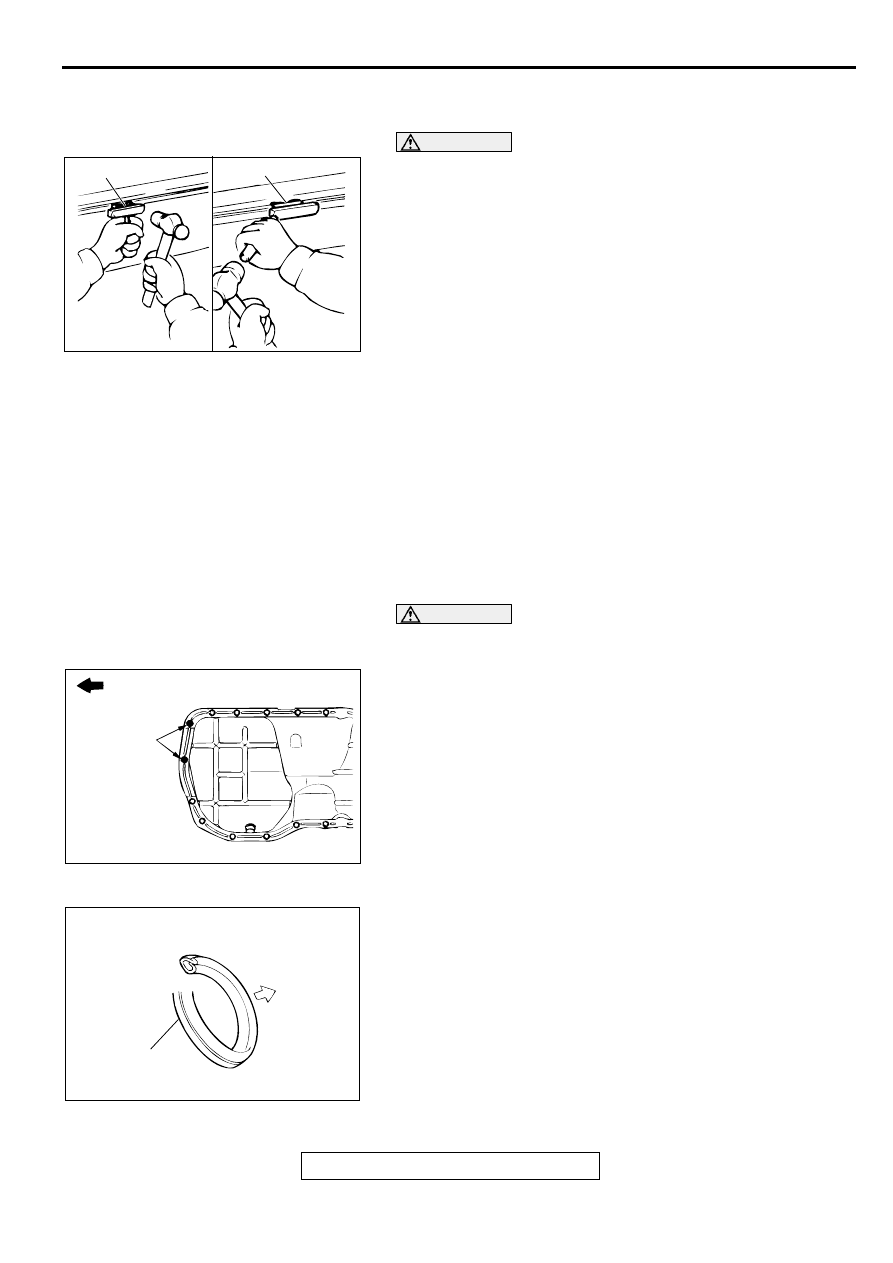

REMOVAL SERVICE POINT

<<A>> OIL PAN REMOVAL

CAUTION

Perform this slowly to avoid deformation of the oil pan
flange.
After removing the oil pan mounting bolts, remove the oil pan
with special tool MD998727 and a brass bar.

INSTALLATION SERVICE POINTS

>>A<< OIL PAN INSTALLATION
1. Remove sealant from the oil pan and cylinder block mating

surfaces.

2. Degrease the sealant-coated surface and the engine mating

surface.

3. Apply MITSUBISHI GENUINE PART number MD970389 or

equivalent around the gasket surface of the oil pan.

NOTE: The sealant should be applied in a continuous bead
approximately 4 mm (0.2 inch) in diameter.

CAUTION

After installing the oil pan, wait at least one hour before
starting the engine.
4. Assemble the oil pan to the cylinder block within 15 minutes

after applying the sealant.
Be careful when installing the oil pan. The bolts indicated in
the illustration have different lengths from the other bolts.

>>B<< DRAIN PLUG GASKET INSTALLATION
Install the drain plug gasket in the direction shown in the
illustration.

ACX00366

MD998727

MD998727

AB

AC000133

M6 × 8mm

FRONT OF ENGINE

AB

ACX00364

DRAIN PLUG
GASKET

OIL PAN
SIDE

AB

CRANKSHAFT FRONT OIL SEAL

TSB Revision

ENGINE MECHANICAL <2.4L>

11A-22

INSPECTION

M1112002900072

Check the oil pan for cracks.

Check the oil pan sealant-coated surface for damage and
deformation.

C R A N K SH A FT FR O N T O IL SEA L

REMOVAL AND INSTALLATION

M1112003400100

Required Special Tools:

MB991367: Special Spanner

MB998375: Crankshaft Front Oil Seal Installation

Pre-removal and Post-installation Operation

Timing Belt Removal and Installation (Refer to

P.11A-30

.)

Crankshaft Position Sensor Removal and Installation
(Refer to GROUP 16, Ignition System

 Crankshaft

Position Sensor <2.4L Engine>

P.16-49

.)

AC000134

ENGINE OIL

CRANKSHAHF

1

4

2

3

(ENGINE OIL)

108 – 127 N·m
80 – 94 ft-lb

N

5

AC

5

REMOVAL STEPS

<<A>>

>>B<<

1.

CRANKSHAFT SPROCKET

>>B<<

2.

CRANKSHAFT SENSING BLADE

TIMING BELT B (REFER TO

P.11A-34

.)

>>B<<

3.

CRANKSHAFT SPROCKET B

4.

KEY

>>A<<

5.

CRANKSHAFT FRONT OIL SEAL

REMOVAL STEPS (Continued)
