MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-554

STEP 4. Using scan tool MB991958, check data list item 22:
Crankshaft Position Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

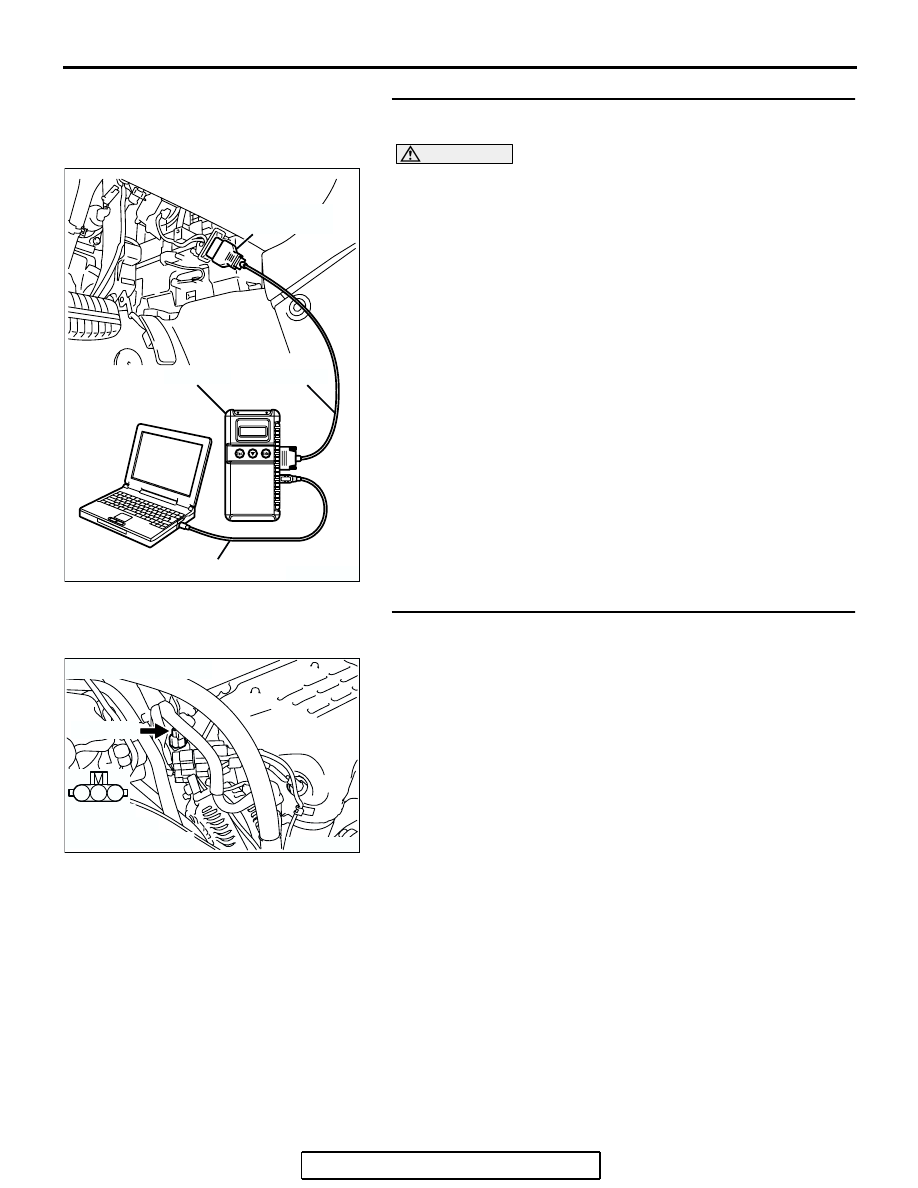

(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set scan tool MB991958 to the data reading mode for item

22, Crankshaft Position Sensor.

• The tachometer and engine speed indicated on the scan

tool should match.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Replace the PCM. Then go to Step 22.

STEP 5. Check harness connector B-119 at the crankshaft
position sensor intermediate connector for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 6.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 22.

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

AK303860

1

2

3

AB

CONNECTOR: B-119

B-119 (GR)

HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-555

STEP 6. Measure the sensor supply voltage at crankshaft
position sensor intermediate harness side connector
B-119.

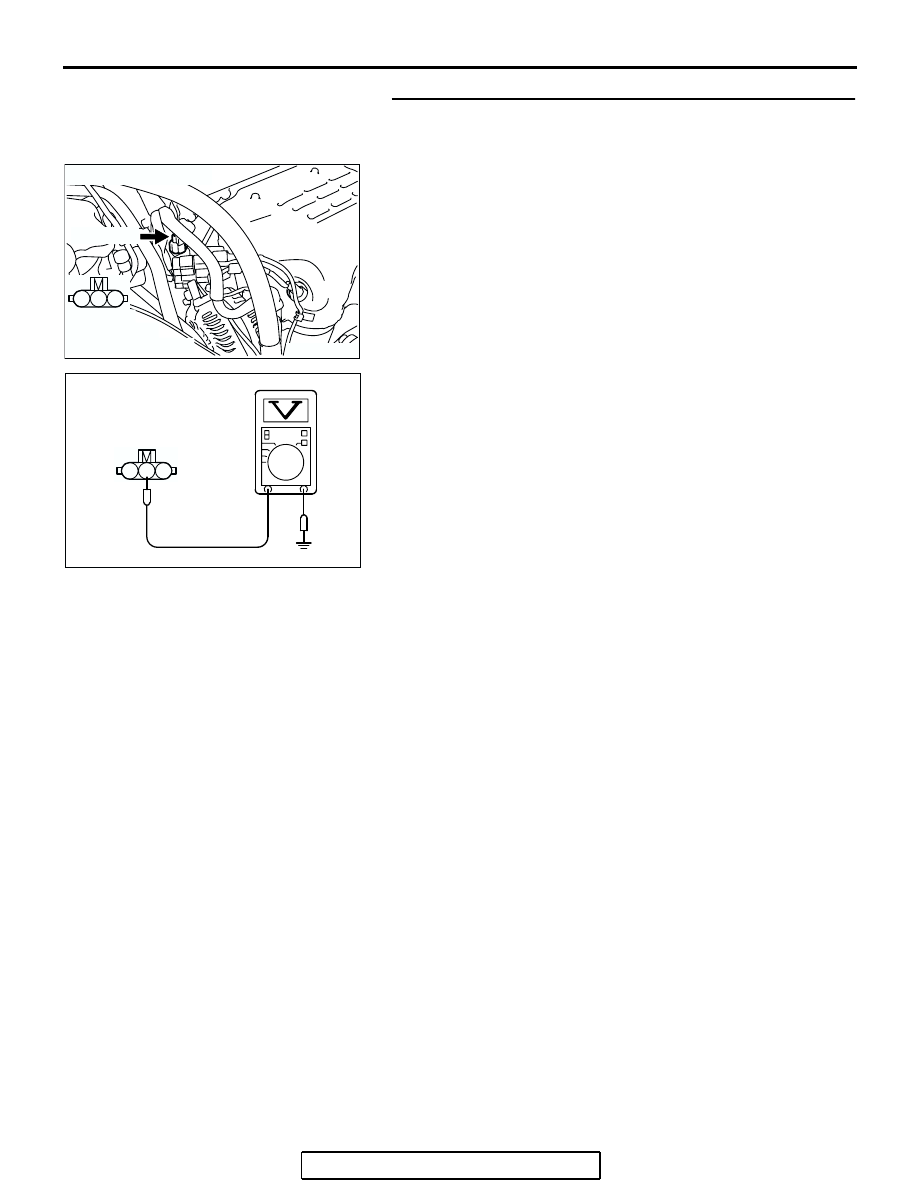

(1) Disconnect the connector B-119 and measure at the

harness side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 2 and ground.

• Voltage should be between 4.9 and 5.1 volts.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.9 and 5.1 volts?

YES : Go to Step 11.
NO :  Go to Step 7.

AK303860

1

2

3

AB

CONNECTOR: B-119

B-119 (GR)

HARNESS
CONNECTOR:
COMPONENT SIDE

1

2

3

AK302110

B-119 HARNESS
CONNECTOR:
COMPONENT SIDE

AC

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-556

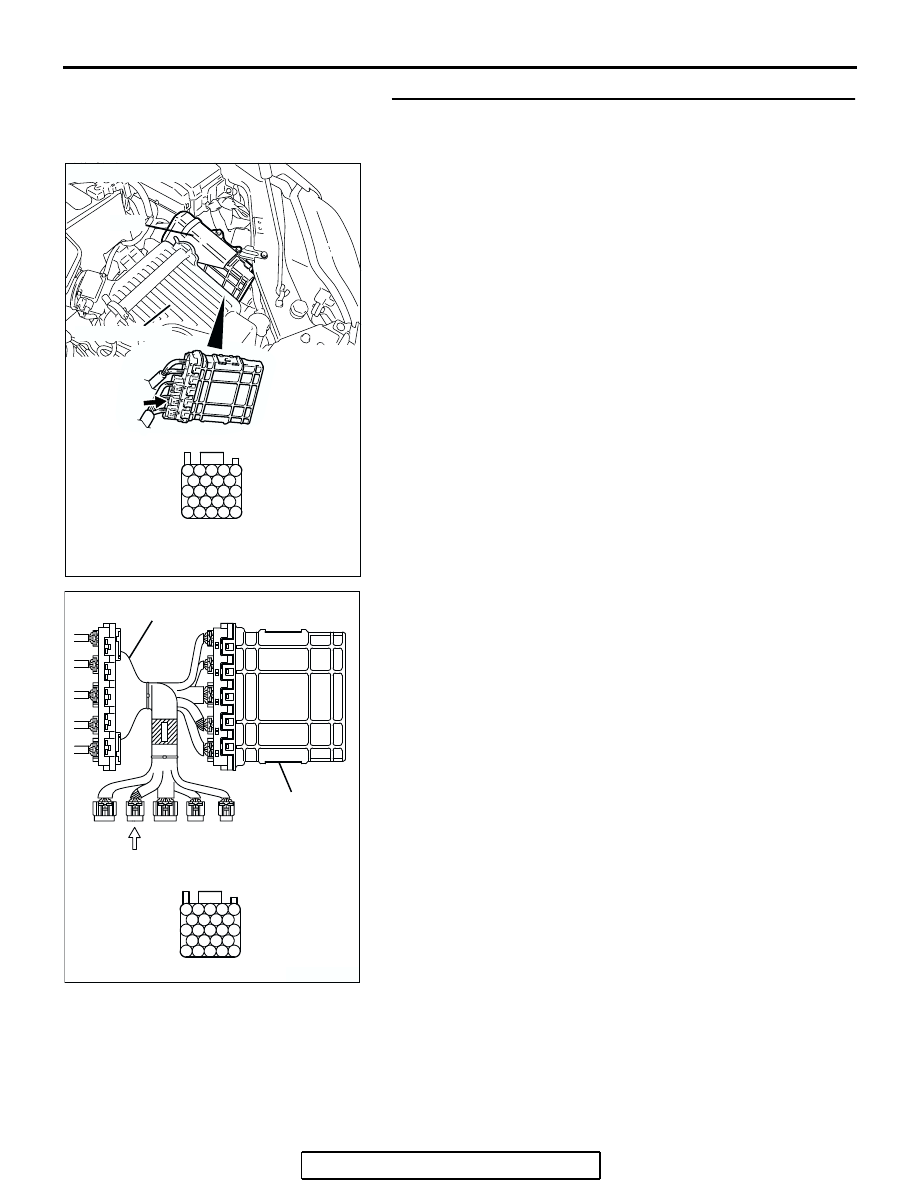

STEP 7. Measure the sensor supply voltage at PCM
connector B-22 by using power plant ECU check harness
special tool MB991923.
(1) Disconnect the all PCM connectors and connect power

plant ECU check harness special tool MB991923 between
the separated connectors.

(2) Disconnect the crankshaft position sensor intermediate

connector B-119.

(3) Turn the ignition switch to the "ON" position.

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

AK202956

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

AB

POWER PLANT ECU
CHECK HARNESS CONNECTOR

MB991923

PCM

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-557

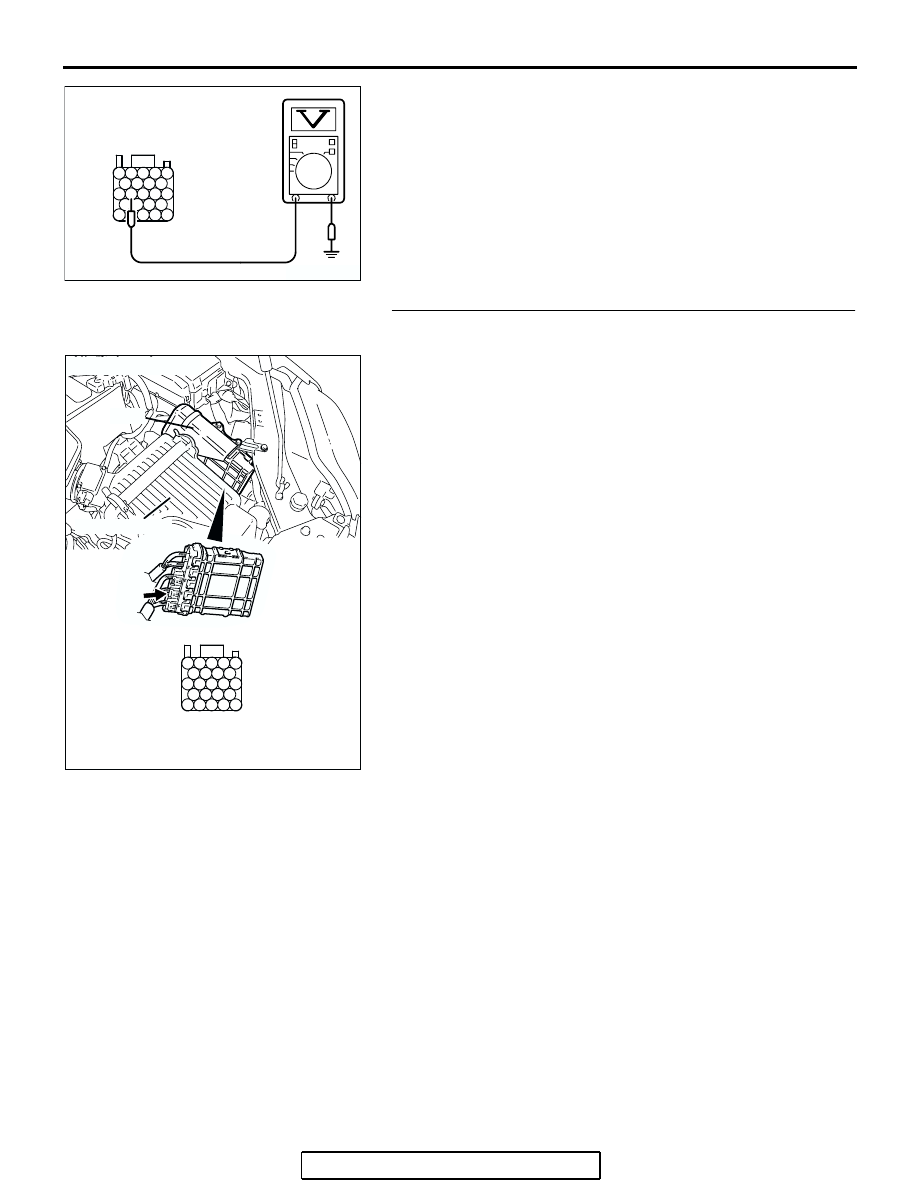

(4) Measure the voltage between terminal No. 103 and ground.

• Voltage should be between 4.9 and 5.1 volts.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the measured voltage between 4.9 and 5.1 volts?

YES : Go to Step 8.
NO :  Go to Step 9.

STEP 8. Check harness connector B-22 at PCM for
damage.
Q: Is the harness connector in good condition?

YES : Repair harness wire between crankshaft position

sensor intermediate connector B-119 (terminal No. 2)
and PCM connector B-22 (terminal No. 103) because
of open circuit. Then go to Step 22.

NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 22.

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

AK202940AB

POWER PLANT ECU
CHECK HARNESS
CONNECTOR

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER
