MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-550

DTC SET CONDITIONS <Circuit continuity>

Logic Flow Chart

Check Conditions

• Engine is being cranked.

Judgment Criteria

• Crankshaft position sensor output voltage has not

changed (no pulse signal is input) for 2 seconds.

.

START

MONITORING
CONDITIONS

END

NO

NO

NO

YES

YES

YES

MALFUNCTION

GOOD

OUTPUT SIGNAL

CHANGES

CONTINUOUS

FAILURE FOR 2secs

AK302034

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-551

DTC SET CONDITIONS <Range/Performance problem

− alignment>

Logic Flow Chart

Check Conditions, Judgment Criteria

• Normal signal pattern has not been input for cyl-

inder identification from the crankshaft position
sensor signal and camshaft position sensor sig-
nal for 2 seconds.

.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function

− OBD-II Drive Cycle −

Procedure 6

− Other Monitor

P.13A-6

.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• Crankshaft position sensor failed.

• Open or shorted crankshaft position sensor cir-

cuit, or harness damage, or connector damage.

• PCM failed.

START

END

YES

NO

NO

YES

MALFUNCTION

GOOD

CONTINUOUS

FAILURE FOR

2secs

EXPECTED STATE

OF THE SENSOR

MONITORING
CONDITIONS?

YES

NO

AK302035

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-552

DIAGNOSIS

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

• MB991658: Test Harness

• MB991923: Power Plant ECU Check Harness

STEP 1. Using scan tool MB991958, check data list item 22:
Crankshaft Position Sensor.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.

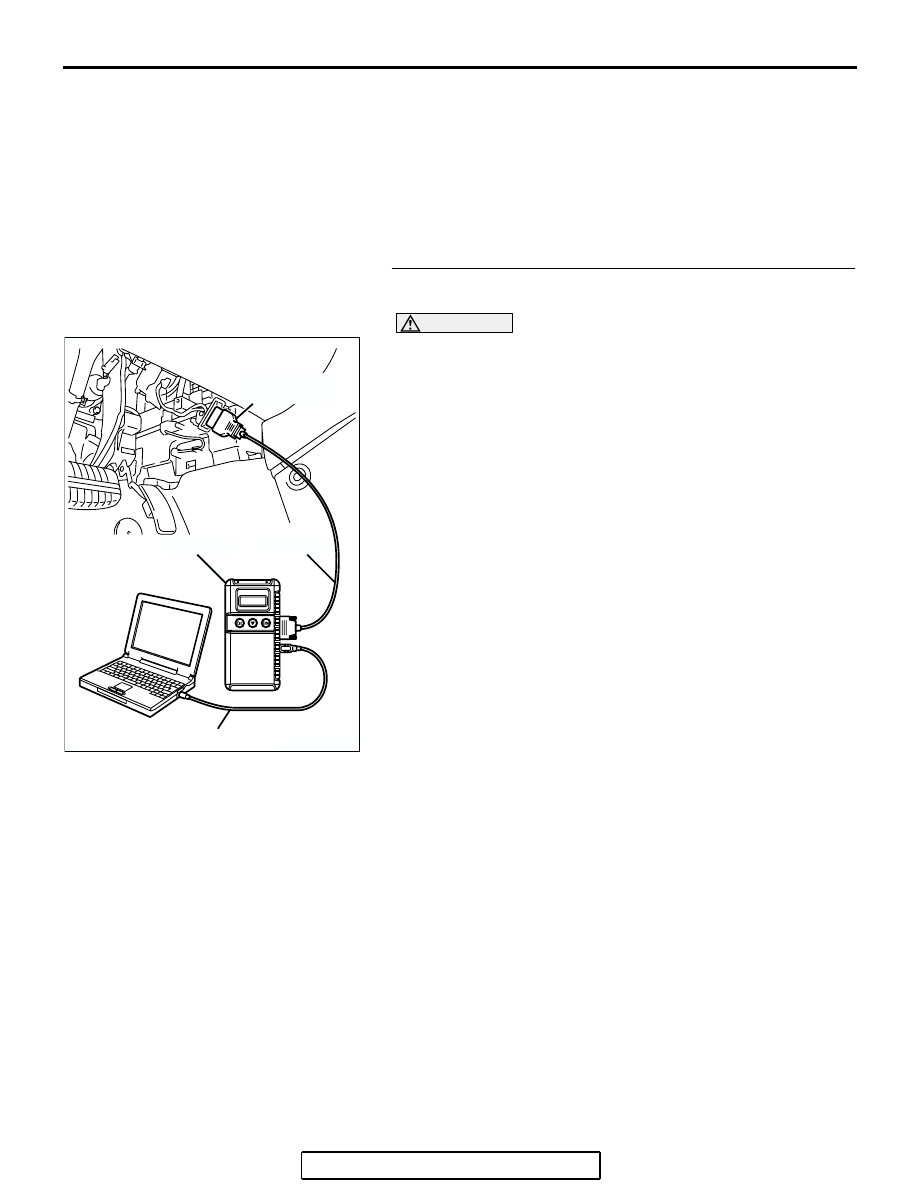

(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine and run at idle.
(3) Set scan tool MB991958 to the data reading mode for item

22, Crankshaft Position Sensor.

• The tachometer and engine speed indicated on the scan

tool should match.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Go to Step 2.

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-553

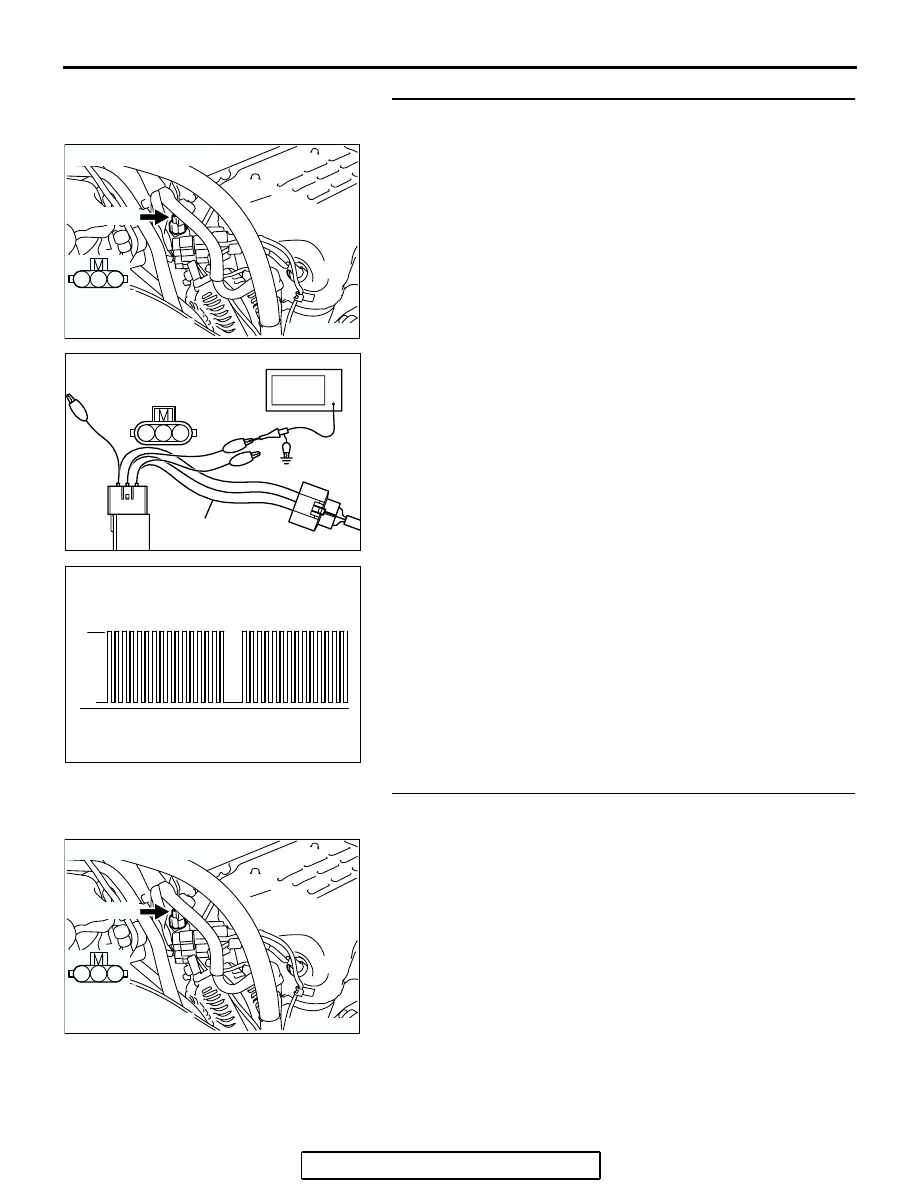

STEP 2. Using the oscilloscope, check the crankshaft
position sensor.
(1) Disconnect the crankshaft position sensor intermediate

connector B-119 and connect the test harness special tool
(MB991658) between the separated connectors.

(2) Connect the oscilloscope probe to terminal No. 2 of the

crankshaft position sensor side connector.
NOTE: When measuring with the PCM side connector, dis-
connect the all PCM connectors and connect check har-
ness special tool (MB991923) between the separated
connectors. Then connect the oscilloscope probe to the
check harness connector terminal No. 103.

(3) Start the engine and run at idle.

(4) Check the waveform.

• The waveform should show a pattern similar to the illus-

tration.

(5) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the waveform normal?

YES : Go to Step 3.
NO :  Go to Step 5.

STEP 3. Check harness connector B-119 at the crankshaft
position sensor intermediate connector for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 22.

AK303860

1

2

3

AB

CONNECTOR: B-119

B-119 (GR)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK302199

1 2 3

AB

MB991658

OSCILLOSCOPE

CRANKSHAFT POSITION
SENSOR INTERMEDIATE
CONNECTOR

AK301956

5V

NORMAL WAVEFORM

AB

AK303860

1

2

3

AB

CONNECTOR: B-119

B-119 (GR)

HARNESS
CONNECTOR:
COMPONENT SIDE
