Mitsubishi Galant 9G. Manual - part 720





MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-322

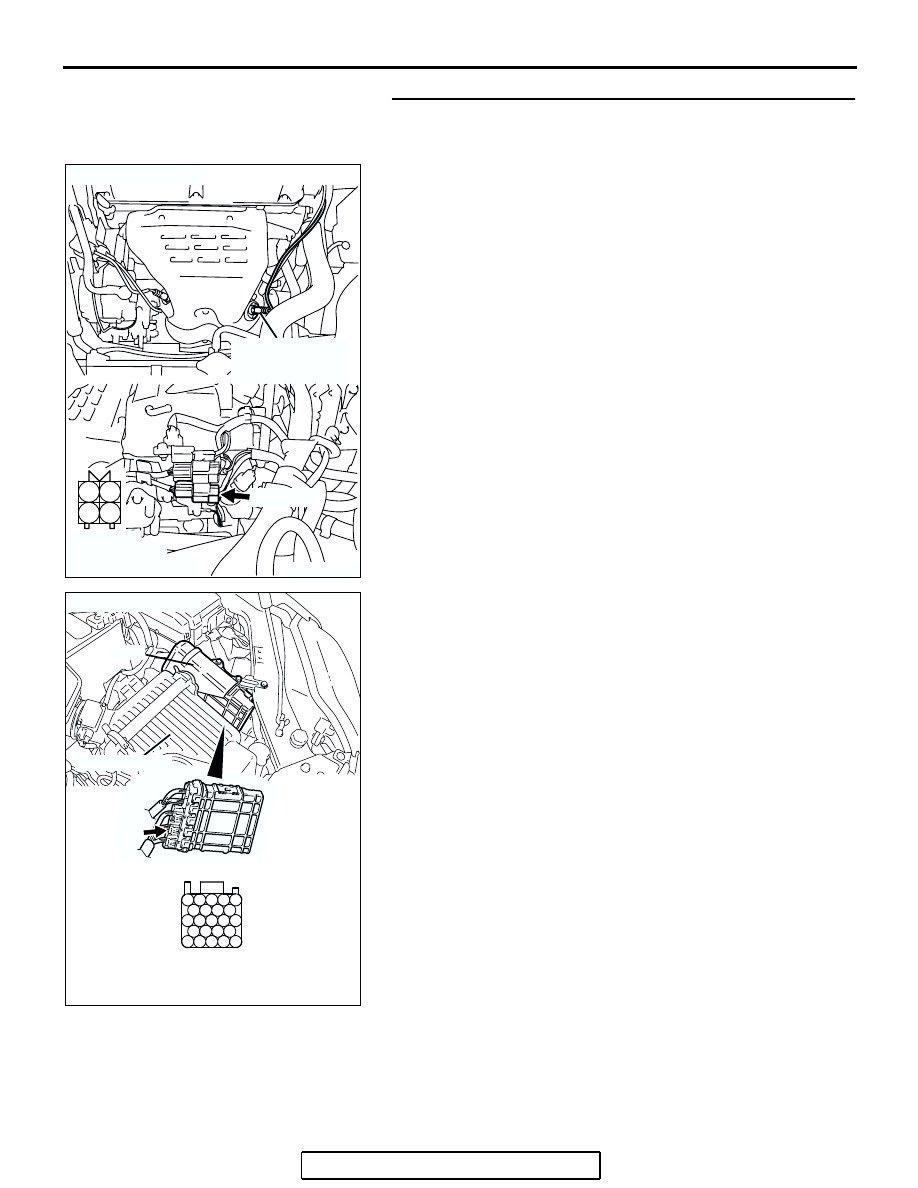

STEP 3. Check harness connector B-36 at cylinder 2, 3
heated oxygen sensor (front) and harness connector B-22
at PCM for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 5.

AK303830

1

2

3

4

AB

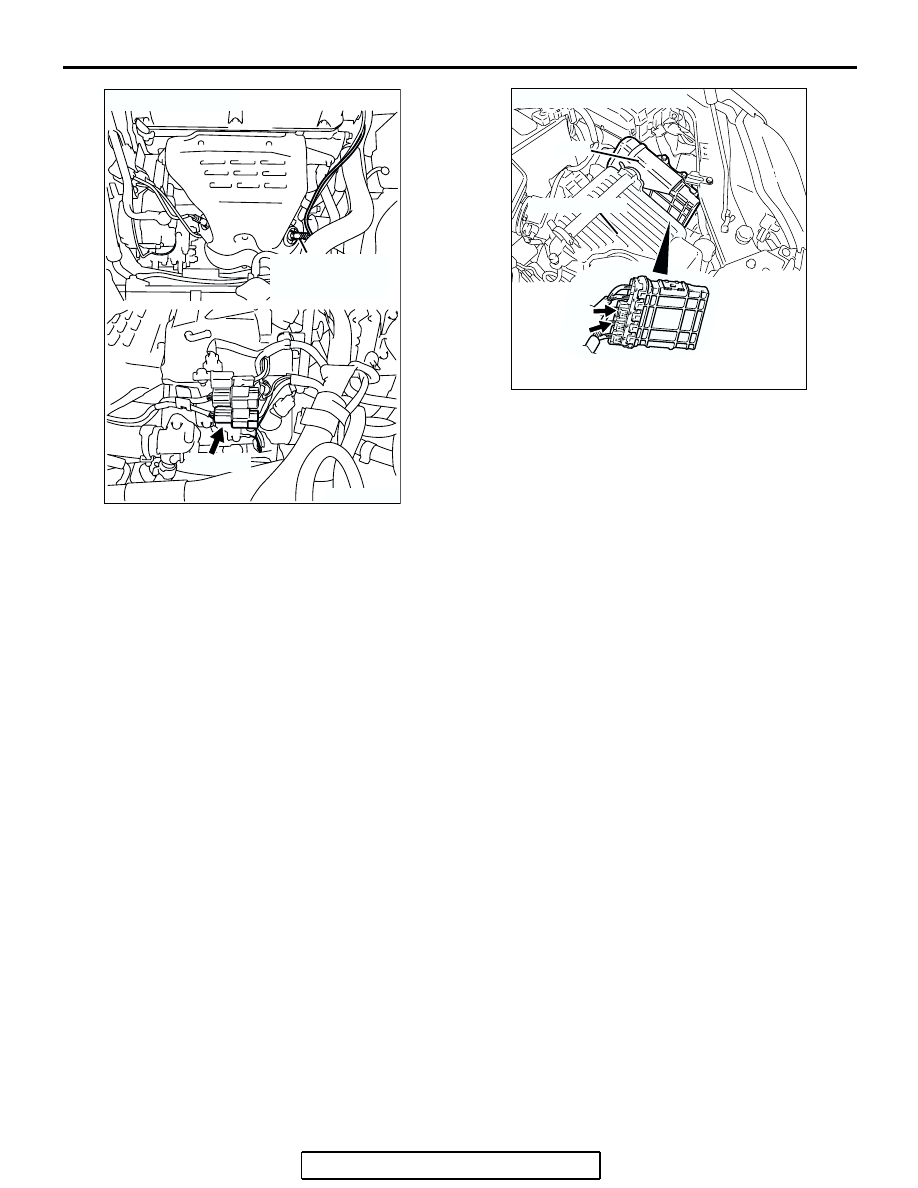

CONNECTOR: B-36

B-36 (GR)

CYLINDER 2, 3
HEATED OXYGEN
SENSOR (FRONT)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-323

STEP 4. Check for short circuit to ground between cylinder
2, 3 heated oxygen sensor (front) connector B-36 (terminal
No. 4) and PCM connector B-22 (terminal No. 91).
Q: Is the harness wire in good condition?

YES : Replace the PCM. Then go to Step 5.
NO :  Repair it. Then go to Step 5.

AK303830

1

2

3

4

AB

CONNECTOR: B-36

B-36 (GR)

CYLINDER 2, 3
HEATED OXYGEN
SENSOR (FRONT)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303016

104

96

94

95

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

AB

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-324

STEP 5. Test the OBD-II drive cycle.
(1) Carry out a test drive with the drive cycle pattern. Refer to

Diagnostic Function

− OBD-II Drive Cycle − Procedure 6 −

Other Monitor

P.13A-6

.

(2) Check the diagnostic trouble code (DTC).
Q: Is DTC P0151 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

DTC P0152: Cylinder 2, 3 Heated Oxygen Sensor Circuit High Voltage (sensor 1)

100

99

92

91

93 94 95

96 97 98

101 102 103 104

105 106 107 108

109 110 111 112 113

52

51

53 54 55 56

57

58 59 60 61 62

63

64 65 66 67 68 69

70

71 72 73 74 75

76

77 78 79 80 81 82

83

AK303828

1

2

3

4

BLA

CK

BLA

CK

TO PCM

FROM MFI RELAY

WHITE

69

91

4

3

1

CYLINDER 2, 3
HEATED OXYGEN
SENSOR (FRONT)

POWERTRAIN CONTROL
MODULE (PCM)

B-36

MU802665

2

B-22

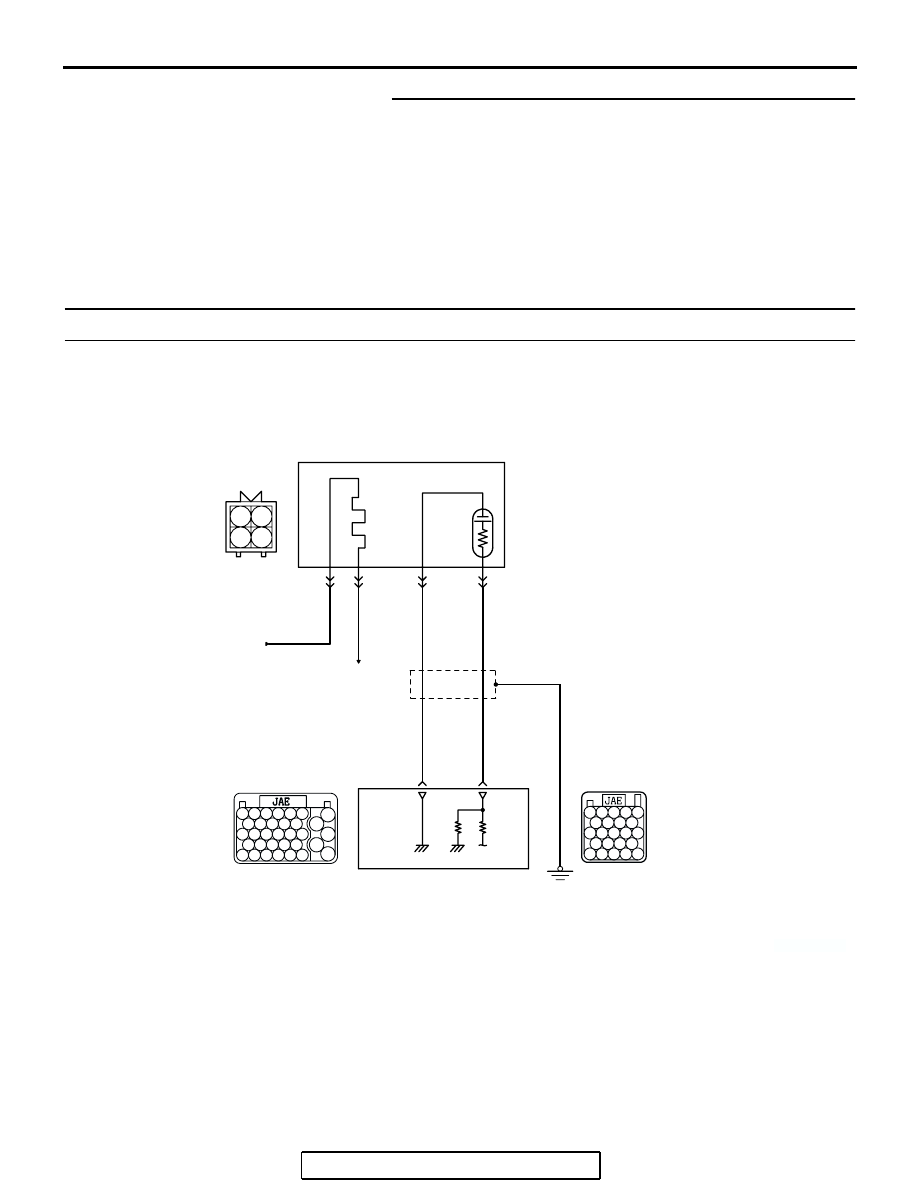

Cylinder 2, 3 Heated Oxygen Sensor (front) Circuit

B-21

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-325

.

CIRCUIT OPERATION

• A voltage corresponding to the oxygen concen-

tration in the exhaust gas is sent to the PCM (ter-
minal No. 91) from the output terminal (terminal
No. 4) of the cylinder 2, 3 heated oxygen sensor
(front).

• Terminal No. 2 of the cylinder 2, 3 heated oxygen

sensor (front) is grounded with PCM (terminal
No. 69).

.

TECHNICAL DESCRIPTION

• The cylinder 2, 3 heated oxygen sensor (front)

detects the concentration of oxygen in the
exhaust gas; it converts those data to voltage,
and inputs the resulting signals to the PCM.

• When the cylinder 2, 3 heated oxygen sensor

(front) begins to deteriorate, the heated oxygen
sensor signal response becomes poor.

• The PCM forcibly varies the air/fuel mixture to

make it leaner and richer, and checks the
response speed of the cylinder 2, 3 heated oxy-
gen sensor (front). In addition, the PCM also
checks for an open circuit in the cylinder 2, 3
heated oxygen sensor (front) output line.

.

DESCRIPTIONS OF MONITOR METHODS

Cylinder 2, 3 heated oxygen sensor (front) output

voltage is over specified range.

.

MONITOR EXECUTION

Continuous

.

MONITOR EXECUTION CONDITIONS
(Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored

in memory for the item monitored below)

• Heated oxygen sensor heater (front) monitor

• Misfire monitor

• Fuel system monitor

Sensor (The sensor below is determined to be

normal)

• Mass airflow sensor

• Engine coolant temperature sensor

• Intake air temperature sensor

• Barometric pressure sensor

• Throttle position sensor

• Accelerator pedal position sensor

.

AK303829AB

CONNECTOR: B-36

B-36 (GR)

CYLINDER 2, 3
HEATED OXYGEN
SENSOR (FRONT)

AK303013

CONNECTORS: B-21, B-22

PCM

AB

AIR CLEANER

B-22 (B)

B-21 (B)
