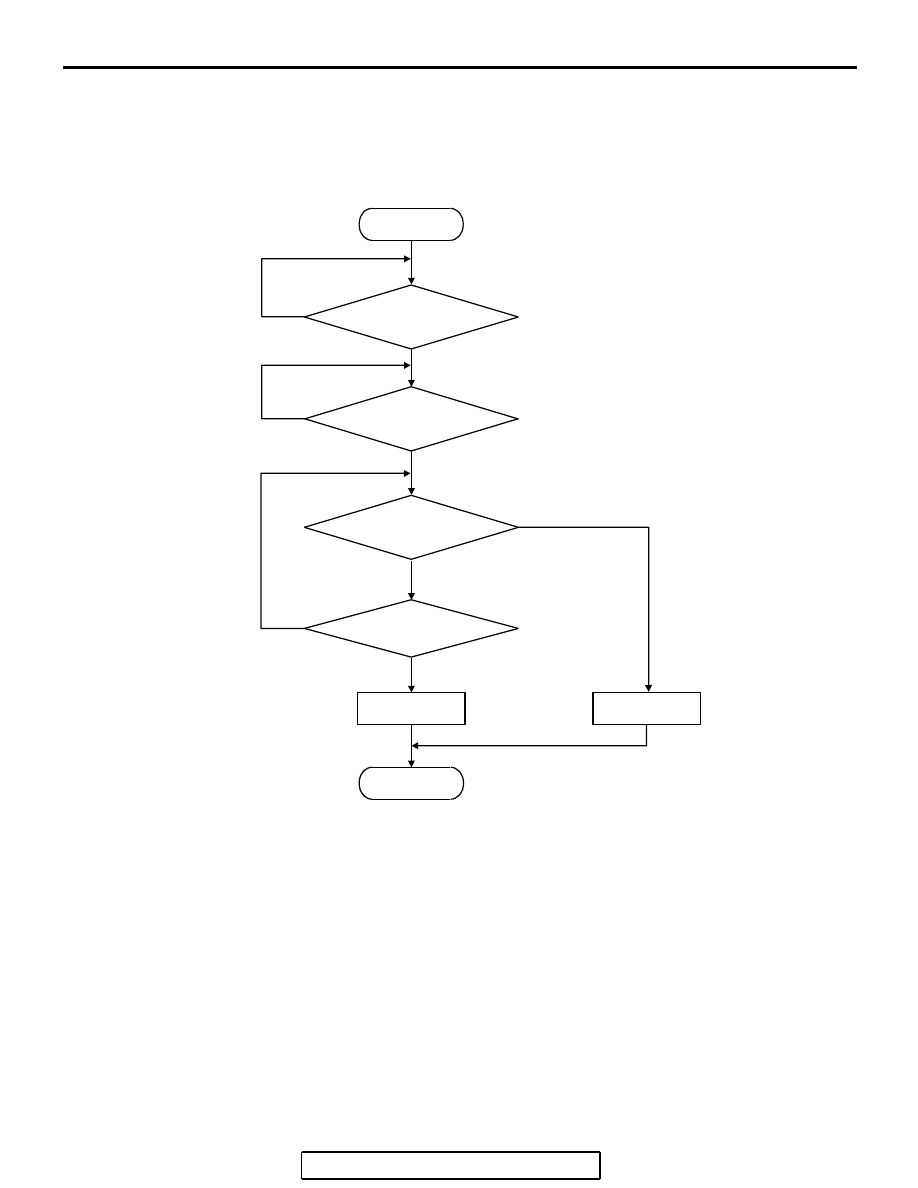

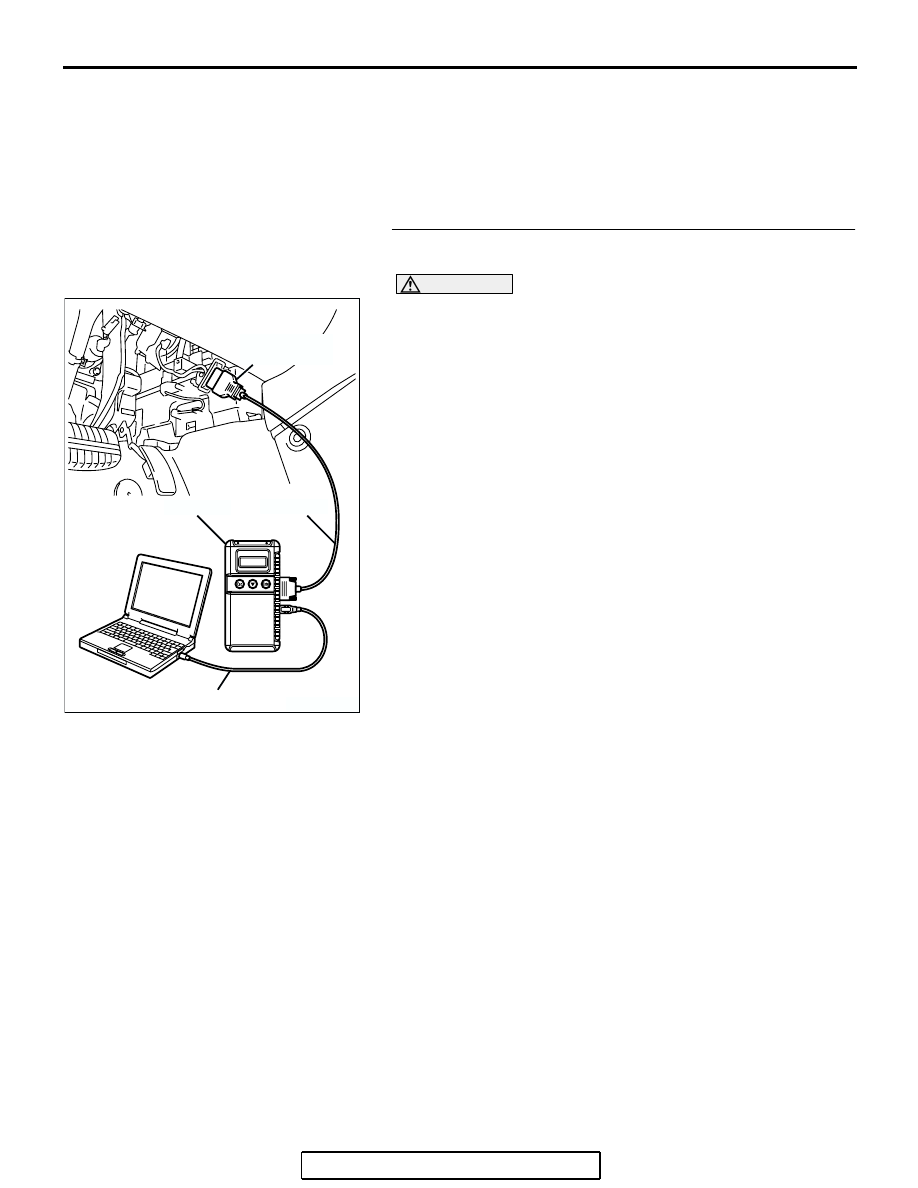

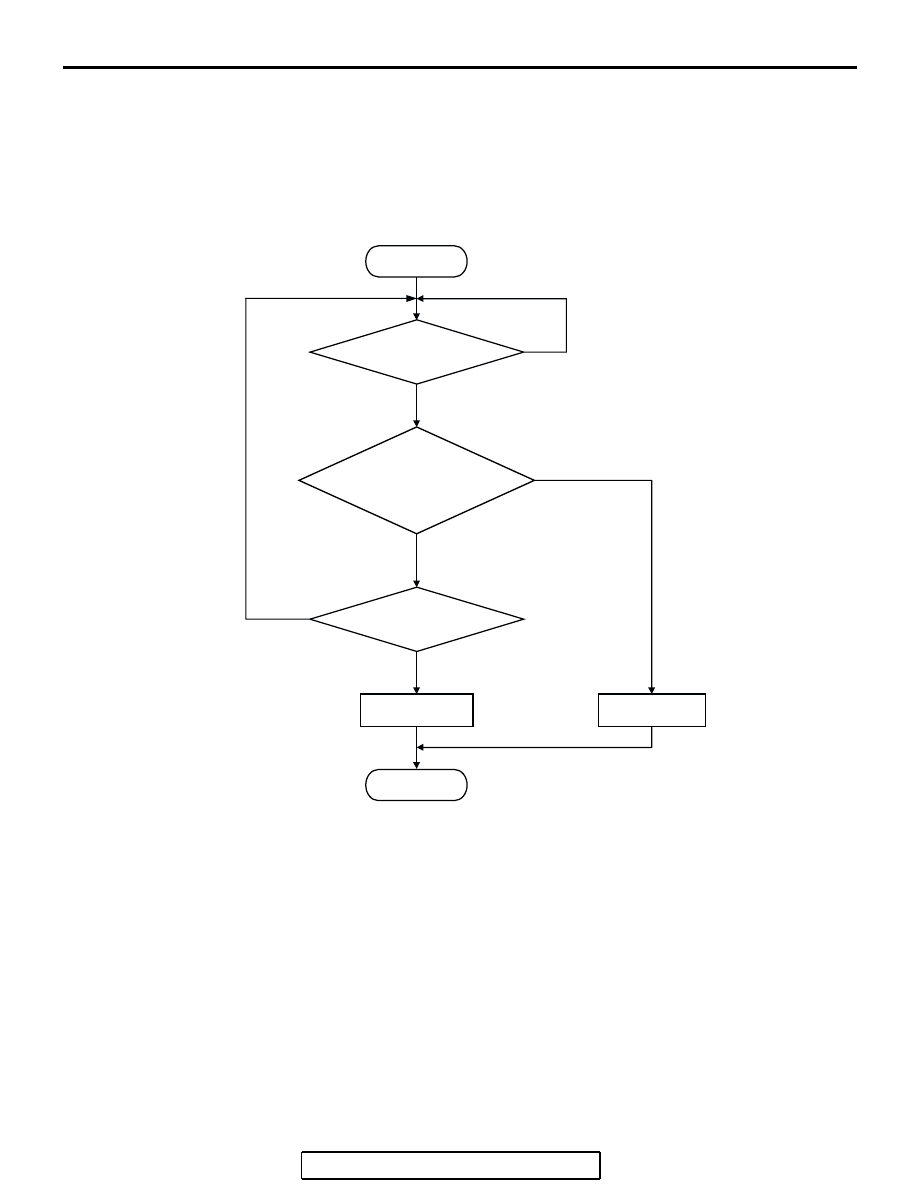

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS TSB Revision MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE> 13A-178 . CIRCUIT OPERATION • 5-volt voltage is applied to the engine coolant temperature sensor output terminal (terminal No. • The engine coolant temperature sensor is a neg- ative temperature coefficient type of resistor. It • The engine coolant temperature sensor output voltage increases when the resistance increases . TECHNICAL DESCRIPTION • The engine coolant temperature sensor converts the engine coolant temperature to a voltage and • The PCM checks whether this voltage is within a specified range. . DESCRIPTIONS OF MONITOR METHODS • Engine coolant temperature sensor output volt- age drops from over 40 °C (104°F) to under 40°C (104 °F) and keeps under 40°C (104°F) for 5 min- utes. • Engine coolant temperature sensor output volt- age does not reach close loop enable tempera- °C (45°F). . MONITOR EXECUTION Continuous . MONITOR EXECUTION CONDITIONS Other Monitor (There is no temporary DTC stored in memory for the item monitored below) • Not applicable Sensor (The sensor below is determined to be normal) • Mass airflow sensor • Engine coolant temperature sensor • Intake air temperature sensor . |
