MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-174

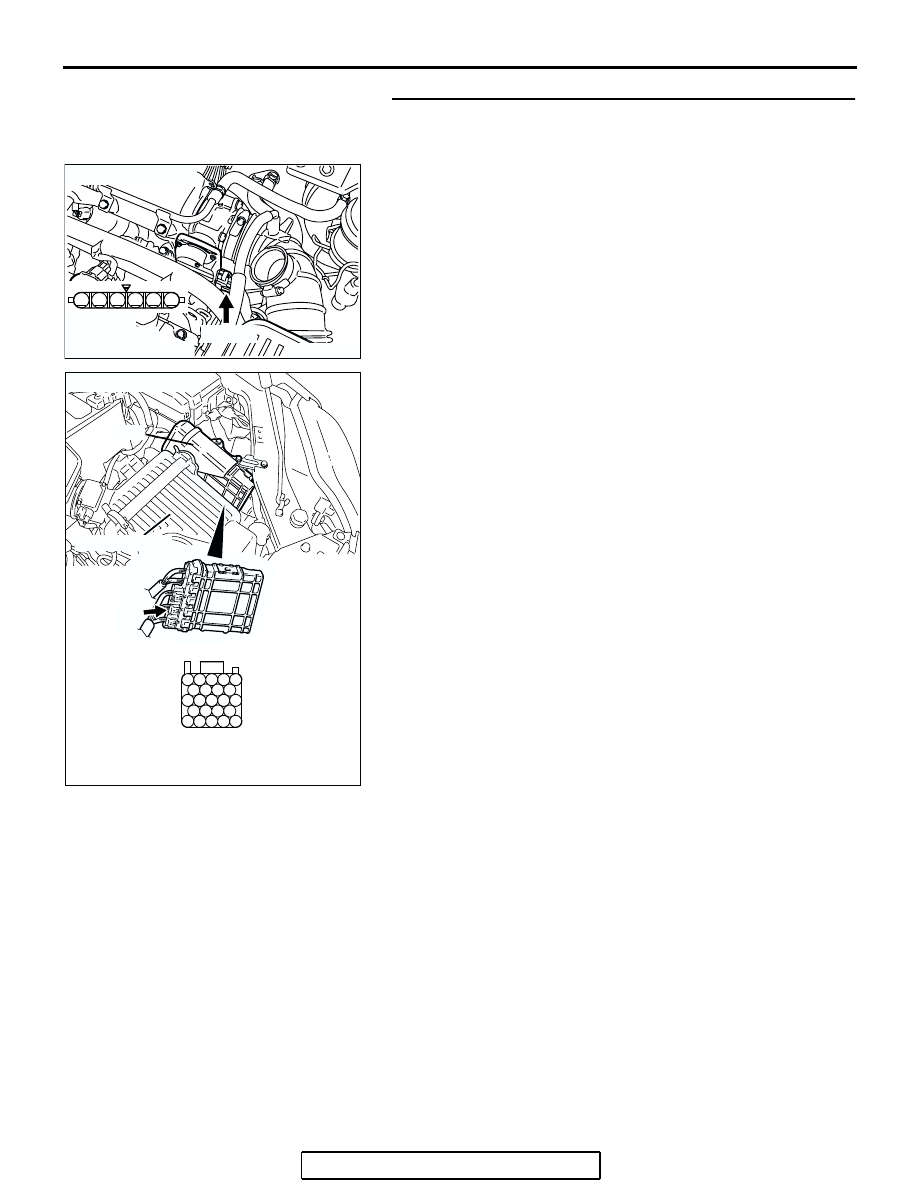

STEP 5. Check for open circuit and harness damage
between throttle position sensor connector B-06 (terminal
No. 3) and PCM connector B-22 (terminal No. 95).
Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO : Repair it. Then go to Step 8.

AK303818

6 5 4 3 2

CONNECTOR: B-06

B-06 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

AK303016

104

93 92 91

99 98 97

103 102 101 100

108 107 106 105

113 112 111 110 109

CONNECTOR: B-22

B-22 (B)

PCM

HARNESS CONNECTOR:
COMPONENT SIDE

AIR CLEANER

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-175

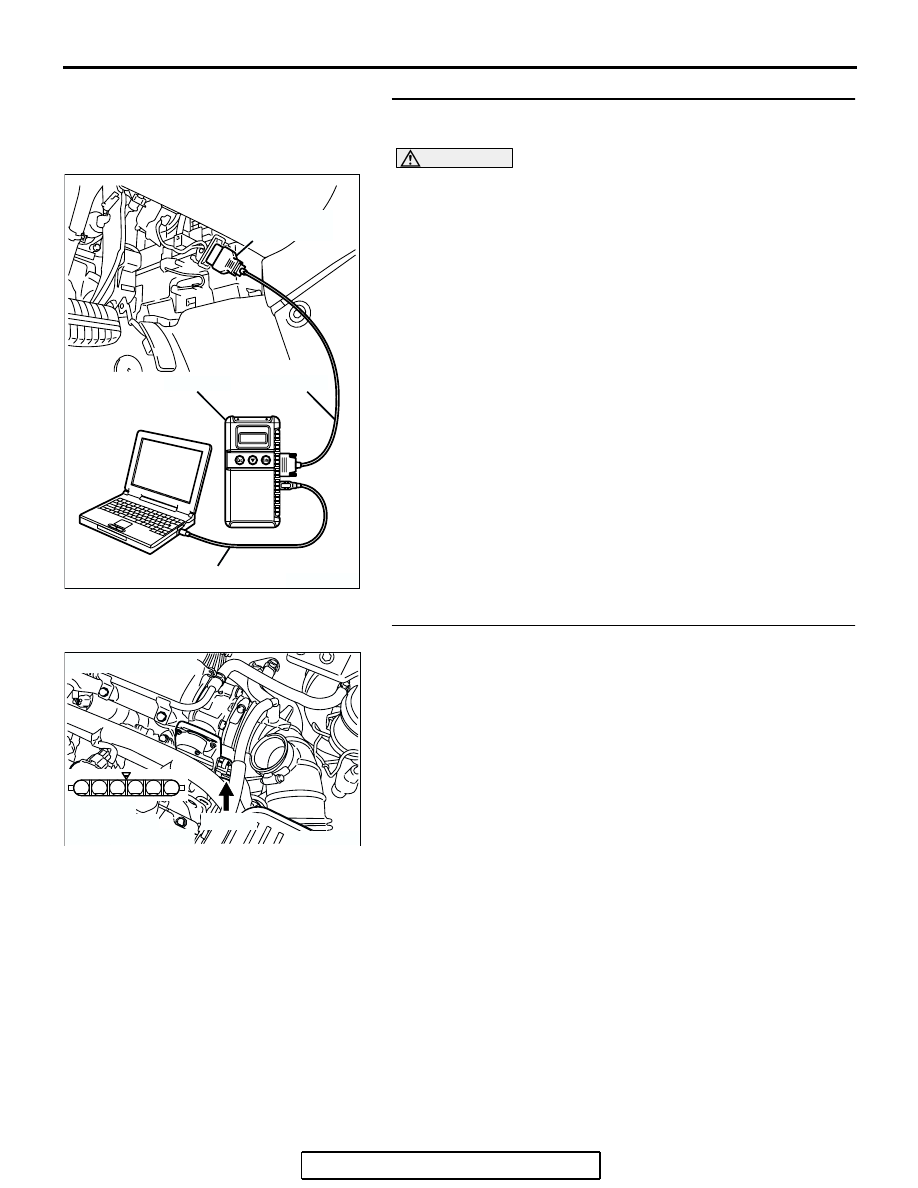

STEP 6. Using scan tool MB991958, check data list item 79:
Throttle Position Sensor (main).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Detach the intake air hose at the throttle body.
(4) Disconnect the connector of the throttle position sensor.
(5) Use test harness special tool (MB991658) to connect only

terminals No. 3, No. 4, No. 5, and No. 6.

(6) Set scan tool MB991958 to the data reading mode for item

79, Throttle Position Sensor (main).

• Output voltage should be between 0.3 and 0.7 volt when

the throttle valve is fully closed with your finger.

• Output voltage should be 4.0 volts or more when the

throttle valve is fully open with your finger.

(7) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

NO : Replace the PCM. Then go to Step 8.

STEP 7. Replace the throttle body assembly.
(1) Replace the throttle body assembly.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC P0123 set?

YES : Replace the PCM. Then go to Step 8.
NO : The inspection is complete.

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

AK303818

6 5 4 3 2

CONNECTOR: B-06

B-06 (B)

HARNESS
CONNECTOR:
COMPONENT SIDE

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-176

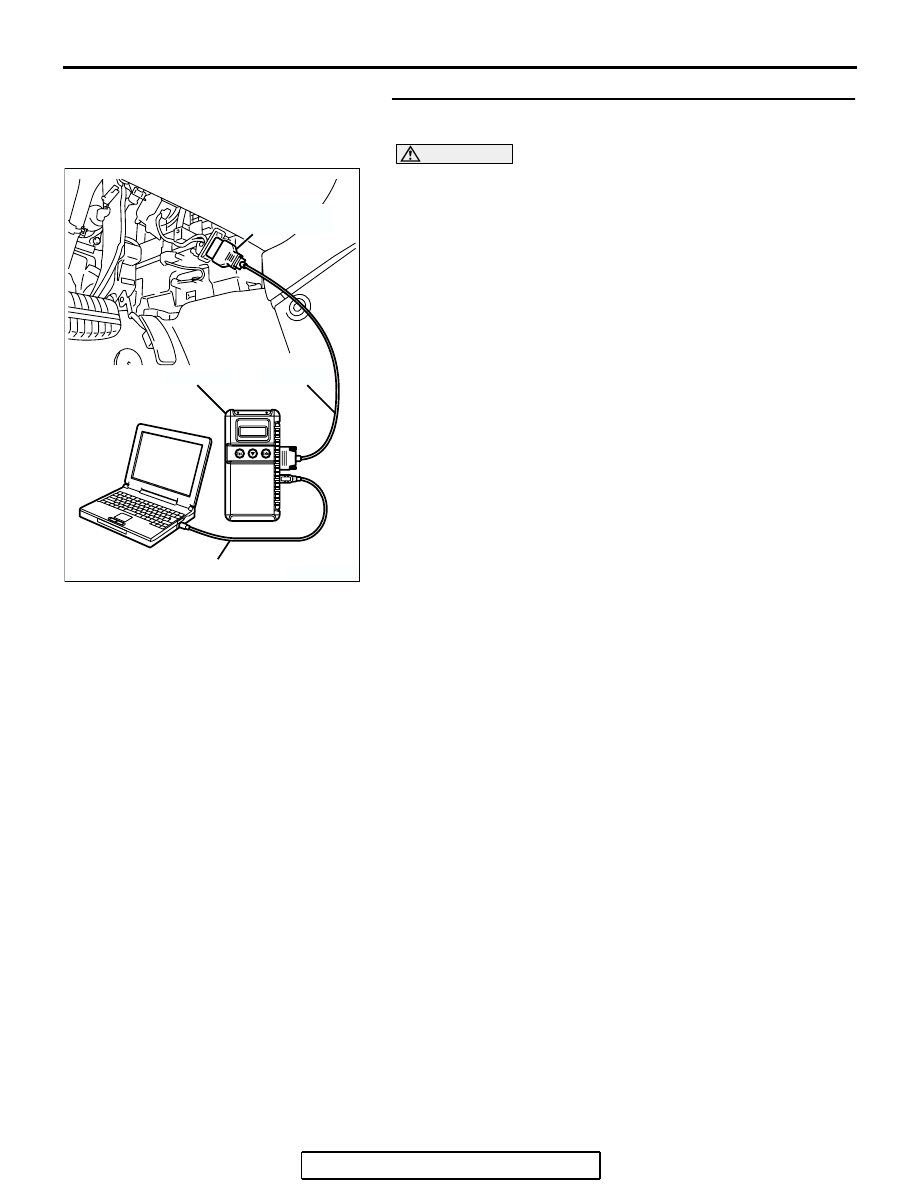

STEP 8. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK"(OFF) position.
Q: Is DTC P0123 set?

YES : Retry the troubleshooting.
NO : The inspection is complete.

AK303804AB

MB991910

DATA LINK
CONNECTOR

MB991824

MB991827

MULTIPORT FUEL INJECTION (MFI) DIAGNOSIS

TSB Revision

MULTIPORT FUEL INJECTION (MFI) <2.4L ENGINE>

13A-177

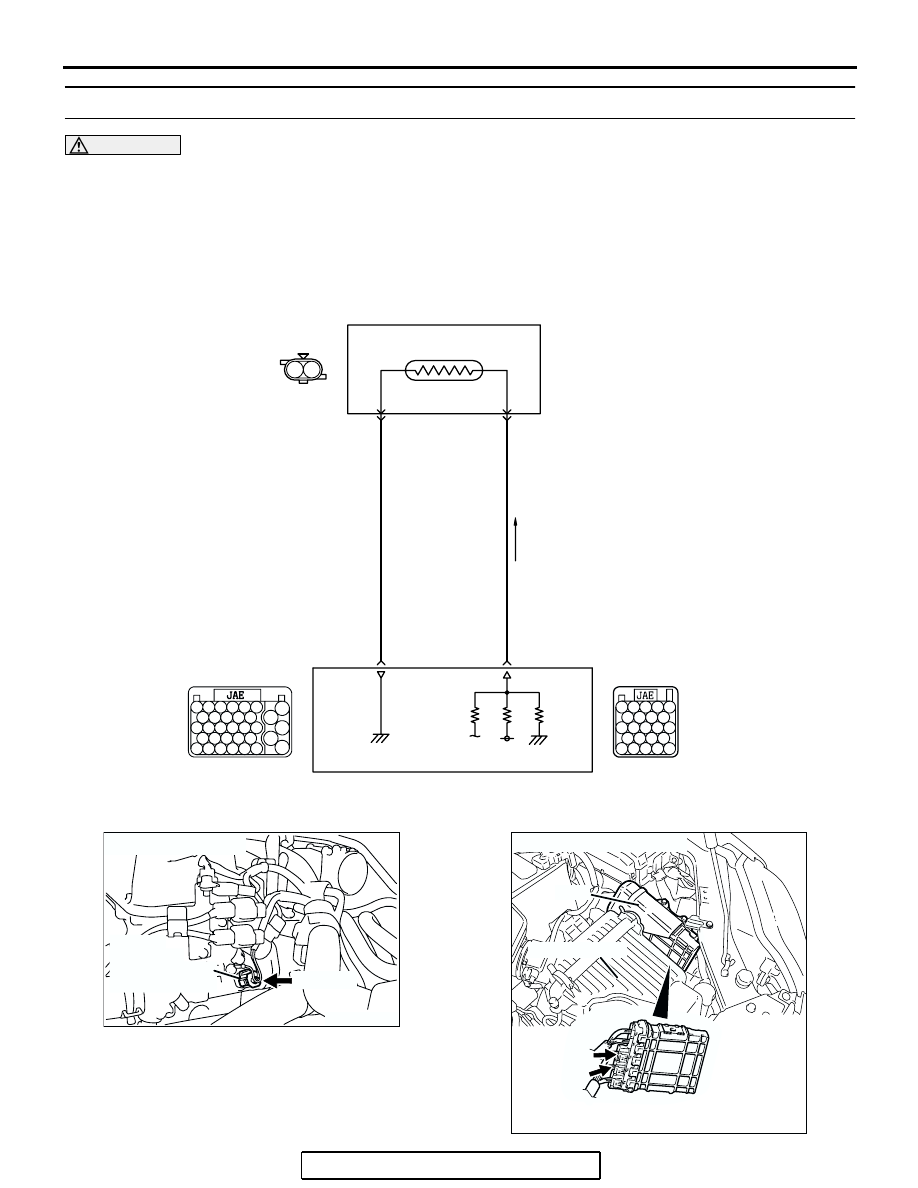

DTC P0125: Insufficient Coolant Temperature for Closed Loop Fuel Control

CAUTION

If DTC P0125 has been set, TCL related DTC
U1120 is also set. After P0125 has been diag-
nosed, don't forget to erase DTC U1120.

1 2

53 54 55 56

58 59 60 61 62

64 65 66 67 68 69

71 72 73 74 75

77 78 79 80 81 82

100

93 94 95

96 97 98

101 102 103 104

105 106 107 108

109 110 111 112 113

AK303813

YELLO

-GREEN

BLA

ENGINE COOLANT
TEMPERATURE SENSOR

POWERTRAIN CONTROL MODULE (PCM)

5 V

B-104

(MU802406)

Engine Coolant Temperature Sensor Circuit

B-21

B-22

AK303814

ENGINE
COOLANT
TEMPERATURE
SENSOR

CONNECTOR: B-104

B-104 (B)

AK303013

CONNECTORS: B-21, B-22

PCM

AIR CLEANER

B-22 (B)

B-21 (B)
