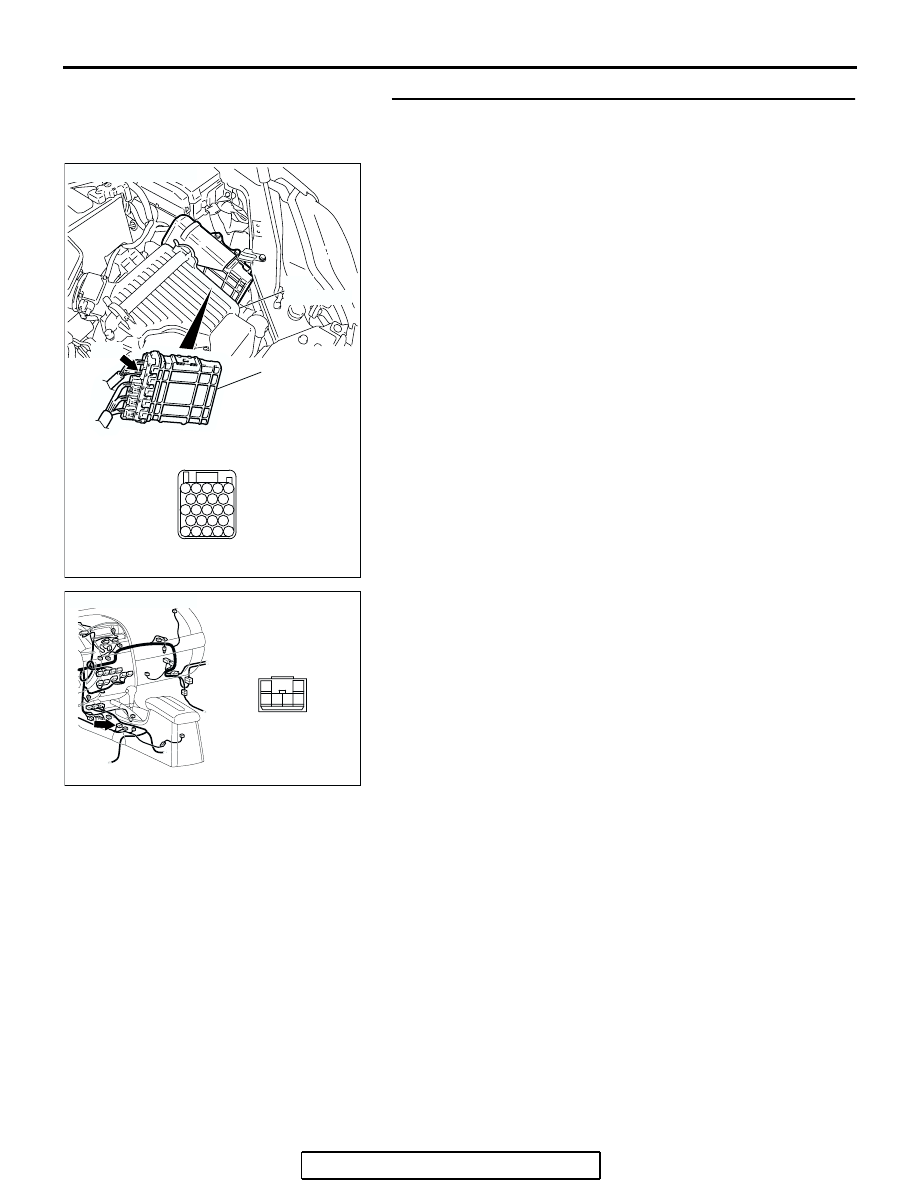

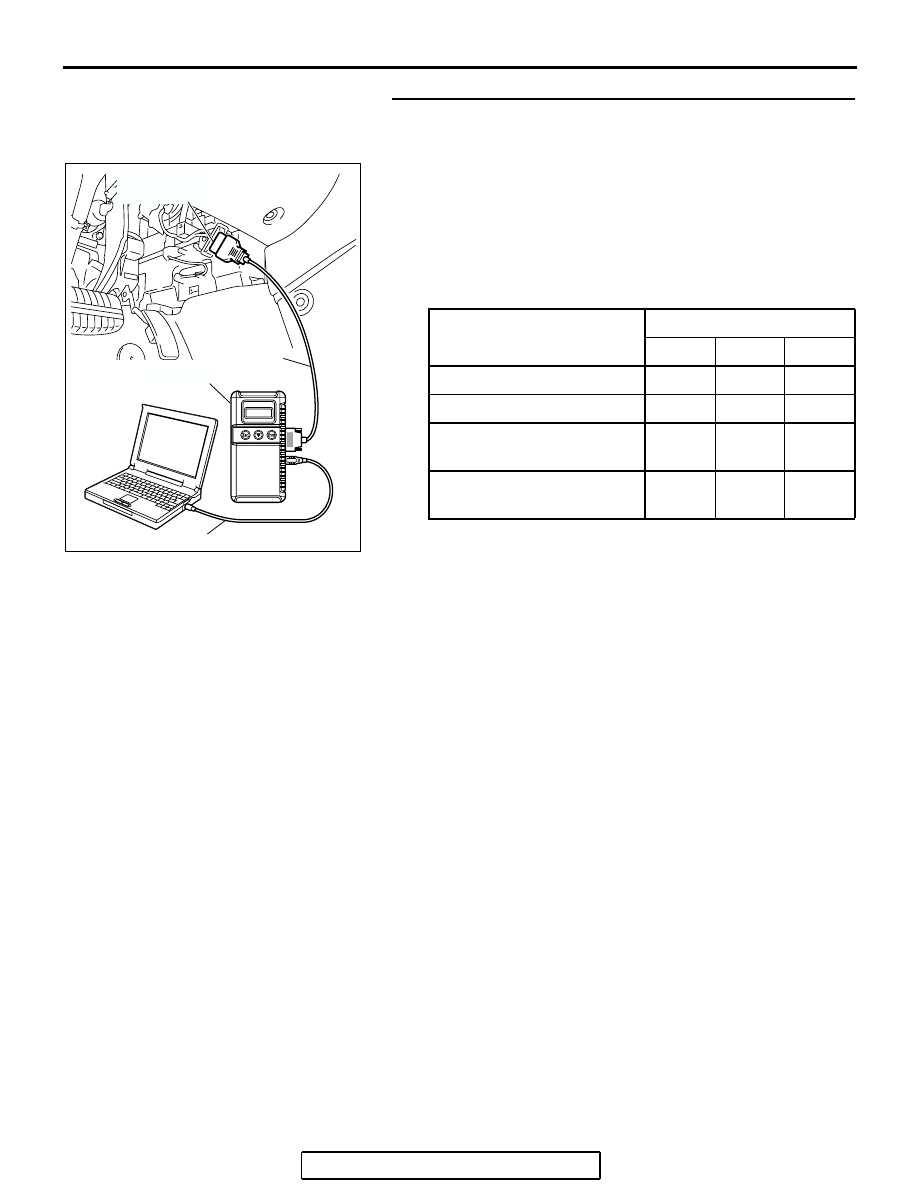

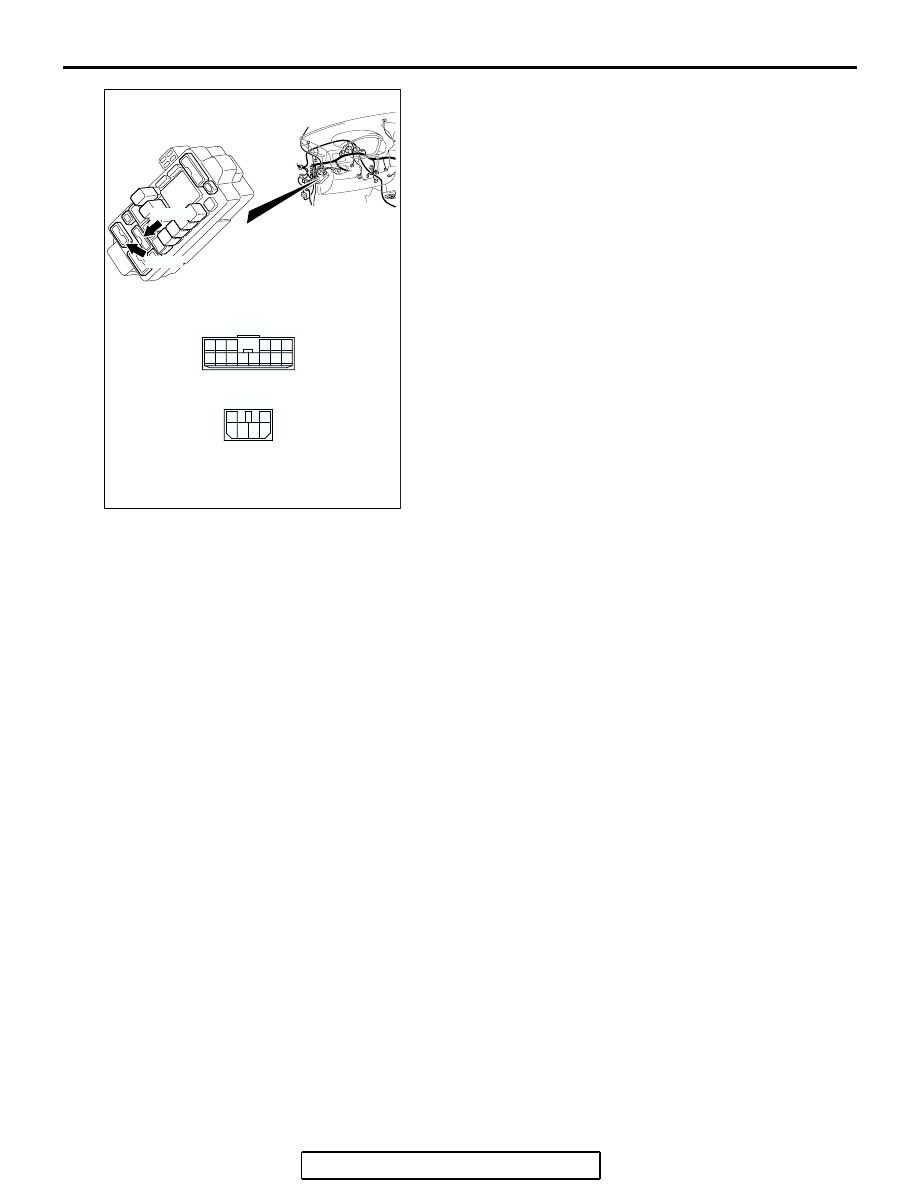

AUTOMATIC TRANSAXLE DIAGNOSIS TSB Revision AUTOMATIC TRANSAXLE 23A-318 . CIRCUIT OPERATION If the select switch of the shift switch assembly is set . COMMENT When sport mode shift does not operate the cause is . TROUBLESHOOTING HINTS (THE MOST • Malfunction of the transmission range switch • Malfunction of the shift switch assembly select switch • Malfunction of the shift switch assembly shift switch (Up) • Malfunction of the shift switch assembly shift switch (Down) • Damaged harness or connector • Malfunction of the PCM AC207134 C-214 C-215 CONNECTORS: C-214, 215 AO 1 3 4 2 6 5 C-214 C-215 6 1 7 2 9 8 10 3 5 12 11 4 1314 |
