AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-26

22

Input shaft
speed sensor
system
(

P.23A-69

).

23

Output shaft
speed sensor
system
(

P.23A-90

).

8

Use the scan
tool MB991958
(MUT-III sub
assembly) to
stop the
INVECS-II
function
Transmission
range: D (on a
flat and straight
road)

(1) Accelerate from
1st gear to 4th gear.
(2) While driving at
60 km/h (37 mph) in
4th gear, downshift to
3rd gear
(3) While driving at
40 km/h (25 mph) in
3rd gear, downshift to
2nd gear
(4) While driving at
20 km/h (12 mph) in
2nd gear, downshift
to 1st gear

Data list No.63
(1) 1st

→ 2nd → 3rd

→ 4th

(2) 4th

→ 3rd

(3) 3rd

→ 2nd

(4) 2nd

→ 1st

Does not
shift from 1
to 2 or 2 to
1

31

Low-reverse
solenoid valve
system
(

P.23A-187

).

33

Second
solenoid valve
system
(

P.23A-211

).

41

1st gear
incorrect ratio
(

P.23A-245

).

42

2nd gear
incorrect ratio
(

P.23A-245

).

Does not
shift from 2
to 3 or 3 to
2

33

Second
solenoid valve
system
(

P.23A-211

).

34

Overdrive
solenoid valve
system
(

P.23A-222

).

42

2nd gear
incorrect ratio
(

P.23A-245

).

43

3rd gear
incorrect ratio
(

P.23A-245

).

STEP

CONDITION
BEFORE
TEST/OPERATION

TEST/OPERATION

STANDARD

INSPECTION
ITEM

DTC

INSPECTION
PROCEDURE
PAGE

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-27

Does not
shift from 3
to 4 or 4 to
3

32

Underdrive
solenoid valve
system
(

P.23A-200

).

33

Second
solenoid valve
system
(

P.23A-211

).

43

3rd gear
incorrect ratio
(

P.23A-245

).

44

4th gear
incorrect ratio
(

P.23A-245

).

9

Transmission
range: N (on a
flat and straight
road)

Monitor data list
No.22 and No.23
with the scan tool
MB991958 (MUT-III
sub assembly)
(1) Move selector
lever to R range,
drive at constant
speed of 10 km/h
(6.2 mph)

The ratio between
data list No.22 and
No.23 should be the
same as the gear
ratio when reversing.

Does not
match

22

Input shaft
speed sensor
system
(

P.23A-69

).

23

Output shaft
speed sensor
system
(

P.23A-90

).

46

Reverse gear
incorrect ratio
(

P.23A-245

).

STEP

CONDITION
BEFORE
TEST/OPERATION

TEST/OPERATION

STANDARD

INSPECTION
ITEM

DTC

INSPECTION
PROCEDURE
PAGE

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-28

TORQUE CONVERTER STALL TEST

M1231005400362

This test measures the maximum engine speed when the
selector lever is in the "D" or "R" position and the torque con-
verter stalls. This tests the operation of the torque converter,
stator and one-way clutch operation, as well as the holding per-
formance of the clutches and brakes in the transaxle.

WARNING

Do not let anyone stand in front of or behind the vehi-
cle while this test is performed.

1. Check the transmission fluid level and temperature. Check

the engine coolant temperature.

• Transmission fluid level: At the "HOT" mark on the dipstick

• Transmission fluid temperature: 70 − 80°C (158 − 176°F)

• Engine coolant temperature: 80 − 100°C (176 − 212°F)

NOTE: Measures transmission fluid temperature with scan
tool MB991958 (MUT-III sub assembly).

2. Chock both rear wheels.
3. Connect a tachometer.
4. Apply the parking and service brakes fully.
5. Start the engine.

CAUTION

• The throttle should not be fully open for any more than

five seconds.

• If you repeat the stall test when the transmission fluid

temperature is greater than 80

°C (176°F), move the

selector lever to the "N" position and let the engine run
at approximately 1,000 r/min for at least one minute.
Wait until the transmission fluid temperature returns to
80

°C (176°F) or less.

6. Move the selector lever to the "D" position. Fully depress the

accelerator pedal and read the maximum engine speed.

Standard value: Stall speed: 2,300

 2,800 r/min

7. Move the selector lever to the "R" position. Fully depress the

accelerator pedal and read the maximum engine speed.

Standard value: Stall speed: 2,300

 2,800 r/min

TORQUE CONVERTER STALL  TEST  JUDGMENT
RESULTS

1. Stall speed is too high in both "D" and "R" range

• Malfunction of the torque converter (Slippage on the splines

of the torque converter and the input shaft)

• Low line pressure

• Low-reverse brake slippage and malfunction of the one-way

clutch

2. Stall speed is too high in "D" range only

• Underdrive clutch slippage

3. Stall speed is too high in "R" range only

• Reverse clutch slippage

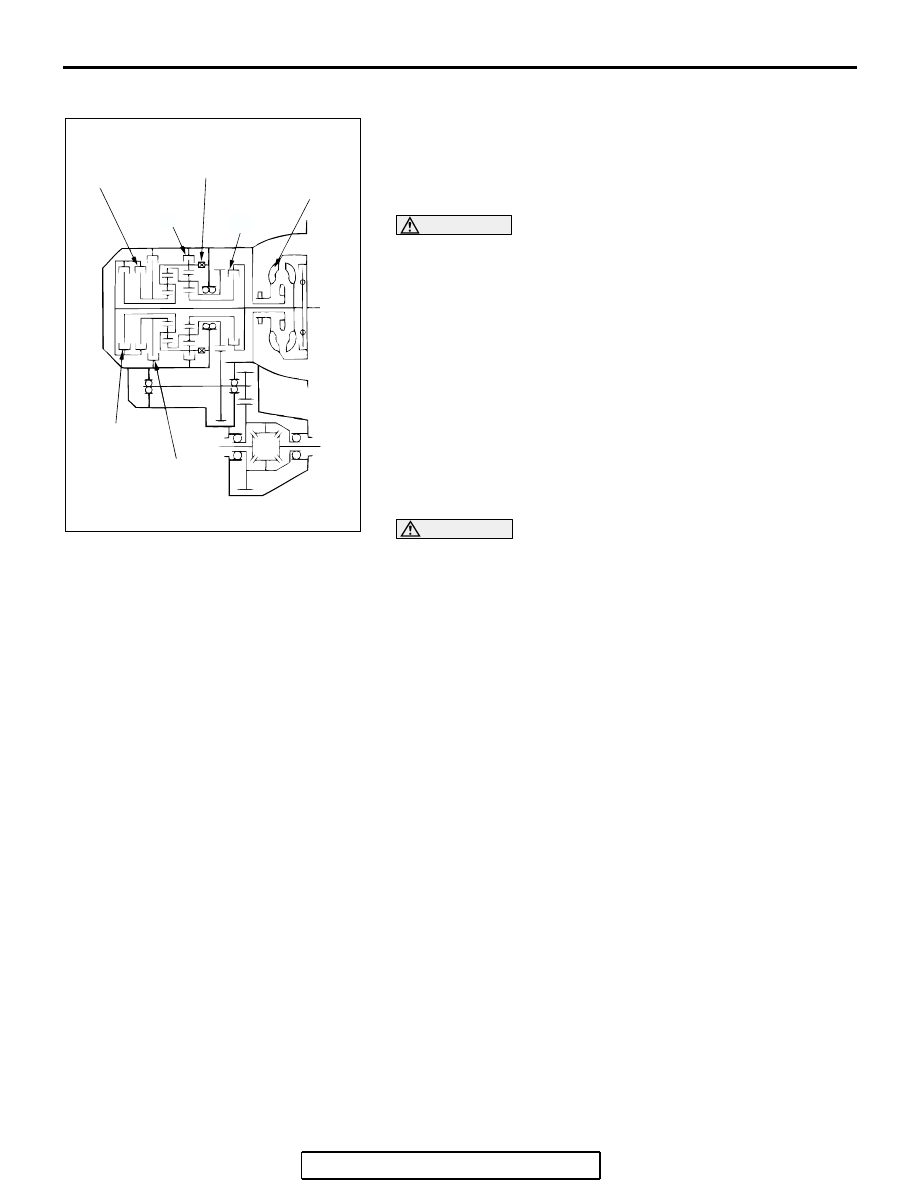

AC001824 AB

REVERSE
CLUTCH

LOW-
REVERSE
BRAKE

ONE-WAY
CLUTCH

UNDER-
DRIVE
CLUTCH

TORQUE
CONVERTER

OVERDRIVE
CLUTCH

SECOND
BRAKE

AUTOMATIC TRANSAXLE DIAGNOSIS

TSB Revision

AUTOMATIC TRANSAXLE

23A-29

4. Stall speed is too low in both "D" and "R" ranges

• Malfunction of the torque converter (Slippage of the

one-way clutch)

• Insufficient engine output

HYDRAULIC PRESSURE TESTS

M1231005500392

CAUTION

The transmission fluid temperature should be between 70
 80°C (158  176°F) during the test.
1. Check the transmission fluid level and temperature. Check

engine coolant temperature.

• Transmission fluid level: "HOT" mark on the dipstick

• Transmission fluid temperature: 70 − 80°C (158 − 176°F)

• Engine coolant temperature: 80 − 100°C (176 − 212°F)

2. Raise the vehicle so that the wheels are free to turn.
3. Connect the special tools (3.0 MPa (427 psi) oil pressure

gauge [MD998330] and adapters [MD998332, MD998900])
to each pressure discharge port.
NOTE:

.

2ND: Second brake pressure port

UD: Underdrive clutch pressure port

LR: Low-reverse brake pressure port

DR: Torque converter release pressure port

DA: Torque converter apply pressure port

RV: Reverse clutch pressure port

OD: Overdrive clutch pressure port

4. Restart the engine.
5. Check that there are no leaks around the special tool port

adapters.

6. Measure the hydraulic pressure at each port under the

conditions given in the standard hydraulic pressure table,
and check that the measured values are within the standard
value ranges.

7. If the pressure is not within the standard value, stop the

engine and refer to the hydraulic pressure test diagnosis
table.

8. Remove the O-ring from the port plug and replace it.
9. Remove the special tool, and install the plugs to the

hydraulic pressure ports.

10.Start the engine and check that there are no leaks around

the plugs.

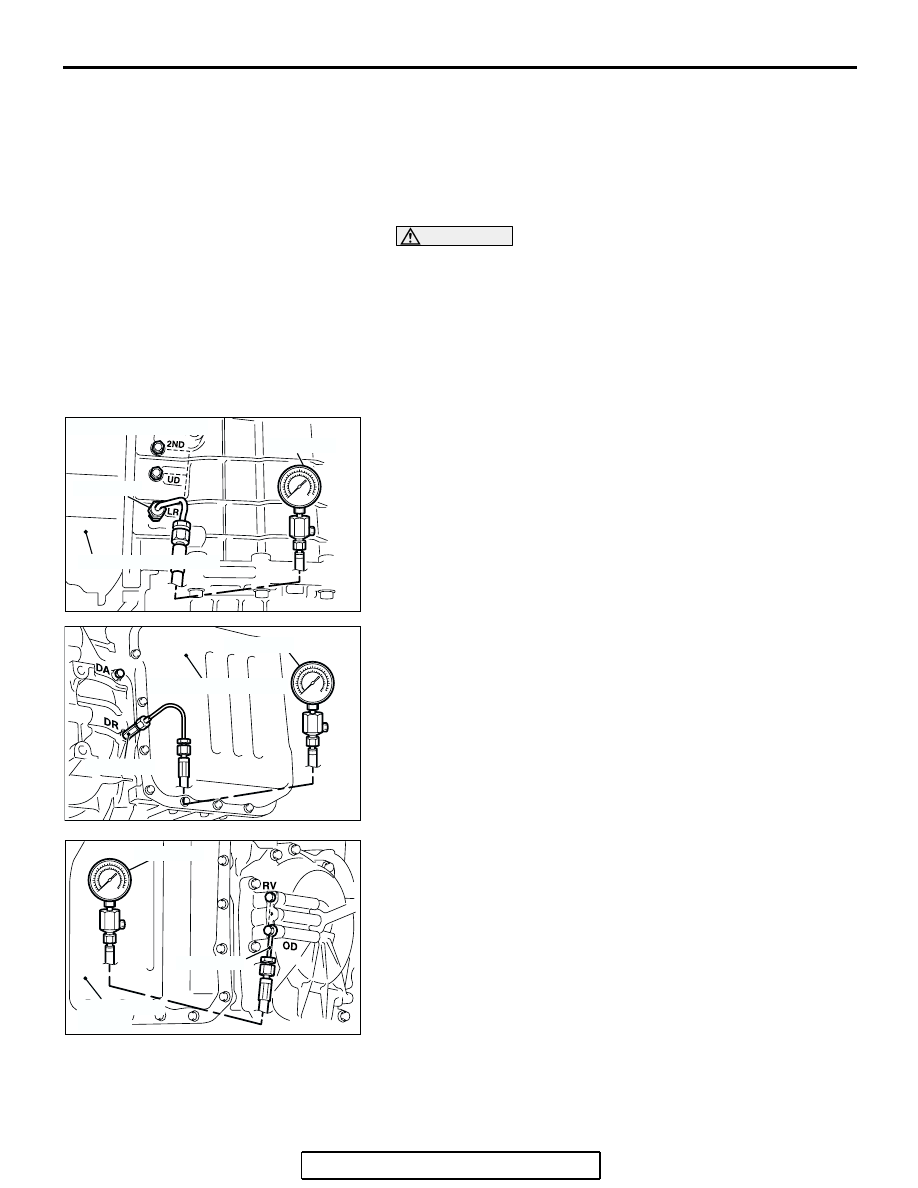

AC006150

<UNDER SIDE VIEW>

VALVE BODY COVER

MD998332

MD998330

AB

AC006149

MD998332

MD998330

VALVE BODY COVER

AB

AC006151AB

MD998900

MD998330

VALVE BODY
COVER
