GENERAL DESCRIPTION

TSB Revision

PARKING BRAKES

36-2

GENERAL DESCRIPTION

M1361000100344

The parking brakes are a mechanical rear wheel
brake design and controlled by a lever.

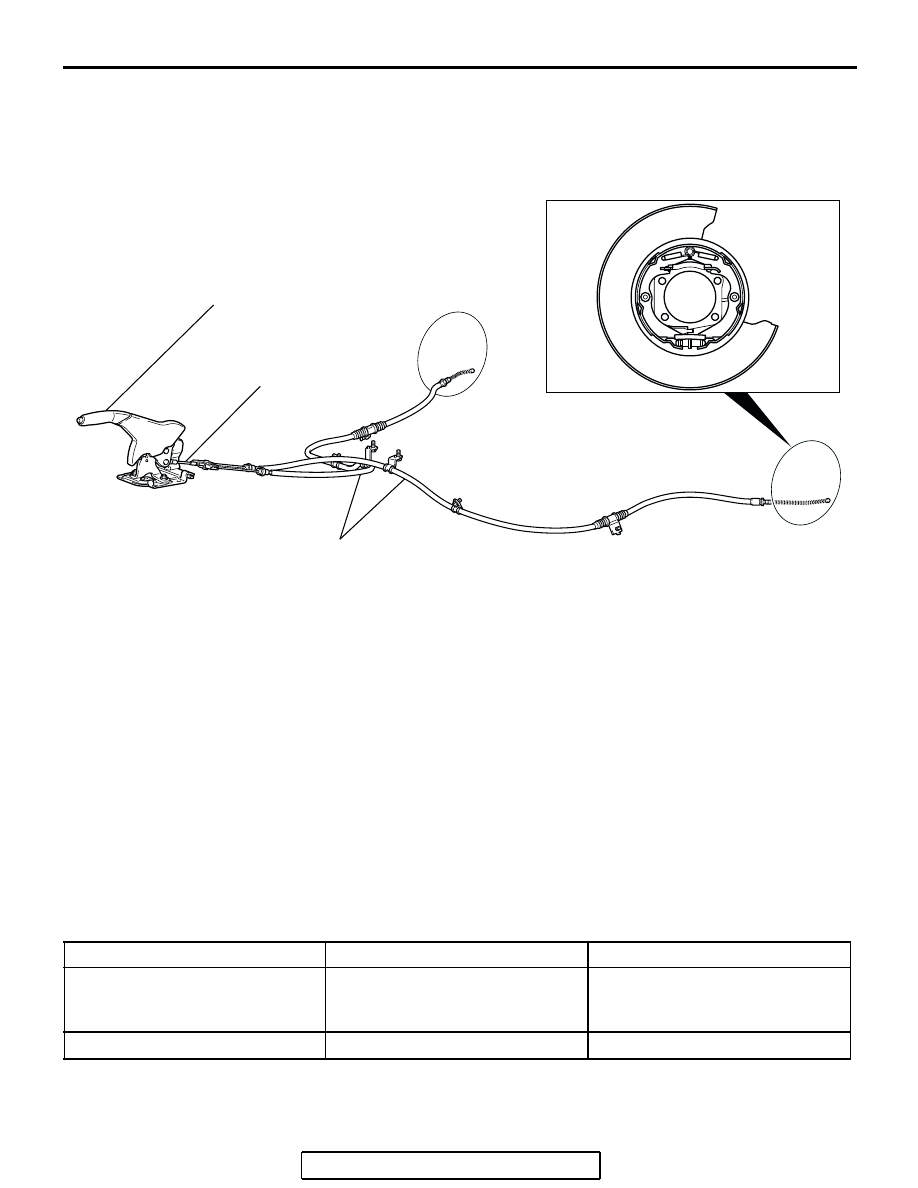

CONSTRUCTION DIAGRAM

PARKING BRAKE DIAGNOSIS

INTRODUCTION

M1361003700282

If the parking brake is faulty, parking brake effort will
become insufficient. The cause may be a malfunc-
tion of parking brake parts or the parking brake pedal
being out of adjustment.

TROUBLESHOOTING STRATEGY

M1361003800290

Use these steps to plan your diagnostic strategy. If
you follow them carefully, you will be sure that you
have exhausted most of the possible ways to find a
parking brakes fault.
1. Gather Information from the customer.

2. Verify that the condition described by the

customer exists.

3. Find the malfunction by following the Symptom

Chart.

4. Verify malfunction is eliminated.

SYMPTOM CHART

M1361004100302

AC306017

AC206222

AB

PARKING BRAKE LEVER

REAR PARKING BRAKE CABLE

FRONT PARKING BRAKE CABLE

SYMPTOM

INSPECTION PROCEDURE

REFERENCE PAGE

Brake drag

−

Refer to GROUP 35A, Basic Brake
System Diagnosis

− Symptom

Chart

P.35A-6

.

Insufficient parking brake function 1

P.36-3

ON-VEHICLE SERVICE

TSB Revision

PARKING BRAKES

36-3

SYMPTOM PROCEDURES

INSPECTION PROCEDURE 1: Insufficient Parking Brake Function

DIAGNOSIS

STEP 1. Check the excessive parking brake lever
stroke.
 Refer to

P.36-3

.

Q: Is  the parking  brake lever stroke  adjusted

properly?
YES :

Go to Step 2.

NO :

Adjust the parking brake lever stroke or
check the parking brake cable routing. Then
go to Step 5.

STEP 2. Check the parking brake cable for
sticking.

Q: Is the parking brake cable stuck?

YES :

Replace the cable. Then go to Step 5.

NO :

Go to Step 3.

STEP 3. Check the brake lining and brake drum
for wear.
 Refer to

P.36-11

.

Q: Is the brake lining thickness or brake drum inside

diameter outside of specification?
YES :

Replace the rear brake shoe assembly or
rear brake disc (Refer to

P.36-8

). Then go to

Step 5.

NO :

Go to Step 4.

STEP 4. Check for oil, water, etc., on the lining
contact surfaces.

Q: Is oil, water, etc., on the lining contact surface?

YES :

Replace the part and determine and repair
source/cause of foreign material. Then go to
Step 5.

NO :

Carry out the parking brake lining seating
(Refer to

P.36-5

) and then go to Step 5.

STEP 5. Retest the system.

Q: Is the malfunction eliminated?

YES :

The procedure is complete.

NO :

Recheck from Step 1.

ON-VEHICLE SERVICE

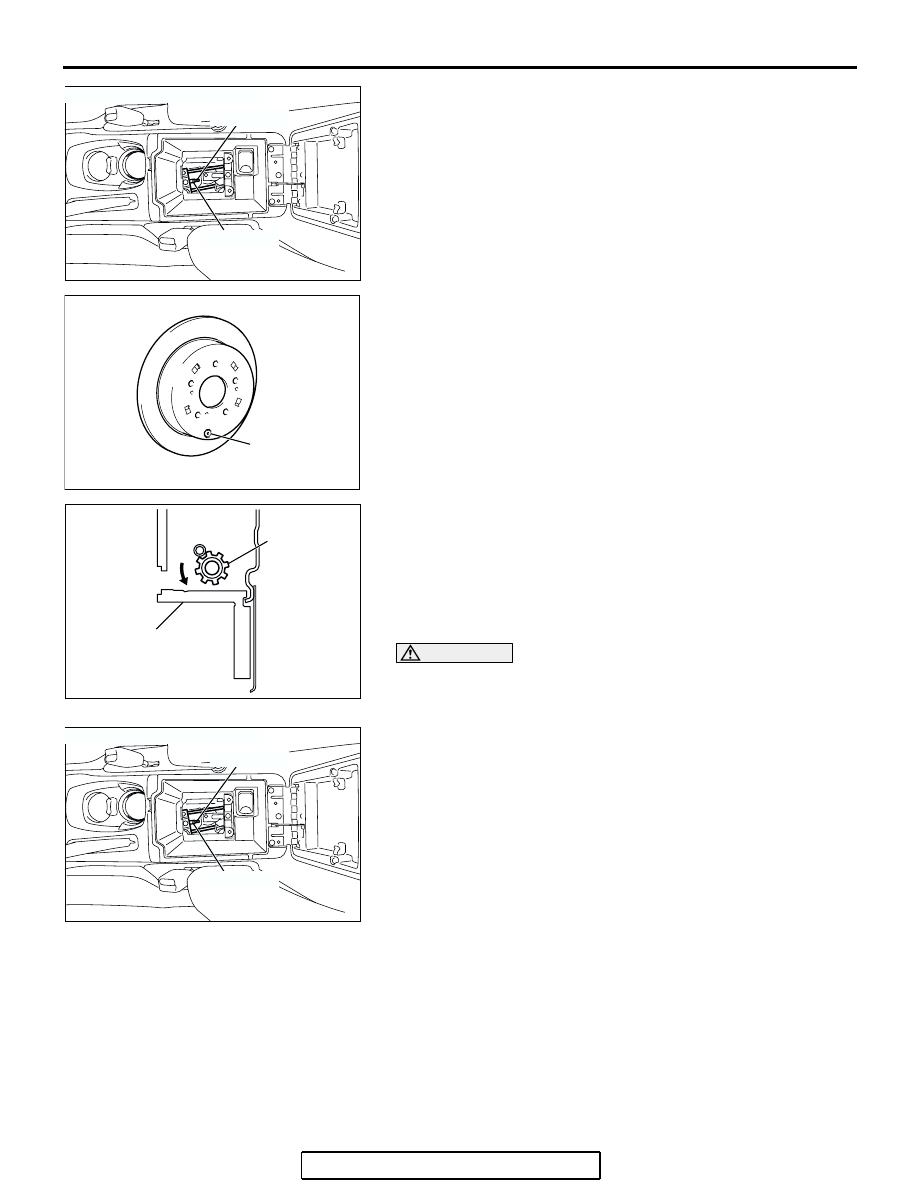

PARKING BRAKE LEVER STROKE CHECK AND
ADJUSTMENT

M1361000900362

1. Pull the parking brake lever with a force of approximately

200 N (45 pounds) and count the number of notches.

Standard value: 5

− 7 notches

2. If the parking brake lever stroke is not within the standard

value, adjust as described below.

(1) Release the parking brake.

ON-VEHICLE SERVICE

TSB Revision

PARKING BRAKES

36-4

(2) Remove the console inner box tray and plate (Refer to

GROUP 52A, Floor Console Assembly

P.52A-9

), and

then loosen the adjusting nut to move it to the cable rod
end so that the cable will be free.

(3) Remove the rear wheels, and then remove the

adjustment hole plug on the brake disc.

(4) Use a flat-tip screwdriver to turn the adjuster in the

direction of the arrow (the direction which expands the
shoe) so that the disc will not rotate by hand. Return the
adjuster five notches in the direction opposite to the
direction of the arrow.

(5) Install the rear wheels, and then tighten the wheel nuts to

98

± 10 Nm (73 ± 7 ft-lb).

CAUTION

Be careful that the parking brake lever stroke should be
within the standard value. If the stroke is too short, brake
dragging can be caused.

(6) Turn the adjusting nut to adjust the parking brake lever

stroke to the standard value. After adjustment, check that
the adjust nut and the cable rod is not loose.

(7) Release the parking brake and turn the rear wheels to

check that the rear brakes are not dragging.

3. If either of the parking brake cables is replaced, adjust the

parking brake lever stroke as described previously, pull the
parking brake lever 10 times with approximately 200 N (45
pounds) to eliminate the initial slack of the cable. Then
adjust the parking brake lever stroke as described
previously again.

AC306061AB

<INSIDE THE FLOOR CONSOLE>

ADJUSTING
NUT

CABLE ROD

AC209383AB

ADJUSTMENT
HOLE PLUG

AC206725 AB

ADJUSTER

BRAKE DISC

AC306061AB

<INSIDE THE FLOOR CONSOLE>

ADJUSTING
NUT

CABLE ROD

ON-VEHICLE SERVICE

TSB Revision

PARKING BRAKES

36-5

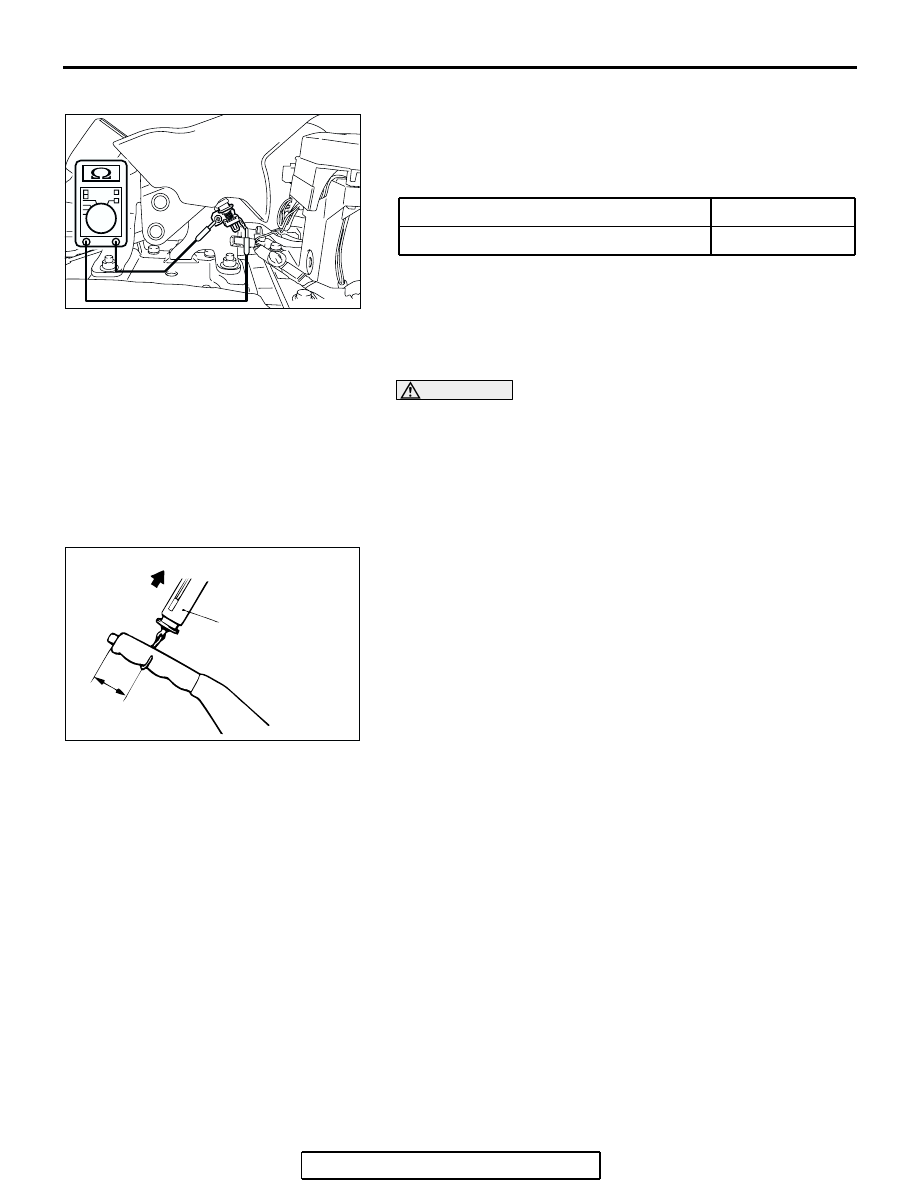

PARKING BRAKE SWITCH CHECK

M1361003300411

1. Remove the floor console. (Refer to GROUP 52A, Floor

Console

P.52A-9

.)

2. Check for continuity between the parking brake switch

terminal and the switch mounting bolt.

PARKING BRAKE LINING SEATING PROCEDURE

M1361001100262

CAUTION

Perform lining seating in a place with good visibility, and
pay careful attention to safety.
Perform lining seating by the following procedure when replac-
ing the parking brake shoe assemblies or the rear brake discs,
or when brake performance is insufficient.
1. Adjust the parking brake lever stroke to the standard value

(Refer to

P.36-3

).

2. Hook a spring scale onto the center of the parking brake

lever grip and pull it with a force of 98

− 147 N (22 − 33

pounds) in a direction perpendicular to the handle.

3. Drive the vehicle at a constant speed of 35

− 50 km/h (22 −

31 mph) for 100 meters (328 feet).

4. Release the parking brake and let the brakes cool for five to

ten minutes.

5. Repeat the procedure in steps 2. to 4. four to five times.

When parking brake pedal is pulled

2 ohms or less

When parking brake pedal is released

Open circuit

AC306064AB

ACX00701AC

SPRING SCALE

PULL

APPROXIMATELY
40 mm (1.6 in)
