DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-36

DISASSEMBLY AND ASSEMBLY  <REAR>

M1351008200076

AC308038

1

AB

1

PAD SET

2

2

CLIP SET

3

SHIM SET

3

3

3

44 ± 5 N·m
32 ± 4 ft-lb

4

4

4

5

N

6

CALIPER KIT

5

6

1

2

2

3

3

8

7

N

7

N

7

8

N

9

N

10

11

N

12

14

13

7.9 ± 0.9 N·m
70 ± 8 in-lb

14

13

7

7

7

10

9

12

5

CALIPER SEAL KIT

9

10

11

12

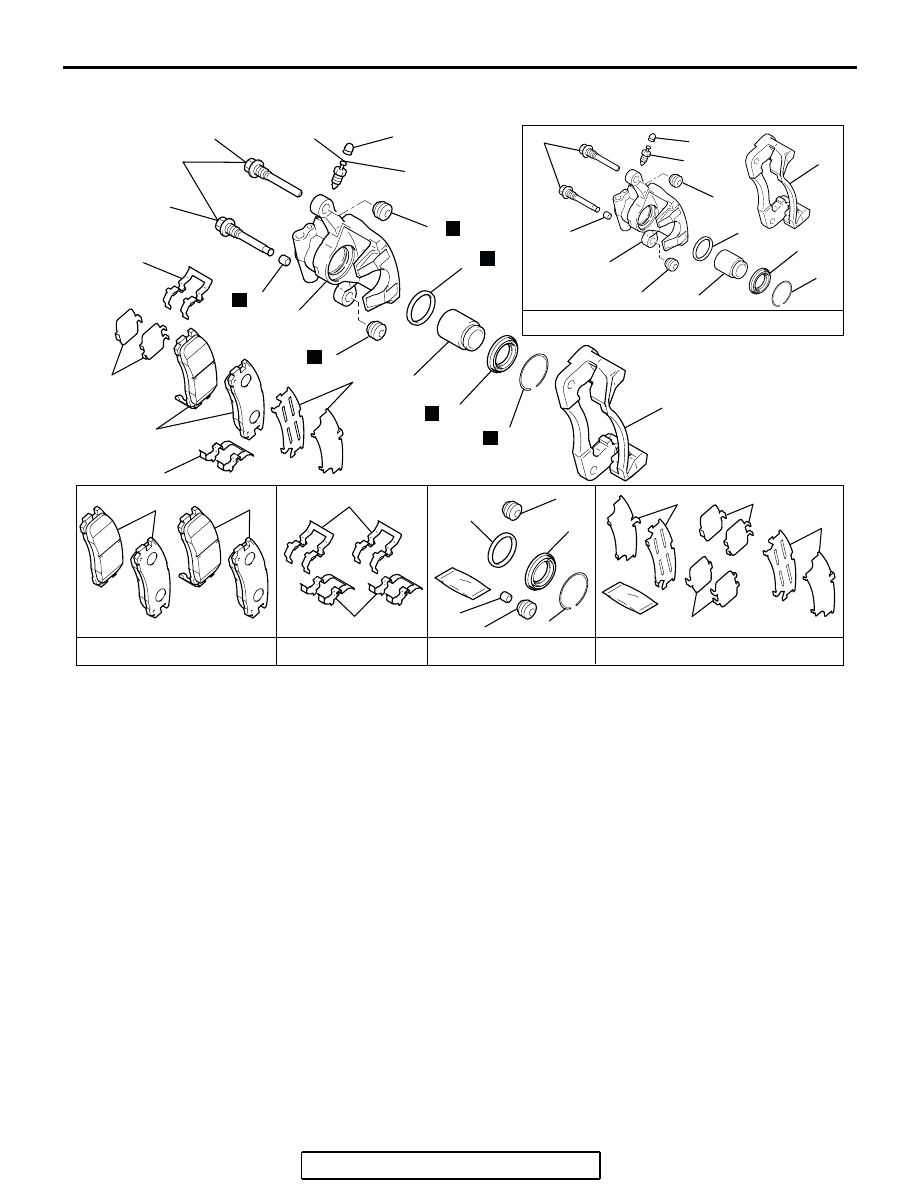

DISASSEMBLY STEPS

1. PAD (AND  WEAR INDICATOR)

ASSEMBLY

2. CLIP
3. SHIM

>>A<<

4. REAR BRAKE  PIN
5. REAR BRAKE  BUSHING
6. CALIPER BODY
7. PIN BOOT

8. CALIPER SUPPORT
9. BOOT RING

<<A>>

10. PISTON BOOT

<<A>>

11. CALIPER PISTON

<<B>>

12. PISTON SEAL
13. REAR BRAKE CAP
14. CALIPER BLEEDER

DISASSEMBLY STEPS (Continued)

DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-37

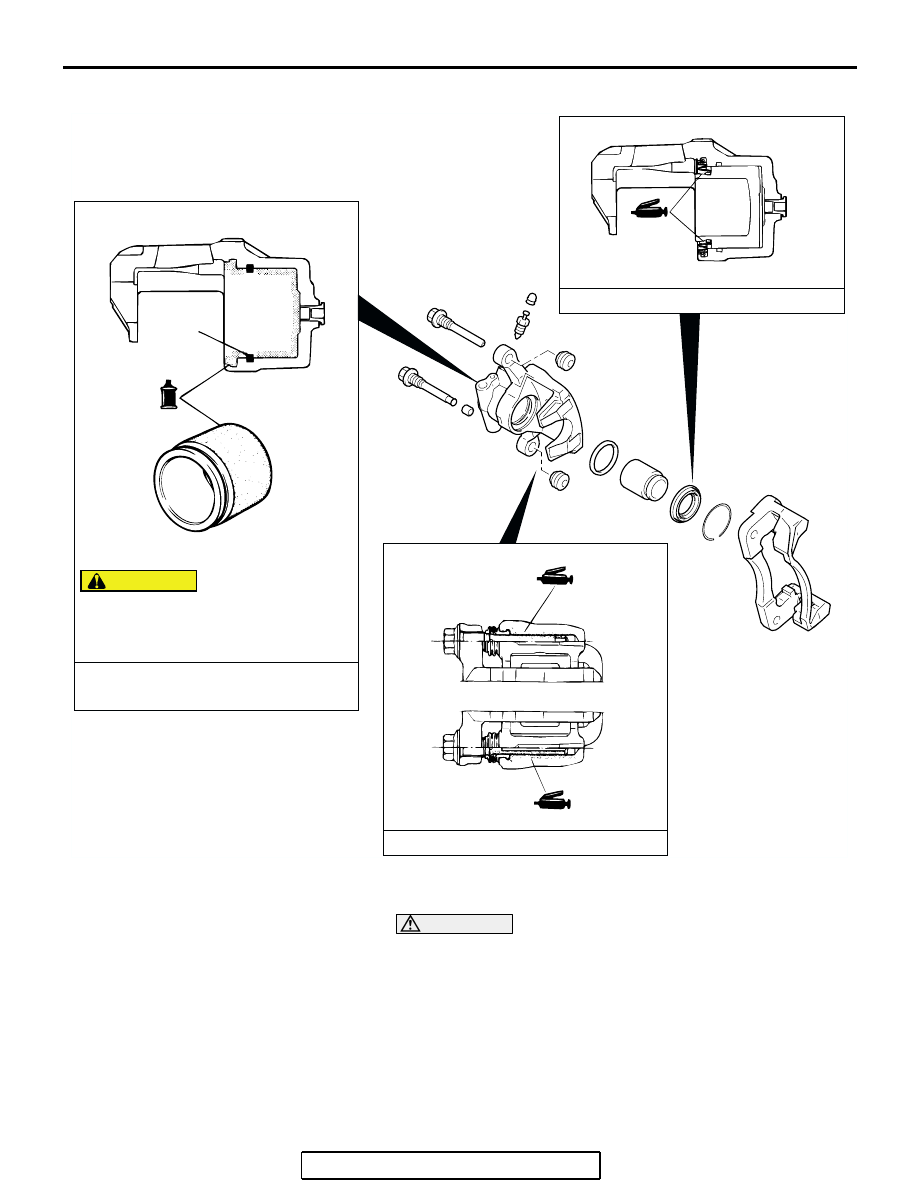

LUBRICATION POINTS

DISASSEMBLY SERVICE POINTS

CAUTION

When disassembling the disc brakes, disassemble both
sides (left and right) as a set.

.

AC308045AB

PISTON
SEAL

BRAKE FLUID: DOT3 OR DOT4

GREASE: REPAIR KIT GREASE

GREASE: REPAIR KIT GREASE

THE PISTON SEAL INSIDE THE CALIPER
SEAL KIT IS COATED WITH
SPECIAL GREASE. DO NOT WIPE
THIS GREASE OFF.

CAUTION

DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-38

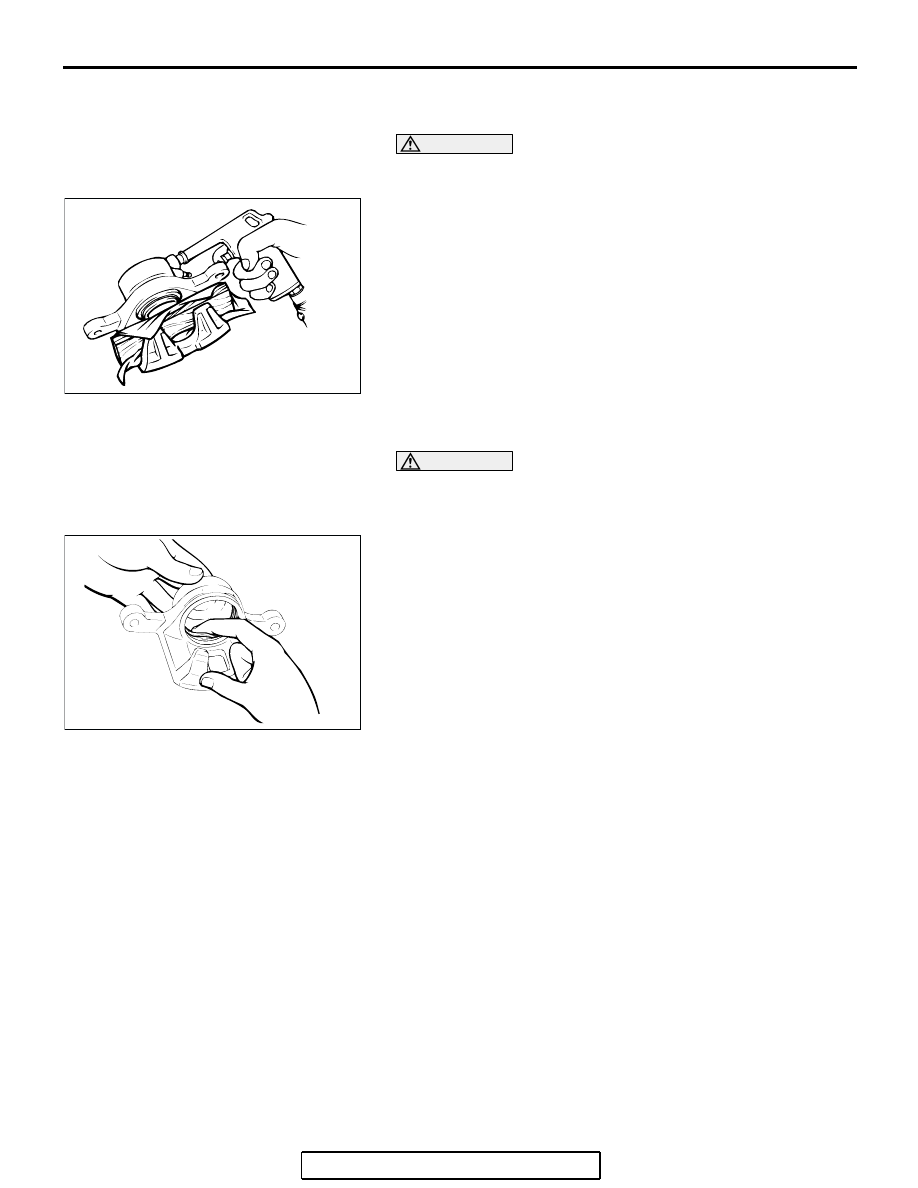

<<A>> PISTON BOOT/CALIPER PISTON
REMOVAL

CAUTION

Blow air little by little to remove the piston. The piston will
pop out if a force  of air is applied suddenly.
Place a piece of wood, etc. against the caliper body as shown.
Blow compressed air through the brake hose connection hole
to remove the piston boot and piston.

.

<<B>> PISTON SEAL REMOVAL

CAUTION

Do not use a flat-tipped screwdriver or similar tool to
remove piston seal. These may damage the inner side of
the cylinder.
1. Remove the piston seal with your finger tip.
2. Clean piston surface and inner cylinder with alcohol or brake

fluid DOT 3 or DOT 4.

ASSEMBLY SERVICE POINT

.

>>A<< REAR BRAKE PIN INSTALLATION

Attach a guide pin (with "g" on the bolt head) at the bleeder nip-
ple side of the caliper body and a lock pin (with "l" on the bolt
head) at the opposite side.

INSPECTION

M1351008300039

• Check the cylinder for wear, damage or rust.

• Check the piston surface for wear, damage or rust.

• Check the caliper body or sleeve for wear.

• Check the pad for damage or adhesion of grease, check the

backing metal for damage.

.

AC204331

AC204684

DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-39

PAD WEAR  CHECK

WARNING

Always replace both brake pads on each wheel as
a set (both front wheels or both rear wheels). Fail-
ure to do so will result in uneven braking, which
may cause unreliable brake operation.

If there is significant difference in the thickness of
the pads on the left and right sides, check the slid-
ing condition of the piston and slide pins.

1. Measure thickness at the thinnest and most worn area of the

pad.

Standard value: 10 mm (0.39 inch)
Minimum limit: 2.0 mm (0.08 inch)

2. Replace the pad assembly if pad thickness is less than the

limit value.

ACX00690
