DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-32

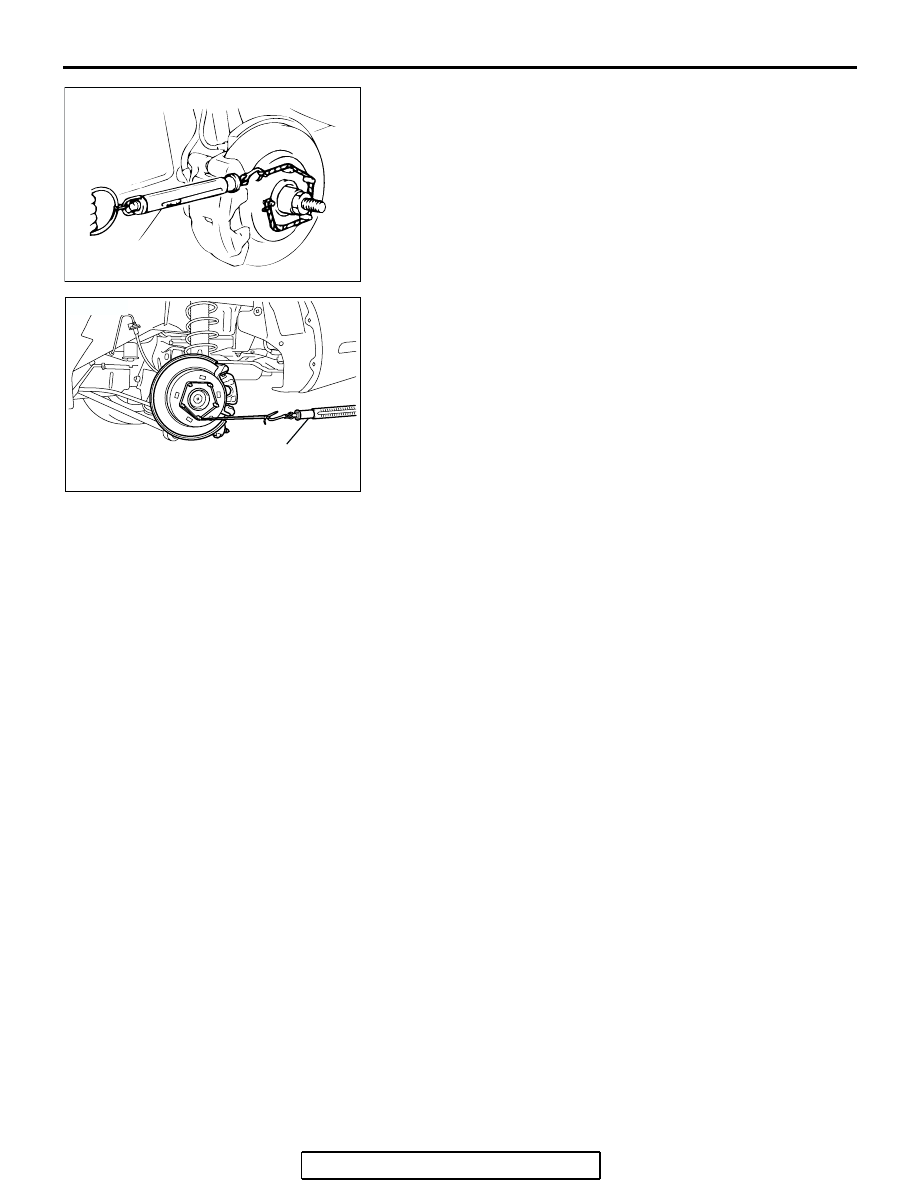

(4) Use a spring scale to measure the hub torque with pads

installed in the same direction as earlier.

(5) Calculate the drag force of the disc brake [difference

between hub torque with pads installed and hub torque
with pads removed].

Standard value:
<Front

−2.4L engine> 54 N (12 pounds) or less

<Front

−3.8L engine> 64 N (14 pounds) or less

<Rear> 54 N (12 pounds) or less

6. If the brake drag force exceeds the standard value,

disassemble and clean the piston. Check for corrosion or
worn piston seal, and check the sliding condition of the lock
pin and guide pin.

INSPECTION

M1351008100046

.

BRAKE DISC  CHECK

• Disc wear (Refer to

P.35A-20

).

• Disc run-out (Refer to

P.35A-20

).

AC000908

SPRING SCALE

AF

<FRONT>

AC305369

SPRING SCALE

AB

<REAR>

DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-33

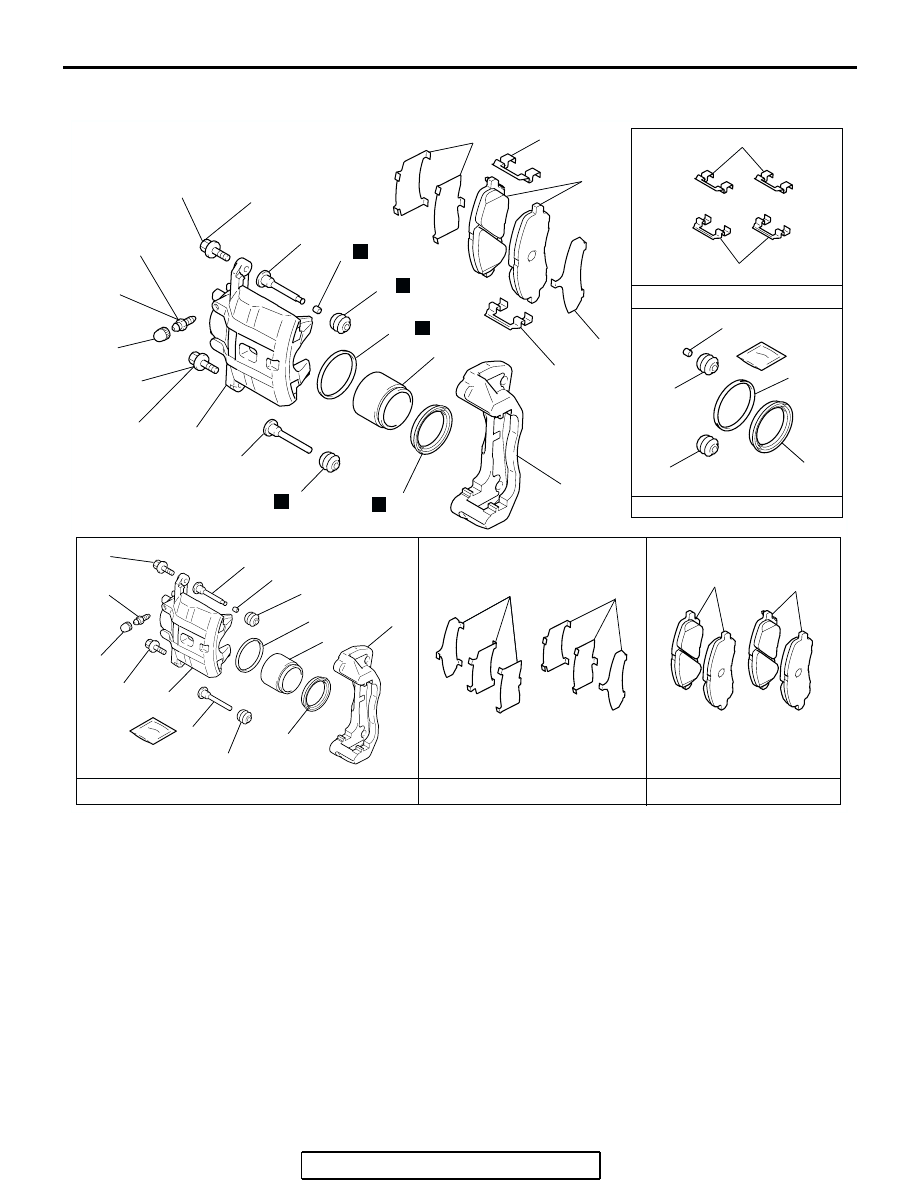

DISASSEMBLY AND ASSEMBLY  <FRONT>

M1351008200065

AC307374

CLIP SET

CALIPER SEAL KIT

CALIPER KIT

SHIM SET

PAD SET

9

9

11

4

N

12

4

1

N

1

12

N

38 ± 4 N·m
28 ± 3 ft-lb

3

3

9

9

13

2

2

AB

10

8

5

6

7

12

9

4

13

4

11

9

13

N

6

7

N

8

5

38 ± 4 N·m
28 ± 3 ft-lb

15

14

7.9 ± 1.9 N·m
70 ± 16 in-lb

10

1

3

2

2

3

7

15

14

DISASSEMBLY STEPS

1. PAD (AND  WEAR INDICATOR)

ASSEMBLY

2. CLIP
3. SHIM
4. FRONT BRAKE BOLT
5. CALIPER BODY
6. LOCK PIN
7. BUSH

8. GUIDE PIN
9. BOOT
10. CALIPER SUPPORT

<<A>>

11. CALIPER PISTON

<<A>>

12. PISTON BOOT

<<B>>

13. PISTON SEAL
14. CALIPER BLEEDER CAP
15. CALIPER BLEEDER

DISASSEMBLY STEPS (Continued)

DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-34

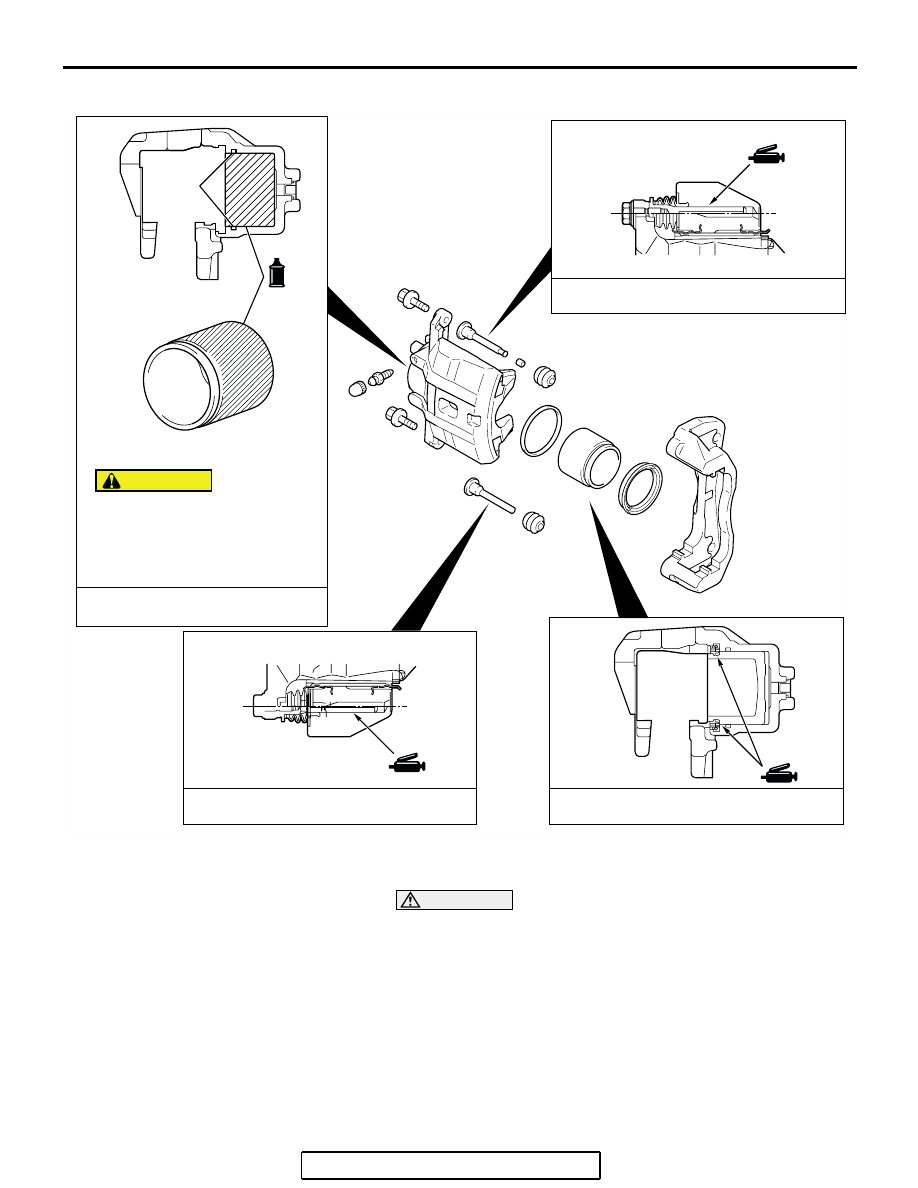

LUBRICATION POINTS

DISASSEMBLY SERVICE POINTS

CAUTION

When disassembling the front disc brakes, disassemble
both sides (left and right wheels) as a set.

.

AC307433

AB

GREASE: REPAIR KIT GREASE

GREASE: REPAIR KIT GREASE

BRAKE FLUID: DOT3 OR DOT4

THE PISTON SEAL INSIDE THE
CALIPER SEAL KIT IS COATED
WITH SPECIAL GREASE DO NOT
WIPE THIS GREASE OFF.

GREASE: REPAIR KIT GREASE

PISTON
SEAL

CAUTION

DISC BRAKE ASSEMBLY

TSB Revision

BASIC BRAKE SYSTEM

35A-35

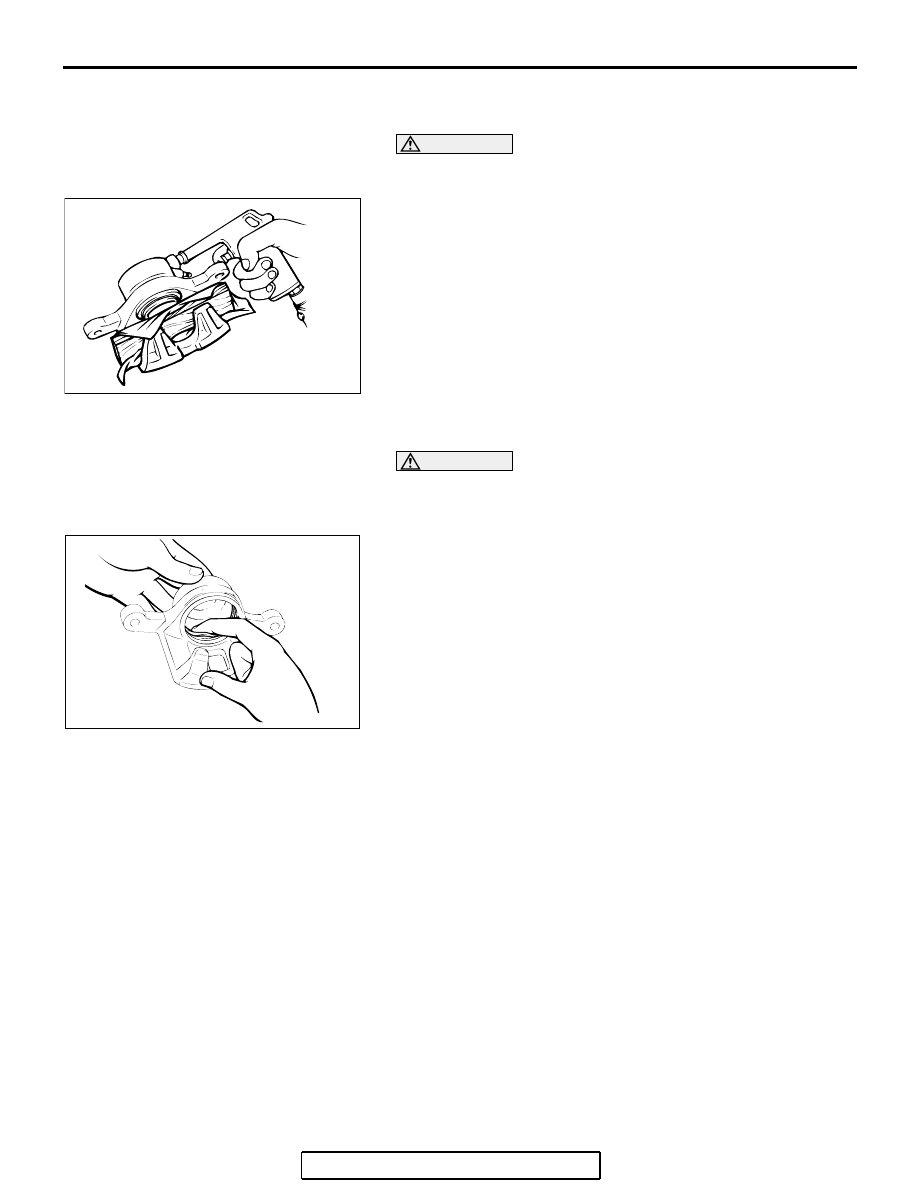

<<A>> CALIPER PISTON/PISTON BOOT
REMOVAL

CAUTION

Blow air little by little to remove the piston. The piston will
pop out if a force  of air is applied suddenly.
Place a piece of wood, etc. against the caliper body as shown.
Blow compressed air through the brake hose connection hole
to remove the piston boot and piston.

.

<<B>> PISTON SEAL REMOVAL

CAUTION

Do not use a flat-tipped screwdriver or similar tool to
remove the piston seal. These may damage the inner side
of the cylinder.
1. Remove the piston seal with your finger tip.
2. Clean the piston surface and inner cylinder with alcohol

brake fluid DOT 3 or DOT 4.

AC204331

ACX00689
