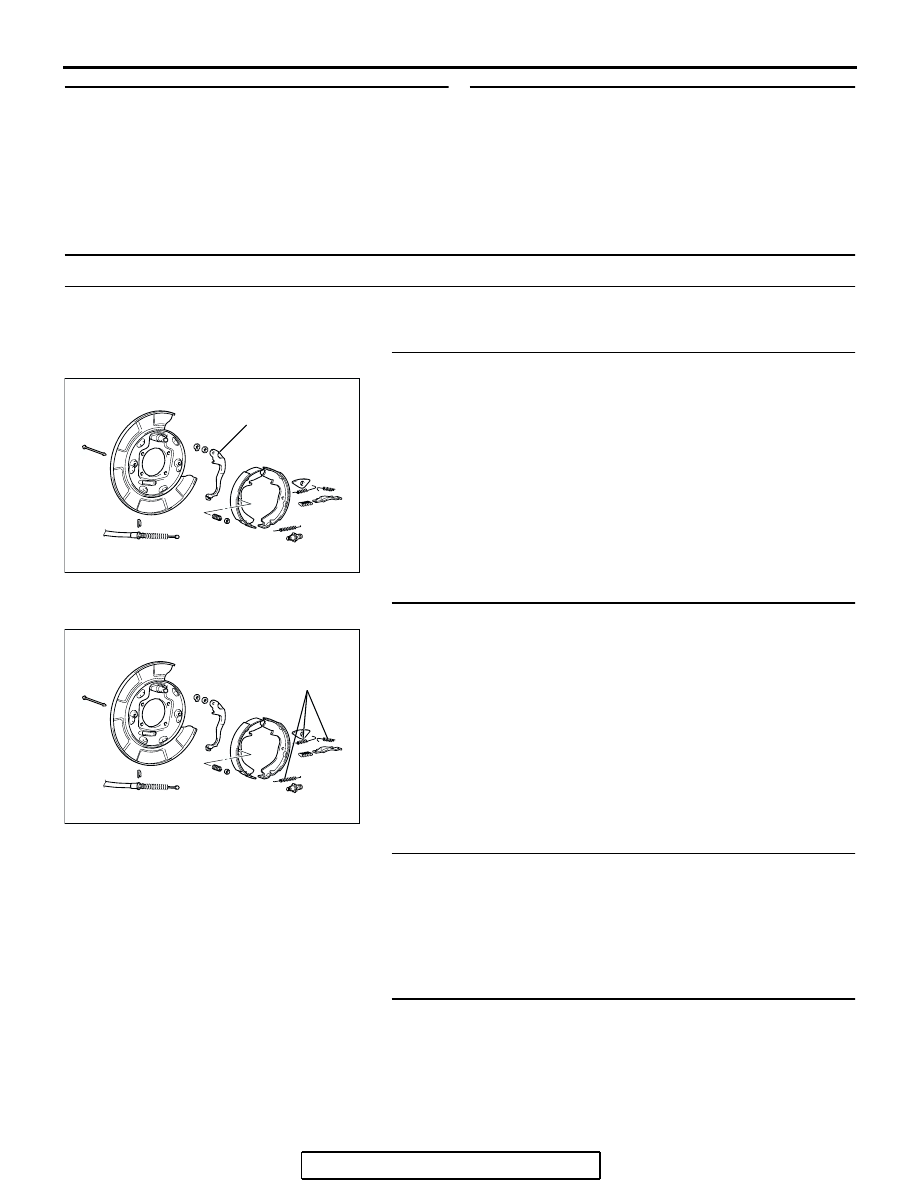

BASIC BRAKE SYSTEM DIAGNOSIS TSB Revision BASIC BRAKE SYSTEM 35A-4 SYMPTOM PROCEDURES INSPECTION PROCEDURE 1: Vehicle Pulls to One Side when Brakes are Applied . DIAGNOSIS STEP 1. Check for oil, water, etc., on the pad Q: Is oil, water, etc., on the pad contact surface? YES : Replace the part and determine the source/cause of foreign material. Then go to NO : Go to Step 2. STEP 2. Check disc brake pistons for smooth rapidly several times to deplete booster vacuum (2) Test each disc brake assembly one at a time. a. Remove the lower caliper bolt, then remove caliper from mount. b. Have an assistant slowly depress the brake pedal. Confirm piston(s) extend slowly and Q: Do (does) the piston(s) move correctly? YES : Go to Step 3. NO : Disassemble and inspect the brake , Rear: STEP 3. Check brake disc(s) for runout. Q: Is runout outside of specifications? YES : Repair or replace the brake disc(s) as NO : Go to Step 4. STEP 4. Check brake discs for correct thickness. Q: Is the thickness outside of specifications? YES : Repair or replace the brake disc(s) as NO : Perform the brake line bleeding. Then go to STEP 5. Retest the system. Q: Is the symptom eliminated? YES : The procedure is complete. NO : Start over at Step 1. If a new symptom INSPECTION PROCEDURE 2: Insufficient Braking Power . DIAGNOSIS STEP 1. Check that the specified brake fluid is Q: Is there a fault? YES : Refill or replace with the specified brake fluid DOT 3 or DOT 4. Bleed the brakes if ). Then go to Step 7. NO : Go to Step 2. STEP 2. Check for spongy (not firm) brakes. rapidly several times to deplete the booster (2) With the brake pedal fully released, depress the brake pedal slowly until it stops. (3) With a measuring device (ruler, etc.) next to the brake pedal, depress the pedal firmly and Q: Is the distance greater than 20 mm (0.8 inch)? YES : Bleed the brakes to remove air in the fluid NO : Go to Step 3. |
