DOOR

TSB Revision

BODY

42-32

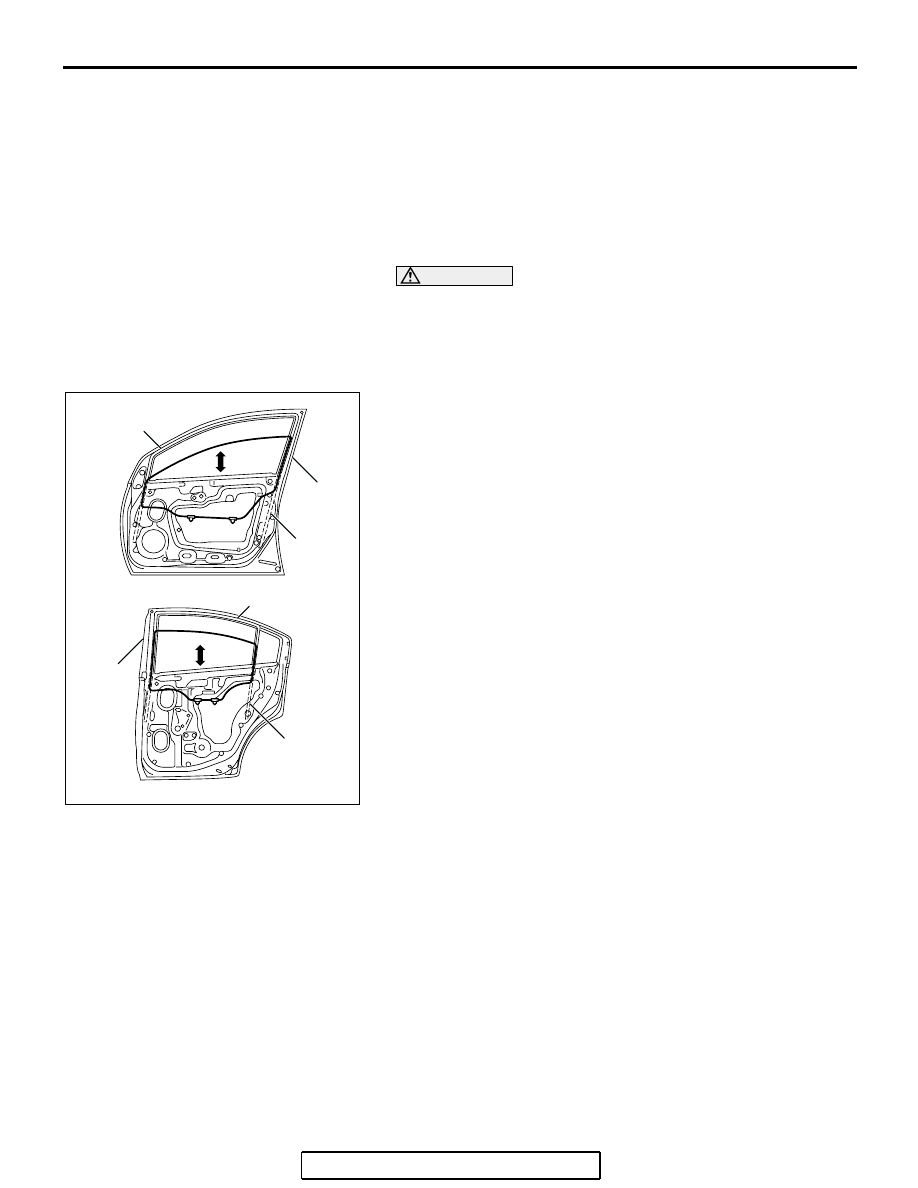

GLASS SLIDING MECHANISM CHECK AND
ADJUSTMENT

M1429000900109

If the window glass automatically starts moving downwards at
the wrong time while it is being raised, carry out the following
adjustment or replacement procedures.
1. Remove the door trim assembly (Refer to GROUP 52A,

Door trim

P.52A-13

).

2. Remove the waterproof film (Refer to

P.42-52

).

CAUTION

Insert a cushion or similar object to prevent damage to the
glass if it should fall.
3. Remove the window regulator assembly from the door

window glass, and then raise and lower the door window
glass by hand to check the operation force.

4. If the door window glass does not move up and down

smoothly, check or repair the following points:

• Check the installation condition of the runchannel.

• Repair any twisting in the door sash.

• Check the installation condition of the lower sash.

NOTE: To align the lower sash, loosen the lower sash
mounting bolts, and move the lower sash along the oblong
mounting holes.

5. If repair or adjustment is not possible, replace the door

assembly.

POWER WINDOW TIMER FUNCTION CHECK

M1429004300154

After the doors are closed and the ignition switch is turned to
the "LOCK" (OFF) position, the power windows should work
within 30 seconds. The timer expires if the front door is opened
during that 30 seconds. If it does not, carry out the timer trou-
bleshooting in GROUP 54B, SWS Diagnosis

P.54B-59

.

AC306502

AC306503

AC307036

<FRONT DOOR>

<REAR DOOR>

RUNCHANNEL

DOOR
SASH

LOWER SASH

RUNCHANNEL

DOOR
SASH

LOWER
SASH

AB

DOOR

TSB Revision

BODY

42-33

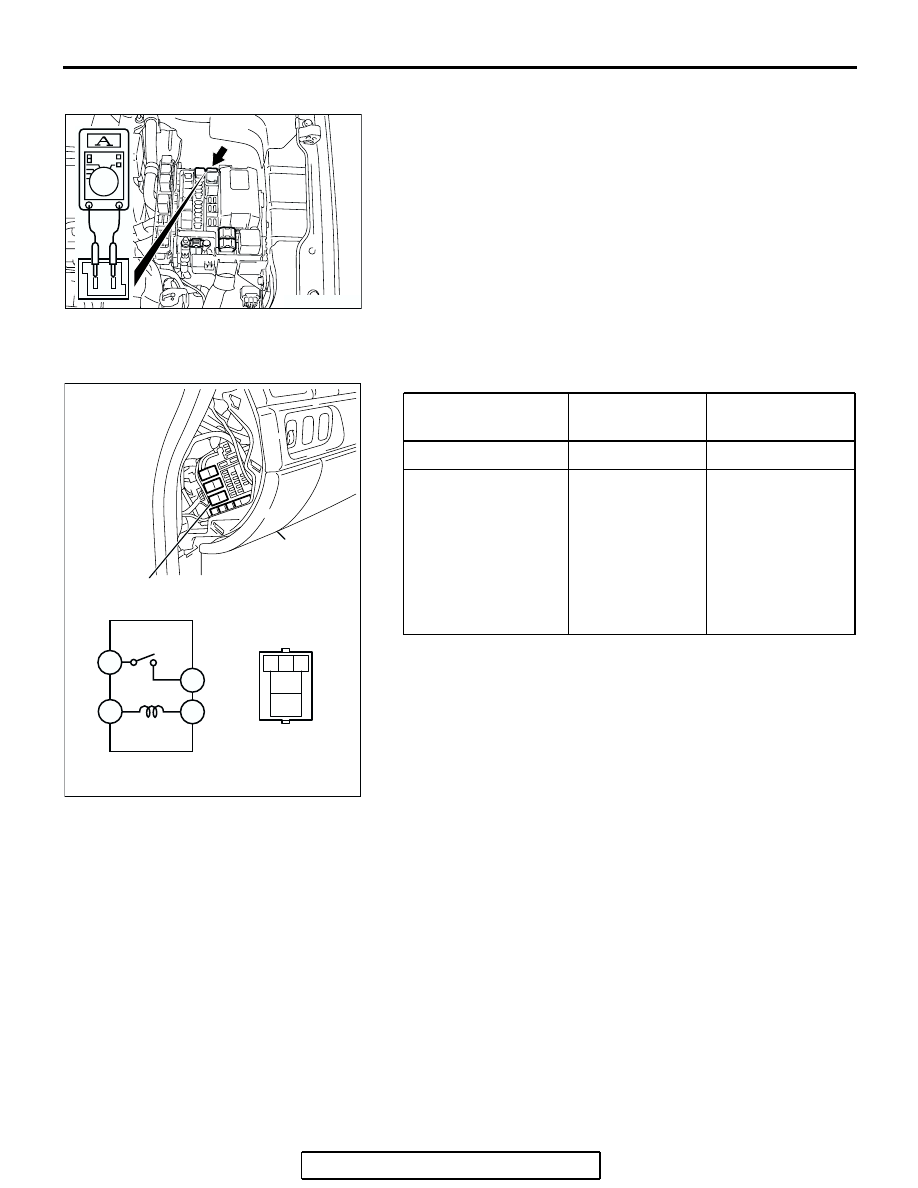

POWER WINDOW OPERATING CURRENT CHECK

M1429001100195

1. Remove the power window fuse and connect an ammeter

as shown in the illustration.

2. When the power window switch is pressed in the “UP”

position, a large amount of current flows from the time the
window starts to close until it is fully closed, Measure the
current during this time

Standard value (A): 5

± 1A [Power supply voltage

14.5

± 0.5V, 25°C (77°F)]

3. If the operation current is outside the standard value, refer to

GROUP 54B, SWS Diagnosis

P.54B-63

.

POWER WINDOW RELAY CHECK

M1429001800213

AC305015 AG

BATTERY
VOLTAGE

TESTER
CONNECTION

SPECIFIED
CONDITION

Not applied

− 5

Open circuit

• Connect terminal

No. 3 and the
negative battery
terminal.

• Connect terminal

No. 1 and the
positive battery
terminal.

− 5

Less than 2 ohms

AC305030

AC306501

1

3

4

5

1 2

4

5

3

POWER WINDOW RELAY

INSTRUMENT
PANEL

AB

DOOR

TSB Revision

BODY

42-34

CIRCUIT BREAKER (INCORPORATED IN THE
POWER WINDOW MOTOR) INSPECTION

M1429001000284

1. Pull the power window switch to the UP position to fully

close the door window glass, and keep pulling the switch for
an additional ten seconds.

2. Release the power window switch from the UP position and

immediately press it to the DOWN position. The condition of
the circuit breaker is good if the door window glass starts to
move downwards within about 60 seconds.

POWER WINDOW CHECK

M1429004400214

1.  Operate the power window switch of each door to verify that

the power windows operate properly. If they don't, then
troubleshoot as described in GROUP 54B, SWS Diagnosis

P.54B-59

.

2.  Turn ON the power window lock switch of the power window

main switch. Then operate the passenger's door and rear
door power window sub-switches to ensure that they do not
operate. If they do, replace the power window main switch
(Refer to

P.42-39

).

CENTRAL DOOR LOCKING SYSTEM
INSPECTION

M1427001100144

 Check the following. Troubleshoot if operations malfunction
(Refer to GROUP 54B, SWS Diagnosis

P.54B-59

).

• Insert the key into the driver's key cylinder and turn once to

the unlock side to unlock the driver's door. Turn the key
once again to the unlock side to unlock all doors.

• All doors can be locked using the door lock switch built into

the front power window (main or sub <RH>) switch.

DOOR

TSB Revision

BODY

42-35

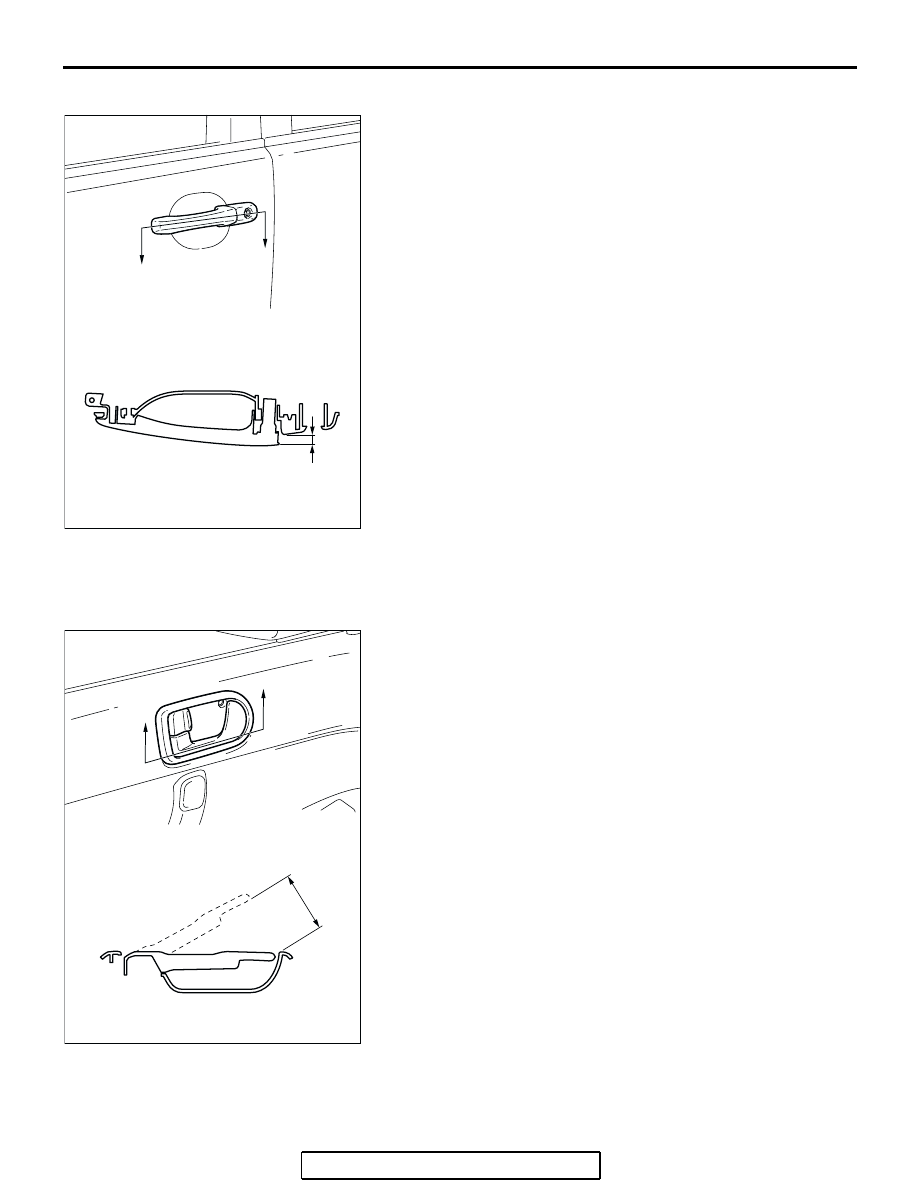

DOOR OUTSIDE HANDLE PLAY CHECK

M1423001600288

1. Check that the door outside handle play is within the

standard value range.

Standard value (B):
Front door: 10

± 3.5 mm (0.39 ± 0.138 inch)

Rear door: 11.2

± 4 mm (0.441 ± 0.16 inch)

2. If the door outside handle play is not within the standard

value range, check the door outside handle or the door latch
assembly. Replace if necessary.

DOOR INSIDE HANDLE PLAY CHECK

M1423009400028

DOOR INSIDE HANDLE KNOB PLAY CHECK

1. Check that the door inside handle play is within the standard

value range.

Standard value (B):
Front door: 26.1

58.1 mm (1.028 2.287 inches) [Tar-

get value 41 mm (1.61inches)]
Rear door: 30.3

58.1 mm (1.193 2.287 inches) [Target

value 41 mm (1.61inches)]

2. If the door inside handle play is not within the standard value

range, check the door inside handle or the inside handle
cable. Replace if necessary.

AC306509

AC205105

AC307031

SECTION A – A

A

A

B

AB

AC306508

AC205104

AC307029

A

A

B

AB

SECTION A – A
