WINDSHIELD WIPER AND WASHER

TSB Revision

EXTERIOR

51-22

NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch

P.54A-128

.

INSPECTION

M1511008300147

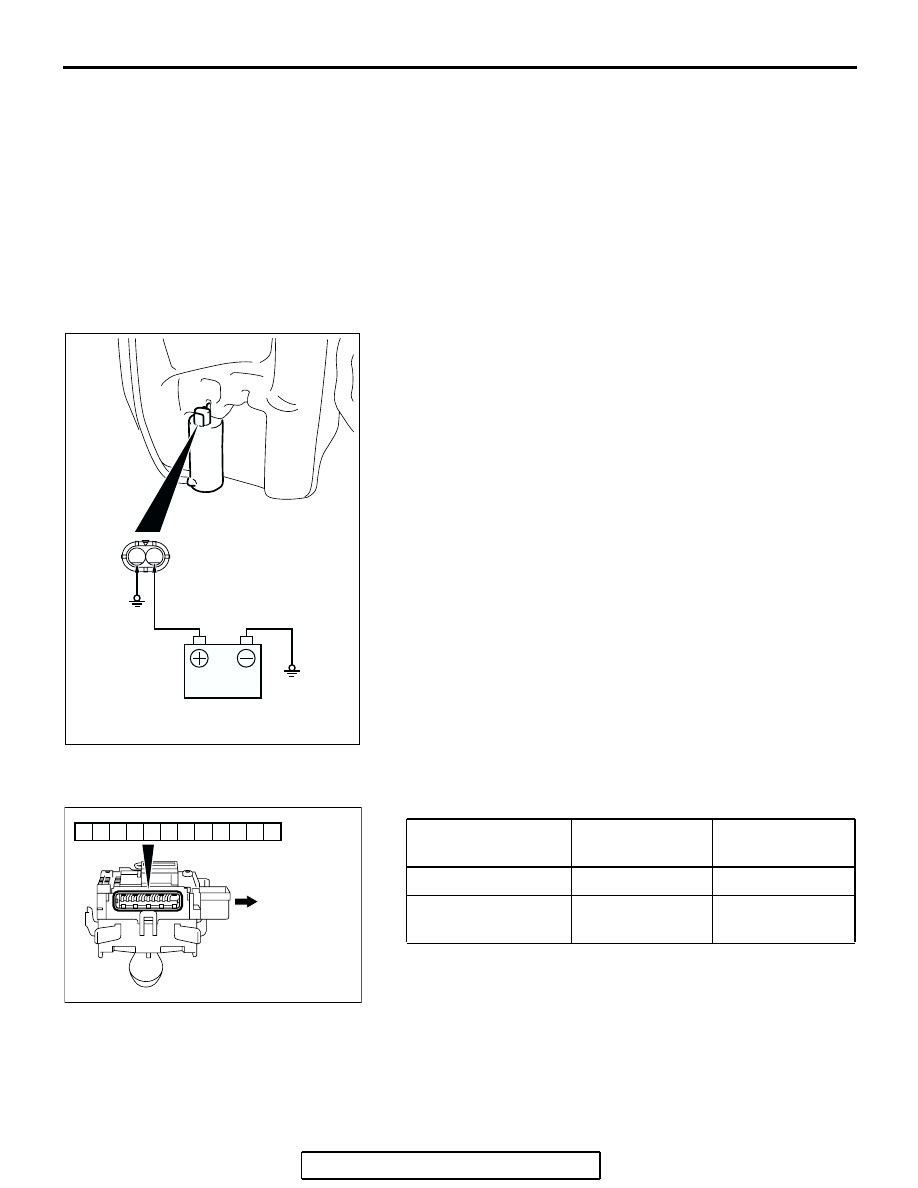

WINDSHIELD WASHER MOTOR CHECK

1. Remove the washer tank assembly with the washer hose

attached. Then fill the washer tank with water.

2. Check to see that the water is vigorously sprayed when

connecting the positive battery terminal to terminal number
2 and terminal number 1 to ground.

WINDSHIELD WASHER SWITCH CHECK

4. WINDSHIELD WASHER MOTOR
5. WASHER TANK
WASHER  MOTOR REMOVAL STEPS
• FRONT UNDER COVER RH (REFER

TO

P.51-2

).

• FRONT WASHER HOSE

CONNECTIONS

4. WINDSHIELD WASHER MOTOR

WASHER  TANK REMOVAL STEPS

AC307196

2

1

SWITCH POSITION TESTER

CONNECTION

SPECIFIED
CONDITION

OFF

22

− 23

Open circuit

Windshield washer
switch ON

22

− 23

Less than 2 ohms

AC307642

21

22

23

24

25

26

27

28

29

30

31

32

UPPER SIDE

AB

MARK

TSB Revision

EXTERIOR

51-23

MARK

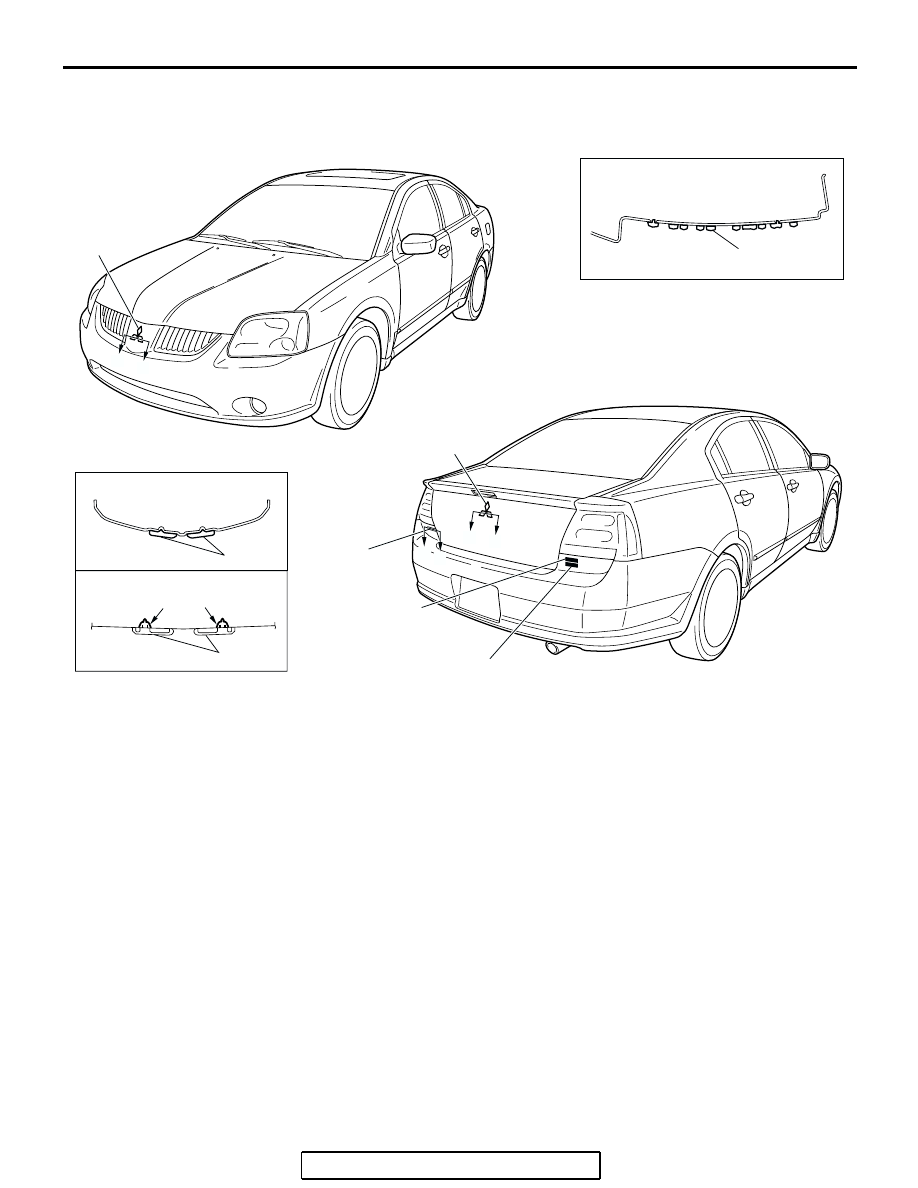

REMOVAL AND INSTALLATION

M1511011800454

AC306546

1

2

3

4

5

AB

A

A

B

C C

B

SECTION B – B

SECTION C – C

SECTION A – A

2

CLIPS

1

3

1. FRONT THREE-DIAMOND MARK
2. REAR THREE-DIAMOND MARK

>>A<<

3. GALANT MARK

>>A<<

4. GRADE MARK

>>A<<

5. 3.8 V6 MARK

MARK

TSB Revision

EXTERIOR

51-24

INSTALLATION SERVICE POINT

.

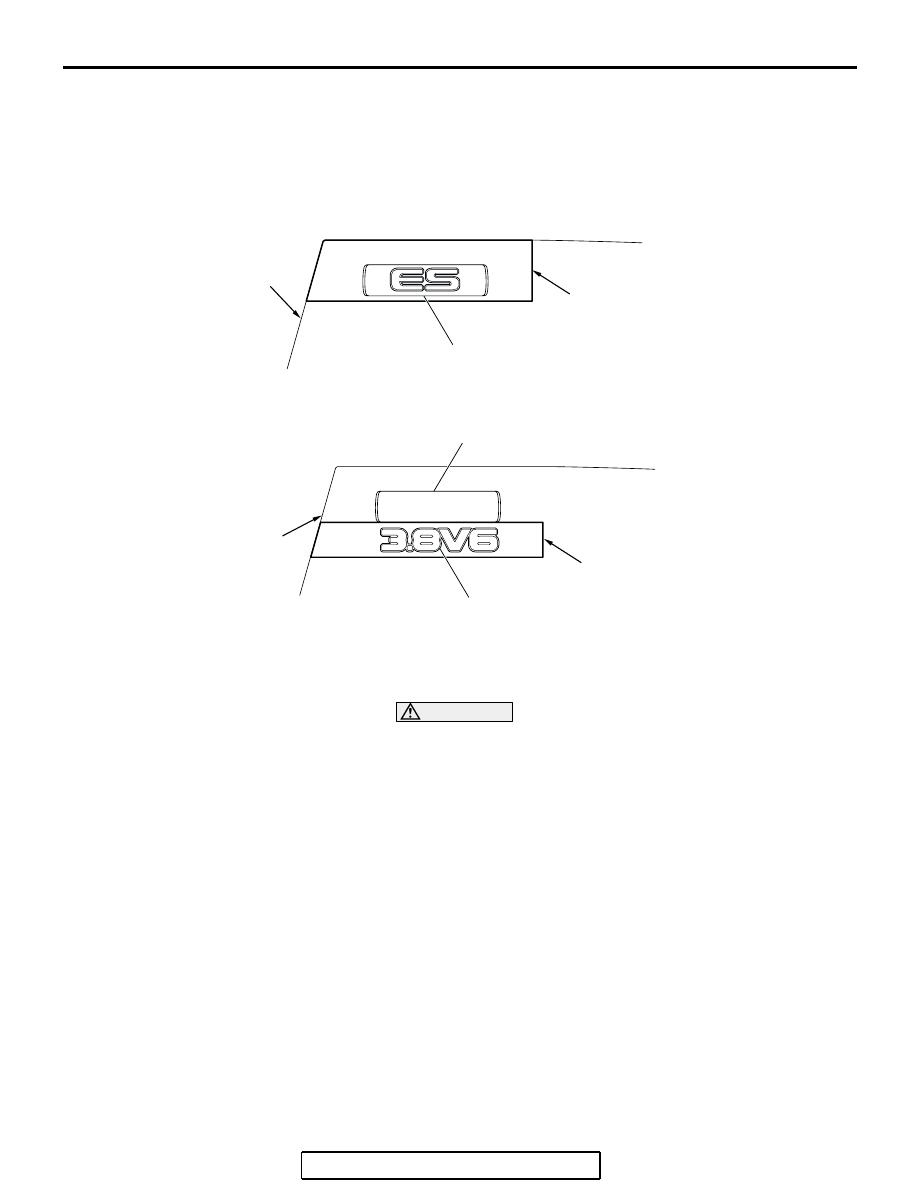

>>A<< MARK INSTALLATION

1. Installation position

Attach each mark to the position shown in the illustration.

2. Installation procedure

(1) Use 3M

 AAD Part number 8906 or equivalent to clean

the mark installation surfaces on the body.

CAUTION

When attaching the marks, the ambient temperature
should be 20

 38°C (60  100°F) and the air should be

completely free of dust. If the ambient temperature is lower
than 20

°C (60°F), the marks and the places on the vehicle

body where the marks are to be attached should be heated
to 20

 38°C (60  100°F).

(2) Peel off the protection sheet on the back of the marks to

affix it in position.

AC305982

REAR BUMPER END LINE

AB

4. GRADE MARK

APPLICATION TAPE

GRADE MARK

AC306556

APPLICATION TAPE

REAR BUMPER END LINE

5. 3.8 V6 MARK

3.8 V6 MARK

GRADE MARK

AB

DOOR MIRROR

TSB Revision

EXTERIOR

51-25

DOOR MIRROR

GENERAL DESCRIPTION

M1511000100570

OPERATION DOOR MIRROR

Remote Controlled Mirror Operation

• The mirror on the door mirror moves up/down

and left/right by operating the remote controlled
door mirror switch when the ignition switch is in
the "ON" or "ACC" position.

Heated Door Mirror operation

• The rear window defogger relay switch is acti-

vated (ON) by turning on the A/C-ECU built-in
rear window defogger switch when the ignition
switch is in the "ON" position. When the rear win-
dow defogger relay is turned ON, power is sup-

plied to the rear window defogger and door
mirror, and the heater of the door mirror (heated
door mirror) starts operations. The rear window
defogger comes with a timer function and will
automatically turn OFF the switch approximately
16 minutes after the rear window defogger switch
is turned ON. The heated door mirror operations
are also terminated along with the rear window
defogger, at this time.

HEATED DOOR MIRROR DIAGNOSIS

TROUBLESHOOTING STRATEGY

M1511014600170

Diagnosis should be carried out by the following pro-
cedures.
1. Gather the information from the customer.
2. Verify that the condition described by the

customer exists.

3. Find the malfunction by the following Symptom

Chart.

4. Verify the malfunction is eliminated.

TROUBLE SYMPTOM CHART

M1511015000171

SYMPTOMS

INSPECTION
PROCEDURE

REFERENCE
PAGE

All heated door mirrors do not operate

1

P.51-26

The right or left heated door mirror does not operate

2

P.51-31
