IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-44

REMOVAL AND INSTALLATION <3.8L ENGINE>

M1163003500473

Pre-removal and Post-installation Operation
Timing Belt Lower Cover Removal and Installation (Refer to
GROUP 11C, Timing Belt

P.11C-48

).

AC306927

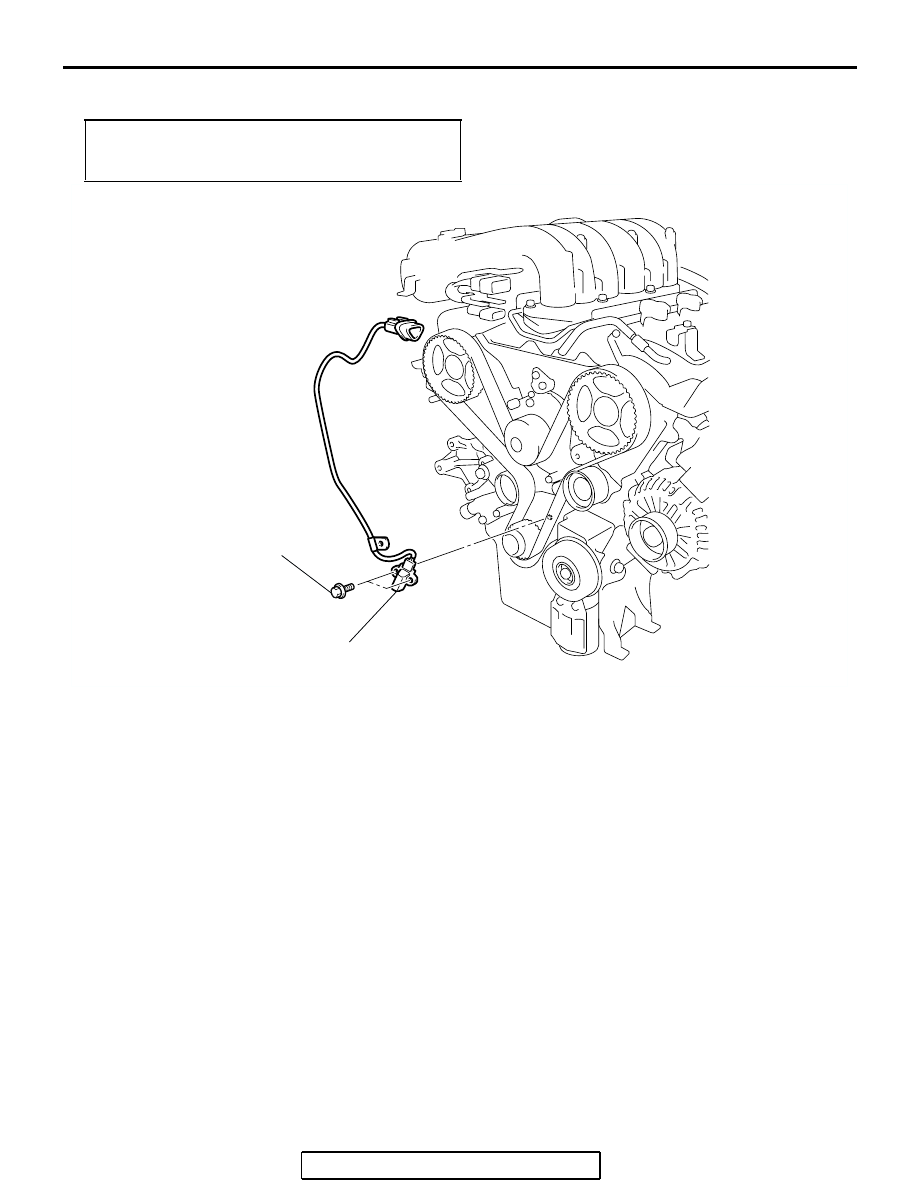

CRANKSHAFT POSITION SENSOR

AB

9.0 ± 1.0 N·m
80 ± 9 in-lb

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-45

KNOCK SENSOR

REMOVAL AND INSTALLATION <2.4L ENGINE>

M1163002800590

Required Special Tool:
MD998773: Knock Sensor Wrench

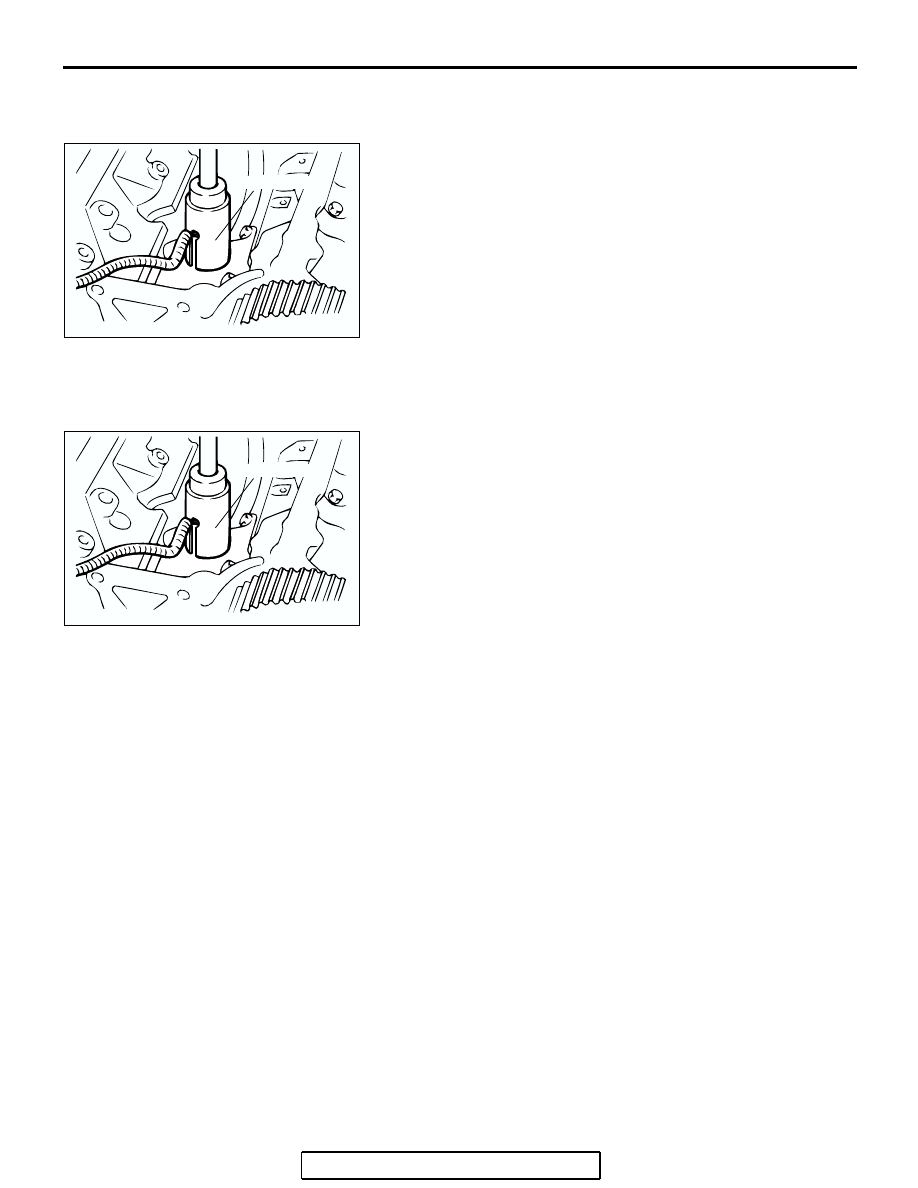

REMOVAL SERVICE POINT

.

<<A>> KNOCK SENSOR REMOVAL

Use special tool MD998773 to remove the knock sensor.

AC302234

AC305130AC

11 ± 1 N·m
98 ± 8 in-lb

23 ± 2 N·m
17 ± 1 ft-lb

31 ± 3 N·m
23 ± 2 ft-lb

1

4

3

2

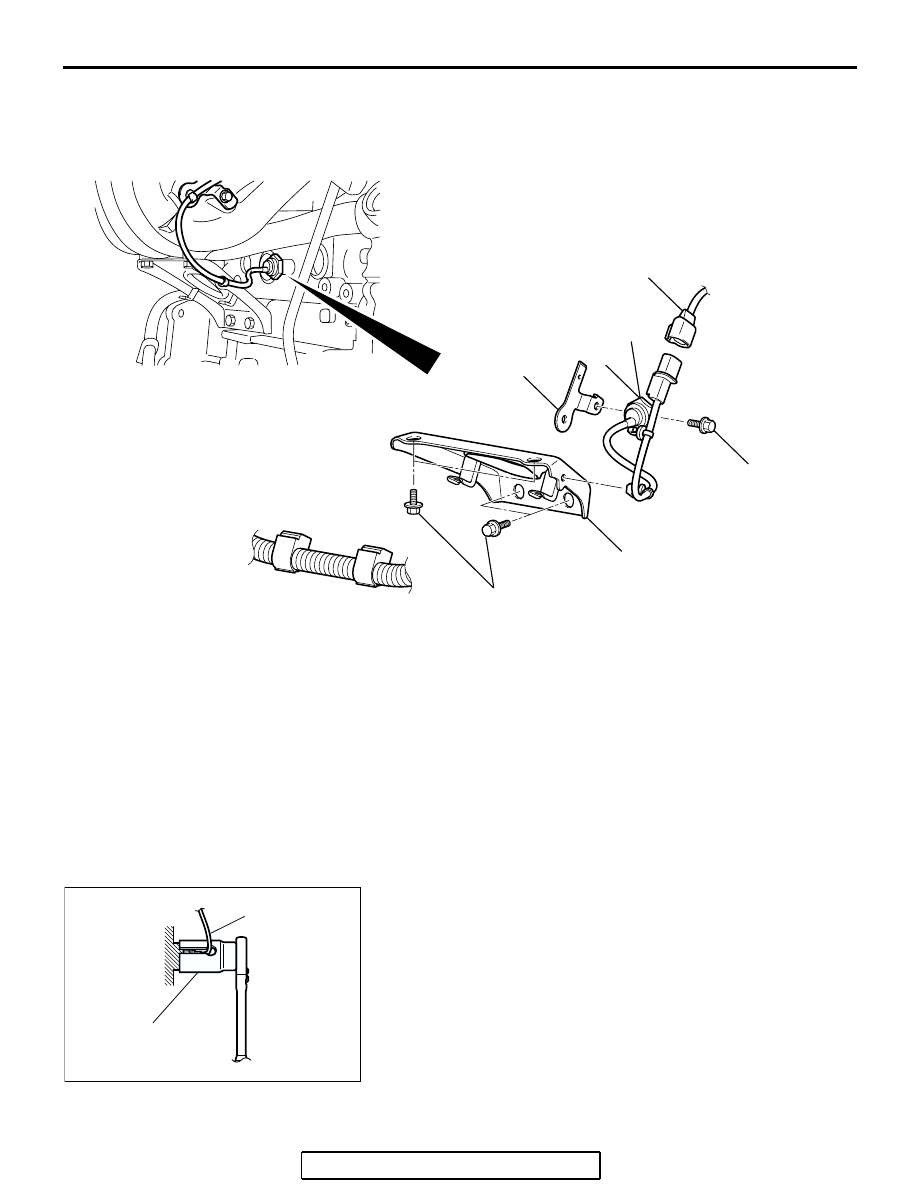

REMOVAL STEPS

1.

KNOCK SENSOR CONNECTOR

2.

INTAKE MANIFOLD STAY

<<A>>

>>A<<

3.

KNOCK SENSOR

4.

KNOCK SENSOR CONNECTOR
BRACKET

REMOVAL STEPS (Continued)

AC100807

MD998773

KNOCK SENSOR

AB

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-46

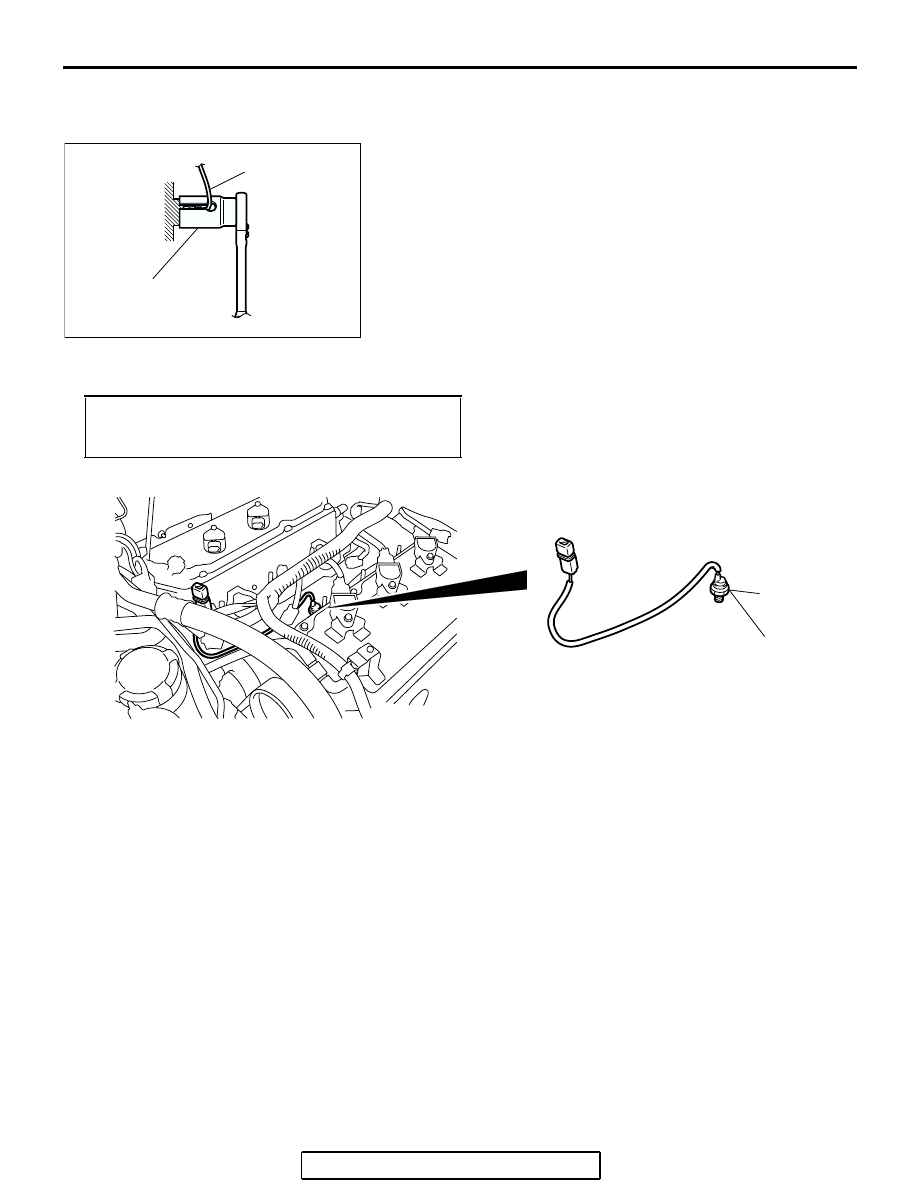

INSTALLATION SERVICE POINT

.

>>A<< KNOCK SENSOR INSTALLATION

Use special tool MD998773 to install the knock sensor.

REMOVAL AND INSTALLATION <3.8L ENGINE>

M1163002800589

Required Special Tool:
MD998773: Knock Sensor Wrench

AC100807

MD998773

KNOCK SENSOR

AB

Pre-removal and Post-installation Operation
Intake Manifold Removal and Installation (Refer to GROUP
15, Intake Manifold

P.15-11

).

AC307548

23 ± 2 N·m
17 ± 1 ft-lb

AB

1

REMOVAL

<<A>> >>A<<

1.

KNOCK SENSOR

IGNITION SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-47

REMOVAL SERVICE POINT

.

<<A>> KNOCK SENSOR REMOVAL

Use special tool MD998773 to remove the knock sensor.

INSTALLATION SERVICE POINT

.

>>A<< KNOCK SENSOR INSTALLATION

Use special tool MD998773 to install the knock sensor.

ACX02082AB

MD998773

ACX02082AB

MD998773
