SPECIFICATIONS

TSB Revision

INTAKE AND EXHAUST

15-24

SERVICE SPECIFICATION

M1151000300462

SEALANTS

M1151000500187

Intake manifold plenum
Exhaust gas recirculation valve bolt

24

± 3 N⋅m (18 ± 2 ft-lb)

EGR pipe

59

± 10 N⋅m (44 ± 7 ft-lb)

EGR pipe clamp bolt

19

± 3 N⋅m (14 ± 2 ft-lb)

EGR pipe connection nut

19

± 3 N⋅m (14 ± 2 ft-lb)

Evaporative emission purge solenoid bolt

9.0

± 1.0 N⋅m (80 ± 9 in-lb)

Harness bracket bolt

11

± 1 N⋅m (98 ± 8 in-lb)

Intake manifold plenum bolt

18

± 2 N⋅m (13 ± 2 ft-lb)

Intake manifold plenum stay bolt

M8

18

± 2 N⋅m (13 ± 2 ft-lb)

M10

36

± 6 N⋅m (27 ± 4 ft-lb)

Manifold absolute pressure sensor bolt

5.0

± 1.0 N⋅m (44 ± 9 in-lb)

Power steering pressure hose clamp nut

12

± 2 N⋅m (102 ± 22 in-lb)

Power steering pressure hose clamp bracket bolt

12

± 2 N⋅m (102 ± 22 in-lb)

Power steering oil pump bracket connecting bolt

41

± 8 N⋅m (30 ± 6 ft-lb)

Vacuum pipe bolt

9.0

± 1.0 N⋅m (80 ± 9 in-lb)

ITEM

SPECIFICATION

ITEM

STANDARD VALUE

LIMIT

Manifold distortion of the installation surface   mm (in) 0.15 (0.006) or less

0.20 (0.008)

ITEM

SPECIFIED SEALANT

Thermostat case assembly

3M

 AAD Part No.8672, 3M AAD Part No.8679/8678 or

equivalent

Thermostat case assembly bolt

3M

 AAD Part No. 8730, 8731 or equivalent

16-1

GROUP 16

ENGINE

ELECTRICAL

CONTENTS

CHARGING SYSTEM  . . . . . . . .

16-3

GENERAL DESCRIPTION . . . . . .

16-3

CHARGING SYSTEM DIAGNOSIS

16-4

SPECIAL TOOL. . . . . . . . . . . . . . .

16-7

ON-VEHICLE SERVICE. . . . . . . . .

16-8

GENERATOR OUTPUT LINE VOLTAGE
DROP TEST  . . . . . . . . . . . . . . . . . . . . .

16-8

OUTPUT CURRENT TEST . . . . . . . . . .

16-9

REGULATED VOLTAGE TEST. . . . . . .

16-11

WAVE PATTERN CHECK USING AN
OSCILLOSCOPE . . . . . . . . . . . . . . . . . .

16-12

GENERATOR ASSEMBLY . . . . . .

16-15

REMOVAL AND INSTALLATION
<2.4L ENGINE> . . . . . . . . . . . . . . . . . . .

16-15

REMOVAL AND INSTALLATION
<3.8L ENGINE> . . . . . . . . . . . . . . . . . . .

16-16

DISASSEMBLY AND ASSEMBLY . . . . .

16-18

INSPECTION . . . . . . . . . . . . . . . . . . . . .

16-21

STARTING SYSTEM . . . . . . . .

16-24

GENERAL DESCRIPTION . . . . . . .

16-24

STARTING SYSTEM DIAGNOSIS. . . . .

16-25

STARTER MOTOR ASSEMBLY . .

16-26

REMOVAL AND INSTALLATION
<2.4L ENGINE> . . . . . . . . . . . . . . . . . . .

16-26

REMOVAL AND INSTALLATION <
3.8L ENGINE> . . . . . . . . . . . . . . . . . . . .

16-28

INSPECTION . . . . . . . . . . . . . . . . . . . . .

16-29

DISASSEMBLY AND ASSEMBLY . . . . .

16-32

INSPECTION . . . . . . . . . . . . . . . . . . . . .

16-34

Continued on next page

16-2

IGNITION SYSTEM . . . . . . . . . . . . . .

16-36

GENERAL DESCRIPTION . . . . . .

16-36

SPECIAL TOOLS. . . . . . . . . . . . . .

16-37

ON-VEHICLE SERVICE. . . . . . . . .

16-37

KNOCK CONTROL SYSTEM CHECK  .

16-37

IGNITION COIL CHECK  . . . . . . . . . . . .

16-38

SPARK PLUG TEST . . . . . . . . . . . . . . .

16-39

SPARK PLUG CHECK AND CLEANING

16-39

CAMSHAFT POSITION SENSOR CHECK

16-39

CRANKSHAFT POSITION SENSOR
CHECK  . . . . . . . . . . . . . . . . . . . . . . . . .

16-40

IGNITION COIL . . . . . . . . . . . . . . .

16-40

REMOVAL AND INSTALLATION
<2.4L ENGINE> . . . . . . . . . . . . . . . . . . .

16-40

REMOVAL AND INSTALLATION
<3.8L ENGINE> . . . . . . . . . . . . . . . . . . .

16-41

CAMSHAFT POSITION SENSOR.

16-42

REMOVAL AND INSTALLATION
<2.4L ENGINE> . . . . . . . . . . . . . . . . . . .

16-42

REMOVAL AND INSTALLATION
<3.8L ENGINE> . . . . . . . . . . . . . . . . . . .

16-42

CRANKSHAFT POSITION SENSOR

16-43

REMOVAL AND INSTALLATION
<2.4L ENGINE> . . . . . . . . . . . . . . . . . . .

16-43

REMOVAL AND INSTALLATION
<3.8L ENGINE> . . . . . . . . . . . . . . . . . . .

16-44

KNOCK SENSOR . . . . . . . . . . . . . .

16-45

REMOVAL AND INSTALLATION
<2.4L ENGINE> . . . . . . . . . . . . . . . . . . .

16-45

REMOVAL AND INSTALLATION
<3.8L ENGINE> . . . . . . . . . . . . . . . . . . .

16-46

SPECIFICATIONS  . . . . . . . . . .

16-48

FASTENER TIGHTENING
SPECIFICATIONS  . . . . . . . . . . . . .

16-48

GENERAL SPECIFICATIONS . . . .

16-49

SERVICE SPECIFICATIONS . . . . .

16-50

CHARGING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-3

CHARGING SYSTEM

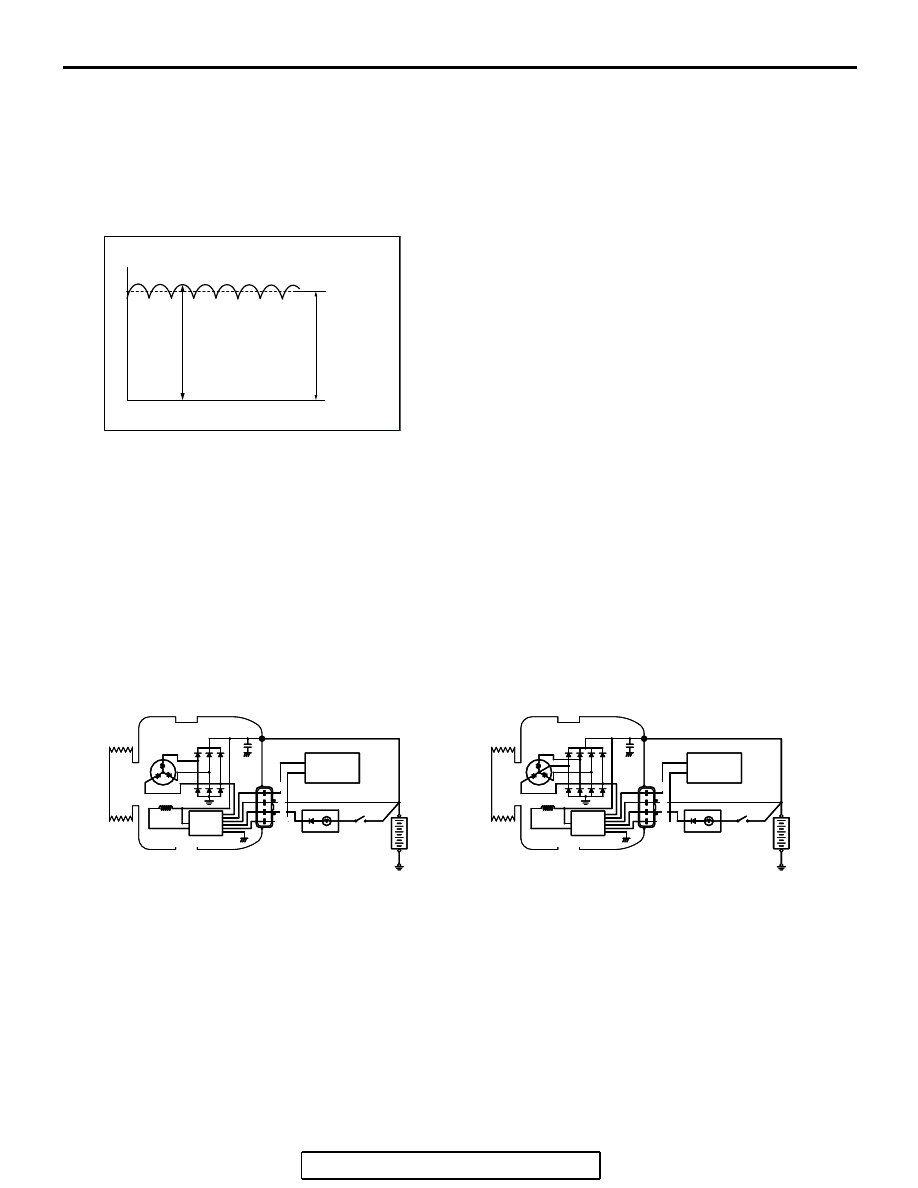

GENERAL DESCRIPTION

M1161000100629

The charging system charges the battery with the
generator output to keep the battery charged at a
constant level during varying electrical load.

OPERATION

Rotation of the excited field coil generates AC volt-
age in the stator.
This alternating current is rectified through diodes to
DC voltage having a waveform shown in the illustra-
tion above.
The average output voltage fluctuates slightly with
the generator load condition.

When the ignition switch is turned on, current flows in
the field coil and initial excitation of the field coil
occurs.
When the stator coil begins to generate power after
the engine is started, the field coil is excited by the
output current of the stator coil.
The generator output voltage rises as the field cur-
rent increases and it falls as the field current
decreases. When the battery positive voltage (gener-
ator S terminal voltage) reaches a regulated voltage
of approximately 14.4 V, the field current is cut off.
When the battery positive voltage drops below the
regulated voltage, the voltage regulator regulates the
output voltage to a constant level by controlling the
field current.
In addition, when the field current is constant, the
generator output voltage rises as the engine speed
increases.

AKX00183

VOLTAGE

TIME

APPROXIMATELY
14.4 V

AB

AK400282

AK

GENERATOR

<3.8L ENGINE>

B

STATOR
COIL

GENERATOR
MALFUNCTION
LIGHT

IGNITION
SWITCH

BATTERY

FIELD COIL

GENERATOR

<2.4L ENGINE>

B

STATOR
COIL

PCM

PCM

GENERATOR
MALFUNCTION
LIGHT

IGNITION
SWITCH

FIELD COIL

BATTERY

AC

G

S

L

FR

+

VOLTAGE REGULATOR

G

S

L

FR

VOLTAGE REGULATOR
