MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-248

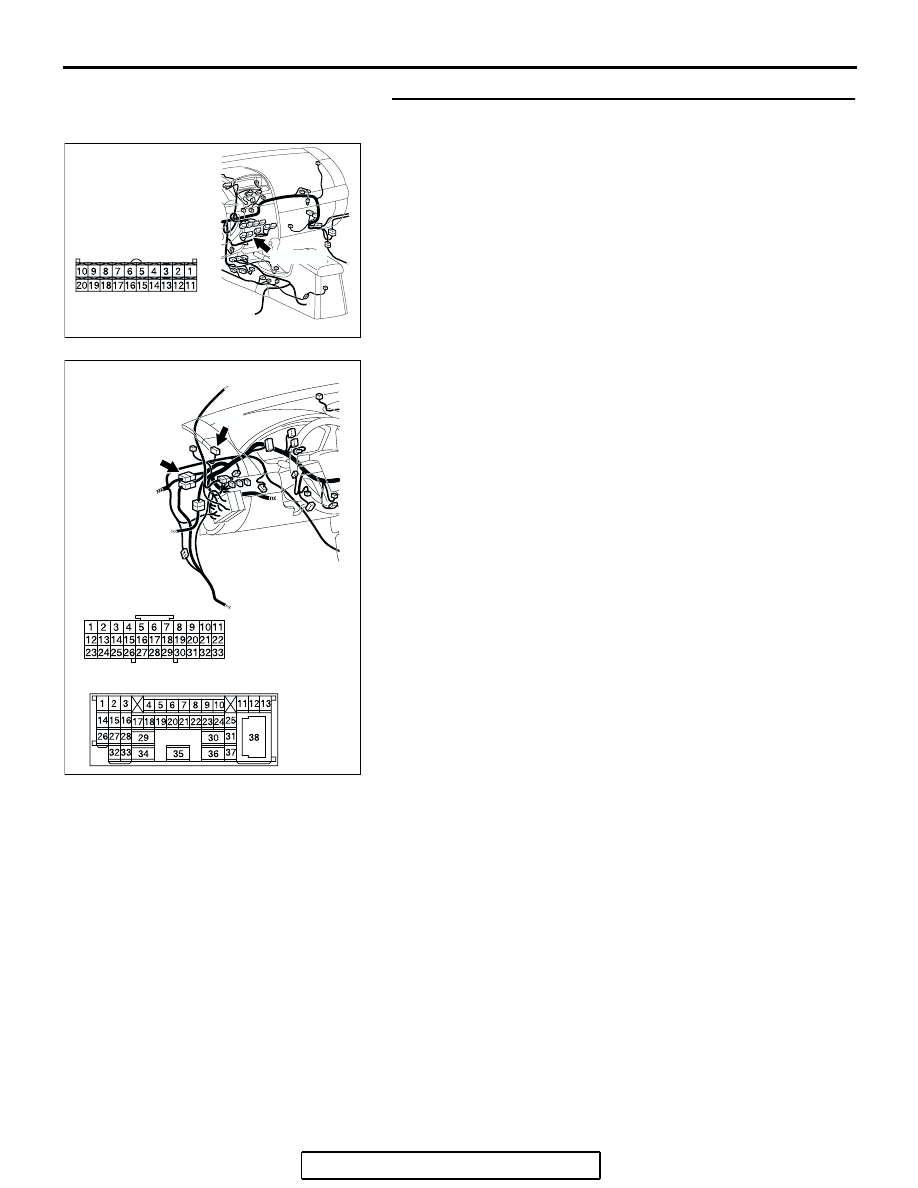

STEP 7. Check the wiring harness between A/C-ECU
connector C-16 (terminal 3) and the battery.

NOTE: Also check joint connector C-01 and intermediate con-
nector C-29 for loose, corroded, or damaged terminals, or ter-
minals pushed back in the connector. If joint connector C-01 or
intermediate connector C-29 is damaged, repair or replace the
connector as described in GROUP 00E, Harness Connector
Inspection

P.00E-2

.

Q: Is the wiring harness between A/C-ECU connector C-16

(terminal 3) and the battery in good condition?
YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Repair the wiring harness. Check that the air

conditioning works normally.

AC305233

CONNECTOR: C-15

BG

C-105 (B)

HARNESS SIDE

AC305232

CONNECTORS: C-01, C-29

C-01

C-29

AS

C-01

C-29

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-249

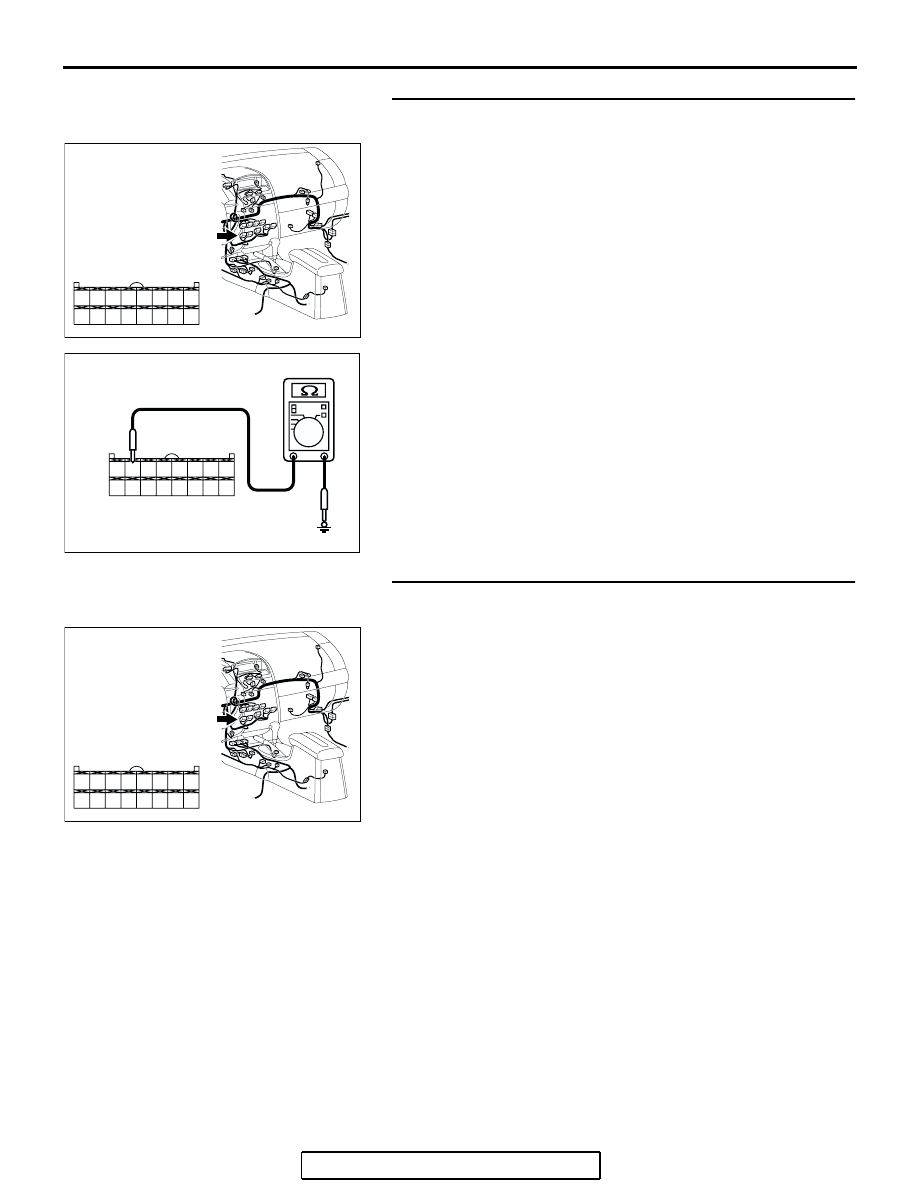

STEP 8. Measure the resistance at A/C-ECU connector
C-16.
(1) Disconnect A/C-ECU connector C-16, and measure at the

wiring harness side.

(2) Measure the resistance between terminal 27 and ground.

• The measured value should be 2 ohms or less.

Q: Does the measured resistance value correspond with

this range?
YES : Replace the A/C-ECU, and check that the air

conditioning works normally.

NO :   Go to Step 9.

STEP 9. Check the wiring harness between A/C-ECU
connector C-16 (terminal 27) and the ground.
Q: Is the wiring harness between A/C-ECU connector C-16

(terminal 27) and  ground in good condition?
YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

. check

that the air conditioning works normally.

NO :  Repair the wiring harness. Check that the air

conditioning works normally.

AC305233

HARNESS SIDE

C-16 (B)

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

BX

CONNECTOR: C-16

AC209364

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

CONNECTOR C-16
(HARNESS SIDE)

JE

AC305233

HARNESS SIDE

C-16 (B)

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

BX

CONNECTOR: C-16

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-250

DATA LIST REFERENCE TABLE

M1554005100136

MUT-III SCAN
TOOL DISPLAY

ITEM
NO.

INSPECTION ITEM INSPECTION REQUIREMENT

NORMAL VALUE

Ambient air
temperature
sensor

02

Ambient air
temperature sensor

Ignition switch: ON

Outside air
temperature and
temperature
displayed on the
scan tool are
identical.

Air thermo sensor 03

Air thermo sensor

Ignition switch: ON

The temperature
measured behind
the evaporator
matches the
displayed value on
the scan tool while
the engine is cold.

Pressure sensor 04

A/C pressure sensor Ignition switch: ON

Measured refrigerant
pressure is nearly
equal to the value
shown on the scan
tool.

Heater water
temperature
sensor

05

Engine coolant
temperature sensor
(Data received by
CAN
Communication)

Ignition switch: ON

Engine coolant
temperature and
temperature
displayed on the
scan tool are
identical.

Air mix
potentiometer

10

Air mixing damper
control motor
potentiometer

Ignition switch: ON Damper

position

Opening degree (%)

MAX. HOT

Approx. 100

MAX. COOL

Approx. 0

Air mix
potentiometer
(Target)

11

Target value for air
mixing damper
control motor
potentiometer

Ignition switch: ON Damper

position

Opening degree (%)

MAX. HOT

Approx. 100

MAX. COOL

Approx. 0

Air outlet c/o
potentiometer

12

Mode selection
damper control
motor potentiometer

Ignition switch: ON Damper

position

Opening degree (%)

FACE

Approx. 100

FOOT

Approx. 75

FOOT/DEF.

Approx. 50

DEF.

Approx. 0

Air outlet c/o
potentiometer
(target)

13

Target value for
mode selection
damper control
motor potentiometer

Ignition switch: ON Damper

position

Opening degree (%)

FACE

Approx. 100

FOOT

Approx. 75

FOOT/DEF.

Approx. 50

DEF.

Approx. 0

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-251

In/out air
changeover
damper motor

15

Outside/inside air
selection damper
control motor

Ignition switch: ON Damper set

position

Damper position

Fresh air
position

FRESH

Air recirculation
position

RECIRC

Blower fan

20

Blower motor

Ignition switch: ON

The actual air
volume (blower
motor speed)
corresponds to the
air volume shown on
the scan tool.

Blower fan
(Target)

21

Target value for
blower motor

Ignition switch: ON

The air volume set
by the heater control
corresponds to the
value shown on the
scan tool.

Air conditioning
switch

30

Air conditioning
switch

Ignition switch: ON Air conditioning

switch: ON

Scan tool indication:
ON

Air conditioning
switch: OFF

Scan tool indication:
OFF

Rear defogger
switch

34

Rear window
defogger switch

Ignition switch: ON Rear window

defogger
switch: ON

Scan tool indication:
ON

Rear window
defogger
switch: OFF

Scan tool indication:
OFF

Low pressure
judgment

40

Refrigerant pressure Ignition switch: ON

The scan tool
indication is normal

Refrigerant leak

41

Refrigerant leak

Ignition switch: ON

The scan tool
indication is normal

MUT-III SCAN
TOOL DISPLAY

ITEM
NO.

INSPECTION ITEM INSPECTION REQUIREMENT

NORMAL VALUE
