MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-92

.

DTC SET CONDITION

• If the air mixing damper control motor does not

work normally, DTC B1065 will be set.

.

TECHNICAL DESCRIPTION (COMMENT)

Current trouble

• The A/C-ECU, the mode selection damper con-

trol motor and potentiometer, or connector(s) or
wiring between them may be defective.

Past trouble

• If DTC B1065 is stored as a past trouble, carry

out diagnosis with particular emphasis on wiring
and connector(s) between the A/C-ECU and the
mode selection damper control motor and poten-
tiometer. If the connectors and wiring are normal,
and obviously the ECU is the cause of the trou-
ble, replace the ECU. If in doubt, do not replace
the ECU.

TROUBLESHOOTING HINT

• Malfunction of connector.

• Malfunction of the harness.

• Malfunction of the mode selection damper control

motor and potentiometer.

• Malfunction of the A/C-ECU.

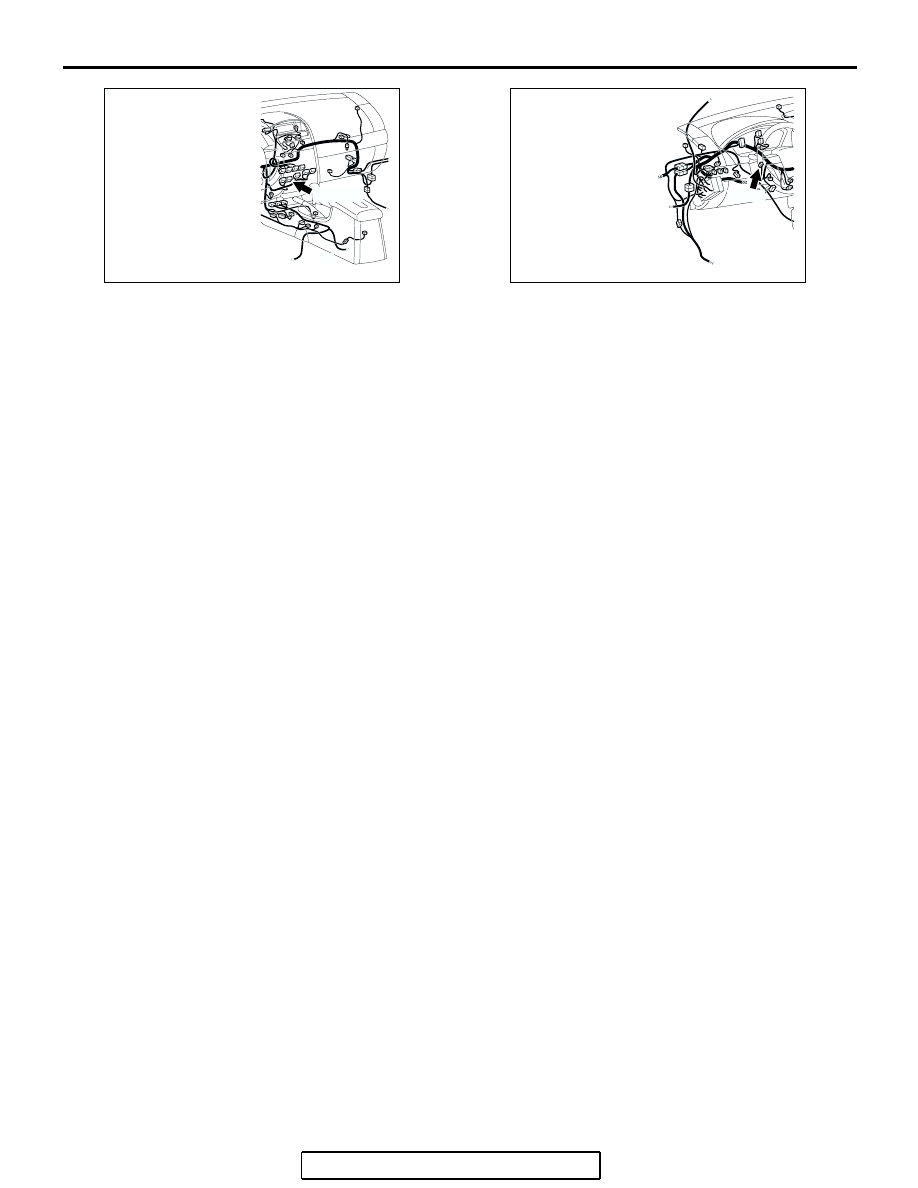

AC305233

C-15 (B)

BI

CONNECTOR: C-15

AC305231

C-102

CF

CONNECTOR: C-102

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-93

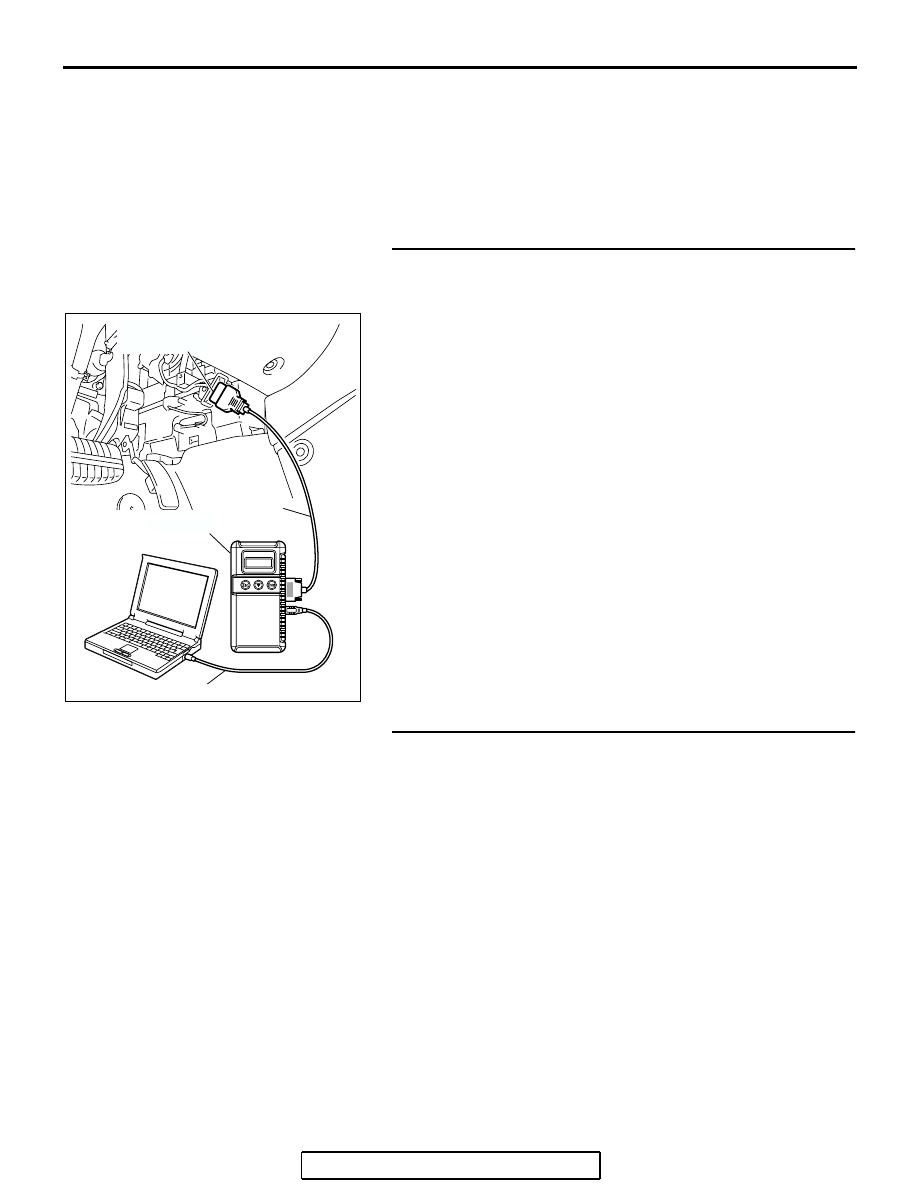

DIAGNOSIS

Required Special Tool:

•  MB991958: Scan Tool (MUT-III Sub Assembly)

• MB991824: Vehicle Communication Interface (V.C.I.)

• MB991827: MUT-III USB Cable

• MB991910: MUT-III Main Harness A (Vehicles with CAN

communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.
Use scan tool MB991958 to diagnose the CAN bus lines.
(1) Connect scan tool MB991958 to the data link connector.
(2) Turn the ignition switch to "ON" position.
(3) Diagnose the CAN bus line.
Q: Is the check result satisfactory?

YES : Go to Step 2.
NO :  Repair the CAN bus lines. (Refer to GROUP 54C,

Diagnosis-Can Bus Diagnostic Chart

P.54C-607

).

Then go to Step 7.

STEP 2. Recheck for diagnostic trouble code.
Recheck if the DTC is set.
(1) Erase the DTC.
(2) Turn the ignition switch to "ON" position.
(3) Check if the DTC is set.
Q: Is the check result satisfactory?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Go to Step 3.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-94

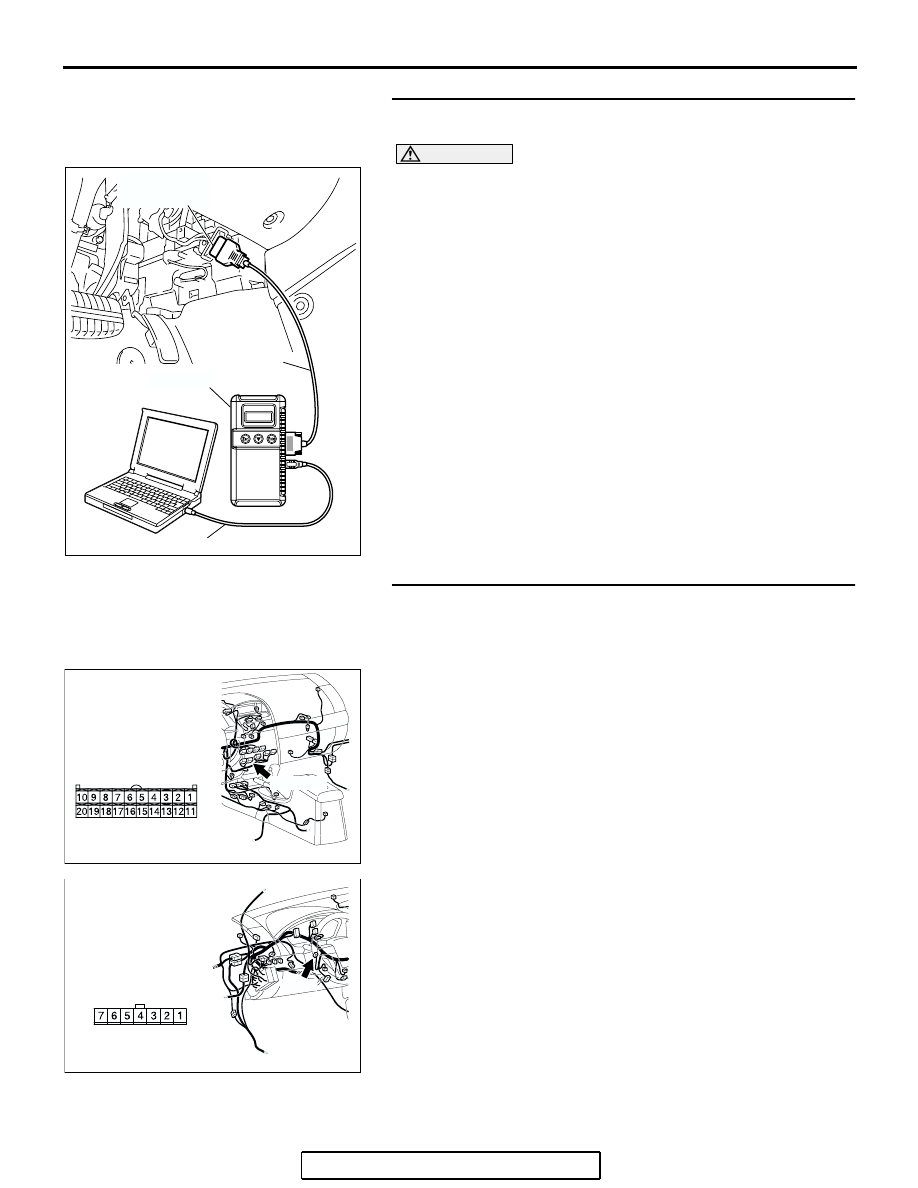

STEP 3. Using scan tool MB991958, check actuator test
item 13, 14, 15, 16, 17: Air outlet c/o dumper.

CAUTION

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting scan tool MB991958.
(1) Connect scan tool MB991958 to the data link connector.
(2) Start the engine.
(3) Use scan tool MB991958 to run the actuator test.

Item 13: air mix damper motor (FACE position)
Item 14: air mix damper motor (FOOT/FACE position)
Item 15: air mix damper motor (FOOT position)
Item 16: air mix damper motor (DEF/FOOT position)
Item 17: air mix damper motor (DEF position)

• Check that the mode selection damper control motor

operates.

(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor within the specified range?

YES : Replace the A/C-ECU. Then go to Step 7.
NO :  Go to Step 4.

STEP 4. Check A/C-ECU connector C-15 and mode
selection damper control motor and potentiometer
connector C-102 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.
Q: Are A/C-ECU connector C-15 and mode selection

damper control motor and potentiometer connector
C-102 in good condition?
YES :
Go to Step 5.
NO :  Repair or replace the connector. Refer to GROUP

00E, Harness Connector Inspection

P.00E-2

. Then go

to Step 7.

AC305412

AB

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AC305233

CONNECTOR: C-15

BG

C-105 (B)

HARNESS SIDE

AC305231

C-102

HARNESS SIDE

CD

CONNECTOR: C-102

MANUAL A/C DIAGNOSIS

TSB Revision

HEATER, AIR CONDITIONING AND VENTILATION

55A-95

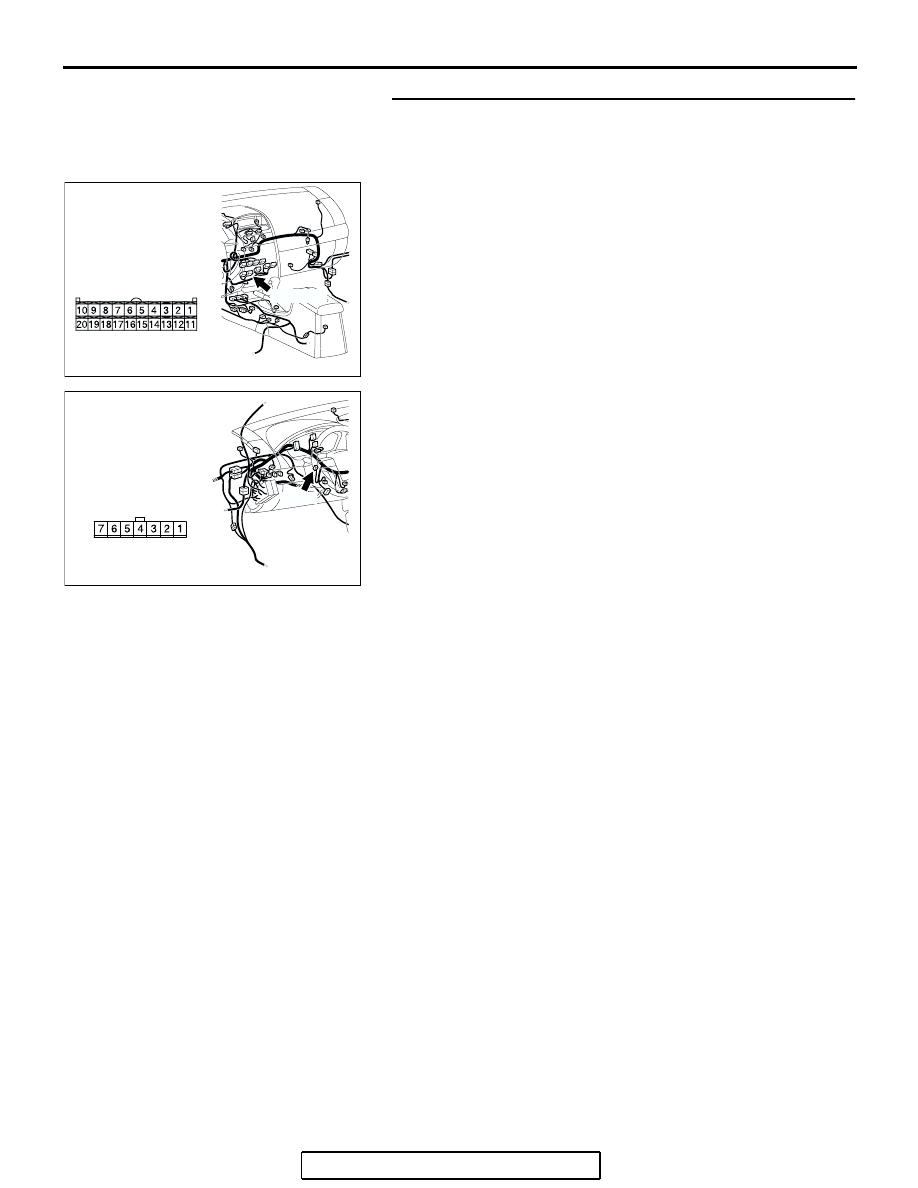

STEP 5. Check the wiring harness between A/C-ECU
connector C-15 (terminals 11 and 4) and mode selection
damper control motor and potentiometer connector C-102
(terminals 1 and 2).
Q: Are the wiring harnesses between A/C-ECU connector

C-15 (terminals 11 and 4) and mode selection damper
control motor and potentiometer connector C-102
(terminals 1 and 2) in good condition?
YES :
Go to Step 6.
NO :  Repair the wiring harness. Then go to Step 7.

AC305233

CONNECTOR: C-15

BG

C-105 (B)

HARNESS SIDE

AC305231

C-102

HARNESS SIDE

CD

CONNECTOR: C-102
