SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

TSB Revision

CIRCUIT DIAGRAMS

90-242

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) (CONTINUED)

JUNCTION
BLOCK
(FUSE    )

(FUSE    )

(FUSE    )

(FUSE    )

JUNCTION
BLOCK

AIR BAG OFF
INDICATOR
LIGHT

AIR BAG OFF
INDICATOR LIGHT
DRIVE CIRCUIT

SEAT BELT
WARNING
LIGHT

SEAT BELT
WARNING LIGHT
DRIVE CIRCUIT

PASSENGER'S
SIDE

PASSENGER'S
SIDE

SRS-ECU

22

22

20

20

JUNCTION
BLOCK

JUNCTION
BLOCK

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

TSB Revision

CIRCUIT DIAGRAMS

90-243

(FUSE     )

JUNCTION
BLOCK

OCCUPANT
CLASSIFICATION-ECU

OCCUPANT
CLASSIFICATION
SENSOR (LH)

OCCUPANT
CLASSIFICATION
SENSOR (RH)

OCCUPANT
CLASSIFICATION
DETECTION CIRCUIT

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW
SB : SKY BLUE     BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET

22

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

TSB Revision

CIRCUIT DIAGRAMS

90-244

SUPPLEMENTAL RESTRAINT SYSTEM (SRS) (CONTINUED)

FRONT IMPACT SENSOR INTERFACE CIRCUIT

FRONT
IMPACT
SENSOR
(LH)

FRONT
IMPACT
SENSOR
(RH)

SRS-ECU

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

TSB Revision

CIRCUIT DIAGRAMS

90-245

SEAT BELT BUCKLE
SWITCH (DRIVER'S SIDE)
DETECTION CIRCUIT

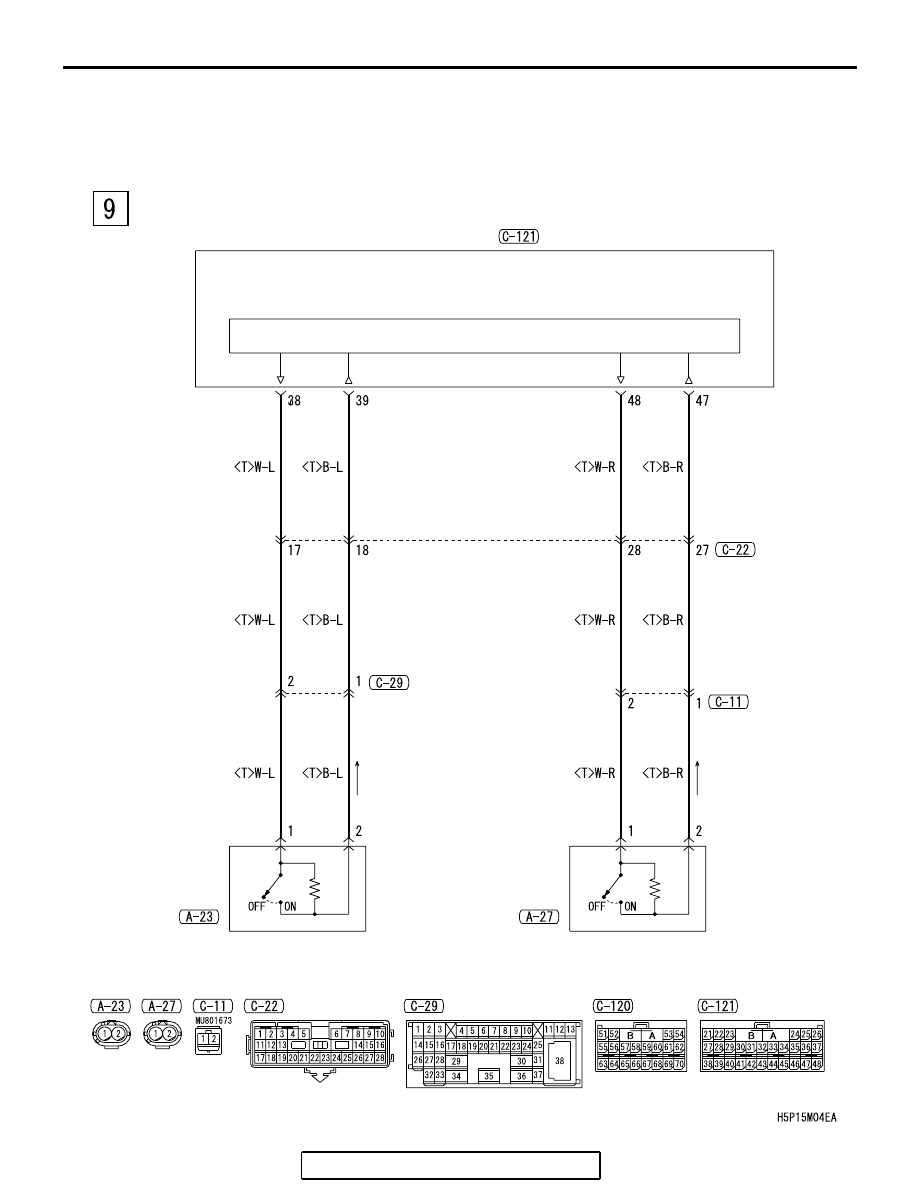

SEAT BELT BUCKLE
SWITCH (PASSENGER'S SIDE)
DETECTION CIRCUIT

SEAT BELT BUCKLE
SWITCH
(DRIVER'S SIDE)

SEAT BELT BUCKLE
SWITCH
(PASSENGER'S SIDE)

SEAT
SLIDE
SENSOR

HALL IC

SEAT SLIDE SENSOR
DETECTION CIRCUIT

SRS-ECU

WIRE COLOR CODE
B : BLACK     SB : SKY BLUE
BR : BROWN     LG : LIGHT GREEN
G : GREEN P : PINK     GR : GRAY
R : RED     L : BLUE     Y : YELLOW
V : VIOLET     W : WHITE     O : ORANGE
