WINDSHIELD WIPER AND WASHER

TSB Revision

CIRCUIT DIAGRAMS

90-182

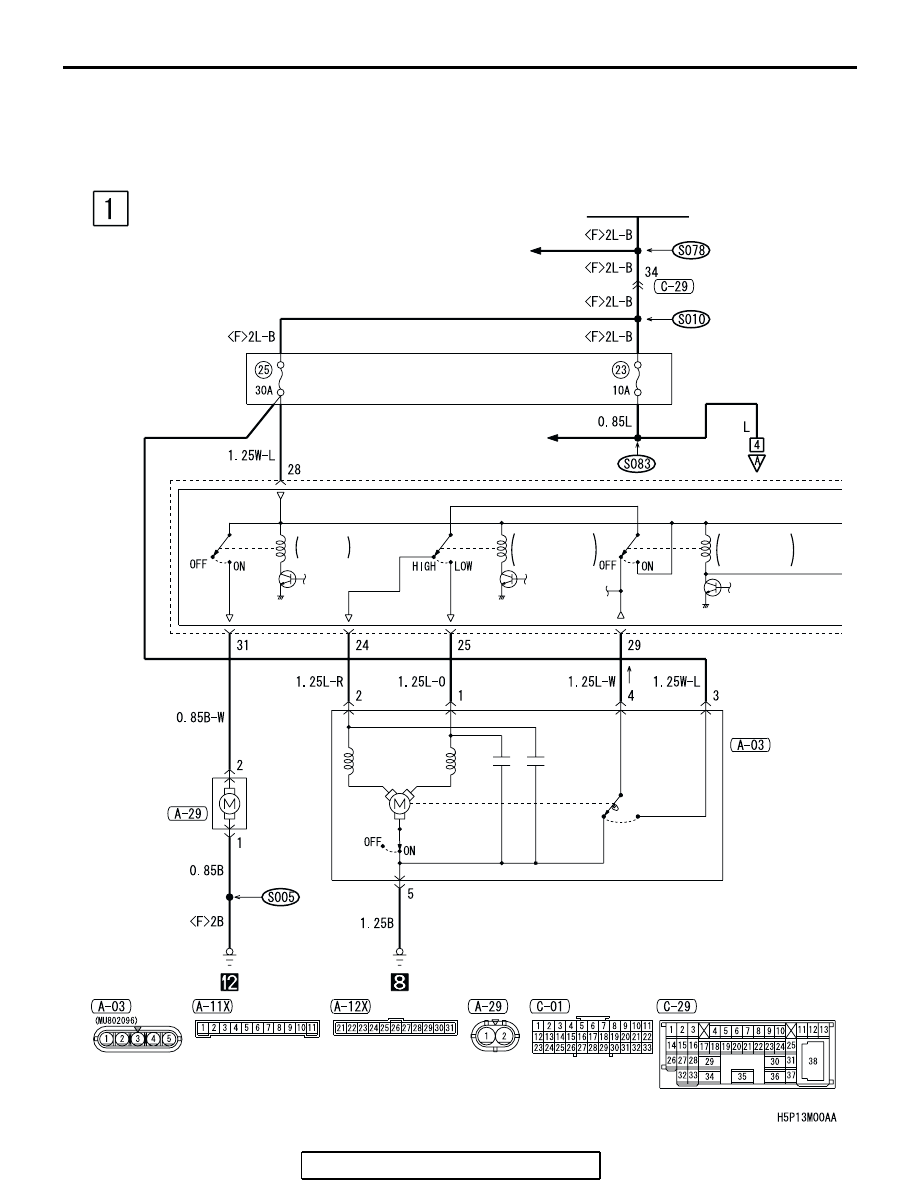

WINDSHIELD WIPER AND WASHER

M1901006101051

IGNITION
SWITCH (ACC)

·CENTRAL DOOR
 LOCKING SYSTEM
·CONTROLLER
 AREA NETWORK
 (CAN)
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY HOLE
 ILLUMINATION LIGHT
·REMOTE CONTROLLED
 MIRROR

·ACCESSORY SOCKET
·AUDIO SYSTEM
·AUTOMATIC AIR CONDITIONING SYSTEM
·CONTROLLER AREA NETWORK(CAN)
·MANUAL AIR CONDITIONING SYSTEM
·MULTI-CENTER DISPLAY

WASHER
RELAY

WIPER SPEED
SWITCHING
RELAY

WIPER
AUTOMATIC
STOP RELAY

WINDSHIELD
WIPER MOTOR

CIRCUIT
BREAKER

WINDSHIELD
WASHER MOTOR

RELAY
BOX

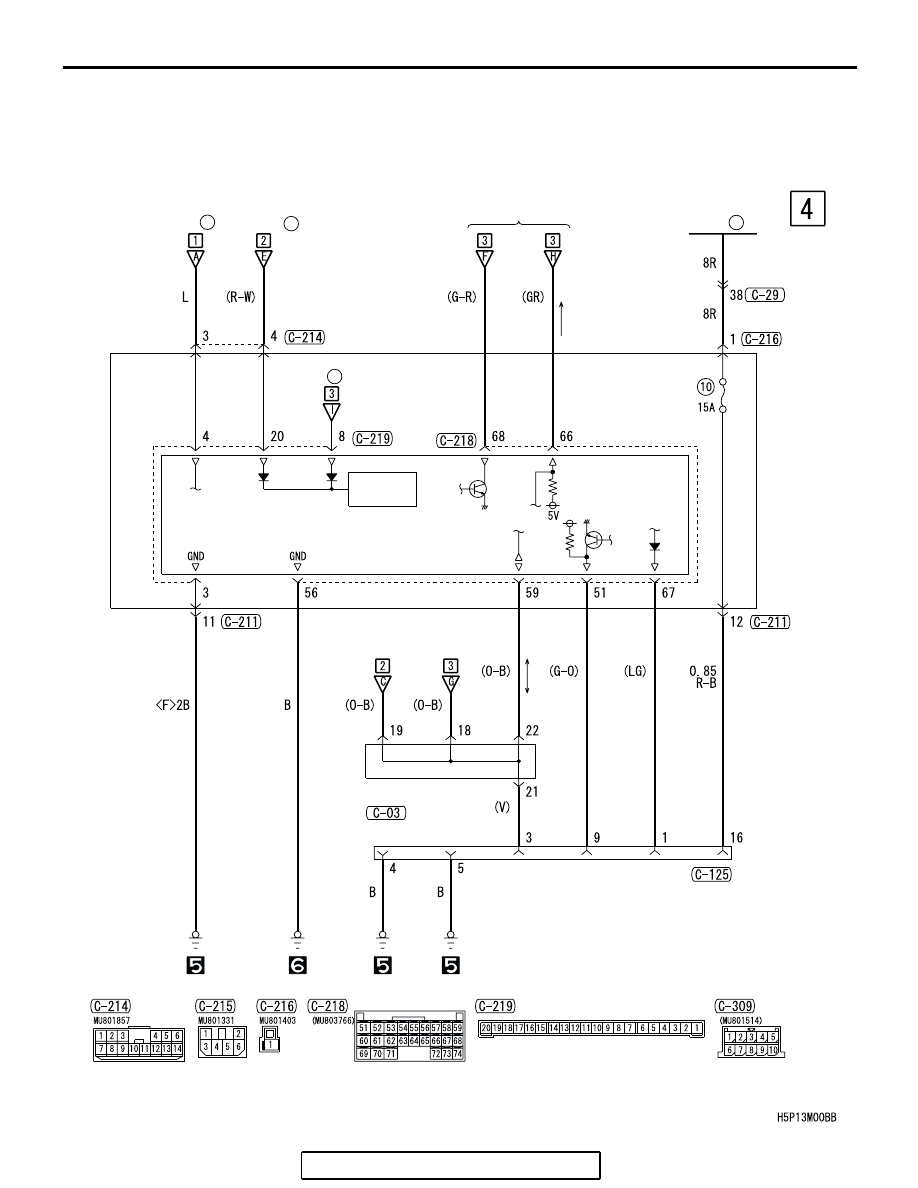

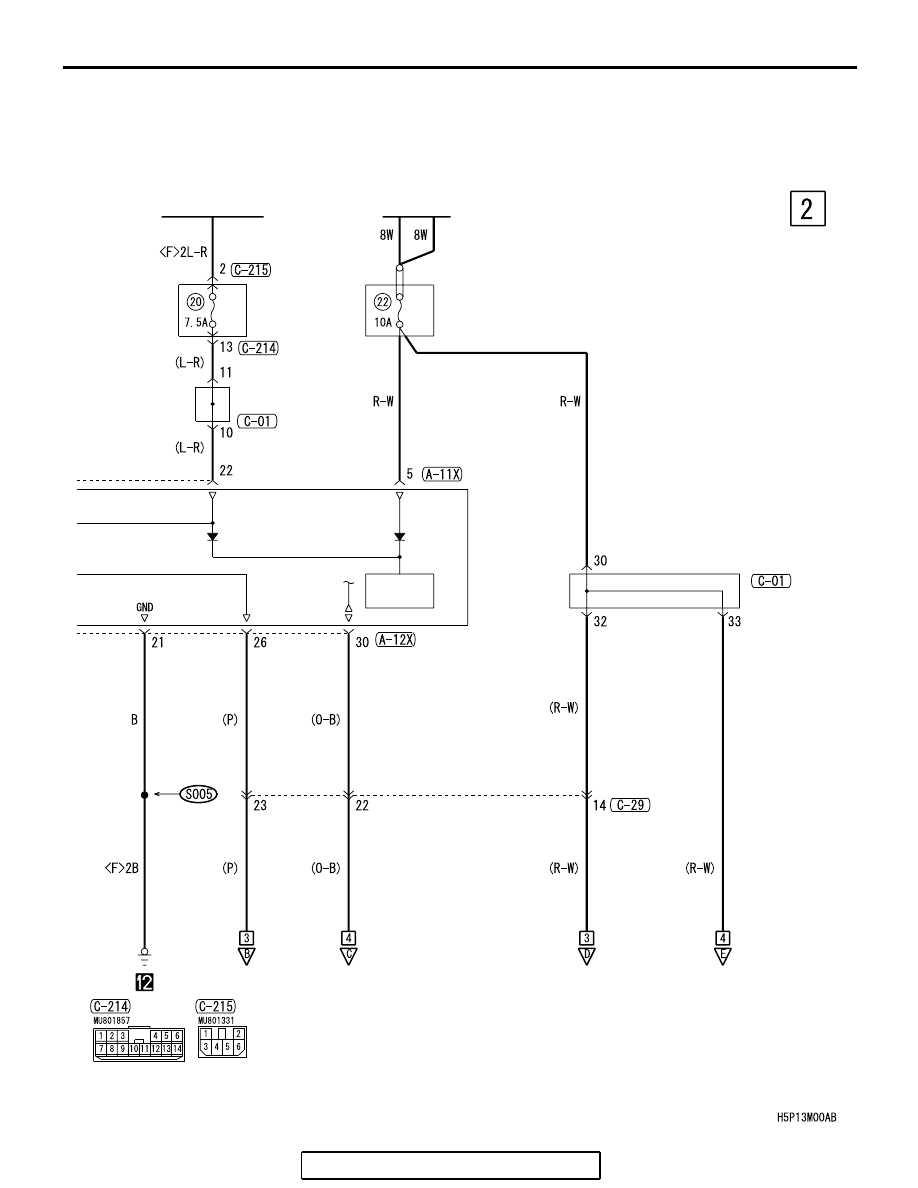

WINDSHIELD WIPER AND WASHER

TSB Revision

CIRCUIT DIAGRAMS

90-183

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE
BR :BROWN     O : ORANGE     GR : GRAY     R : RED     W : WHITE
SB : SKY BLUE     P : PINK      Y : YELLOW     V : VIOLET

IGNITION
SWITCH (IG2)

BATTERY

RELAY
BOX

JUNCTION
BLOCK

JOINT
CONNECTOR (1)

FRONT-ECU

JOINT
CONNECTOR (1)

POWER
SUPPLY

WINDSHIELD WIPER AND WASHER

TSB Revision

CIRCUIT DIAGRAMS

90-184

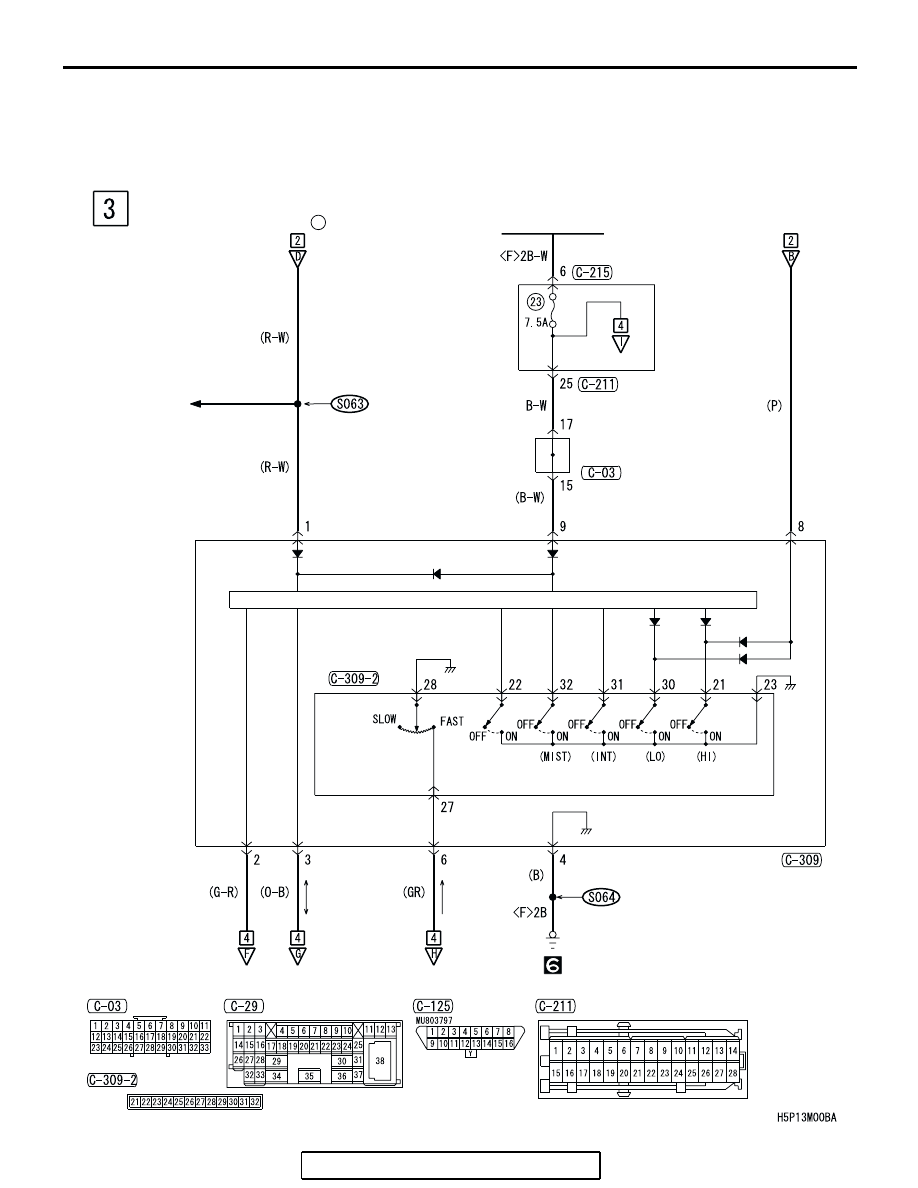

WINDSHIELD WIPER AND WASHER (CONTINUED)

IGNITION
SWITCH (IG1)

FRONT-ECU

JUNCTION
BLOCK

JOINT
CONNECTOR (2)

COLUMN-ECU

VARIABLE
INTERMITTENT
WIPER CONTROL
SWITCH

WINDSHIELD
WASHER SWITCH

WINDSHIELD
WIPER SWITCH

COLUMN SWITCH

UPPER
SIDE

·AUDIO SYSTEM
·AUTO-CRUISE
 CONTROL SYSTEM
·AUTOMATIC AIR
 CONDITIONING
 SYSTEM
·BRAKE WARNING
 LIGHT, OIL PRESSURE
 WARNING LIGHT,
 FUEL WARNING LIGHT
·CENTRAL DOOR
 LOCKING SYSTEM
·CHARGING SYSTEM
·CONTROLLER AREA
 NETWORK (CAN)
·DOOR AJAR
 WARNING
 TONE ALARM
·ELECTRONIC
 BRAKE-FORCE
 DISTRIBUTION
 (EBD) AND ANTI-
 LOCK BRAKING
 SYSTEM (ABS)
·ENGINE
 IMMOBILIZER
 SYSTEM
·FRONT DOME LIGHT,
 REAR DOME LIGHT,
 TRUNK LIGHT AND
 IGNITION KEY
 HOLE ILLUMINATION
 LIGHT
·INVECS-II 4A/T
·MANUAL AIR
 CONDITIONING
 SYSTEM
·METER AND GAUGE
·MFI SYSTEM
·MULTI-CENTER
 DISPLAY
·SEAT BELT
 WARNING
 TONE ALARM
·SUPPLEMENTAL
 RESTRAINT
 SYSTEM (SRS)
·VANITY MIRROR
 LIGHT

(FUSE     )

22

JOINT
CONNECTOR (1)

WINDSHIELD WIPER AND WASHER

TSB Revision

CIRCUIT DIAGRAMS

90-185

COLUMN SWITCH

RELAY BOX

(FUSE     )

23

FUSIBLE
LINK

1

JUNCTION BLOCK
(FUSE     )

23

ETACS-ECU

POWER
SUPPLY

JUNCTION
BLOCK

FRONT
-ECU

COLUMN
SWITCH

JOINT
CONNECTOR (2)

DATA LINK
CONNECTOR

JUNCTION BLOCK SIDE

WIRE COLOR CODE
B : BLACK     LG : LIGHT GREEN     G : GREEN     L : BLUE     W : WHITE     Y : YELLOW
SB : SKY BLUE     BR : BROWN     O : ORANGE     GR : GRAY     R : RED     P : PINK     V : VIOLET

(FUSE     )

22

JOINT
CONNECTOR (1)
